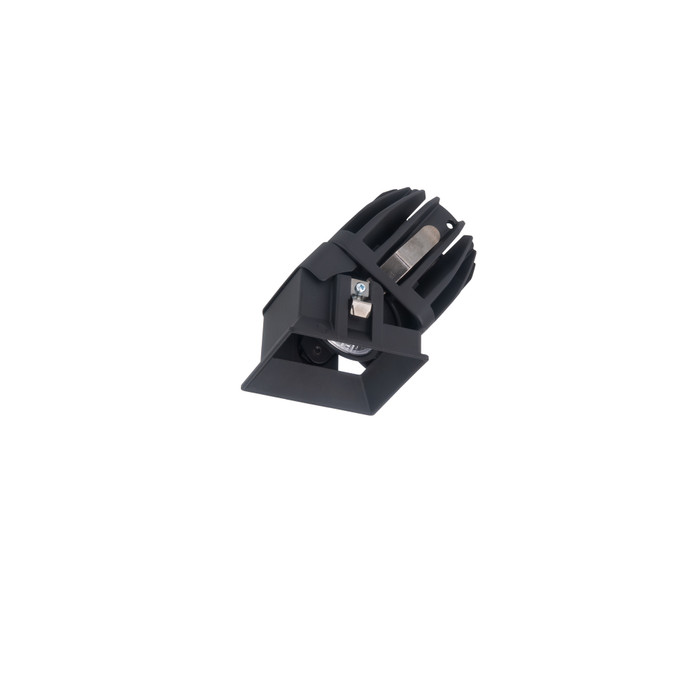

WAC Lighting R2FSA1 FQ 2in Square Adjustable Recessed Trim with Shallow Light Engine

WAC Lighting R2FSA1 FQ 2in Square Adjustable Recessed Trim with Shallow Light Engine

The WAC Lighting R2FSA1 is a 2in square adjustable trim from the FQ Recessed series, engineered with a shallow light engine that mounts directly to the trim for easy replacement. Built with two-piece die-cast aluminum construction, this compact fixture is sized for shallow ceiling plenums and delivers 25W of LED output at 90 CRI. It is ETL & cETL rated for damp locations, making it a reliable choice for both residential and light commercial recessed lighting applications.

Key Features

• Trade Size: 2in square trim profile suitable for compact recessed housings.
• Durable Construction: Two-piece die-cast aluminum body provides a compact, shallow-plenum-friendly design.
• Adjustable Aiming: 0-35° vertical tilting allows precise beam direction after installation.
• Field-Changeable Beam Angle: Reflectors are provided so installers can adjust beam spread on site.
• Serviceable Light Engine: LED module mounts on the trim with springs for quick, tool-light replacement.
• Light Output: 25W total wattage with 90 CRI for accurate color rendering.
• Voltage: Compatible with 120-240-277 universal driver input.
• Dimming: Compatible with 0-10V, ELV, and TRIAC dimming control.

Certifications & Compliance

• ETL & cETL Rated for Damp Locations
• Title 24 Compliant
• Title 20 Compliant
• Rated Operating Temperature: -4°F to 104°F (-20°C to 40°C)

Technical Specifications

• Bulb Base: LED Module - Universal Driver
• Bulb Shape: LED Module
• Bulbs Included: Yes
• Collection: FQ
• Dimmable: 0-10V,ELV;TRIAC
• Energy Star: No
• Hardwired or Portable: Hardwired
• Product Type: Recessed Trims
• Safety Rating: ETL;cETL
• Warranty: 5 Years Functional, 2 Years Finish
• Subcategory: 2" LED
• Avg Rated Hours: 50000
• CRI: 90
• Voltage: 120-240-277
• Material: Die-Cast Aluminum
• Country of Origin: China
• Total Wattage: 25
• Style: Modern; Transitional

Typical Applications

• Residential Recessed Lighting Retrofits
• Shallow Ceiling Plenum Installations
• Damp-Location Lighting Applications
• Accent and Directional Lighting Layouts
• Commercial and Hospitality Ceiling Systems

Why WAC Lighting?

WAC Lighting's FQ Recessed series pairs die-cast aluminum construction with a field-serviceable light engine, giving installers a compact, damp-location-rated trim that is easy to aim and easy to maintain. With ETL & cETL certification, Title 24 and Title 20 compliance, and a 5-year functional warranty, the R2FSA1 delivers dependable, code-compliant performance for professional lighting projects.
