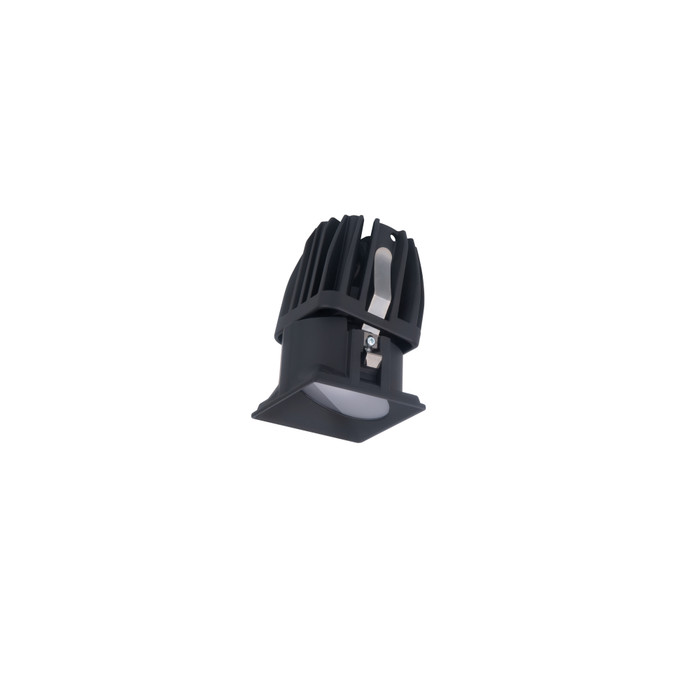

WAC Lighting R2FSW1 FQ 2in Square LED Wall Wash Trim, Shallow Light Engine

WAC Lighting R2FSW1 FQ 2in Square LED Wall Wash Trim, Shallow Light Engine

The WAC Lighting R2FSW1 is a 2in square wall wash trim from the FQ Recessed series, engineered for uniform floor-to-ceiling wall illumination in a compact, shallow-plenum housing. Built from two-piece die-cast aluminum with a shallow light engine mounted on springs for easy replacement, this trim is ETL & cETL rated for Wet locations and delivers a 90 CRI asymmetric beam at 120-240-277V. Title 24 and Title 20 compliance make it a strong fit for code-driven commercial and residential projects.

Key Features

• Compact 2in Square Design: Two-piece die-cast aluminum construction sized for shallow ceiling plenums where deep housings won't fit.
• Durable Construction: Die-Cast Aluminum body resists wear and supports long-term reliable performance.
• Serviceable Light Engine: Light engine is mounted on the trim with springs for quick, tool-free replacement.
• Precision Glare Control & Aim: 30° shielding with 35° vertical tilting and 360° horizontal rotation for even vertical and horizontal wall washing.
• Voltage Rating: Operates on 120-240-277V with 0-10V, ELV, and TRIAC dimming compatibility for flexible control integration.
• High Color Rendering: 90 CRI LED module rated for approximately 50,000 hours of average operating life.
• Wide Operating Range: Rated for -4°F to 104°F (-20°C to 40°C) ambient operating temperatures.

Certifications & Compliance

• ETL & cETL Rated for Wet Locations
• Title 24 Compliant
• Title 20 Compliant

Technical Specifications

• Bulb Base: LED Module - Universal Driver
• Bulb Shape: LED Module
• Bulbs Included: Yes
• Collection: FQ
• Dimmable: 0-10V,ELV;TRIAC
• Energy Star: No
• Hardwired or Portable: Hardwired
• Product Type: Recessed Trims
• Safety Rating: ETL;cETL
• Warranty: 5 Years Functional, 2 Years Finish
• Subcategory: 2" LED
• Avg Rated Hours: 50000
• CRI: 90
• Beam Spread: Asym
• Voltage: 120-240-277
• Material: Die-Cast Aluminum
• Country of Origin: China
• Location Rating: Wet
• Style: Modern; Transitional

Typical Applications

• Recessed Wall Wash Lighting for Retail and Hospitality Spaces
• Accent and Gallery Lighting for Artwork Display
• Residential Recessed Lighting in Shallow Ceiling Plenums
• Wet-Location Installations Such as Soffits and Covered Outdoor Areas
• Renovation and New Construction Lighting Projects

Why WAC Lighting?

WAC Lighting builds the FQ Recessed series around durable die-cast aluminum construction, serviceable spring-mounted light engines, and Wet-location ETL & cETL certification for dependable, code-compliant performance. With 90 CRI output, wide-range dimming compatibility, and a 5-year functional warranty, the R2FSW1 wall wash trim delivers consistent, professional-grade illumination for demanding commercial and residential applications.
