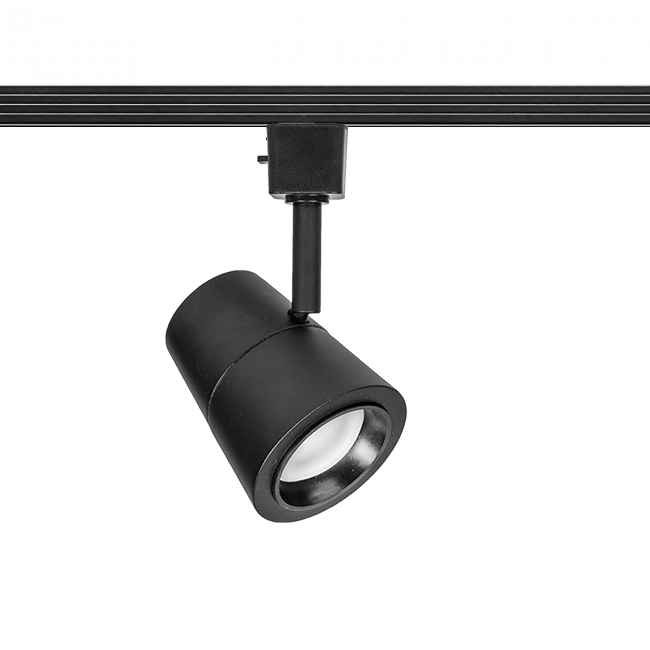

WAC Lighting LED201 Summit ACLED Track Head L Track Fixture

WAC Lighting LED201 Summit ACLED Track Head L Track Fixture

(No reviews yet) Write a Review

Model: WAC-LLED201
From the Summit Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$132.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-W736 Framed Indoor or Outdoor Large LED Wall Light

A weather-resistant bronze- or graphite-finished frame houses a clean box of light on this elegant, understated addition to your home, hotel, office or restaurant. The lines of the frame extend downward to accentuate the height of your walls and enhance the architectural sensibility. Framed is a versatile design with a minimalist attitude and plenty of cutting-edge LED technology.
  • Solid aluminum construction with white mitered glass and high powered dimmable LED's. Available in a Wet location or Damp location listing. (Wet has a W in part number).
  • Low profile ADA compliant.
  • Universal Input Voltage Driver (120V-240V-277V) located in 4in junction box. Custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 55,000, Color Temp: 3000K.
  • Standards: ETL, cETL & IP65 UL 1598 listed for wet locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
50000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
85
Collection:
Summit
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
660
Number of Bulbs:
1
Product Type:
L Track Fixture
Safety Rating:
UL, cUL
Shade/Glass Description:
Clear Glass Lens
Subcategory:
ACLED
Total Wattage:
15
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
6.75"
Reversible Mounting:
Yes
Shade Material:
Glass
Title 24 Compliant:
No
Bulb Type:
LED
Segment:
Lighting
SORTME:
1298
Product Voltage:
120
Product Length:
3.25"
Beam Spread Angle:
20-40
Light Temperature:
3000
Product Diameter:
3.25"
Product Style:
Modern
Product Height:
6.75"
Product Category:
Track Lighting
Product Width:
3.88"
Product Wattage:
15

WAC Lighting WAC-LLED201 – Frequently Asked Questions

1) Will the WAC Summit LED201 track head fit my existing track, or do I need WAC L-series track?
The LED201 Summit head is built with an L track connector, so it mounts to WAC L-series track only. It will not seat in a J-series or H-style (Halo-pattern) track. If your run is J or H track, you need the matching head for that connector rather than this one.
2) Can I use the WAC LED201 track head outside or in a covered patio?
No. The LED201 is an interior fixture with a dry location rating, so it is not suitable for outdoors, covered patios, bathrooms over a tub or shower, or any damp or wet spot. For those areas you need a fixture carrying a damp or wet location listing.
3) Does the WAC Summit LED201 come with the track, or do I have to order that separately?
Only the head is supplied. The LED201 is not a complete system, so the L track sections, feeds, connectors, and end caps are separate line items. Count your heads, then size the track length and the circuit feed around a 15 watt per head load.
4) How much light does the 15W WAC Summit LED201 put out, and what color is it?
Each Summit LED201 head draws 15 watts and delivers 660 lumens at 3000K, a warm white. CRI is 85, which is adequate for retail and gallery accenting where color accuracy matters. The LED module is integrated and comes with the fixture, so there is no lamp to buy.
5) Is the WAC LED201 track head dimmable, and what kind of dimmer do I need?
The LED201 is dimmable and runs on 120V line voltage, so it dims from a standard 120V wall dimmer rated for LED loads. At 15 watts per head you will likely need several heads on the circuit to reach the dimmer's minimum load, or a low-minimum LED dimmer, to avoid flicker and drop-out at the bottom of the range.
6) What beam angle does the WAC Summit LED201 have, and is it right for artwork or general accenting?
Beam spread runs 20 to 40 degrees, so it is an accent and spot head rather than a wash. The tighter end suits artwork, merchandise, and display cases where you want a defined pool; the wider end covers a shelf run or a seating group. For broad ambient coverage you want a flood head instead.
7) Is the WAC LED201 track head ADA compliant or Title 24 compliant?
No on both counts. The LED201 is not ADA compliant and is not Title 24 compliant, which matters on California projects and in corridors where wall projection limits apply. It does carry UL and cUL safety listings and is Energy Star rated.
8) What finishes does the WAC Summit LED201 track head come in?
Two finishes, black (L-LED201-30-BK) and white (L-LED201-30-WT), both in the 15 watt 3000K build. White disappears against a white ceiling and track; black reads as a deliberate accent and is the usual pick for galleries and retail. Matching the head finish to your existing track is what keeps a run looking consistent.
9) How long will the LED in the WAC Summit LED201 last, and can the module be replaced?
Rated life is 50,000 hours on an integrated LED module. There is no socket and no lamp base, so when the module reaches end of life you are servicing or replacing the head rather than swapping a bulb. For a facility standardizing a fleet of heads, keep a spare head or two on the shelf rather than lamps.
10) What is the WAC Summit LED201 head made of, and does it have a lens?
Aluminum housing with a clear glass lens over the LED. The aluminum body doubles as the heat sink, which is what keeps an integrated LED head alive over long run hours, and the clear lens keeps the beam tight rather than diffusing it.
