WAC Lighting LED208 Summit ACL...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$175.95

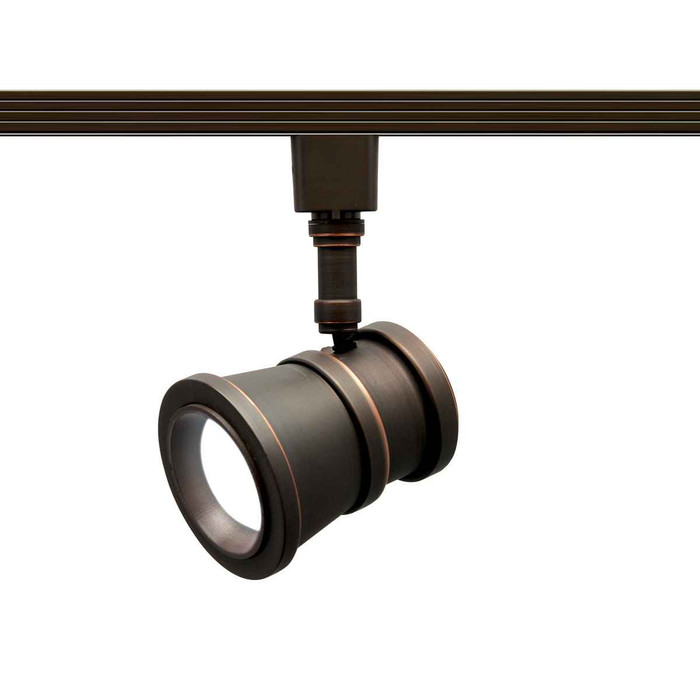

WAC Lighting LED208 Summit ACLED Track Head L Track Fixture

WAC Lighting LED208 Summit ACLED Track Head L Track Fixture

(No reviews yet) Write a Review

Model: WAC-LLED208
From the Summit Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$175.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-12118 Muse LED Wall Sconce

An elegant contrast of materials, from the ebony-stained tapered wooden post to the expertly mitered glass and polished nickel hardware, Muse sings all the bright notes. Unparalleled proprietary LEDs bring lost-lasting, energy-efficient illumination for exceptional light in residential and commercial applications. Available in four finishes- polished chrome, brushed nickel, satin brass and versatile black.
  • Solid aluminum hardware with an ebony-stained maple wood, and a silk screened mitered cut glass.
  • CEC Title 24 compliant, and low profile ADA compliant.
  • AC LED technology - no driver or transformer required. Easily fits on a pancake junction box. 277V, 240V, or custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
50000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
85
Collection:
Summit
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
660
Number of Bulbs:
1
Product Type:
L Track Fixture
Safety Rating:
UL, cUL
Shade/Glass Description:
Clear Glass Lens
Subcategory:
ACLED
Total Wattage:
15
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
7"
Reversible Mounting:
Yes
Shade Material:
Glass
Title 24 Compliant:
No
Bulb Type:
LED
Segment:
Lighting
SORTME:
1319
Product Voltage:
120
Product Length:
3.25"
Beam Spread Angle:
20-40
Light Temperature:
3000
Product Diameter:
3.25"
Product Style:
Modern
Product Height:
7"
Product Category:
Track Lighting
Product Width:
4"
Product Wattage:
15

WAC Lighting WAC-LLED208 – Frequently Asked Questions

1) Will the WAC Lighting LED208 Summit track head fit my existing track, or do I need a specific track type?
The LED208 Summit head is an L track fixture, so it mounts to L-style track only. It will not seat in H or J track. The head itself is not a complete system, so the track section, power feed, and end caps are ordered separately.
2) Can I use the WAC Summit LED208 in a covered exterior walkway or a bathroom?
No. It is rated for dry, interior locations only. A covered walkway, a shower area, or a canopy exposed to moisture needs a damp- or wet-listed head instead. Keep the LED208 to conditioned indoor spaces such as retail floors, galleries, and offices.
3) Is the WAC LED208 Summit track head listed and Energy Star rated for a commercial job?
It carries UL and cUL safety listings and is Energy Star rated. It is not ADA compliant and it is not Title 24 compliant, so if your job is a California project under Title 24 or a wall location that has to meet ADA projection limits, specify a different fixture.
4) What voltage and wattage does the WAC Summit LED208 track head run at?
It runs on 120V line voltage at 15 watts, with a total fixture load of 15W. That makes load calculations simple on a run: a 120V L track circuit will carry a number of these heads well within a typical 20A branch. There is no separate transformer to size for.
5) Can I aim the Summit LED208 tightly on artwork, or does it wash a wide area?
Beam spread is 20 to 40 degrees, so it works as an accent or spot head, tight enough to pick out a picture or a display case and still open enough at the wide end for a merchandise bay. It is not a flood for general ambient coverage.
6) Do I have to buy a lamp for the WAC LED208 track head?
No separate lamp to order. The Summit LED208 uses one integrated LED module, supplied with the fixture, behind a clear glass lens. There is no screw or pin base to match.
7) What size is the LED208 Summit head, and will it clear a low ceiling or a shelf?
The head measures 3.25 inches in diameter, 4 inches wide, and 7 inches in height at full extension. Allow that 7 inches of drop below the track plus your track height when working near a soffit, a shelf edge, or a low ceiling.
8) Can the LED208 head be mounted on track running along a wall rather than a ceiling?
Yes, it is a reversible-mount head, so it can be installed on wall-run or ceiling-run L track and aimed in either direction. Handy when you are grazing a wall of merchandise from track set on the opposite wall.
