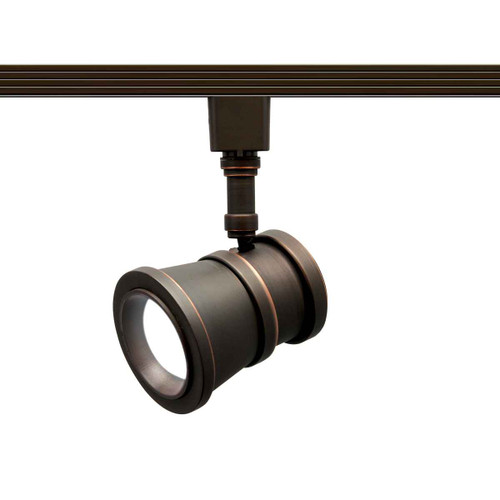

WAC Lighting LED208 Summit ACLED Track Head H Track Fixture

WAC Lighting LED208 Summit ACLED Track Head H Track Fixture

(No reviews yet) Write a Review

Model: WAC-HLED208
From the Summit Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$175.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms PD-66028 Fury LED Round Chandelier

An elegant chandelier combining energy efficiency with lustrous metal finishes and gold encased art glass panes. Soft and even illumination from an innovative design only made possible with the latest in LED technology. Energy-efficient integrated LED's provide a long-lasting maintenance-free bright and even illumination.
  • Molded gold and clear glass shards from handmade recycled glass.
  • Ultra-sleek electrified cables eliminate the need for clunky power wires. Height is simple to adjust through push pin connectors on the canopy. Longer heights available by special order.
  • Universal Input Voltage Driver (120V-240V-277V) inside fixture, can fit on a pancake junction box. Custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV), Triac, or 0-10V dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
50000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
85
Collection:
Summit
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
660
Number of Bulbs:
1
Product Type:
H Track Fixture
Safety Rating:
UL, cUL
Shade/Glass Description:
Clear Glass Lens
Subcategory:
ACLED
Total Wattage:
15
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
7"
Reversible Mounting:
Yes
Shade Material:
Glass
Title 24 Compliant:
No
Bulb Type:
LED
Segment:
Lighting
SORTME:
1369
Product Voltage:
120
Product Length:
3.25"
Beam Spread Angle:
20-40
Light Temperature:
3000
Product Diameter:
3.25"
Product Style:
Modern
Product Height:
7"
Product Category:
Track Lighting
Product Width:
4"
Product Wattage:
15

WAC Lighting WAC-HLED208 – Frequently Asked Questions

1) Will the WAC Summit LED208 track head fit my existing H-type track?
Yes. The Summit ACLED LED208 is built as an H track fixture, so it drops into H-type (Halo-pattern) track runs. It is a 120V fixture, which is the standard line voltage for H track systems. If your ceiling run is J or L track, this head will not seat in it.
2) How much light does the LED208 Summit track head actually put out, and what wattage does it draw?
660 lumens from a 15 watt integrated LED, in 3000K warm white with a CRI of 85. That is accent-level output, not general room lighting, so plan it over artwork, merchandise, or a display rather than as the only source in a space.
3) Is the LED208 Summit head dimmable, and does it meet California Title 24?
The head is dimmable and it is Energy Star rated. It is not Title 24 compliant, so for a California project with a Title 24 lighting scope this is the wrong head to spec. It also is not ADA compliant, which matters where fixtures project into a circulation path.
4) Can I use this WAC track head in a covered patio or a bathroom?
No. The Summit LED208 is rated for dry interior locations only, so keep it out of covered exterior runs, unconditioned porches, and wet or steamy baths. For those spaces you need a head carrying a damp or wet location rating.
5) Is a WAC Summit LED208 track head a complete track lighting system?
No, it is the head only. You still need the H track sections, a feed or power connector, end caps, and any couplers or connectors for the run layout. Order those separately and size the circuit for the number of 15 watt heads you are hanging.
6) Do I need to order bulbs for the Summit ACLED track head?
No separate lamp to buy. The LED module is integrated and included, one per head, with a clear glass lens in front of it. There is no screw base or pin base to match, so there is also nothing to re-lamp later.

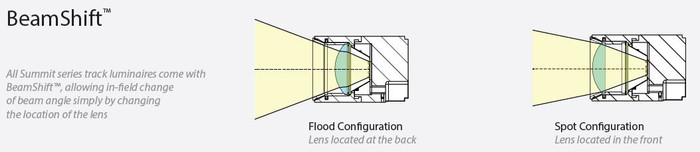

7) What beam angle does the WAC LED208 track head give me for highlighting artwork?
The beam falls in the 20 to 40 degree range, which covers tight accent on a single piece through to a medium spread that will wash a larger panel or a shelf section. At 660 lumens it is sized for accenting rather than ambient fill.
8) How much does the LED208 track head hang down below the ceiling, and how wide is it?
Figure 7 inches of height at maximum, with a 3.25 inch diameter body and 4 inches of overall width. Worth checking against low ceilings and against any door swing or shelving the head sits near.
9) Can the LED208 head be aimed up as well as down on the track?
Yes, it is a reversible mounting head, so it can be oriented to uplight or downlight depending on how you set it in the track adapter. Combined with the 20 to 40 degree beam, that gives you cove-style wash or straight accent from the same part number.
