Modern Forms WS-98318 Toulouse LED Wall Sconce
Add a dose of luxury from the rich and varied look of carved alabaster. Simply held by two metal accents. Diffused illumination glows from the stone creating an elegant, refined aesthetic.- Featuring first class quality natural Spanish alabaster with unique veining in each crafted piece.
- Wall mounted in any orientation
- AC LED technology - no driver or transformer required. Easily fits on a pancake junction box. 277V, 240V, or custom CCT options available by special order.
- Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
- High Powered Replaceable LED Module CRI: 90, Rated Hours: 54,000, Color Temp: 3000K
- Standards: ETL & cETL UL 1598 listed for damp locations.
Manufacturer Resources
Product Specs
- ADA Compliant:
- No
- Avg Rated Hours:
- 50000
- Bulb Base:
- Integrated LED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- CRI:
- 85
- Collection:
- Summit
- Complete System:
- No
- Dimmable:
- Yes
- Energy Star:
- Yes
- Hardwired or Portable:
- Portable
- Location Rating:
- Dry
- Lumens:
- 660
- Number of Bulbs:
- 1
- Product Type:
- H Track Fixture
- Safety Rating:
- UL, cUL
- Shade/Glass Description:
- Clear Glass Lens
- Subcategory:
- ACLED
- Total Wattage:
- 15
- Base Material:
- Aluminum
- Location Indoor/ Outdoor:
- Interior
- Max Height:
- 6.13"
- Reversible Mounting:
- Yes
- Shade Material:
- Glass
- Title 24 Compliant:
- No
- Bulb Type:
- LED
- Segment:
- Lighting
- SORTME:
- 1366
- Product Voltage:
- 120
- Product Length:
- 2.63"
- Beam Spread Angle:
- 20-40
- Light Temperature:
- 3000
- Product Diameter:
- 2.63"
- Product Style:
- Modern
- Product Height:
- 6.13"
- Product Category:
- Track Lighting
- Product Width:
- 3.75"
- Product Wattage:
- 15
WAC Lighting WAC-HLED202 – Frequently Asked Questions
1) Will the WAC Summit LED202 track head fit my existing H track?

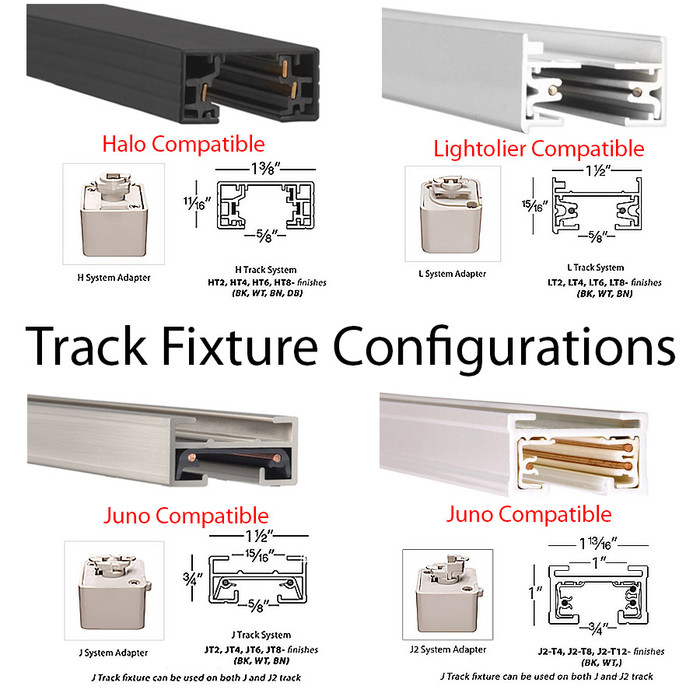

It's built as an H track fixture, so it mounts to H-style (Halo-type) single-circuit track. It won't drop onto J or L track systems without the matching track type. The head itself is a fixture only, not a complete system, so you supply the track, connectors and feed.
2) Is the LED202 Summit head bright enough for retail display or gallery accent lighting?
660 lumens out of a 15W LED, at 3000K with a CRI of 85 and a clear glass lens. That output in a 20 to 40 degree beam is accent-level light, good for artwork, merchandise and architectural features, not general room illumination. For ambient coverage you'd want a wider-beam head or more heads on the run.
3) Can I use this Summit track head in a covered exterior walkway or bathroom?
No. It is rated for dry interior locations only, so keep it out of covered exterior soffits, canopies, and anywhere exposed to shower steam or splash. For those spots you need a damp or wet location rated head.
4) Do I need to order a lamp or driver separately for the WAC LED202 Summit head?
No separate lamp or remote driver. The LED module is integrated and included, and the ACLED design runs straight off 120V line voltage with no transformer. You will still need the track, a power feed and end caps, since the head ships as a fixture rather than a complete system.
5) Is the LED202 Summit head UL listed and Energy Star rated for a commercial spec?
It carries UL and cUL safety listings and is Energy Star rated. Note that it is not Title 24 compliant and not ADA compliant, which matters if you are specifying into California energy code work or an ADA-governed protrusion zone.
6) What voltage and wattage does the WAC LED202 Summit track head draw, and can I run several on one circuit?
Each head is 120V and draws 15 watts total, with one integrated LED module. At 15W apiece you can put a good number on a standard 120V track run before you approach the track's rated load, so the limiting factor is your track and feed rating rather than the fixtures.
7) Can the beam angle on the Summit ACLED track head be adjusted after install?
The head is specified at a 20 to 40 degree beam spread, so you get a tighter spot through a narrow flood within that range. It also uses reversible mounting, which lets you orient the head on the track to aim where you need it.
8) What dimmer works with the WAC LED202 track head?
The head is dimmable on 120V. Because it's an AC LED (ACLED) design with the driver electronics on board rather than a separate remote driver, pair it with a dimmer rated for electronic LED loads and check that the dimmer's minimum load is satisfied by the number of 15W heads on the circuit.
9) How much space does the LED202 head take up on the track?
Compact head: 6.13 inches high, 3.75 inches wide, 2.63 inches in length and diameter. Worth checking against tight soffits or low-clearance ceilings and against the spacing between adjacent heads when you aim them.
10) What finishes does the WAC LED202 Summit track head come in, and what are the part numbers?
Two finishes, both at 15W and 3000K: black is H-LED202-30-BK and white is H-LED202-30-WT. White tends to disappear against a white ceiling; black reads as the deliberate accent choice in retail and gallery work.
11) Is the body of the WAC Summit track head metal or plastic?
Aluminum body with a clear glass lens over the LED. Aluminum is doing double duty here as the heat sink for the integrated module, which is why ACLED heads are built in metal rather than molded housings.
