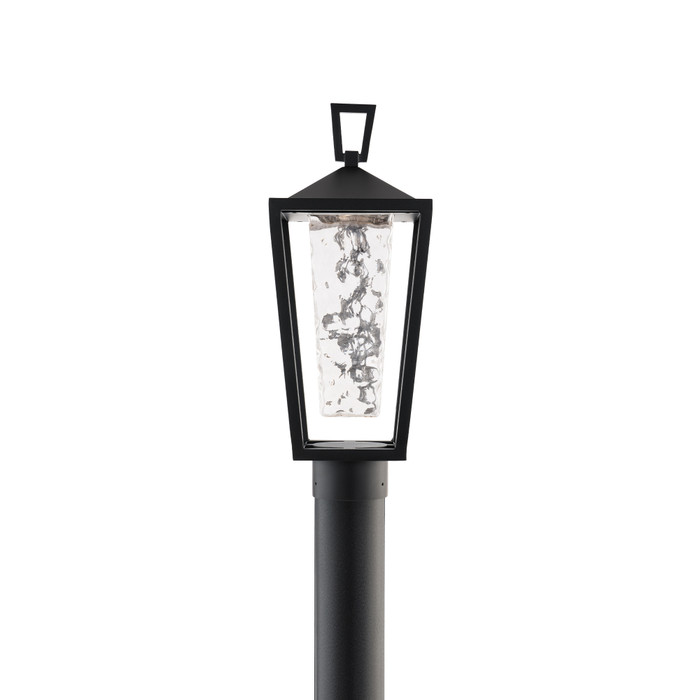

WAC Lighting PM-W335 Manchester 4-CCT LED Post Light, Aluminum
The WAC Lighting Manchester LED Post Light (PM-W335) pairs a thick hammered glass shade with an open cage frame for a textured glow and clean geometric styling. Built from Aluminum with a weather-resistant powder coat finish, this post light features a factory-sealed light engine, 4-CCT selectable color temperature (2700K-4000K), 935 lumens at 13W, and an IP65 rating for wet-location use.
Key Features
- Selectable Color Temperature: Built-in 4-CCT adjustability lets you switch between 2700K/3000K/3500K/4000K, with the option to pre-select or adjust color temperature in the field.
- Durable Construction: Aluminum housing with a weather-resistant powder coat finish stands up to outdoor exposure, and the light engine is factory sealed for maximum protection from the elements.
- AC LED Technology: No driver or transformer required, simplifying installation and long-term maintenance.
- Smooth Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimmers for continuous, flicker-free dimming.
- High-Powered LED Module: Replaceable module delivers 935 lumens at 13W, CRI 90, with a 54,000-hour rated life and selectable CCT of 2700-3000-3500-4000K.
- Wet Location Rated: IP65 listed for reliable performance in outdoor, wet-location installations.
Certifications & Compliance
- ETL Listed
- cETL Listed
- IP65 Rated for Wet Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - ACLED
- Bulbs Included: Yes
- Collection: Manchester
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 935
- Product Type: Outdoor Post Lighting
- Safety Rating: ETL;cETL;IP65
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Post Light
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 13
- Style: Transitional;Traditional
- Mounting: Post Mount
Typical Applications
- Outdoor Post and Entryway Lighting
- Driveway and Walkway Illumination
- Residential and Light Commercial Exteriors
- Landscape and Perimeter Lighting
- Wet-Location Outdoor Installations
Why WAC Lighting?
WAC Lighting builds the Manchester Post Light with a factory-sealed light engine and weather-resistant powder coat finish to hold up in outdoor, wet-location environments. Backed by ETL and cETL listings, an IP65 rating, CEC Title 24 compliance, and a 5-year functional / 2-year finish warranty, it delivers dependable, code-compliant performance for professional outdoor lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - ACLED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Manchester
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 935
- Product Type:
- Outdoor Post Lighting
- Safety Rating:
- ETL;cETL;IP65
- Shade/Glass Description:
- Hammered Glass
- Subcategory:
- Post Light
- Avg Rated Hours:
- 54000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120
- Product Material:
- Aluminum
- Location Rating:
- Wet
- Total Wattage:
- 13
- Product Style:
- Transitional;Traditional
- Mounting Method:
- Post Mount
- Department:
- Electrical
WAC Lighting PM-W33516-27-BK – Frequently Asked Questions
1) Does the WAC Lighting PM-W335 Manchester post light need a separate LED driver or transformer?
No. The Manchester PM-W335 uses AC LED technology, so no driver or transformer is required. It wires directly to 120V line voltage and is hardwired, which is what keeps the post base simple and cuts one more component out of future service calls.
2) Can the PM-W335 Manchester post light be used on a 12V low-voltage landscape lighting system?
No. The Manchester post light is a 120V line-voltage, hardwired fixture. If your driveway or walkway run is on a 12V landscape transformer, this is the wrong fixture for that circuit, and you would need a line-voltage branch circuit brought to the post instead.
3) How do I set the color temperature on the WAC Manchester 4-CCT post light?
The Manchester post light has built-in 4-CCT selectability across 2700K, 3000K, 3500K and 4000K. You can pre-select the color temperature or change it in the field, so one fixture covers warm entryway light through cooler 4000K driveway light. If you are standardizing several posts on a property, pick one setting and set them all the same way.
4) Will the WAC PM-W335 post light work with my existing dimmer?
It dims on electronic low voltage (ELV) or TRIAC dimmers. A standard incandescent/magnetic-only dimmer is not the right control. Swap to an ELV or TRIAC-type LED dimmer rated for the load (the fixture draws 13W) for flicker-free dimming.
5) Is the Manchester PM-W335 rated for direct rain and sprinkler exposure on an exposed post?
Yes. It is wet-location rated and IP65 listed, with ETL and cETL listings, an aluminum housing, a weather-resistant powder coat finish, and a factory-sealed light engine. That covers an open post at the end of a driveway or a walkway run with irrigation nearby.
6) Does the Manchester post light mount to a wall or only on a post?
Post mount only. The PM-W335 is built as an outdoor post light and sits on a post or pier, so it is not a wall-mount lantern. For a wall beside an entry door you need a wall-mounted outdoor sconce instead.
7) How much light does a 13W Manchester post light actually put out, and is it enough for a walkway?
935 lumens at 13W, with a flood beam spread and CRI 90. The flood distribution spreads light outward rather than throwing a narrow spot, which suits entry paths, walkways and perimeter posts. CRI 90 means landscaping and brick read close to their true color.
8) When the LED in this WAC post light eventually fails, does the whole fixture get replaced?
No. The Manchester uses a replaceable high-powered LED module (ACLED base) rated at 54,000 hours, and the module ships with the fixture. For an MRO or property maintenance program that means a module swap rather than pulling and rewiring the fixture.
9) Does the WAC Manchester post light meet California Title 24 for outdoor residential lighting?
Yes, the Manchester PM-W335 is CEC Title 24 compliant. It is not Energy Star certified, so if a rebate program or spec specifically calls for Energy Star, this fixture will not satisfy that line item.
10) What does the Manchester post light look like, and will it match traditional exterior fixtures already on a property?
It pairs a thick hammered glass shade with an open cage frame, giving a textured glow and squared-off geometric lines. The styling is listed as transitional and traditional, so it sits alongside existing lantern-style exteriors without reading as modern.
11) Is there an installation guide for the WAC PM-W335 post light?
Yes, WAC publishes an installation guide for the Manchester post light covering the hardwired 120V connection and post mounting. It is available as a PDF with the product documentation.
