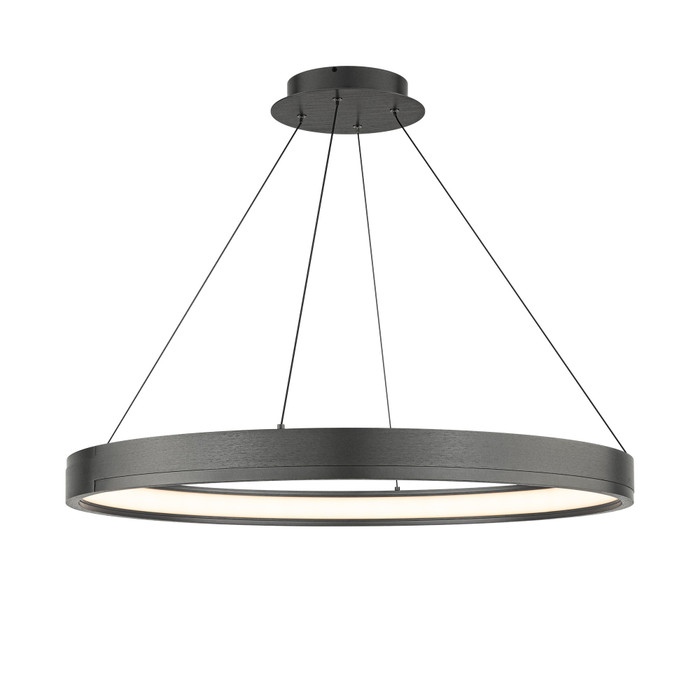

WAC Lighting DB Rounder 4-CCT LED Pendant, Aluminum
WAC Lighting's Rounder 4-CCT LED Pendant blends sculptural minimalism with technical performance, using an aluminum frame and interior silicone diffuser to cast a smooth, glare-free halo of light. This pendant runs on a universal 120-240-277V input voltage driver concealed in the canopy, delivers 3794 lumens at CRI 90, and offers selectable 2700-3000-3500-4000K color temperature for flexible ambiance. It is ETL and cETL listed for damp locations, making it suitable for professional installation in modern and transitional interiors.
Key Features
- Aluminum Frame & Silicone Diffuser: Durable aluminum frame paired with an interior silicone diffuser for a smooth, sculptural glow.
- Universal Input Voltage Driver: Concealed 120-240-277V driver in the canopy simplifies specification across voltage systems.
- Selectable Color Temperature: 2700-3000-3500-4000K selectable CCT with CRI 90 for accurate, consistent color rendering.
- High Light Output: 3794 lumens at 53.3W total wattage from a high-powered, replaceable LED rated for 50,000 hours.
- Smooth Dimming: Compatible with ELV or TRIAC dimmers for continuous, flicker-free dimming control.
- Adjustable Height: Ultra-sleek electrified cable with push-pin canopy connectors allows simple height adjustment; sloped ceiling compatible.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC and Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 3794
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: Vietnam
- Total Wattage: 53.3
- Style: Modern;Transitional
Typical Applications
- Residential and Commercial Interior Lighting
- Kitchen Islands and Dining Areas
- Reception Areas and Lobby Spaces
- Damp-Location Interior Installations
- Modern and Transitional Decor Settings
Why WAC Lighting?
WAC Lighting's Rounder pendant pairs an aluminum frame and silicone diffuser with a high-powered, replaceable LED engine rated for 50,000 hours, backed by a 5-Year Functional and 2-Year Finish warranty. ETL and cETL listings for damp locations support reliable, code-compliant performance in professional lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Rounder
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 3794
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Silicone Diffuser
- Subcategory:
- Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 53.3
- Light Temperature:
- 2700-3000-3500-4000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD403632-DB – Frequently Asked Questions
1) Can the WAC Lighting Rounder LED pendant run on 277V commercial power, or is it 120V only?
The Rounder pendant takes a universal 120-240-277V driver, concealed in the canopy. The same part works on residential 120V and on 277V commercial lighting circuits, so you can standardize one pendant across a building with mixed voltage systems. It is hardwired, not plug-in, so it needs a junction box at the ceiling.
2) Will this WAC Rounder pendant work over a bathroom vanity or a covered patio?
It carries a damp location rating and is ETL and cETL listed, so a bathroom, covered porch, or screened area where it never sees direct water or weather is fine. A wet location (direct rain or spray, or an open exterior soffit edge) is not covered by a damp rating and you should spec a wet-rated fixture there instead.
3) What dimmer do I need for the WAC Rounder 4-CCT pendant?
Use an ELV (electronic low voltage) or TRIAC dimmer. Those are the two control types the integral driver is compatible with, and they give continuous flicker-free dimming. A 0-10V or DALI control will not work with it, so don't spec it into a 0-10V zone.
4) Do I have to order a specific color temperature, or is it field selectable?
One part covers four color temperatures. The Rounder is a 4-CCT pendant, selectable at 2700K, 3000K, 3500K, or 4000K, so you set it at install to match the rest of the room rather than ordering a separate SKU per Kelvin. Color rendering is CRI 90 at any of the four settings.
5) Can this pendant be hung on a sloped ceiling, and can I shorten the drop?
Yes to both. The Rounder hangs from an electrified cable with push-pin canopy connectors, so the height is adjusted at the canopy without cutting or re-wiring, and WAC lists it as sloped ceiling compatible. Mounting is ceiling only, so it is not a wall or stem-to-wall application.
6) Does the WAC Rounder pendant meet California Title 24 and Title 20?
WAC lists the Rounder pendant as CEC and Title 24 compliant, and Title 20 compliant, which is what a California job needs for the lighting line on the permit set. It is not Energy Star certified, and it is not ADA compliant, so it should not be specified where an ADA-compliant fixture is required.
7) Is the WAC Rounder pendant bright enough to light a kitchen island on its own?
It puts out 3794 lumens at 53.3W with a flood beam spread, which is substantial output for a single decorative pendant and enough to carry general light over an island or a dining table. Flood distribution means the light spreads rather than spotlighting, so a single unit covers the surface instead of needing a row of narrow-beam pendants.
8) Does the WAC Rounder pendant take a replaceable bulb, or is the LED built in?
The light source is an integral LED module driven by the universal driver, and it ships with the LED included, so there is no lamp to buy. WAC describes the LED engine as replaceable and rates it for 50,000 hours, which is the relevant point for an MRO or facilities buyer planning maintenance: no relamping cycle, and the engine is serviceable rather than throwaway.
9) What finish does the DB Rounder pendant come in, and what is the shade made of?
DB is Dark Bronze, and that is the single finish on this configuration. The frame is aluminum with an interior silicone diffuser rather than glass, so there is nothing to crack in a commercial corridor or a reception area, and it reads as a soft glowing ring instead of a hard bright source.
10) Is there an installation guide for the WAC Rounder pendant?
WAC publishes an installation guide for the Rounder pendant, available as a PDF at https://zensupply.com/content/pdf/wac-lighting/installation-guide-96c512.pdf. Worth pulling before the electrician is on site, since the driver sits in the canopy and the cable connectors are push-pin.
