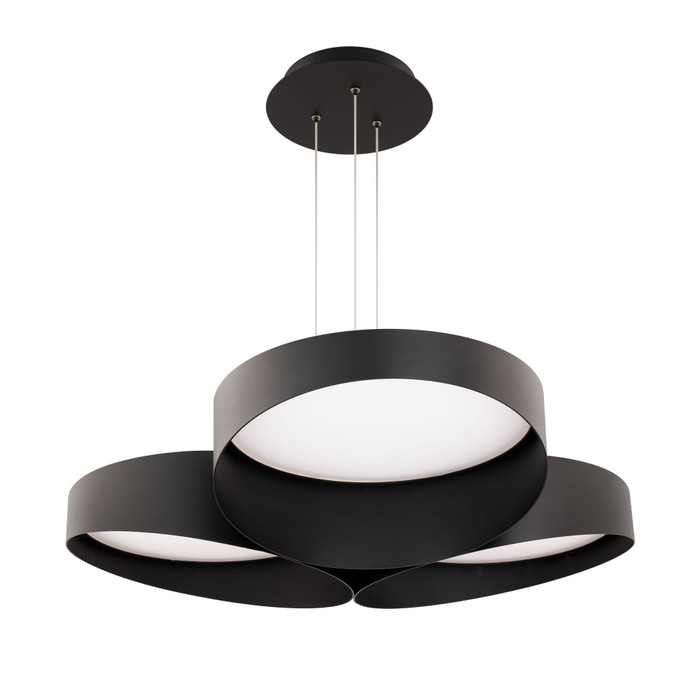

WAC Lighting PD-545 Triolet 4-CCT LED Pendant, Aluminum
The WAC Lighting Triolet 4-CCT LED Pendant pairs slim circular aluminum bands with both upward and downward illumination, delivering a minimalist statement fixture for contemporary interiors. Built-in color temperature adjustability lets installers switch between 2700K, 3000K, 3500K, and 4000K, while the concealed Universal Input Voltage Driver (120V-240V-277V) and ETL & cETL Damp Location listing make it suitable for a range of professional installations.
Key Features
- Durable Construction: Aluminum construction provides both up and downward illumination for balanced ambient light.
- Selectable Color Temperature: Built-in 4-CCT adjustability across 2700K/3000K/3500K/4000K, with the option to pre-select or adjust color temperature in the field.
- Ultra-Sleek Cable Design: Electrified cable eliminates clunky power wires; height adjusts easily through push pin connectors on the canopy, with sloped ceiling compatibility.
- Universal Voltage Driver: Universal Input Voltage Driver (120V-240V-277V) is concealed within the canopy for a clean installation.
- Dimming Compatibility: Smooth, continuous dimming with electronic low voltage 0-10V, ELV, or TRIAC dimmers.
- High-Performance LED Module: Replaceable LED module rated at CRI 90 with 42,000 rated hours and selectable CCT color temperature of 2700-3000-3500-4000K.
- Light Output: 37W total wattage delivering 3412 lumens for effective task and ambient lighting.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Dimmable: 0-10V;ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 3412
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 37
- Style: Modern;Transitional
Typical Applications
- Contemporary Residential Pendant Lighting
- Kitchen Island and Dining Area Fixtures
- Hospitality and Commercial Interior Lighting
- Sloped Ceiling Installations
- Damp-Location Indoor Spaces
Why WAC Lighting?
WAC Lighting backs the Triolet pendant with a durable aluminum build, a replaceable CRI 90 LED module rated for 42,000 hours, and ETL & cETL Damp Location listing for code-compliant performance. A 5-year functional and 2-year finish warranty supports reliable, long-term use in contemporary residential and commercial spaces.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Triolet
- Dimmable:
- 0-10V;ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 3412
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Subcategory:
- Pendant
- Avg Rated Hours:
- 42000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 37
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-54536-27-BK – Frequently Asked Questions
1) Can the WAC Triolet PD-545 pendant run on 277V in a commercial building?
Yes. The Triolet PD-545 uses a universal input voltage driver rated 120V, 240V, and 277V, so the same fixture works on residential 120V and commercial 277V circuits. The driver is concealed in the canopy, and the fixture is hardwired, not plug-in, so it needs a ceiling outlet box and a licensed connection.
2) Is the color temperature on the Triolet LED pendant set in the field or do I have to order it?
Both paths exist. The PD-545 has built-in 4-CCT selection across 2700K, 3000K, 3500K, and 4000K that an installer can switch at the fixture, and it is also orderable pre-selected at any one of those four settings. For a multi-unit job where you want every pendant matching out of the box, order the CCT you want; for a single install where the owner may want to see options, set it on site.
3) Will the WAC Triolet pendant work on a sloped ceiling?
Yes. The Triolet hangs from an electrified cable with push pin connectors at the canopy for height adjustment, and the canopy is sloped ceiling compatible. It is a ceiling-mounted hardwired fixture, so you still need a box at the slope.
4) Can I hang the PD-545 Triolet pendant in a bathroom or a covered porch?
Damp location is the rating, ETL and cETL listed. That covers a bathroom away from direct spray and other indoor damp spaces. It does not cover wet locations, so an uncovered exterior spot or anywhere exposed to rain or direct water needs a wet-rated fixture instead.
5) What dimmer works with the WAC Triolet 4-CCT LED pendant?
The Triolet dims smoothly on 0-10V, ELV, or TRIAC controls. If you are tying it into a commercial control system, 0-10V is the path; on a residential retrofit, a TRIAC or ELV LED-rated dimmer works. Standard incandescent-only dimmers are not on the compatible list.
6) Is the Triolet pendant bright enough for a kitchen island?
It puts out 3412 lumens at 37W with a flood distribution, and the aluminum bands throw light both up and down, so you get task light on the counter plus ambient bounce off the ceiling. CRI 90 keeps finishes and food color reading accurately. For a long island, lighting designers typically run two or three pendants rather than one.
7) Do I have to replace the whole Triolet pendant when the LED fails?
No. The LED module in the PD-545 is replaceable, so the fixture itself stays on the ceiling. The module is rated 42,000 hours at CRI 90 with the selectable CCT built in. That matters for facility maintenance planning, since you are not buying a lamp with a standard base, you are buying the WAC module for that pendant.
8) Does the Triolet LED pendant meet California Title 24?
Yes, the Triolet is CEC Title 24 compliant, which is what a California spec job will ask for. It is not Energy Star listed, so if a utility rebate program requires Energy Star specifically, this fixture will not qualify on that basis.
9) Is the WAC PD-545 Triolet pendant ADA compliant for a corridor?
No. The Triolet is listed as not ADA compliant, and as a cable-hung ceiling pendant it projects down into the space. For ADA-restricted corridors and paths of travel you want a flush or low-projection ceiling fixture instead.
10) Can I adjust the hanging height of the Triolet pendant after it is installed?
Yes. Height is set through push pin connectors on the canopy that take up the electrified cable, so a contractor can tune the drop on site instead of ordering a specific stem length. The cable carries the power, so there is no separate bundled power wire hanging alongside it.
11) Does the WAC Triolet pendant come with the bulb, or do I order a lamp separately?
Nothing extra to buy for light. The Triolet ships with its integrated LED module included and the universal voltage driver built into the canopy. There is no socket for a screw-in lamp.
12) What finish and material is the Triolet 4-CCT pendant?
Aluminum, in WAC's slim circular band form with a modern to transitional look. The aluminum build is what keeps a fixture this size light enough for cable suspension while holding the damp location rating.
