WAC Lighting PD-235 Quatrro 4-CCT LED Pendant, Aluminum

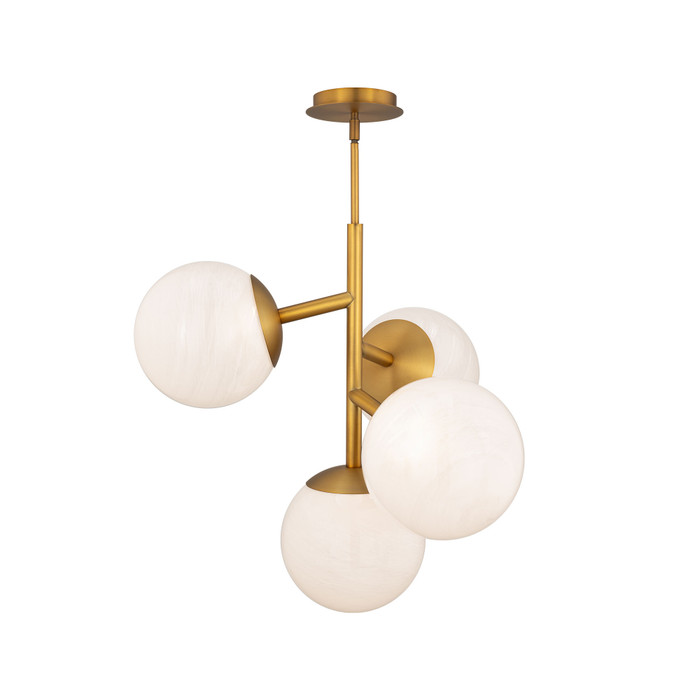

The WAC Lighting Quatrro 4-CCT LED Pendant (PD-235) offsets four frosted glass globes around a substantial aluminum center stem, casting a warm, diffused glow into the surrounding space. Built with selectable color temperature from 2700K to 4000K and a high-powered replaceable LED module rated at 30W and 2720 lumens with a 90 CRI, this pendant is ETL & cETL listed for damp locations and CEC Title 24 compliant, making it a reliable choice for both residential and light commercial hanging lighting applications.
Key Features
- Durable Construction: Aluminum center stem paired with four frosted glass spheres for a distinctive, spaced-out silhouette.
- Selectable Color Temperature: Built-in CCT adjustability across 2700K/3000K/3500K/4000K, with the option to pre-select the color temperature or adjust it in the field.
- Sloped Ceiling Compatible: Includes three 12in and one 6in extension rods (additional extension rods available separately) for flexible mounting height.
- Smooth Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimmers for smooth, continuous dimming performance.
- Universal Voltage Driver: Universal input voltage driver (120V-240V-277V) concealed within the canopy for simplified installation across a range of electrical systems.
- High-Powered LED Module: Replaceable LED module delivers 2720 lumens at 30W, with a CRI of 90 and 50,000 rated hours for long service life.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Rated for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Quatrro
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 2720
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 30
- Style: Modern,Transitional
Typical Applications
- Residential Dining Rooms and Kitchen Islands
- Entryways and Foyers
- Living and Great Rooms
- Sloped Ceiling Installations
- Light Commercial Hanging Lighting Applications
- New Construction and Remodel Projects
Why WAC Lighting?
WAC Lighting builds the Quatrro pendant around a replaceable, high-powered LED module with a 90 CRI and 50,000 rated hours, backed by a 5-year functional and 2-year finish warranty. With a universal voltage driver, ELV/TRIAC dimming compatibility, and ETL & cETL damp-location listing, this pendant is engineered for dependable, code-compliant performance in demanding residential and commercial lighting projects.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Quatrro
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 2720
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Glass Spheres
- Subcategory:
- Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 30
- Product Style:
- Modern,Transitional
- Mounting Method:
- Ceiling
WAC Lighting PD-23527-27-BK – Frequently Asked Questions
1) Can the WAC Quatrro PD-235 pendant be installed on a sloped ceiling?
Yes. The Quatrro PD-235 ships with three 12 inch extension rods and one 6 inch rod, and the description calls out sloped ceiling compatibility. Additional extension rods are sold separately if you need more drop than the included set gives you. It is a ceiling-mounted, hardwired fixture, so plan on a junction box at the mounting point.
2) What voltage does the Quatrro PD-235 LED pendant run on, and do I need a different model for 277V?
One model covers all three. The PD-235 uses a universal input driver rated 120V, 240V and 277V, concealed in the canopy, so the same fixture works on a residential 120V circuit or a 277V commercial lighting circuit without ordering a separate version.
3) Will the WAC Quatrro pendant work with my existing dimmers?
It dims on electronic low voltage (ELV) or TRIAC (forward phase) dimmers. If the room is on an older magnetic low voltage or 0-10V control, you will need to swap the control to an ELV or TRIAC type to dim this fixture.
4) Do I have to pick the color temperature when I order the Quatrro PD-235, or can it be changed later?
Both. The Quatrro is a selectable 4-CCT fixture covering 2700K, 3000K, 3500K and 4000K, ordered pre-selected at one of those settings and adjustable in the field afterward. That means you can standardize a building at 3000K now and re-set a fixture later without buying new hardware.
5) Can the Quatrro PD-235 pendant go over a bathroom vanity or in a covered exterior entry?
It carries a damp location rating, ETL and cETL listed, so a bathroom, covered porch or breezeway where it is shielded from direct water is fine. Do not use it anywhere it will take direct rain or spray, that calls for a wet-rated pendant.
6) What finishes does the WAC Quatrro PD-235 come in?
Two: Black and Aged Brass, both with the same frosted glass spheres on an aluminum center stem. If you are matching other openings or fixtures in a building, those are the choices, and each is offered across the full 2700K to 4000K CCT range.
7) Is the LED in the Quatrro pendant replaceable, or is the whole fixture disposable when it fails?
The LED module is replaceable, which matters for MRO and property maintenance. It is rated 50,000 hours at 30W and 2720 lumens, and the module is included with the fixture, so there is no lamp to source at install.
8) Is 2720 lumens enough for a kitchen island or dining table?
For a single pendant over a dining table or a standard island, 2720 lumens at 30W is substantial output, and the frosted glass spheres spread it as a flood rather than a tight beam, so you get diffused light instead of a hot spot on the countertop. At 90 CRI, color rendering is high enough for kitchen and food prep work.
9) Does the Quatrro PD-235 pendant meet CEC Title 24 for a California job?
Yes, the PD-235 is listed as CEC Title 24 compliant. Note that it is not Energy Star rated and not ADA compliant, so if your scope calls for ADA-compliant fixtures in a corridor or similar, a pendant is the wrong form factor for that location anyway.
10) Is the Quatrro PD-235 a plug-in pendant or does it need to be hardwired?
Hardwired only. There is no cord and plug option, so an electrician needs a junction box at the ceiling location, and the canopy houses the driver. Plan the circuit for 30W per fixture.
