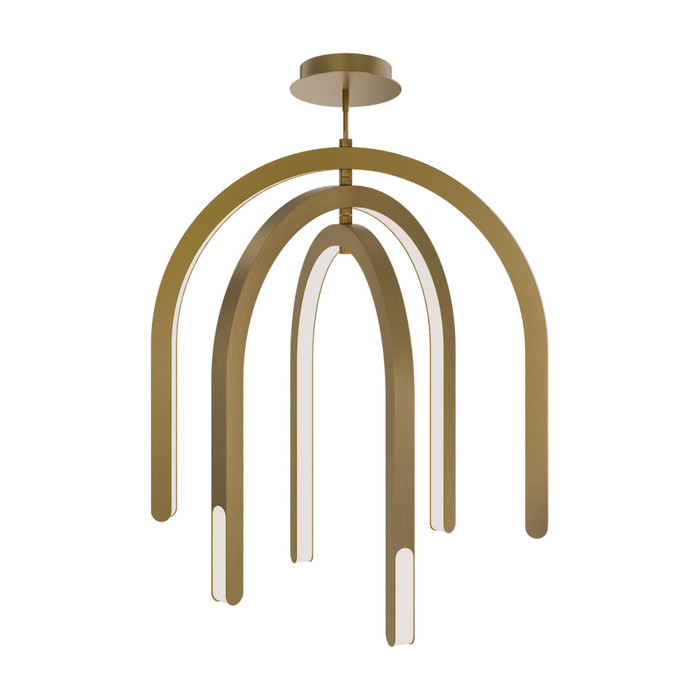

WAC Lighting PD-935 Helmet 4-CCT LED Pendant, Aluminum
The WAC Lighting PD-935 Helmet 4-CCT LED Pendant features movable, aluminum arches lined with light and fitted with silicone diffusers, all connecting on a center stem so you can adjust the fixture to fit your space. Built-in 4-CCT technology lets you switch between 2700K, 3000K, 3500K, and 4000K, while the 40W replaceable LED module delivers 4200 lumens at a 90 CRI. ETL and cETL listed for damp locations and CEC Title 24 compliant, this pendant is engineered for reliable, code-compliant indoor hanging installations.
Key Features
- Adjustable Aluminum Arches: Aluminum construction for arches and hardware with silicone diffusers; arches are adjustable and rotate independently to fit your space.
- 4-CCT Color Temperature: Built-in color temperature adjustability lets you switch from 2700K/3000K/3500K/4000K, with the option to pre-select or adjust color temperature in the field.
- Down Rods Included: Three 12in down rods and one 6in down rod are included, with additional down rods sold separately for custom mounting heights.
- Universal Dimming & Voltage: Smooth, continuous dimming with 0-10V, ELV, or TRIAC dimmers, powered by a Universal Input Voltage Driver (120V-240V-277V).
- High-Output LED Module: High-powered, replaceable LED module rated at 90 CRI, 54000 hours, with selectable CCT of 2700-3000-3500-4000K and 4200 lumens at 40W.
- Damp Location Rated: ETL and cETL listed for damp locations, suitable for humid indoor environments.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Suitable for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Helmet
- Dimmable: 0-10V;ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 4200
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 40
- Style: Modern;Transitional
- Mounting: Ceiling
Typical Applications
- Residential and Commercial Indoor Hanging Lighting
- Kitchen Islands and Dining Areas
- Entryways and Open-Concept Living Spaces
- Damp-Location Indoor Installations
- Modern and Transitional Interior Design Schemes
Why WAC Lighting?
WAC Lighting builds the Helmet Pendant with durable aluminum construction, a high-CRI replaceable LED module, and universal 0-10V, ELV, and TRIAC dimming compatibility for smooth performance across standard dimming systems. Backed by a 5-year functional and 2-year finish warranty, it delivers reliable, code-compliant lighting for professional indoor installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Helmet
- Dimmable:
- 0-10V;ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 4200
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Silicone Diffuser
- Subcategory:
- Pendant
- Avg Rated Hours:
- 54000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 40
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-93534-27-BK – Frequently Asked Questions
1) Can the WAC Lighting Helmet PD-935 pendant run on 277V in a commercial building?
Yes. The Helmet PD-935 pendant uses a universal input voltage driver rated 120V, 240V, and 277V, so the same fixture works on residential 120V and commercial 277V circuits without a separate part number. It is hardwired, not plug-in, so it needs a ceiling junction box and a licensed connection.
2) Do I have to pick a color temperature when I order the Helmet PD-935, or can it be changed on site?
Both. The Helmet PD-935 is a 4-CCT fixture with 2700K, 3000K, 3500K, and 4000K built in, and the setting can be pre-selected or changed in the field. Ordering is still done by CCT and finish (Black or Aged Brass), so the unit arrives set where you specify, and an electrician can move it later if the room reads too warm or too cool.
3) Will the Helmet PD-935 pendant work with the dimmers already in my building?
It dims with 0-10V, ELV, or TRIAC controls, which covers most commercial and residential dimming systems. What it will not do is run on a plain incandescent/MLV dimmer that is none of those three types. If your panel is 0-10V low-voltage control, that is supported natively.
4) Can I hang this pendant over a bathroom tub or in a covered exterior entry?
The Helmet PD-935 is ETL and cETL listed for damp locations, so a humid indoor space such as a bath or a laundry is within rating. It is not wet-location rated, so do not use it where it will take direct rain or spray. It is also a ceiling-mounted indoor hanging fixture, not an outdoor luminaire.
5) Is 40W enough light for a kitchen island with the Helmet pendant?
The Helmet PD-935 puts out 4200 lumens at 40W with a flood beam spread, which is high output for a single decorative pendant and generally enough to be the primary light over an island or dining table. At 90 CRI the color rendering is high enough for a kitchen work surface where food color matters.
6) If the LEDs fail on this pendant, does the whole fixture get replaced?
No. The Helmet PD-935 uses a high-powered replaceable LED module rather than bonded-in boards, so the light source can be swapped without pulling the fixture. The module is rated 54,000 average hours, and lamps are included with the fixture, so nothing extra needs ordering at install.
7) Does the WAC Helmet PD-935 pendant meet California Title 24 and is it Energy Star rated?
It is CEC Title 24 compliant, which is what matters for California residential and commercial permit work. It is not Energy Star rated, and it is not ADA compliant, though ADA is generally a non-issue on a ceiling-hung pendant rather than a wall-projecting fixture.
8) Can the arms on the WAC Helmet pendant be aimed after it is installed?
Yes. The Helmet is built from aluminum arches lined with light and fitted with silicone diffusers, all mounted on a center stem, and the arches rotate independently so the form can be adjusted on site. That matters if the fixture has to clear a cabinet run or line up with a counter edge.
9) What finishes does the WAC Helmet PD-935 pendant come in for matching other fixtures in a space?
Two finishes, Black and Aged Brass, each available in all four CCT settings. If you are standardizing a hospitality or multi-family project, both finishes carry the identical 40W, 4200 lumen, 90 CRI module, so mixing finishes between rooms will not change how the light reads.
