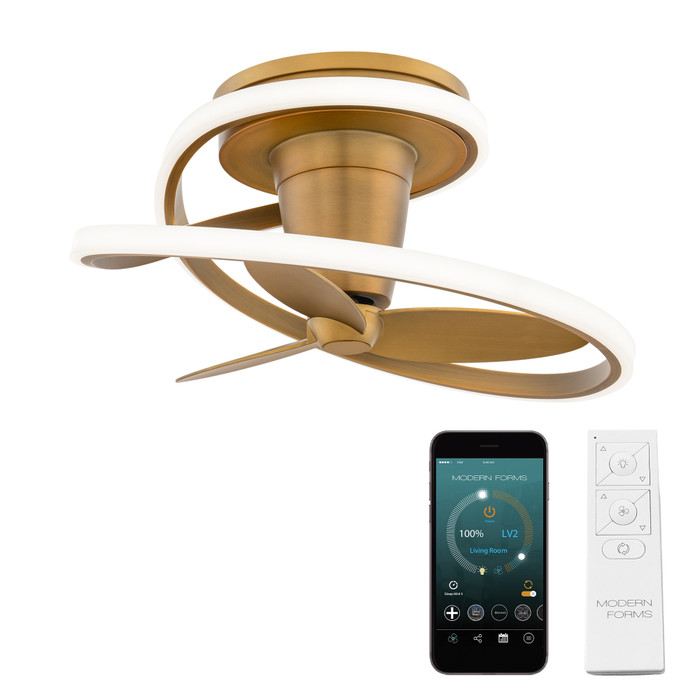

Modern Forms FH-D2402 Veloce 3-Blade Smart Fandelier, ABS Blades
The Modern Forms FH-D2402 Veloce is a 28" smart fandelier with a sculptural, intertwined dual-ring frame and three ABS fan blades for cooling airflow. An integrated 28-watt LED luminaire delivers dimmable, 90 CRI light with 2700K, 3000K, 4000K, and 5000K selectable CCT, while a silent 120V DC motor with 6 speeds and reversible operation moves up to 1342 CFM. Damp Location listed for indoor or outdoor use, it integrates with the Modern Forms app and Bluetooth remote.
Key Features
- 28" Blade Span: Three 10" ABS blades at a 16-degree pitch deliver quiet airflow up to 1342 CFM.
- Durable Construction: ABS blade material resists warping and stays factory-balanced and wobble-free.
- Silent DC Motor: Reversible DC motor, 6 speeds, up to 70% more efficient than AC motors.
- Integrated LED Light Kit: 28-watt, 2688-lumen LED module with 90 CRI and 2700-3000-4000-5000K selectable CCT, fully dimmable.
- Smart Home Ready: Controlled via the free Modern Forms app or included Bluetooth remote; compatible with Google Assistant, Alexa, and SmartThings.
- Damp Location Rated: Suitable for indoor or outdoor installations exposed to moisture.
Certifications & Compliance
- UL, cUL, ETL, cETL, and CSA Listed
- Damp Location Listed for Indoor or Outdoor Applications
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module
- Dimmable: Yes
- Energy Star: No
- Lumens: 2688
- Product Type: Fandeliers
- Safety Rating: ETL, cETL, UL, cUL, CSA
- Warranty: 5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts.
- Subcategory: Indoor Smart Home Fandelier
- Avg Rated Hours: 50000
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: China
- Total Wattage: 36
- Blade Span: 28"
- Number of Blades: 3
- Blade Length: 10"
- Blade Material: ABS
- Blade Pitch: 16 degrees
- Motor Type: DC
- Reversible Motor: Yes
- Fan Speeds: 6
- Airflow CFM: 1342
- Remote Included: Yes
- Wall Control Included: No
Typical Applications
- Living Rooms and Great Rooms with Modern Décor
- Covered Outdoor Patios and Porches (Damp Location)
- Smart Home and Voice-Controlled Environments
- Bedrooms Needing Combined Lighting and Airflow
- New Construction and Renovation Fan Upgrades
Why Modern Forms?
Modern Forms fans are factory-balanced and sound tested so every Veloce fandelier runs without wobble, rattle, or click, with a silent DC motor engineered for up to 70% greater efficiency than traditional fans. With a replaceable LED luminaire powered by WAC Lighting and UL/cUL/CSA/ETL/cETL Damp Location listings, the FH-D2402 delivers reliable, code-compliant performance for modern interiors and covered outdoor spaces.
Manufacturer Resources
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module
- Collection:
- Veloce
- Dimmable:
- Yes
- Energy Star:
- No
- Lumens:
- 2688
- Product Type:
- Fandeliers
- Safety Rating:
- ETL, cETL, UL, cUL, CSA
- Subcategory:
- Indoor Smart Home Fandelier
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread:
- Flood
- Voltage:
- 120
- Location Rating:
- Damp
- Total Wattage:
- 36
- Color Temperature:
- 2700-3000-4000-5000
- Style:
- Modern
- Blade Span:
- 28"
- Number of Blades:
- 3
- Blade Length:
- 10"
- Blade Material:
- ABS
- Blade Finish:
- Aged Brass
- Blade Pitch:
- 16 degrees
- Motor Type:
- DC
- Reversible Motor:
- Yes
- Fan Speeds:
- 6
- Airflow CFM:
- 1342
- Remote Included:
- Yes
- Wall Control Included:
- No
Modern Forms FH-D2402-28L-BK – Frequently Asked Questions
1) Can the Modern Forms Veloce FH-D2402 fandelier be installed on a covered patio or porch?
Yes, the Veloce FH-D2402 carries a Damp location rating, so it works on covered porches, patios and screened rooms where it sees humidity and splash but not direct rain or driving weather. For a fully exposed location you need a Wet rated fan instead. Safety listings on it are UL, cUL, ETL, cETL and CSA.
2) Do I need to order a wall control with the Veloce FH-D2402, and does it work with a standard fan speed switch?
A Bluetooth handheld remote ships with the fandelier; a wall control does not. Speed, dimming and color temperature are handled through that remote or the Modern Forms app, not through a conventional wall fan-speed switch. Wire it to a constant 120V feed and leave any existing fan speed controller or dimmer out of the circuit.
3) Can I change the light color temperature on the Veloce fandelier after it is installed?
Yes. The integrated LED luminaire is CCT selectable across 2700K, 3000K, 4000K and 5000K, so you can match it to the other fixtures in the room without swapping anything. It puts out 2688 lumens at 90 CRI with a flood distribution and is fully dimmable.
4) Can the bulb be replaced in the Modern Forms Veloce, or is the LED integrated?
There is no socket or lamp to change. The light source is an integrated LED module rated for 50,000 hours, so relamping is not part of the maintenance plan for this fan. Plan around the module rather than a bulb stocking program.
5) What finishes does the Veloce FH-D2402 fandelier come in for matching other fixtures?
Three finishes: Aged Brass, Black and Titanium. If you are standardizing a building or matching existing trim, those are the choices, and the blade finish follows the fan finish rather than being specified separately.
6) Does the Modern Forms Veloce work with Alexa or Google Assistant?
Yes. It runs on the free Modern Forms app and pairs with Google Assistant, Alexa and SmartThings, alongside the included Bluetooth remote. That covers fan speed and light control from voice or phone in a smart home or short-term rental setup.
7) Is the Veloce fandelier Energy Star or ADA compliant?
Neither. The FH-D2402 is not Energy Star qualified and it is not ADA compliant, which is worth knowing if you are writing it into a spec for a government, healthcare or education project with those requirements attached. It does carry UL, cUL, ETL, cETL and CSA listings.
8) What is the total power draw of the FH-D2402 fandelier for load calculations?
Total wattage is 36W at 120V, with the LED luminaire accounting for 28W of that. A DC motor fan like this one draws far less than a comparable AC fan, which matters when you are loading a branch circuit with several units.
9) Are ABS fan blades durable enough for a rental or high-traffic property?
ABS is the blade material here, and it resists warping in humid conditions better than plywood or MDF blades, which is part of why the fan carries a damp rating. The three blades come factory balanced, so you are not chasing wobble after install on a unit turnover.
