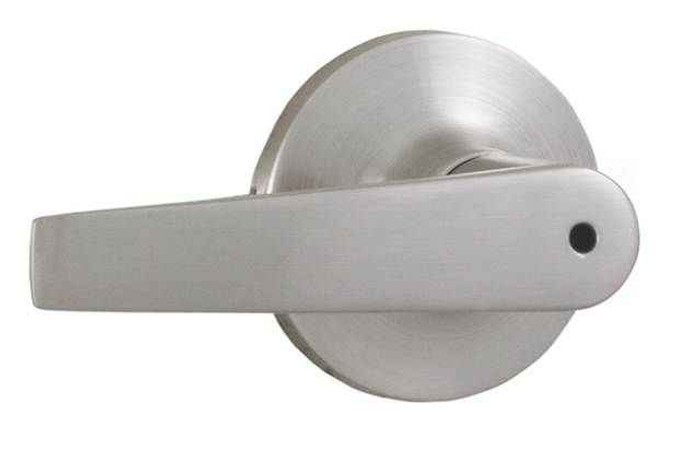

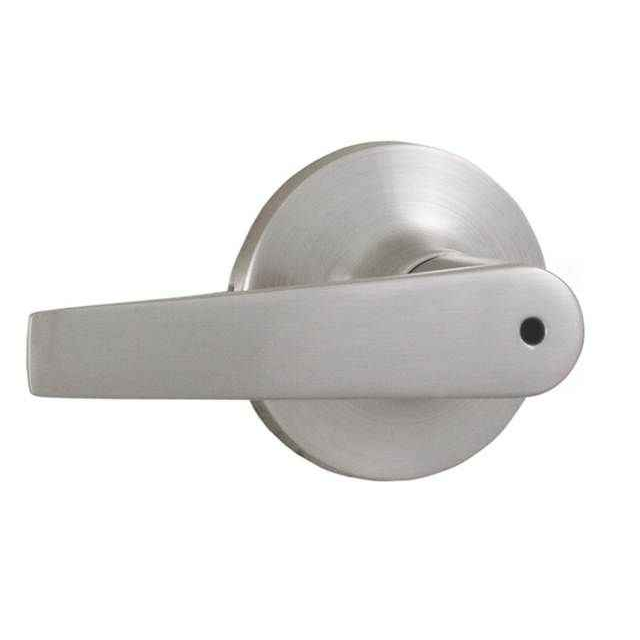

Weslock 0210 Bristol Lever Privacy Lock with Adjustable Latch and Full Lip Strike

Weslock 0210 Bristol Lever Privacy Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: 00210WNWNFR20
From the Premiere Essentials Collection
Selected Finish is
Selected Lever Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.80
$21.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK 0200 PREMIERE ESSENTIALS PRIVACY LOCK OVERVIEW

The Premiere Essentials non handed Salem knob passage lock with a adjustable spring latch, with round faceplate & strike plate, and assembly screws. The passage lock comes round shaped interior and exterior rosette with Non handed Salem knobs. The interior and exterior spindle comes attached to the round rosette, and the interior and exterior knobs come preassembled on the interior and exterior spindles. Easy to follow instructions included.

Privacy Function: Weslock's privacy knobs/levers feature a push button lock on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side of this privacy knobsets/leverset features a small pin.



Standard features

  • Privacy lock where inside knob/lever will come with locking mechanism to help where privacy is a concern
  • Exceeds ANSI Grade 3 lock standards
  • Turn button locking in lever
  • Knobs attached with a set screw for easy removale for installation, with a half moon tubular design.
  • Adjusts to door thickness from 1-3/8” to 2”
  • Adjustable latches 2-3/8” or 2-3/4” with radius faceplates and strikes
  • Knob fits door prepared with 2-1/8” cross hole and 1” edge hole
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Premiere Essentials
Warranty:
Limited 25 Year Mechanical, Limited 5 Year Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Premiere Essentials
Cross Bore:
2-1/8"
Keyed Function:
Non-Keyed
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Residential Door Knobs
Keyed:
No
Commercial/Residential:
Residential
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Privacy/Bed/Bath
Door Thickness Range:
1-3/8" to 1-3/4"
Product Dimension:
2-5/8" Diameter Rose and 2-7/8" Projection
Door Strike:
2-1/4" Full Lip, Radius
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Weslock 00210WNWNFR20 – Frequently Asked Questions

1) Do I have to measure my backset before ordering a Weslock 0210 privacy lever?
No. The latch on the 0210 is adjustable between 2-3/8 and 2-3/4 inches, so you can set it on site to whatever the existing bore gives you. Pull the door, check the distance from the door edge to the center of the 2-1/8 inch cross bore, and set the latch to match.
2) Will the Weslock 0210 latch and strike drop into my existing mortise cutouts, or do I have to re-chisel the jamb?
The 0210 ships with a radius faceplate measuring 1 x 2-1/4 inches and a 2-1/4 inch full lip radius strike. If your current latch faceplate and strike are the round-corner type at that size, it drops straight in. If your jamb is cut square-corner, the radius plate will leave gaps at the corners and you will need to square the mortise or fill and recut.
3) What does the privacy function on a Weslock 0210 bedroom lever actually do, and can I get in if a kid locks the door?
Locking is by turn button on the inside lever, meant for bedroom and bathroom doors. There is no key. The outside lever carries a small emergency pin hole so you can release the lock from the corridor side with a straight pin or tool. Nothing about it is keyed, so it will not work anywhere you need key control.
4) Is the Weslock 0210 privacy lever tough enough for an apartment building or an office corridor?
It's a residential-duty zinc alloy lockset that exceeds ANSI Grade 3, which is the light-duty residential tier. That's fine for bedrooms and bathrooms in an apartment unit. For a commercial corridor or a heavy-traffic restroom, step up to a Grade 2 privacy lever like the Hager 2540 with the Withnell lever, or a Grade 1 privacy such as the Arrow MK02-TA. If the door is fire rated, the MK02-TA is the one of those with a fire rating on record.
5) The Weslock 0210 Bristol will not fit a 2 inch thick door - what privacy or non-keyed lever covers that?
The Weslock 0210 Bristol tops out at 1-3/4 inch door thickness. For thicker stock, the Hager 2540 privacy lock with the Withnell lever covers 1-3/8 inch to 2 inch. If the opening is a non-locking one, the Hager 2510 passage lever also runs 1-3/8 inch to 2 inch, and the Falcon K101 Grade 1 passage lock reaches 1-3/8 inch to 2-1/4 inch with a fire rating for a rated opening.
6) What is the closest equivalent to the Weslock 0210 Bristol privacy lever from another brand?
The Kwikset 300BRNL Breton privacy leverset is the nearest match: it is a Grade 3 privacy/bed/bath lever fitting doors 1-3/8 inch to 1-3/4 inch, the same door thickness range the Weslock 0210 Bristol lists. Both are non-keyed privacy sets for bedroom and bathroom doors in residential work, so a property manager standardizing on push-button privacy levers can run either on the same door prep.
7) Which privacy lock should I use instead of the Weslock 0210 Bristol on a commercial or higher-traffic door?
The Hager 2540 privacy cylindrical lock with the Withnell lever is a Grade 2 unit covering doors 1-3/8 inch to 2 inch, which steps above the Weslock 0210 Bristol's residential Grade 3 rating and reaches thicker door stock. For an institutional corridor restroom, the Arrow MK02-TA privacy cylindrical lock is fire rated and fits doors 1-3/4 inch to 2 inch, though it carries a Tudor knob rather than a lever, so it will not satisfy an ADA lever requirement.
8) Does the Weslock 0210 Bristol lever need to be ordered left hand or right hand?
Handing is not a factor. The Premiere Essentials privacy lockset is non handed, so one part works on a door swinging either direction. Nothing to specify and nothing to return if you guessed wrong on the site survey.
9) How far does the Weslock 0210 lever stick out from the door face, and how big is the rose?
Projection is 2-7/8 inches off the door face with a 2-5/8 inch diameter round rose. Worth checking against a door that opens back against a wall or into a narrow bath, and against any adjacent trim or casing that a 2-5/8 inch rose has to sit clear of.
10) I need matching passage levers for the hall and closet doors to go with a Weslock 0210 privacy set. What pairs with it?
The 0210 is the privacy version only, with the turn button. For the doors that don't need locking you want a passage lever in the same residential Grade 3 tier, such as the Kwikset 200BRNL Breton passage set, which covers the same 1-3/8 to 1-3/4 inch door thickness. If you're outfitting a whole floor and want one look throughout, the Baldwin Estate 5103 comes as privacy, passage, and half dummy on the same 5048 rose, so the bedroom, hall, and false-front doors all match.
11) Can I install a Weslock 0210 lever myself, or does it need a locksmith?
It's a straightforward swap on a door that's already bored 2-1/8 inch cross hole with a 1 inch edge hole. The levers come preassembled on the spindles at the roses and are held with a set screw, so you pull the screw, separate the halves, drop the latch in, and pass the spindle through. Instructions are in the box. The only site decision is setting the latch to the 2-3/8 or 2-3/4 inch backset your door was bored for.
12) Can I use a Baldwin 5103 privacy lever in place of the Weslock 0210 Bristol?
The Baldwin Estate 5103 privacy lever with the 5048 rose is the same privacy/bed/bath function as the Weslock 0210 Bristol, so it does the same job on a bedroom or bath door. The difference is trim: the Baldwin rides on the Estate 5048 rose, while the Bristol uses a 2-5/8 inch diameter rose with a 2-7/8 inch projection. On a renovation where some doors are already carrying Estate trim, the 5103 keeps the look consistent; on doors already fitted with Weslock Premiere Essentials trim, the 0210 keeps the rose diameter identical across the fleet.
13) I do not need the door to lock - what do I order instead of the Weslock 0210 Bristol privacy lever?
For a hall, closet or pantry door that only needs a latch, a passage lever is the simpler part. The Kwikset 200BRNL Breton passage leverset is the direct passage counterpart in the same Grade 3 class with the same 1-3/8 inch to 1-3/4 inch door thickness range, and the Callan Asheville is a Grade 3 passage leverset in a satin nickel finish, matching the finish the Bristol lever ships in. Neither has the push-button locking that makes the Weslock 0210 a bed and bath part.
14) What looks like a substitute for the Weslock 0210 Bristol privacy lever but will not work on a bathroom door?
Dummy levers are the usual mix-up. The Baldwin Estate 5103 half dummy and the Callan Bentley dummy lever share the leverset look but are dummy function, meaning no latch and no locking at all - they are pull trim for an inactive leaf. Entrance levers are the other misorder: the Callan Artino is a Grade 3 entrance leverset and the Hager 2525 is a Grade 2 commercial entry lock, both keyed-side functions rather than the non-keyed push-button privacy the Weslock 0210 provides for bed and bath doors.
15) Is there a keyless lever that keeps a room secured where the Weslock 0210 Bristol only gives push-button privacy?
The Weslock 0210 Bristol is non-keyed with a turn button on the inside, which holds a bathroom or bedroom door but is not access control. For a door that needs coded entry without cutting keys, the Lockey 1150 heavy duty mechanical keypad lever set uses a double combination and fits doors 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. Both replace the privacy button with a code, so the inside person no longer controls the lock.
16) Which lever should I specify instead of the Weslock 0210 Bristol for a patient room or utility door in a healthcare facility?
Privacy function is the wrong pick where staff need override control. The Dexter C1000 asylum lock is a Grade 1 F87 asylum function unit covering doors 1-3/8 inch to 2 inch, and the Arrow MK33-BD-CS is a Grade 2 heavy duty asylum and institution lock with a conventional cylinder in the Schlage C keyway. For a storeroom or supply closet on the same corridor, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt fitting 1-3/8 inch to 1-3/4 inch doors, the same range the Weslock 0210 Bristol covers.
17) Does a substitute for the Weslock 0210 Bristol need a different door prep or latch?
The Weslock 0210 Bristol is a cylindrical bored lockset on a 2-1/8 inch cross bore with an adjustable 2-3/8 or 2-3/4 inch backset, a 1 inch by 2-1/4 inch faceplate and a 2-1/4 inch full lip radius strike. Cylindrical peers such as the Hager 2540 privacy lock and the Falcon B101 passage lever use the same bored prep, so the hole pattern in the door carries over. Where backset is fixed rather than adjustable, confirm which one the door was bored for: the Cal-Royal AG00 entrance lever is a 2-3/8 inch backset unit and the Cal-Royal AG03 classroom lever is 2-3/4 inch, so each fits only one of the two the Bristol handles.
18) Which passage lever matches the Weslock 0210 Bristol on style if I want square or contemporary trim on the same job?
The Bristol lever sits on a round 2-5/8 inch diameter rose. Among round-trim passage counterparts, the Bravura Atlanta, Orlando and Miramar are Grade 2 leversets with round trim, the Miramar listed in a US4 satin brass finish. If the job calls for square trim on some openings, the Bravura Tampa is the Grade 2 passage leverset with square trim, so a remodeler can carry one function across doors while changing the rose shape by room.
