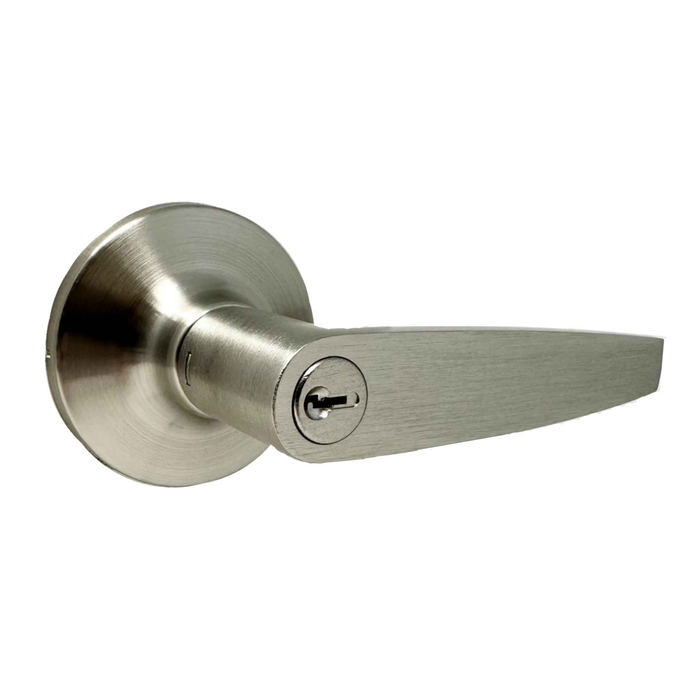

Weslock 0240 Bristol Lever Keyed Entry Lock with Adjustable Latch and Full Lip Strike

Weslock 0240 Bristol Lever Keyed Entry Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: 00240WNWNFR23
From the Premiere Essentials Collection
$44.50
$23.36
Selected Finish is
Selected Lever Design is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.50
$23.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK 0240 PREMIERE ESSENTIALS KEYED ENTRY LOCK OVERVIEW

The Premiere Essentials non handed Salem knob passage lock with a adjustable spring latch, with round faceplate & strike plate, and assembly screws. The passage lock comes round shaped interior and exterior rosette with Non handed Salem knobs. The interior and exterior spindle comes attached to the round rosette, and the interior and exterior knobs come preassembled on the interior and exterior spindles. Easy to follow instructions included.

Keyed Entry (Single Cylinder) Function:Weslock's keyed entry (single cylinder) door knob/lever sets are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder units are commonly used on a front, side or back entrance but can also be found on interior doors as well, depending on application.



Standard features

  • Entry - Key Locking on Outside and Turn Button on Inside
  • Exceeds ANSI Grade 3 lock standards
  • Turn button locking in lever
  • Knobs attached with a set screw for easy removale for installation, with a half moon tubular design.
  • Adjusts to door thickness from 1-3/8” to 2”
  • Adjustable latches 2-3/8” or 2-3/4” with radius faceplates and strikes
  • Knob fits door prepared with 2-1/8” cross hole and 1” edge hole
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Premiere Essentials
Warranty:
Limited 25 Year Mechanical, Limited 5 Year Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Premiere Essentials
Cross Bore:
2-1/8"
Keyed Function:
Single Cylinder
Product Subgroup:
Bored Locksets
Product Type:
Knobsets
Subcategory:
Residential Door Knobs
Keyed:
Yes
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Entrance
Door Thickness Range:
1-3/8" to 1-3/4"
Product Dimension:
2-5/8" Diameter Rose and 2-7/8" Projection
Door Strike:
2-1/4" Full Lip, Radius
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Weslock 00240WNWNFR23 – Frequently Asked Questions

1) Will the Weslock 0240 Bristol keyed entry lock fit a 1-3/4 inch exterior door?
Yes. The 0240 Bristol keyed entry set covers doors from 1-3/8 to 1-3/4 inches thick, which takes in both the standard 1-3/4 inch exterior slab and the thinner 1-3/8 inch doors common on older interiors. The door needs a 2-1/8 inch cross bore for the lock body and the latch bore in the edge.
2) Do I have to know my backset before ordering the Weslock 0240 Bristol entry lever?
No. The latch supplied with the 0240 is adjustable and sets to either a 2-3/8 or a 2-3/4 inch backset, which are the two backsets used on residential doors. Measure from the door edge to the center of the 2-1/8 inch cross bore and set the latch to match, no separate part to order.
3) Can I get several Weslock 0240 entry locks keyed alike so one key opens all of them?
Yes. Keying is chosen at order time on the 0240: keyed different is the standard, and keyed alike is available at no charge so one key runs every unit on the order. There is also a key code field if you need the sets cut to a code you already carry in the building. Cylinders are 5-pin on the Weslock keyway, so they key alike with other Weslock cylinders on that keyway, not with a Kwikset or Schlage key.
4) Will the Weslock 0240 strike drop into the existing strike mortise on my jamb?
The 0240 ships with a 2-1/4 inch full lip strike with a radius (round) corner, and the latch faceplate is 1 x 2-1/4 inches with a matching radius. If the jamb already has a square-corner strike cut, the radius plate will leave gaps at the corners and the mortise needs recutting or a square-corner strike instead. Radius-cut jambs, which is most modern prehung residential work, take it straight in. The full lip is the version you want where the jamb needs the latch guided over the edge of the stop.
5) Can the Weslock 0240 replace an existing knob lock without redrilling the door?
If the door already carries a standard bored lockset, yes. The 0240 needs a 2-1/8 inch cross bore and a 1 inch edge bore, which is the standard residential prep, and the latch adjusts to whichever of the two common backsets, 2-3/8 or 2-3/4 inches, the existing hole was cut for. The one thing to check is the strike: the plate is radius cornered, so a square cut mortise in the jamb needs attention.
6) I need a keyed entry knob for a commercial corridor door that gets constant traffic - what should I use instead of the Weslock 0240?
Step up to a commercial grade cylindrical lock. The BEST 8K Series entrance function single cylinder knob lock is Grade 1 heavy duty, and the Corbin Russwin CK4851 is an entrance/office cylindrical lock with a Global knob and conventional cylinder, listed Grade 1 for doors 1-3/8 inch to 2 inch. The Weslock 0240 is a residential set in zinc alloy built to exceed ANSI Grade 3, which suits apartment and single family entrances rather than a high cycle commercial opening.
7) What is the closest keyed entry knob alternative to the Weslock 0240 for a residential front door?
The Kwikset 400P-CP Polo keyed entry knob is the nearest match. It is an entrance function knob set with a round corner adjustable latch and round corner strike, rated Grade 3, fitting doors 1-3/8 inch to 1-3/4 inch. The Weslock 0240 is also a single cylinder entrance function set fitting 1-3/8 inch to 1-3/4 inch doors with an adjustable 2-3/8 or 2-3/4 inch backset latch and a 2-1/4 inch full lip radius strike. The main difference is the keyway: the 0240 uses a 5 pin Weslock keyway, so if the building is already keyed to Kwikset, the 400P-CP drops into that key system without rekeying.
8) Which keyed entry knob uses a Kwikset keyway so I can key it to the rest of my building?
The Cal-Royal BER00 is an entrance/office Grade 3 knob lock supplied with a Kwikset keyway, for doors 1-3/8 inch to 1-3/4 inch. The Weslock 0240 covers the same door thickness range but is cut to a 5 pin Weslock keyway, so it keys alike with other Weslock cylinders rather than with a Kwikset master system.
9) My door is 2 inches thick - the Weslock 0240 will not fit, so what keyed knob will?
Look at the Corbin Russwin CK4851 entrance/office cylindrical lock, which covers doors 1-3/8 inch to 2 inch, or the Deltana 6171 Round Knob entry and Deltana 3381 Egg Knob entry, both listed for 1-3/8 inch to 2 inch. The Weslock 0240 is specified for doors 1-3/8 inch to 1-3/4 inch. For thicker still, the Falcon X101 covers 1-3/8 inch to 2-1/4 inch, though that one is a passage function with no cylinder.
10) I want a storeroom function knob instead of entry - the door should always stay locked outside. What replaces the Weslock 0240?
Use a storeroom function lock. The Sargent 6G04 is a Grade 2 storeroom/closet knob lock with a single cylinder, standard duty, and the Sargent 8XG04 is the Grade 1 heavy duty storeroom/closet version with a 2-3/4 inch backset. On both, the outside knob stays locked at all times and is released only by key, while the inside knob always retracts the latch. The Weslock 0240 is an entrance function set where the inside turn button decides whether the outside knob is locked, so it can be left unlocked.
11) The opening needs a fire rated knob lock - can I use the Weslock 0240?
For a fire rated opening, specify a lock listed for it. The Falcon W101 is a Grade 2 medium duty cylindrical knob lock with a fire rating, passage/closet latch function with a 2-3/4 inch backset, and the Falcon X101 is the Grade 1 heavy duty fire rated version for doors 1-3/8 inch to 2-1/4 inch. The Weslock 0240 is a residential entrance set exceeding ANSI Grade 3, which is the specification for dwelling entry doors.
12) What does single cylinder entry function mean on the Weslock 0240, and is it allowed on a door with glass next to it?
Single cylinder means the key operates the outside only; the inside has a turn button in the lever that locks and unlocks without a key, so you never need a key to get out. That is the usual front, side, or back entry setup. It is also the reason some jurisdictions restrict a keyed deadbolt near glazing but not a lock like this, since egress from inside stays free.
13) Is the Weslock 0240 Bristol lever handed, and does it work on both a left and right hand door?
Non handed. The 0240 goes on either swing with no parts to reverse and no separate left or right version to order, which is what you want when you are buying a batch for mixed openings.
14) How far does the Weslock 0240 lever stick out from the door, and will it clear a storm door or tight casing?
Projection is 2-7/8 inches off the face of the door, on a 2-5/8 inch diameter round rose. Measure that against the gap to a storm door panel or a return wall before you commit, since a lever swings through more arc than a knob at the same projection.
15) What is the difference between the Weslock 0240 keyed entry and a passage or privacy set on the same kind of door?
Keyed entry, like the 0240, locks with a key outside and a turn button inside, for a door that has to secure the building. A passage set has no lock at all and is for halls and closets. A privacy set locks from inside only with an emergency release outside, for bedrooms and baths. If you are outfitting a whole unit, keyed entry goes on the exterior doors, privacy on the bath and bedrooms, passage everywhere else, and dummy trim on inactive doors. The Pamex FTF Baron line covers entrance/office, privacy, and passage in one Grade 3 look, and the Dexter C2000 Series does the same across Grade 2.
16) Does the Weslock 0240 come with everything needed to install it, or do I need to buy a latch and strike separately?
Everything for the opening is in the box: the adjustable spring latch with its radius faceplate, the 2-1/4 inch full lip radius strike, the assembly screws, and instructions. Trim comes preassembled on the spindles, and the levers pull off with a set screw for the install. Nothing else to order unless the door also takes a deadbolt.
17) What do I use on the bedroom and bathroom doors if the entry doors are getting the Weslock 0240?
Those openings take a privacy set, not a keyed entry set. The Pamex FTF Baron knob lockset in privacy function is Grade 3 for doors 1-3/8 inch to 1-3/4 inch, the Cal-Royal BER20 is a Grade 3 privacy knob lock with brass trim over the same door range, and the Dexter C2000 Series privacy ball knob is Grade 2. All three lock with an interior turn and release from outside in an emergency, with no cylinder or key. The Weslock 0240 is keyed on the outside with a turn button inside, which is the entrance arrangement.
18) Is the Kwikset 200P Polo knob the same thing as the Weslock 0240?
No. The Kwikset 200P Polo is a passage knob for interior hall and closet doors, supplied with a 6AL latch and RCS round corner strike, and it has no cylinder - both knobs always turn. The Weslock 0240 is a keyed entry set, single cylinder, keyed on the outside with a turn button on the inside. If the door needs to lock and take a key, the 200P will not do it.
19) What is a lower cost keyed entry knob than the Weslock 0240 for a batch of rental doors?
Among Grade 3 keyed entry knobs, the Master Lock BC Series biscuit knob keyed entry, the Callan Canova and Callan Santo entrance knobsets, and the Delaney Belton, Galway and Olivia entrance knobsets are all Grade 3 entrance function sets. The Pamex FTF Baron in entrance/office function is Grade 3 for doors 1-3/8 inch to 1-3/4 inch. The Weslock 0240 differs in that it carries a 5 pin Weslock keyway and an adjustable latch that sets to either a 2-3/8 or 2-3/4 inch backset, so one part number covers both door preps.
20) I only need trim on one side of a non-latching door - is the Weslock 0240 the wrong part?
Yes, that opening takes a dummy trim. The Schlage A170 single dummy trim is a Grade 2 non-keyed knob for doors 1-3/8 inch to 1-7/8 inch, the BEST 6K Series single dummy trim is Grade 2 medium duty, and the Cal-Royal BA40 dummy knob covers 1-3/8 inch to 1-3/4 inch. Dummy trim is surface mounted with no latch and no bore for a cylinder. The Weslock 0240 is a working keyed entry set with an adjustable latch and a 2-1/4 inch full lip radius strike, and it needs a door bored with a 2-1/8 inch cross hole and 1 inch edge hole.
21) Is there a keyless entry knob I can use instead of the Weslock 0240 so tenants stop losing keys?
The Lockey 3830 is a mechanical keyless combination knob lock with an auto-locking passage function, for doors 1 3/16 inch to 2 inch. It opens on a pushbutton code rather than a key, so there are no keys to issue or replace. The Weslock 0240 is keyed on the outside through a 5 pin Weslock cylinder with a turn button on the inside, and it supports keyed alike ordering if you want several doors on one key instead.
22) Which knob should go on a classroom door instead of the Weslock 0240?
A classroom function lock is the right call. The Dexter C2000 Series classroom ball knob lock is Grade 2, keyed, non-clutching, for doors 1-3/8 inch to 1-3/4 inch. On classroom function the outside knob is locked and unlocked by key from the outside, with no thumb turn inside for someone to leave set. The Weslock 0240 is an entrance set where the inside turn button controls the outside knob, which is why it does not suit a classroom.
23) What finish does the Weslock 0240 Bristol keyed entry lever come in?
Satin nickel, with the Bristol lever design. It is the finish that matches most contemporary residential hardware packages, so it lines up with satin nickel hinges and pulls already in the unit.
24) Do I need a keyed set like the Weslock 0240 for a closet or pantry door?
No, a closet or pantry takes a passage set with no locking at all. The Pamex FTF Baron knob lockset in passage function is Grade 3 for doors 1-3/8 inch to 1-3/4 inch, the Arrow MK01 and Arrow RK01 are Grade 2 passage cylindrical knob locks over the same door range, and the Corbin Russwin CK4410 is a Grade 2 passage/closet lock for 1-3/8 inch to 1-3/4 inch doors. The Weslock 0240 carries a 5 pin cylinder and turn button that a closet door has no use for.
