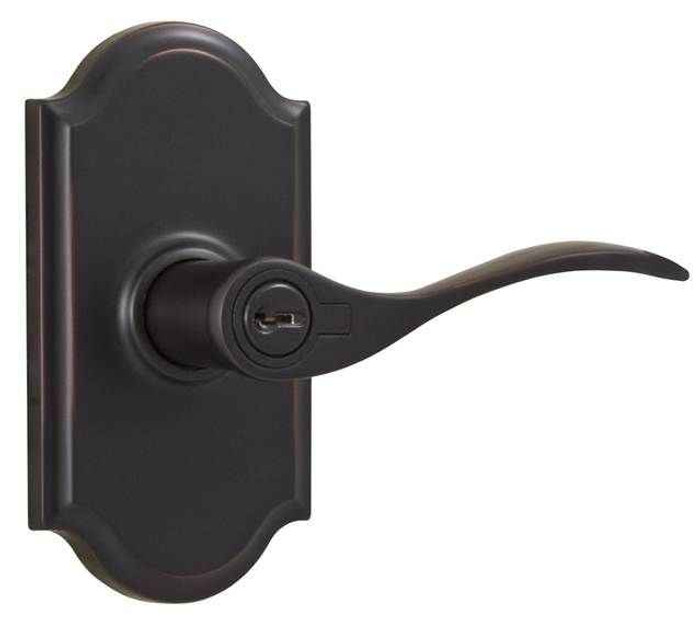

Weslock 7140 Carlow Lever Keyed Entry Lock with Adjustable Latch and Full Lip Strike

Weslock 7140 Carlow Lever Keyed Entry Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: R7140H2H2SL23
From the Molten Bronze Collection
$222.00
$115.49
Selected Finish is
Selected Handing is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$222.00
$115.49
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock Molten Bronze Collection, PREMIERE KEYED ENTRY Lock

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.

Keyed Entry (Single Cylinder) Function:Weslock's keyed entry (single cylinder) door knob/lever sets are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily Lock or unlock the latch mechanism. Single cylinder units are commonly used on a front, side or back entrance but can also be found on interior doors as well, depending on application.


Standard features

  • Cylindrical Door Locks
  • 5-Pin Cylinder, Weslock keyway
  • Meets ANSI A 156.2 Grade II Lock Standards
  • Removable Knobs/Levers Prevents Scratching During Installation
  • ADA compliant levers
  • Solid Molten Bronze levers, knobs, and rosettes
  • Push Button Locking in Rosette
  • Panic-Proof keylock/privacy– one turn of interior knob/lever unlocks & opens door
  • Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Ajusts to door thickness from 1-3/8” to 1-3/4”
  • Optional door thickness up to 2-1/4”
  • Fits doors prepared with 2-1/8” cross hole & 1” edge hole
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty


Weslock Catalog

Weslock General Specifications

Installation Instruction

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Molten Bronze
Warranty:
Limited 10 Year Mechanical and Limited 5 Year Finish
Collection:
Molten Bronze
Cross Bore:
2-1/8"
Keyed Function:
Single Cylinder
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Residential Door Levers
Keyed:
Yes
Commercial/Residential:
Residential
Cylinder and Keyways:
5-Pin Cylinder, Weslock Keyway
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Entrance
Door Thickness Range:
1-3/8" to 1-3/4"
Door Strike:
Round Corner Full Lip Strike
Product Style:
Premiere
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock R7140H2H2SL23 – Frequently Asked Questions

1) Do I have to order the Weslock Carlow lever left or right handed?
Yes, handing is a real choice on the Carlow 7140. It comes as a left hand or a right hand set, in Oil Rubbed Bronze or Matte Black. Stand outside the door: if the hinges are on your left, you need left hand. Order the wrong hand and the lever points the wrong way.
2) How does the keyed entry function actually work on this Weslock lever?
Single cylinder entrance function. The outside lever is keyed with a 5-pin Weslock keyway; the inside has a push button in the rosette to lock or unlock. It's panic proof, so one turn of the inside lever releases the button and opens the door even when locked. Typical use is a front, side, or back entry door.
3) Can I get several Weslock 7140 locks keyed alike so one key opens all of them?
Yes. Keying is a required selection: KD keyed different is standard, or pick KA keyed alike to have the set turn on one key. There is also a key code field if you need them cut to an existing Weslock code. Keep in mind the cylinder is a 5-pin Weslock keyway, so it keys with other Weslock cylinders, not Schlage or Kwikset.
4) Is this Weslock lever rated for commercial traffic or is it a residential lock?
The Carlow 7140 is a residential lock. It meets ANSI A156.2 Grade 2 lock standards and the levers are ADA compliant, which suits apartments and single family entries. For a commercial opening with heavy daily traffic, a Grade 1 cylindrical lever is the better call, such as the Falcon T101 heavy duty T Series or a Corbin Russwin CL3100 Series lever.
5) Is the Weslock 7140 Carlow keyed entry lever the right choice if my building keys everything on Schlage C?
The Weslock 7140 Carlow uses a 5-pin cylinder in the Weslock keyway, so it keys into a Weslock system rather than a Schlage C one. If the rest of the property is on Schlage C, the Cal-Royal AG00 entrance lever is a Grade 2 lever with a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset, and the Cal-Royal AG03 classroom lever in the AG series uses the same Schlage C keyway on a 2-3/4 inch backset. The Arrow MK33-BD-CS asylum lock is another Schlage C keyway option, in Grade 2 heavy duty.
6) What is a commercial-grade alternative to the Weslock 7140 Carlow keyed entry lever for a higher-traffic entrance?
The Weslock 7140 Carlow is a residential keyed entry leverset in the Molten Bronze collection. Where a commercial-duty entrance lever is wanted instead, the Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle, fitting doors 1-3/8 inch to 2 inch thick. The Falcon B511CP6D is another route, a Grade 2 medium-duty cylindrical lever with entry/office function. Both are keyed entry-style levers like the 7140, with the Hager covering a wider door thickness range in its standard configuration.
7) Which entry lever should I use if the door is thicker than the Weslock 7140 Carlow allows?
The Weslock 7140 Carlow covers 1-3/8 inch to 1-3/4 inch doors as standard, with a 1-3/4 inch to 2-1/4 inch option available at order. If a single part must cover a wider span without an option selection, the Deltana 6201 Manchester, 6411 Morant and 6431 Linstead entry levers all list 1-3/8 inch to 2 inch. For a heavy-duty commercial opening, the Falcon K101 covers 1-3/8 inch to 2-1/4 inch, though it is passage function and does not key.
8) For a school or institutional door, is the Weslock 7140 Carlow appropriate or should I look at a classroom function lock?
The Weslock 7140 Carlow is a residential entrance lock with push button locking in the rosette, which is not a classroom function. For classrooms, the Dexter C1000 classroom lever is Grade 1 with a clutching lever, keyed, for 1-3/8 to 1-3/4 inch doors, and the Dexter C1000 classroom security version adds key control from both sides in the same range. The Cal-Royal AG03 is a Grade 2 classroom lever on a 2-3/4 inch backset. For utility and institutional openings, the Dexter C1000 asylum lock is Grade 1 for 1-3/8 to 2 inch doors.
9) What strike plate comes with the Weslock 7140 Carlow entry set?
A round corner full lip strike ships with it. The full lip protects the jamb where the latch rides, and round corners match a router-prepped jamb. If your existing jamb has square corner mortises, you'll need to square the corners or reuse the old strike.
10) I need matching levers on the interior doors, not another keyed entry. What pairs with the Weslock Carlow?
The 7140 is the keyed entry version in Weslock's Molten Bronze collection, Premiere style. For interior openings you want the passage or privacy function from the same collection so the lever and rosette match visually. If matching Weslock interior trim isn't the priority, passage and privacy levers from Baldwin Estate 5103 or Bravura's Grade 2 Miramar and Atlanta lines cover those functions.
11) What is the difference between the Weslock 7140 Carlow keyed entry lever and a storeroom lever?
The Weslock 7140 Carlow is entrance function with a single cylinder outside and a push button in the interior rosette, so the lever can be left unlocked for free passage. A storeroom lever such as the Cal-Royal AG05, Grade 2 with a deadlocking latchbolt for 1-3/8 to 1-3/4 inch doors, or the Hager 2580 with the Withnell lever, Grade 2 for 1-3/8 to 2 inch doors, keeps the outside lever locked at all times and requires the key on every entry. Choose storeroom for stock rooms and mechanical closets that must never stand unlocked.
12) I need a matching non-keyed lever for interior doors alongside the Weslock 7140 keyed entry - what function should I order?
The Weslock 7140 Carlow is keyed on the exterior with a single cylinder, so it is an entry-door lock, not an interior one. For bedroom and bath openings, the Baldwin Estate 5103 privacy lever and the Kwikset 300BRNL Breton privacy lever set both cover privacy/bed/bath function, the Kwikset being Grade 3 for doors 1-3/8 to 1-3/4 inch. For halls and closets, the Baldwin Estate 5103 passage lever or the Kwikset 200BRNL Breton passage lever handle that function. Trim appearance will not match the Carlow lever, so plan the aesthetic if levers are visible from the same space.
13) Are the Emtek and Baldwin dummy levers substitutes for the Weslock 7140 Carlow?
No. The Weslock 7140 Carlow is a keyed entry lock with a working latch. The Baldwin Estate 5103 half dummy levers, the Emtek Arts and Crafts and Hammered dummy pairs, and the Emtek Cortina dummy pair are all dummy function - fixed trim with no latch and no cylinder, used on inactive leaves and false doors. They cannot secure an entrance. The same caution applies to the Accentra 455LN Augusta, which is a Grade 1 single dummy, and the BEST 9K 1DT and 7KC 1DT dummy trims.
14) Can I use a keypad lever instead of the Weslock 7140 Carlow to avoid issuing keys?
Yes, if code-based access suits the opening better than the Weslock keyway cylinder the 7140 Carlow uses. The Delaney LP250 is a Grade 2 electronic keypad leverlock, the Emtek Classic keypad leverset is a keypad option in the Classic series, and the Lockey 1150 is a heavy-duty mechanical keypad lever set with double combination for doors 1-1/8 to 2 inch thick. Note the Lockey 1150 is passage function, so it is not a like-for-like security replacement for a keyed entrance lock.
15) I need a fire-rated lever on a labeled door - does the Weslock 7140 Carlow line up with fire-rated alternatives?
The Weslock 7140 Carlow is a residential keyed entry leverset with an adjustable 2-3/8 or 2-3/4 inch backset latch. Where a fire-rated assembly is required, the Falcon K101 is a Grade 1 heavy-duty cylindrical passage lock listed with a fire rating and covering 1-3/8 to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 vandal-resistant passage lever with a fire rating for 1-3/4 to 2 inch doors. Both are passage function, so on a labeled door that also needs keying, verify the function you specify against the door schedule.
16) What are the Weslock Carlow levers and rosettes made of, and will the finish hold up outside?
Levers, knobs, and rosettes are solid molten bronze, and the substrate is brass. Oil Rubbed Bronze and Matte Black are the two finishes offered. Installation screws are concealed and the levers come off for install so you don't scratch the finish setting the lock.
17) The Weslock 7140 Carlow comes in left and right hand - which comparable entry levers avoid handing altogether?
The Weslock 7140 Carlow Carlow lever is ordered by handing, with left hand and right hand offered in oil rubbed bronze and matte black. If a non-handed lever simplifies stocking across a building, the Falcon B101 is a Grade 2 medium-duty cylindrical passage lever with a non-handed design and the Falcon K101 is a Grade 1 heavy-duty passage lock with non-handed levers. Both are passage rather than keyed entry, so they suit interior openings rather than a front door.
