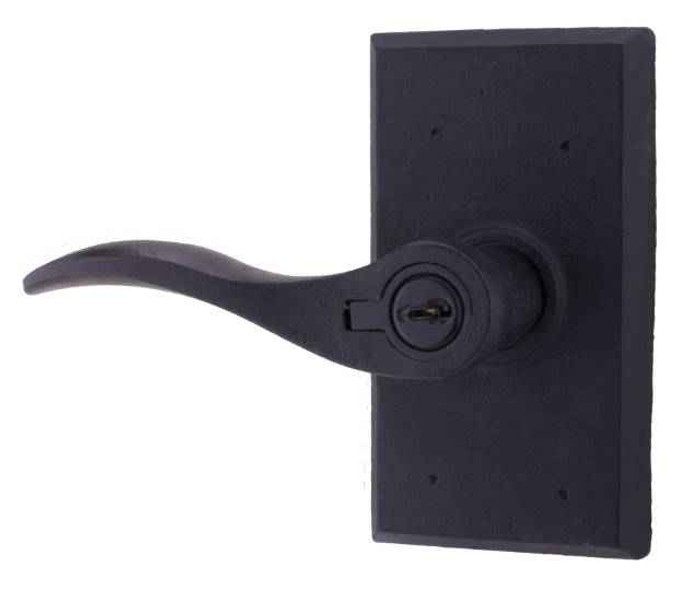

Weslock 7340 Carlow Lever Square Keyed Entry Lock with Adjustable Latch and Full Lip Strike

Weslock 7340 Carlow Lever Square Keyed Entry Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: R7340H1H1SL23
From the Molten Bronze Collection
$182.00
$101.52
Selected Finish is
Selected Handing is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.00
$101.52
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock Molten Bronze Collection, SQUARE KEYED ENTRY Lock

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.

Keyed Entry (Single Cylinder) Function:Weslock's keyed entry (single cylinder) door knob/lever sets are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily Lock or unlock the latch mechanism. Single cylinder units are commonly used on a front, side or back entrance but can also be found on interior doors as well, depending on application.


Standard features

  • Cylindrical Door Locks
  • 5-Pin Cylinder, Weslock keyway
  • Meets ANSI A 156.2 Grade II Lock Standards
  • Removable Knobs/Levers Prevents Scratching During Installation
  • ADA compliant levers
  • Solid Molten Bronze levers, knobs, and rosettes
  • Push Button Locking in Rosette
  • Panic-Proof keylock/privacy– one turn of interior knob/lever unlocks & opens door
  • Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Ajusts to door thickness from 1-3/8” to 1-3/4”
  • Optional door thickness up to 2-1/4”
  • Fits doors prepared with 2-1/8” cross hole & 1” edge hole
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty


Weslock Catalog

Weslock General Specifications

Installation Instruction

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Molten Bronze
Warranty:
Limited 10 Year Mechanical and Limited 5 Year Finish
Collection:
Molten Bronze
Cross Bore:
2-1/8"
Keyed Function:
Single Cylinder
Product Subgroup:
Bored Locksets
Product Type:
Leverset
Subcategory:
Residential Door Levers
Keyed:
Yes
Commercial/Residential:
Residential
Cylinder and Keyways:
5-Pin Cylinder, Weslock Keyway
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Entrance
Door Thickness Range:
1-3/8" to 1-3/4"
Door Strike:
Round Corner Full Lip Strike
Product Style:
Square
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock R7340H1H1SL23 – Frequently Asked Questions

1) Will the Weslock 7340 Carlow lever fit a door that's already bored for a standard lockset?
If the door has a 2-1/8 inch cross bore and a 1 inch edge bore, the 7340 Carlow drops right in. The latch adjusts between 2-3/8 and 2-3/4 inch backset, so you don't have to know which of the two standard backsets your door was drilled for before you order. Standard door thickness range is 1-3/8 to 1-3/4 inches.
2) Can the Weslock 7340 go on a thick door, like a 2 inch or 2-1/4 inch entry slab?
Yes, but you have to say so on the order. The 7340 Carlow ships standard for 1-3/8 to 1-3/4 inch doors, and there's a separate door thickness selection for 1-3/4 to 2-1/4 inches. Measure the slab before you pick, because the wrong spindle length means the lever won't seat.
3) What does keyed entry single cylinder mean on the Weslock Carlow lever, and is there a key on the inside?
Single cylinder means keyed outside only. Inside there's a push button in the rosette, so you can lock the door from within without a key. It's also panic proof, one turn of the interior lever retracts the latch and opens the door even when locked, which is what you want on a bedroom or a back door where someone has to get out fast.
4) Is the Weslock 7340 Carlow lever handed, and how do I tell which one I need?
Handed, yes. The Carlow comes as a distinct left hand and right hand lever, both in Oil Rubbed Bronze and Matte Black. Stand outside the door: if the hinges are on your left, it's left hand. Order the wrong hand and the lever points up instead of down.
5) Can I get several Weslock Carlow entry levers keyed alike so one key opens them all?
Keying is a choice at order time: keyed different as standard, or keyed alike at no charge if you want one key across multiple doors. There's also a key code field if you need to match an existing Weslock key. The cylinder is a 5 pin in the Weslock keyway, so anything you key together has to be Weslock keyway too.
6) What is the closest keyed entry lever to the Weslock 7340 Carlow if the door needs a commercial grade lock?
The Weslock 7340 Carlow is a residential keyed entry lever with a 5-pin Weslock keyway. When the opening calls for a commercially rated entry lever instead, the Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle covering doors 1-3/8 inch to 2 inch thick, and the Cal-Royal AG00 is a Grade 2 entrance lever with a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset, fitting doors 1-3/8 inch to 1-3/4 inch. The Cal-Royal AG00 is the one to look at if the building is already keyed to Schlage C, since the Weslock uses its own keyway.
7) I need the same Carlow lever look on a closet or hall door that does not lock. What do I use?
The Weslock 7340 Carlow is keyed entry function with a single cylinder, so it is not the part for a non-locking door. Passage levers that fit that opening include the Bravura Tampa with square trim, a Grade 2 passage leverset, which is the closest square-trim match in styling, and the Bravura Atlanta and Bravura Orlando, both Grade 2 passage leversets with round trim. The Kwikset 200BRNL RDT Breton is a Grade 3 passage lever set for doors 1-3/8 inch to 1-3/4 inch thick, the same thickness range the Carlow covers as standard.
8) I need a lever that locks from outside with a key but stays locked, not the pushbutton on the Weslock 7340 Carlow. What is the right part?
The Carlow 7340 is entrance function with push button locking in the rosette, so occupants can leave it unlocked. Storeroom function keeps the outside lever locked at all times and requires the key on every entry. The Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for doors 1-3/8 inch to 1-3/4 inch, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever, covering 1-3/8 inch to 2 inch.
9) For a classroom or school door, is the Weslock 7340 Carlow the right lever?
The Carlow 7340 is a residential keyed entry lever. Classroom openings take a classroom function lock instead. The Dexter C1000 Series classroom lever is Grade 1 with a clutching lever, keyed, for doors 1-3/8 inch to 1-3/4 inch, and the C1000 classroom security version is also Grade 1 clutching over the same thickness range. The Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway keyed different on a 2-3/4 inch backset, which is one of the two backsets the Carlow's adjustable latch covers.
10) Does the Weslock 7340 Carlow work on a rated exit device opening, or do I need something else?
No. The Carlow 7340 is a bored cylindrical lever set that installs in a door prepared with a 2-1/8 inch cross bore and a 1 inch edge bore. An opening with a pushpad exit device takes lever trim built for that device instead: the Corbin Russwin 585F715 is a Grade 1 lock lever for the ED8000 pushpad exit device, for doors 1-3/4 inch to 2 inch, and the Imperial USA ED-EL500HD is heavy duty escutcheon lever trim in entry function. Those mount to the device, not to a cylindrical bore.
11) For a high traffic apartment or office entry, what is a heavier duty option than the Weslock 7340 Carlow?
The Carlow 7340 meets ANSI A156.2 Grade 2 and is built for residential use. For heavier traffic, the Dexter C1000 Series entry/office lever is Grade 1 with a clutching keyed lever for doors 1-3/8 inch to 1-3/4 inch, the same standard thickness range the Carlow covers, which makes it a straightforward swap on an existing bored door. The Falcon B511CP6D is a Grade 2 medium duty entry/office cylindrical lever if Grade 1 is more than the opening needs.
12) Is the Arrow HK11-BB the same thing as the Weslock 7340 Carlow?
They share the function but not the trim. Both are entrance function cylindrical locks fitting doors 1-3/8 inch to 1-3/4 inch, and both use pushbutton locking. The difference is the handle and the keying: the Weslock 7340 Carlow is a square style lever with a 5-pin Weslock keyway and ADA compliant levers, while the Arrow HK11-BB is a Grade 2 turn-pushbutton entrance lock with a ball knob and a conventional cylinder. A knob is not an ADA compliant handle, so the Arrow is not a swap where lever operation is required.
13) Will the Weslock 7340 strike work in my existing frame prep?
It ships with a round corner full lip strike. If your frame is prepped for a round corner strike, it's a direct match. Square corner mortises in the jamb will need the corners squared or the mortise recut, since the strike corners are radiused.
14) What's the difference between the Weslock Carlow keyed entry lever and a passage or privacy lever?
The Carlow 7340 is an entrance lock, keyed outside with a thumb turn inside, for a door you want to secure. A passage set has no lock at all and is for halls and closets, like the Bravura Tampa square trim passage leverset. A privacy set locks from inside with no key for bath and bedroom, like the Kwikset 300BRNL Breton. Pick entrance only where the door needs a key.
15) Is the Deltana 6201 Manchester an alternative to the Weslock 7340 Carlow for a front door?
Both are decorative keyed levers for an entry door. The Weslock 7340 Carlow is a solid brass square style lever, entrance function, single cylinder, adjustable to 2-3/8 inch or 2-3/4 inch backset, for doors 1-3/8 inch to 1-3/4 inch as standard. The Deltana 6201 Manchester is an entry lever covering doors 1-3/8 inch to 2 inch, and Deltana's 6411 Morant and 6431 Linstead entry levers cover the same 1-3/8 inch to 2 inch range in different lever shapes. Choose by lever profile and by whether the door falls outside the Carlow's standard thickness.
16) Which entry lever should I use instead of the Weslock 7340 Carlow on a door thicker than 2-1/4 inches or an aluminum storefront?
The Weslock 7340 Carlow adjusts to doors 1-3/8 inch to 1-3/4 inch as standard, with an optional configuration up to 2-1/4 inch. Past that, look at the Corbin Russwin CL3110 Grade 1 vandal resistant cylindrical lever, rated for doors 1-3/4 inch to 2 inch and fire rated, or the Falcon K101, a Grade 1 heavy duty cylindrical lock covering 1-3/8 inch to 2-1/4 inch with a fire rating. Both of those are passage function, so a keyed opening needs a keyed model in the same family rather than a direct swap.
17) What matches the Weslock 7340 Carlow on a bedroom or bathroom door?
The Carlow 7340 is keyed entry function, which is not what a bed or bath door takes. For privacy function, the Kwikset 300BRNL RDT Breton is a Grade 3 privacy lever set for doors 1-3/8 inch to 1-3/4 inch, matching the Carlow's standard thickness range, and the Baldwin Estate 5103 privacy lever with 5048 rose is the option when the interior doors are being done in a solid brass decorative line, as the Carlow is a solid brass lever.
18) What do I put on an inactive or false door leaf to match a Weslock 7340 Carlow entry lever?
A dummy lever is the part for a leaf that does not latch. The Baldwin Estate 5103 half dummy lever with 5048 rose comes handed as left hand and right hand, so it can be ordered to match the handing you specified on the Carlow. The Emtek Classic Brass Cortina lever dummy pair covers a double door where both leaves need trim, and the Callan Bentley is a Grade 2 dummy lever. Dummy trim has no latch, so it does not use the adjustable 2-3/8 inch or 2-3/4 inch backset the Carlow ships with.
19) The tenant keeps losing keys. What can I use in place of the Weslock 7340 Carlow keyed entry lever?
The Carlow 7340 is a keyed entry lever with a 5-pin Weslock keyway cylinder. Codeed alternatives on the same style of opening include the Lockey 1150 heavy duty mechanical keypad lever set with double combination, which needs no power and fits doors 1-1/8 inch to 2 inch, the Delaney LP250 electronic keypad leverlock, a Grade 2 unit, and the Emtek Classic keypad leverset. The mechanical Lockey 1150 is the one that avoids batteries entirely.
20) I want the lever and the deadbolt to match on a front door. Is there an alternative to the Weslock 7340 Carlow that includes both?
The Carlow 7340 is a keyed entry cylindrical lever on its own, using a 5-pin Weslock keyway. If a single matched set is preferred, the Callan Bennett is a Grade 3 entrance leverset supplied as a deadbolt combo, so lever and deadbolt come from one series. The Callan Artino is a Grade 3 entrance leverset if only the lever is needed.
21) What are the Weslock Carlow levers and rosettes actually made of?
Solid molten bronze levers, knobs and rosettes over a brass substrate, not stamped or plated pot metal. The levers also come off for installation so you don't scratch the finish hanging them, and the mounting screws are concealed once assembled.
22) Can I match the Weslock 7340 Carlow to the other doors in the house?
The Carlow is part of the Molten Bronze collection, so it shares the finish family and rosette styling with the other Molten Bronze knobs, levers and deadbolts. Keeping the whole house in one collection is how you get the interior passage and privacy sets to match the keyed front door. Order the entry doors keyed alike and one key runs them all.
