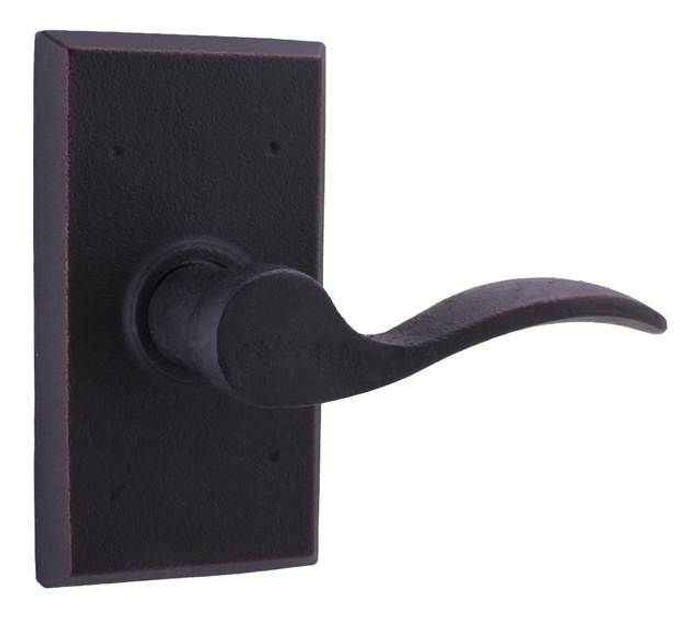

Weslock 7310 Carlow Lever Square Privacy Lock with Adjustable Latch and Full Lip Strike

Weslock 7310 Carlow Lever Square Privacy Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: R7310H1H1SL20
From the Molten Bronze Collection
$182.00
$94.68
Selected Finish is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.00
$94.68
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock Molten Bronze Collection, SQUARE PRIVACY Lock

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.

Privacy Function: Weslock's privacy knobs/levers feature a push button Lock on the interior for use on bedroom and bathroom doors where Locking is needed. The exterior side of this privacy knobsets/leverset features a small pin.


Standard features

  • Cylindrical Door Locks
  • Meets ANSI A 156.2 Grade II Lock Standards
  • Removable Knobs/Levers Prevents Scratching During Installation
  • ADA compliant levers
  • Solid Molten Bronze levers, knobs, and rosettes
  • Push Button Locking in Rosette
  • Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Ajusts to door thickness from 1-3/8” to 1-3/4”
  • Optional door thickness up to 2-1/4”
  • Fits doors prepared with 2-1/8” cross hole & 1” edge hole
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty


Weslock Catalog

Weslock General Specifications

Installation Instruction

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Molten Bronze
Warranty:
Limited 10 Year Mechanical and Limited 5 Year Finish
Collection:
Molten Bronze
Cross Bore:
2-1/8"
Keyed Function:
Non-Keyed
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Residential Door Levers
Keyed:
No
Commercial/Residential:
Residential
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Privacy/Bed/Bath
Door Thickness Range:
1-3/8" to 1-3/4"
Door Strike:
Round Corner Full Lip Strike
Product Style:
Square
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock R7310H1H1SL20 – Frequently Asked Questions

1) Will the Weslock 7310 Carlow privacy lever fit a door already bored for a standard lockset?
If the door has a 2-1/8 inch cross bore and a 1 inch edge bore, the 7310 Carlow drops straight in. That is the standard residential prep, so most existing bedroom and bath doors take it without new boring. The latch adjusts between a 2-3/8 and a 2-3/4 inch backset, so you don't need to know which one the door was drilled for before you order.
2) What door thickness does the Weslock 7310 privacy lever handle, and what do I order for a thicker door?
Standard build covers 1-3/8 to 1-3/4 inch doors, which is where nearly all interior residential doors sit. For anything heavier, there is a thickness option covering 1-3/4 to 2-1/4 inches, and you pick that at the time of order. Thickness is a required selection, so decide it before the order goes in rather than after the box arrives.
3) Does the Weslock 7310 Carlow lever need to be ordered left hand or right hand?
Handing matters here. The Carlow square privacy lever is ordered LH or RH, so stand outside the door, and the side the hinges are on is the hand. Order the wrong one and the lever points the wrong way. Both hands are offered in Oil Rubbed Bronze and in Matte Black.
4) How does a privacy lever lock, and can it be opened from outside in an emergency?
Push button in the interior rosette locks it, which is what you want on a bedroom or bath door. The outside has a small pin hole instead of a keyway, so an adult can release it from the hall if a child locks themselves in. There is no key and no cylinder on the 7310, so it is not the part for an exterior or a lockable-from-outside door.
5) Will the strike that comes with the Weslock 7310 match the round corner mortise already in my jamb?
A round corner full lip strike ships with the lock, so it seats in a jamb already routed for a rounded strike, the usual prep on a prehung residential door. The full lip helps guide the latch on a door that has settled. The latch faceplates are removable, so you can swap between the round corner and a square faceplate to suit the door edge prep.
6) What is the closest substitute for a Weslock 7310 privacy lever on a residential bedroom door?
Kwikset 300BRNL Breton is the nearest straight swap: privacy function, Grade 3, and rated for 1-3/8 to 1-3/4 inch doors, the same thickness band the Carlow covers as standard. The step down is grade, since the Carlow meets ANSI A156.2 Grade 2 and carries solid molten bronze trim rather than a lighter build. For a heavier residential opening, Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever covering 1-3/8 to 2 inch doors.
7) Is the Weslock 7310 Carlow rated for a commercial corridor or a school door?
The Weslock 7310 Carlow is a residential lock built to ANSI A156.2 Grade 2. For openings that call for a Grade 1 heavy duty cylindrical lever, the Falcon K101 is a Grade 1 heavy duty passage lock that is fire rated and covers doors 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever that is fire rated for 1-3/4 inch to 2 inch doors. Neither of those is a privacy function, so a bath or locker room opening in a commercial building typically goes to a Grade 1 privacy such as the Arrow MK02-TA, a Grade 1 fire rated privacy/bed/bath lock with a Tudor knob rather than a lever.
8) What should I use instead of the Weslock 7310 Carlow on a closet or hall door that does not need to lock?
The 7310 Carlow is a privacy function with a push button lock in the rosette, which a closet or hall door does not need. For those openings, the passage-function peers are the Baldwin Estate 5103 passage lever with the 5048 rose, the Kwikset 200BRNL RDT Breton passage lever at Grade 3 for 1-3/8 inch to 1-3/4 inch doors, the Bravura Tampa passage leverset with square trim at Grade 2, and the Callan Asheville passage leverset at Grade 3. The Bravura Tampa is the closest match in trim shape, since the 7310 Carlow is a square style lever.
9) What is a direct alternative to the Weslock 7310 Carlow privacy lever for a bedroom or bathroom door?
The Weslock 7310 Carlow is a privacy/bed/bath cylindrical leverset with a square trim style. The closest peer by function is the Kwikset 300BRNL RDT Breton privacy lever set, which is also a privacy/bed/bath lever and fits doors 1-3/8 inch to 1-3/4 inch, the same door thickness range the 7310 covers as standard. The Baldwin Estate 5103 privacy lever with the 5048 rose is another privacy-function lever option. The Hager 2540 uses a Withnell lever and covers 1-3/8 inch to 2 inch doors.
10) The Weslock 7310 Carlow is non-keyed. What do I order for the same door if it needs a key?
The 7310 Carlow is a non-keyed privacy lock with a push button inside and a small emergency pin outside, so it takes no cylinder and no key. For a keyed opening, the Cal-Royal AG00 is a Grade 2 entrance lever with a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset, and the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, the same thickness range the 7310 covers as standard. Dexter C1000 covers keyed entry/office, classroom, and classroom security functions at Grade 1.
11) My doors are 2 inches thick. Does the Weslock 7310 Carlow work, and what else covers that?
The Weslock 7310 Carlow is standard for 1-3/8 inch to 1-3/4 inch doors, with an optional door thickness build up to 2-1/4 inch selected at the time of order. If the thicker door is the whole job, peers that publish a wider standard range include the Falcon K101, a Grade 1 heavy duty passage lock rated 1-3/8 inch to 2-1/4 inch, the Hager 2510 Grade 2 passage lever at 1-3/8 inch to 2 inch, the Dexter C1000 asylum function at 1-3/8 inch to 2 inch, and the Deltana 6201 Manchester entry lever at 1-3/8 inch to 2 inch. Those are passage, asylum, and entry functions rather than privacy.
12) Will an Arrow MK02-TA drop into the same prep as a Weslock 7310 Carlow privacy?
They share the privacy/bed/bath function, but they are not the same install. The Weslock 7310 Carlow is a lever on a 2-1/8 inch cross bore with an adjustable 2-3/8 inch or 2-3/4 inch backset latch, and it fits 1-3/8 inch to 1-3/4 inch doors as standard. The Arrow MK02-TA is a Tudor knob rather than a lever, is Grade 1 and fire rated, and lists a 1-3/4 inch to 2 inch door thickness range. On a 1-3/8 inch residential door the Arrow range does not reach, and swapping a lever for a knob changes the ADA picture, since the 7310 Carlow uses ADA compliant levers.
13) Is the Weslock Carlow lever solid brass or is it plated zinc?
The Carlow lever, knob and rosettes are solid molten bronze with a brass substrate, not cast zinc with a coating. That matters on a lever that gets pulled on daily, and it is why the trim holds up in a house where the same set is going on a dozen doors.
14) I need a matching lever on a door with no latch, like a closet slab or an inactive leaf. What pairs with the Weslock 7310 Carlow?
The 7310 Carlow is a working privacy lock, so it is not the part for a false or inactive door. A dummy trim is, and it mounts with no latch at all. Dummy peers include the Baldwin Estate 5103 half dummy lever with the 5048 rose, offered in a left hand and a right hand version, the Callan Bentley Grade 2 dummy lever, the BEST 7KC single dummy trim at Grade 2 medium duty, and the BEST 9K 1DT single dummy trim at Grade 1 heavy duty. The Baldwin 5103 dummy shares the 5103 lever with the Baldwin 5103 privacy, so those two match each other across a pair of doors.
15) What is the difference between the Weslock 7310 Carlow and a keypad lever like the Lockey 1150 or Delaney LP250?
The Weslock 7310 Carlow is a mechanical privacy lever locked by a push button in the rosette from the inside only, with no code and no credential. The Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in a passage function, covering 1-1/8 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. Those are code-entry locks for controlling who gets in a room from the outside, which is a different job from a bedroom or bathroom privacy button.
16) Can I use an Emtek dummy leverset in place of a Weslock 7310 Carlow to save on a bathroom door?
No. The Emtek Cast Stainless Steel Athena, Helios, Arts and Crafts, and Hammered leversets sold as dummy pairs are trim only in a dummy function, with no latch and no locking mechanism, so a bathroom door fitted with one will not close or lock. The Weslock 7310 Carlow is a working privacy lock with an adjustable latch, a round corner full lip strike, and a push button in the rosette. Dummy pairs belong on doors that are held shut some other way.
17) I am standardizing a building on one lever family. Does the Weslock 7310 Carlow cover every function I need?
The Weslock 7310 Carlow covers the privacy/bed/bath function on 2-1/8 inch cross bore doors with a 2-3/8 inch or 2-3/4 inch adjustable backset. Families that carry several functions on one trim make a fuller standardization set: Baldwin Estate 5103 with the 5048 rose is offered as privacy, passage, and left and right hand half dummy; Dexter C1000 spans Grade 1 entry/office, classroom, classroom security, and asylum; and Hager pairs the 2510 passage, 2525 entry, and 2580 storeroom on the Withnell lever at Grade 2.
18) Weslock 7310 Carlow is handed. Which comparable levers are non-handed?
The Weslock 7310 Carlow is supplied left hand or right hand. If handing is a headache on a large order, the Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design and the Falcon K101 is a Grade 1 heavy duty passage lock with non-handed levers rated 1-3/8 inch to 2-1/4 inch. The Kwikset 200DL Delta passage lever is reversible with an adjustable 6AL latch and round corner strike. All three are passage rather than privacy function.
19) Does a 20 minute fire rated latch version exist as an alternative to the Weslock 7310 Carlow?
The Weslock 7310 Carlow ships with an adjustable latch and a round corner full lip strike. Where the opening calls for a rated latch, the Kwikset 200DL-RCALFD Delta passage lever uses a round corner adjustable 20 minute UL latch with a round corner strike, and the Falcon K101 Grade 1 passage lock and the Corbin Russwin CL3110 Grade 1 vandal resistant passage lever both carry a fire rating. All three of those are passage function, so they suit hall and closet openings rather than a bath.
20) Does the Weslock Carlow lever come apart for painting or finishing the door?
The levers are removable, which Weslock designed in to stop them getting scratched during install. Practically, that means you can pull the levers, hang and finish the door, then put the trim on last. Install screws are concealed, so nothing shows on the finished rosette.
21) What finishes does the Weslock 7310 Carlow square privacy lever come in?
Two finishes, Oil Rubbed Bronze and Matte Black, and both are available in left hand and right hand. If you are standardizing a building or a whole house, that is the full choice, so pick one and it will run consistently across every opening you order.
22) The Weslock 7310 Carlow is a square lever. What other square or flat lever shapes are out there?
The Weslock 7310 Carlow uses a square lever style on the Molten Bronze collection. Among comparable leversets, the Bravura Tampa is a Grade 2 passage leverset with square trim, while the Bravura Atlanta, Orlando, and Miramar all use round trim. Design Hardware X75 and J75 are flat lever passage locksets, X75 at Grade 1 and J75 at Grade 2, both for 1-3/4 inch doors.
