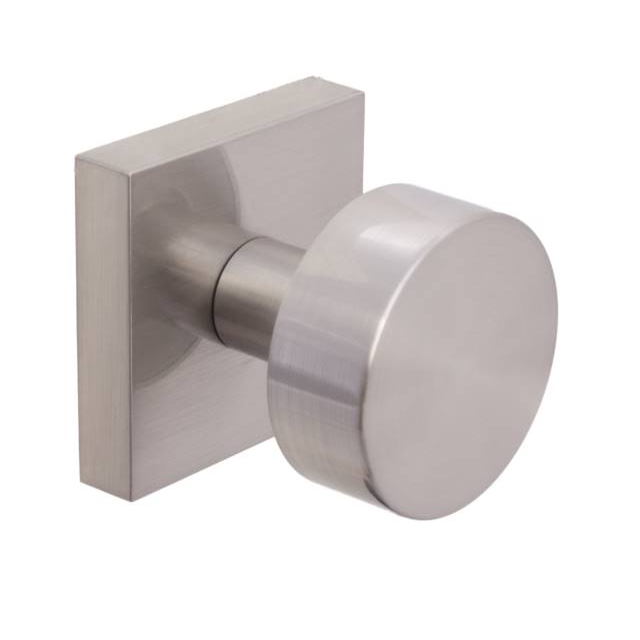

Weslock 0700 Mesa Knob Passage Lock with Adjustable Latch and Full Lip Strike

Weslock 0700 Mesa Knob Passage Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: 007004N4NFR20
From the Transitional Collection
Selected Finish is
Selected Lever/Knob Type is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$61.20
$32.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK 0700 PASSAGE LOCK  OVERVIEW

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.



Standard features

  • Passage - Free Turning on Both Sides of Door
  • Cylindrical Door Locks
  • ANSI Grade 3 Certified
  • Solid Zinc Construction
  • Square Spindle Construction
  • Dual Spring Housings
  • Non-Handed
  • Decorative Push Button Locking in Interior Rosette
  • Locking Device Releases Upon Turn of Interior Lever
  • Adjustable Backset 2-3/8" or 2-3/4"
  • 2-1/8" Cross Bore, 1" Edge Bore
  • Fits 1-3/8" - 1-3/4" Thick Door
  • 1/2" Throwbolt
  • 1" x 2-1/4" Radius Corner Faceplate Standard (Square or Drive-in Available)
  • 2-1/4" x 1-3/4" Full Lip Radius Strike Standard (Square Available)
  • Limited 25 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty



Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Transitional
Warranty:
Limited 25 Year Mechanical, Limited 5 Year Finish
Collection:
Transitional
Cross Bore:
2-1/8"
Keyed:
No
Latch Faceplate:
1" x 2-1/4" Radius Corner Standard
Product Subgroup:
Bored Locksets
Product Type:
Knobsets
Subcategory:
Residential Door Knobs
Commercial/Residential:
Residential
Handle Type:
Knob
Keyed Function:
Non-Keyed
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Passage/Hall/Closet
Door Thickness Range:
1-3/8" to 1-3/4"
Product Design:
Square Rose
Door Strike:
2-1/4" - 1-3/4" Radius Full Lip
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Weslock 007004N4NFR20 – Frequently Asked Questions

1) Do I have to know my backset before ordering a Weslock 0700 Mesa knob?
No. The latch on the 0700 is adjustable between the two standard residential backsets, 2-3/8 and 2-3/4 inches, so one part covers both. Measure from the door edge to the center of the bore only if you want to preset it; otherwise adjust it at the door.
2) Does a passage knob like the Weslock 0700 Mesa lock at all, and where should it go in a house?
It does not lock. Passage function means both knobs turn free at all times, which is what you want on hall doors, closets, laundry rooms and pantry doors. For a bedroom or bathroom you need a privacy function with a push button instead, and for an exterior door you need a keyed entry set or a passage knob paired with a separate deadbolt.
3) Will the Weslock 0700 latch drop into my existing strike, or do I have to re-mortise the jamb?
The 0700 ships with a 2-1/4 by 1-3/4 inch full lip radius strike and a 1 by 2-1/4 inch radius corner latch faceplate. If the door and jamb were prepped for radius corner hardware, both drop straight in with no chiseling. Square faceplates and a square strike are available, and a drive-in latch option exists for bores with no faceplate mortise at all. The throwbolt is 1/2 inch, standard for a residential bored latch, so strike depth is not an issue on a normal jamb.
4) Is the Weslock 0700 Mesa knob rated for a commercial building or an apartment turnover?
It is a residential product, ANSI Grade 3, zinc construction. That suits single family homes and light multi-family interior doors. For apartment corridors, offices or anything with real traffic, step up to a Grade 2 or Grade 1 cylindrical passage knob such as the Corbin Russwin CK4410 (Grade 2) or the Falcon X101 (Grade 1, heavy duty), both of which cover the same hall and closet function on tougher openings.
5) What is the closest passage knob to the Weslock 0700 Mesa if I need a Grade 2 instead of Grade 3?
The Weslock 0700 Mesa is a passage function cylindrical knob for hall and closet openings. For the same passage function in a Grade 2 knob, the Dexter C2000 Series passage cylindrical ball knob is Grade 2 non-keyed and fits doors 1-3/8 inch to 1-3/4 inch, the same door thickness range the Mesa covers. The Corbin Russwin CK4410 is also a Grade 2 passage/closet cylindrical knob with a Global knob and the same 1-3/8 inch to 1-3/4 inch thickness range. Both are non-keyed like the Mesa, so the opening prep and the way the door behaves are unchanged.
6) Can I use a dummy knob in place of the Weslock 0700 Mesa passage knob?
No. The Weslock 0700 Mesa is a passage latchset - it carries a 1/2 inch throwbolt latch and a full lip strike, so it holds the door closed. A dummy knob is surface trim with no latch at all. The Schlage A170 single dummy trim, the BEST 6K Series single dummy trim, the Bravura Biloxi dummy knobset and the Cal-Royal BA40 dummy knob are all dummy function and will not keep a door shut. Use a dummy only on an inactive leaf or a door held by a ball catch or roller catch, and keep the Mesa where the door needs to latch.
7) The Weslock 0700 Mesa is residential grade - what passage knob should I use on a commercial corridor or a fire-rated door?
The Weslock 0700 Mesa Knob is catalogued for residential use. For a heavier commercial opening in the same passage function, the Falcon X101 is a Grade 1 heavy duty cylindrical passage knobset with an interchangeable core, carries a fire rating, and fits doors 1-3/8 inch to 2-1/4 inch. The Falcon W101 is the medium duty step, a Grade 2 passage/closet knob lock with a 2-3/4 inch backset and a fire rating. The Corbin Russwin CK4310 is a Grade 1 passage/closet knob covering 1-3/8 inch to 2 inch doors. All three stay non-locking on both sides the way the Mesa does.
8) I need a knob that locks for a bedroom or bathroom - what takes the place of the Weslock 0700 Mesa there?
The Weslock 0700 Mesa is non-keyed passage function, free turning on both sides with no locking, so it is wrong for a bath or bedroom. For a privacy knob, the Pamex FTF Baron is a Grade 3 privacy knob lockset fitting 1-3/8 inch to 1-3/4 inch doors, and the Cal-Royal BER20 is a Grade 3 privacy knob lock with brass trim over the same thickness range. In Grade 2, the Dexter C2000 Series privacy cylindrical ball knob is non-keyed and fits 1-3/8 inch to 1-3/4 inch doors. Ordering privacy and passage from the same family is the usual way to keep one look across bedroom and hall doors.
9) Which knob do I order if the door needs a key instead of the Weslock 0700 Mesa?
The Weslock 0700 Mesa is non-keyed. For a keyed opening in a comparable knob, the Cal-Royal BER00 is a Grade 3 entrance/office knob lock with a Kwikset keyway covering 1-3/8 inch to 1-3/4 inch doors, and the Kwikset 400P-CP Polo is a Grade 3 keyed entry knob with a round corner adjustable latch and round corner strike, also 1-3/8 inch to 1-3/4 inch. In Grade 2, the Dexter C2000 Series entry/office ball knob is keyed and fits the same thickness range. The Pamex FTF Baron entrance/office is the Grade 3 keyed mate to the Baron privacy and passage knobs.
10) My door is thicker than 1-3/4 inch - which knob covers it if the Weslock 0700 Mesa does not?
The Weslock 0700 Mesa covers doors 1-3/8 inch to 1-3/4 inch. For a thicker leaf in passage function, the Corbin Russwin CK4310 Grade 1 passage/closet knob covers 1-3/8 inch to 2 inch and the Falcon X101 Grade 1 heavy duty passage knobset covers 1-3/8 inch to 2-1/4 inch. The Lockey 3830 keyless combination knob lock runs 1 3/16 inch to 2 inch and has an auto-locking passage function, which is a different way for the door to behave - it locks itself behind you rather than staying free on both sides.
11) For a storeroom or supply closet that has to stay locked, what replaces the Weslock 0700 Mesa?
The Weslock 0700 Mesa is passage function and stays free from both sides, so it will not secure a storeroom. The Sargent 6G04 is a Grade 2 storeroom/closet knob lock with a single cylinder at standard duty, and the Sargent 8XG04 is the heavy duty Grade 1 storeroom/closet single cylinder knob with a 2-3/4 inch backset. The BEST 8K Series is a Grade 1 heavy duty knob lock in entrance function if the door needs to be left unlocked at times rather than always secure.
12) Is the Weslock Mesa knob handed? I have doors swinging both directions off the same hallway.
Non-handed, so one part works on a left or right hand door with no reversing step. That matters when you are doing a whole floor of hall and closet doors in one pass. The knob runs on a square spindle with dual spring housings to keep the return feel consistent on both sides.
13) I need a matching privacy knob for the bedrooms and an entry set for the front door. Does the Weslock 0700 Mesa work for those?
No, the 0700 is passage only, free turning on both sides with no lock. For bedrooms and baths you need a privacy version, and for the front door a keyed entry. If you want a single brand to run the whole house in one look, the Dexter C2000 Series is offered in passage, privacy, entry/office and classroom knobs all on the same ball knob trim. Weslock's own line covers the other functions in the same Mesa design.
14) What is a comparable passage knob to the Weslock 0700 if I want the same grade at a different look?
Staying at Grade 3, the Pamex FTF Baron knob in passage function covers the same 1-3/8 to 1-3/4 inch door range. Moving to Grade 2, the Bravura Albany and Lynchburg round trim passage knobsets and the Arrow MK01 are all non-keyed passage cylindrical knobs. The Weslock difference is the square rose and the Mesa knob shape, which is what you are choosing if the rest of the house is on square trim.
15) I only need a knob on one side of a closet door that does not latch. Is the Weslock 0700 passage set the right thing?
No. A passage set is a working latchset, so it needs a bored door and a strike in the jamb. For a false door, a bifold, or one leaf of a pair that is held by ball catches, you want a dummy knob instead. The BEST 6K single dummy trim, the Cal-Royal BA40 dummy knob, and the Omnia 458/0 single dummy latchset all do that job with no latch.
16) Can I use the Weslock 0700 passage knob on a back door with a deadbolt?
Yes, that is a normal pairing. The knob gives you the latch and the pull, and the deadbolt does the securing. The 0700 covers 1-3/8 to 1-3/4 inch doors, so match the deadbolt to the same thickness and to the same backset you set the latch at, 2-3/8 or 2-3/4 inches, so the two bores line up on the stile.
17) Is there a simpler passage knob than the Weslock 0700 Mesa for a rental turn where I just need the closet doors to latch?
The Kwikset 200P Polo passage knob ships with a 6AL latch and RCS round corner strike, and the 200P-CP version comes with a round corner adjustable latch and round corner strike - the adjustable latch means one part covers both common backsets, the same way the Mesa's adjustable latch does. The Pamex FTF Baron passage knob is a Grade 3 knob lockset covering doors 1-3/8 inch to 1-3/4 inch. Either keeps the hall and closet doors latching without adding a lock the tenant does not need.
18) What is the solid brass alternative to the zinc alloy Weslock 0700 Mesa knob?
The Weslock 0700 Mesa is built from zinc alloy. For a solid brass passage knob, the Omnia 434/PA is a traditional egg-shaped knob latchset with solid brass construction and a 3 inch projection. Baldwin's Estate 5011 Colonial passage knob with the 5058 rose and the Estate 5000 Baltimore knob with the 5048 rose - which comes preconfigured with a 2-3/8 inch backset and full lip strike, the same strike style as the Mesa - are the passage options in that family. These carry a different shape and rose than the Mesa's square rose Mesa knob.
19) Is the Arrow MK01 a direct swap for the Weslock 0700 Mesa passage knob?
Functionally it lines up closely. The Arrow MK01 is a passage cylindrical knob lock, Grade 2, non-keyed, fitting doors 1-3/8 inch to 1-3/4 inch - the same function, keying and door thickness range as the Weslock 0700 Mesa. The Arrow RK01 is the ball knob version of the same passage function at Grade 2 over that thickness range. The difference the buyer sees is knob shape and rose style rather than how the door works.
20) Do the mounting screws show on the face of the Weslock Mesa knob?
No. The Mesa knob mounts with concealed installation screws, so the rose face is clean on both sides of the door. That is worth knowing if you are matching it against older hardware in the same house that has visible through-bolts on the rose.
