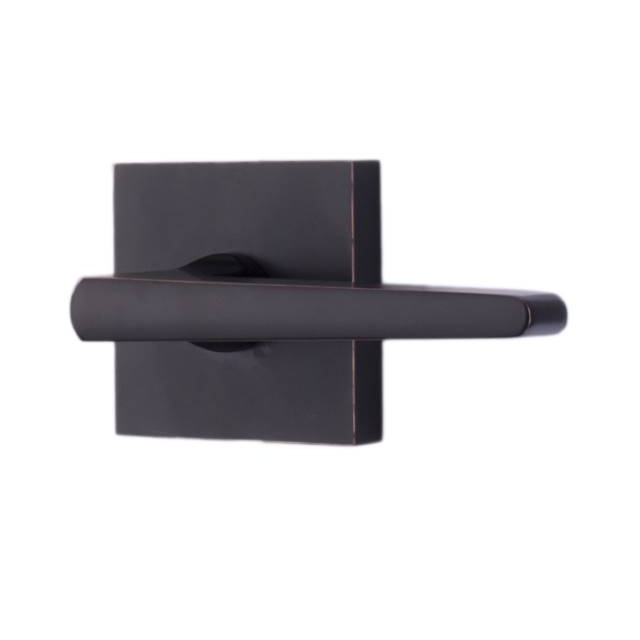

WESLOCK 0705 HALF DUMMY LOCK OVERVIEW
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Single Dummy Function:Weslock's single dummy levers/knob are surface mounted without any associated latching functions, and are perfect for inactive doors, closets, or anywhere decorative trim is needed but mechanical latch function is not. This single dummy includes one lever/knob and rosette, and can be mounted on either the interior or exterior of the door (please be aware of any handing requirements).
Standard features
- Half Dummy - One Sided No Turning
- Cylindrical Door Locks
- ANSI Grade 3 Certified
- Solid Zinc Construction
- Square Spindle Construction
- Used as Pull for Closets and Double door
- Non-Handed
- Limited 25 Year Mechanical Warranty
- Limited 5 Year Finish Warranty
DOWNLOADS & RESOURCES
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Transitional Series
- Warranty:
- Limited 25 Year Mechanical, Limited 5 Year Finish
- Collection:
- Transitional
- Keyed Function:
- Non-Keyed
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Subcategory:
- Residential Door Knobs
- Keyed:
- No
- Commercial/Residential:
- Residential
- Handle Type:
- Lever
- Lock Function:
- Dummy
- Product Attribute:
- Cylindrical Locks
- IMAP Policy:
- Yes
- Product Function:
- Dummy
- Product Design:
- Square Rose
- Product Category:
- Mechanical Locks
- Product Substrate:
- Zinc Alloy
- Department:
- Door Hardware
Weslock 007057N--0020 – Frequently Asked Questions
1) Does the Weslock 0705 Philtower half dummy lever have a latch, or is it just a pull?
Just a pull. The Philtower half dummy is surface mounted to the door face with no latch, no spindle through the door, and no turning action. It is the right part for a closet door, an inactive leaf of a pair, or any opening where you want matching trim but no mechanical latching. If the door needs to stay shut, you need a passage or privacy set instead, not a dummy.
2) Is the Weslock Philtower half dummy handed, or can I put it on either side of the door?
Non-handed, so one part works on a left or right hand door and can be mounted on the interior or exterior face. Because the lever points one direction, sight it on the door before you set the screws so it matches the levers on the adjacent openings.
3) What comes in the box with a Weslock 0705 half dummy?
One lever and one rosette. A half dummy is single sided by definition, so if you are trimming both faces of a closet or a French door pair you need two of them, one per side.
4) Will the Philtower dummy match the rest of my Weslock Transitional levers on the other doors?
It is part of the Weslock Transitional collection with a square rose, so it keys visually to other Transitional Philtower trim on the same rose style. Finish is the thing to pin down: order it in Oil Rubbed Bronze, Matte Black, Satin Brass, Bright Chrome, or Satin Nickel to match what is already hanging.
5) Is a Weslock 0705 dummy lever strong enough for an apartment building or office?
It is an ANSI Grade 3 residential lockset in solid zinc, aimed at homes and light residential turnover. For a commercial corridor or an institutional building where the spec calls for heavier trim, a Grade 1 dummy such as the BEST 9K Series 1DT single dummy or the Accentra 455LN Augusta is the direction to go, with the BEST 7KC Series 1DT sitting at Grade 2 in between.
6) What is the commercial-grade equivalent of the Weslock 0705 Philtower half dummy lever?
The Weslock 0705 Philtower is an ANSI Grade 3 residential dummy lever in zinc alloy. For a commercial opening, the BEST 9K Series 1DT single dummy trim is a Grade 1 heavy duty non-keyed dummy lever, and the BEST 7KC Series 1DT is a Grade 2 medium duty dummy trim. The Accentra 455LN Augusta is another Grade 1 single dummy cylindrical lever, in the 5400 Series. All three are dummy function like the 0705, so the opening detail does not change - only the grade and duty level do.
7) I need a lever that actually latches the door, not a dummy - what should I order instead of the Weslock 0705?
The Weslock 0705 Philtower is a half dummy, surface mounted with no latch at all, so it only serves as a pull. For a latching non-keyed opening, the Accentra 5301LN Augusta is a Grade 2 passage/closet cylindrical lever, the Arrow GL01 is a Grade 2 passage lever with a Sierra lever for 1-3/4 inch to 2 inch doors, and the Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 inch to 1-3/4 inch doors. Passage function latches the door closed but does not lock.
8) Is the Baldwin 5103 half dummy a drop-in alternative to the Weslock 0705 Philtower?
Both are half dummy levers, but handing differs. The Weslock 0705 Philtower is non-handed and can be mounted on either face of the door. The Baldwin Estate 5103 half dummy with 5048 rose is ordered by hand - BAL-5103-LDM is the left hand version and BAL-5103-RDM is the right hand. If you go Baldwin you need to determine the hand of the opening before ordering; with the Weslock you do not.
9) Can I use the Weslock 0705 Philtower on a bathroom or bedroom door?
No - the Weslock 0705 Philtower is a half dummy with one-sided, non-turning trim and no latch or locking mechanism, so it cannot secure a bathroom or bedroom. For privacy function, the Kwikset 300BRNL Breton is a Grade 3 privacy lever for 1-3/8 inch to 1-3/4 inch doors, the Hager 2540 with Withnell lever is Grade 2 for 1-3/8 inch to 2 inch doors, and the Baldwin Estate 5103 is offered in a privacy version with the 5048 rose.
10) Does the Weslock 0705 Philtower work on a fire rated door?
The Weslock 0705 Philtower is a residential Grade 3 half dummy with no latch, so it does not contribute to a fire rated assembly. Where a fire rating is required on a non-keyed opening, the Falcon K101 is a Grade 1 heavy duty passage lever with a fire rating for 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever with a fire rating for 1-3/4 inch to 2 inch doors.
11) Do I need to bore the door for a Weslock Philtower dummy lever?
No cylindrical bore is required. It mounts to the face of the door, so it can go on a slab that was never prepped for hardware. That is also why it works on a door too thin or too narrow for a standard 2-1/8 inch bore.
12) Can the Weslock Philtower half dummy be keyed or locked?
No. It is non-keyed with no cylinder and no locking or turning function at all. For a closet or hall door that only needs to stay latched, look at a passage set; for a bedroom or bath, a privacy set with a thumbturn.
13) Half dummy versus full dummy pair, which do I order for double doors?
For a pair of doors where both leaves get a pull, order two half dummies, one for each leaf face. A full dummy pair, like the Emtek Arts and Crafts dummy pair, puts trim on both sides of a single door. The Weslock 0705 is the single sided version, so count by faces, not by doors.
14) What is a comparable half dummy lever from another brand if I want a handed, heavier residential look?
The Baldwin Estate 5103 half dummy with the 5048 rose is the closest cross-brand match, but it is ordered by hand, left hand or right hand as separate parts. The Weslock Philtower avoids that step since it is non-handed. Callan also offers the Bentley dummy lever at Grade 2 if you want a step up from Grade 3 without going commercial.
15) I have a double door and need trim on both leaves - is the Weslock 0705 the right part?
The Weslock 0705 Philtower half dummy includes one lever and one rosette, so a pair of doors takes two of them. If you would rather buy the pair as a single item, Emtek sells dummy leversets as pairs - the Arts and Crafts lever dummy pair and the Cortina lever dummy pair from the Classic Brass line are both dummy function sold two-sided. Function is identical; it is a question of how the set is packaged and which lever style you want.
16) I need a matching rose shape - the Weslock 0705 Philtower is square, what else is?
The Weslock 0705 Philtower half dummy uses a square rose. Among leversets, the Bravura Tampa is a Grade 2 passage leverset with square trim, while the Bravura Atlanta, Orlando and Miramar passage leversets all use round trim. If the other doors in the unit are carrying square roses, the Tampa is the passage-function match; the Weslock stays the dummy.
17) Is the Weslock 0705 Philtower keyed, and what do I order if I need a key on that door?
No - the Weslock 0705 Philtower is non-keyed dummy trim with no cylinder. For a keyed lever in the same residential range, the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for 1-3/8 inch to 1-3/4 inch doors, and the Callan Artino is a Grade 3 entrance leverset. On the commercial side, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors.
18) Are the mounting screws visible on the Weslock 0705 Philtower lever?
No, Weslock uses concealed installation screws on this trim, so the rose face stays clean once it is mounted. Worth knowing on a closet or French door where the hardware sits at eye level.
