Weslock 6600 Interior Single Cylinder Handleset Trim for Mansion or Philbrook with Adjustable Latch and Round Corner Strikes
Model: WES-6600
Weslock PHILBROOK Single Cylinder Handleset
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and...
Weslock
Starting at
$130.00
$61.58
Weslock LEXINGTON Single Cylinder Handleset
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- 5-Pin Cylinder, Weslock keyway
- Exceeds ANSI A 156.2 Grade II Lock standards
- Constructed with solid brass
- Internal mechanism features Weslock’s unique cylindrical Lock design.
- A 1” throw bolt with two hardened steel rollers to prevent sawing.
- Adustable latches 2-3/8” or 2-3/4” with removable faceplates
- Optional door thickness up to 2-1/4”
- Adjusts to door thickness from 1-3/4” – 2”
- Fits doors prepared with 2-1/8” top ( 1/5/8” optional ) and 2-1/8” bottom cross hole and 1” edge hole
- 5-1/2” center to center cross hole spacing ( 5-1/4” minimum )
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
- Limited Lifetime PVD Finish on Exterior Polished Brass
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Traditionale
- Warranty:
- Limited Lifetime Mechanical and Limited Lifetime Finish
- Latch Faceplate:
- 1" x 2-1/4", Removable Radius & Square
- Collection:
- Traditionale
- Cross Bore:
- 2-1/8"
- Keyed:
- Yes
- Product Subgroup:
- Bored Locksets
- Product Type:
- Interior Trim Only
- Subcategory:
- Residential Handlesets
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Residential
- Cylinder and Keyways:
- 5-Pin Cylinder, Weslock Keyway
- Lock Function:
- Entry
- IMAP Policy:
- Yes
- Backset (Distance):
- 2-3/8 or 2-3/4
- Product Function:
- Single Cylinder
- Door Thickness Range:
- 1-3/4" to 2"
- Door Strike:
- Round Corner Strike
- Product Style:
- Lexington
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Weslock 01300--E3SL20 – Frequently Asked Questions

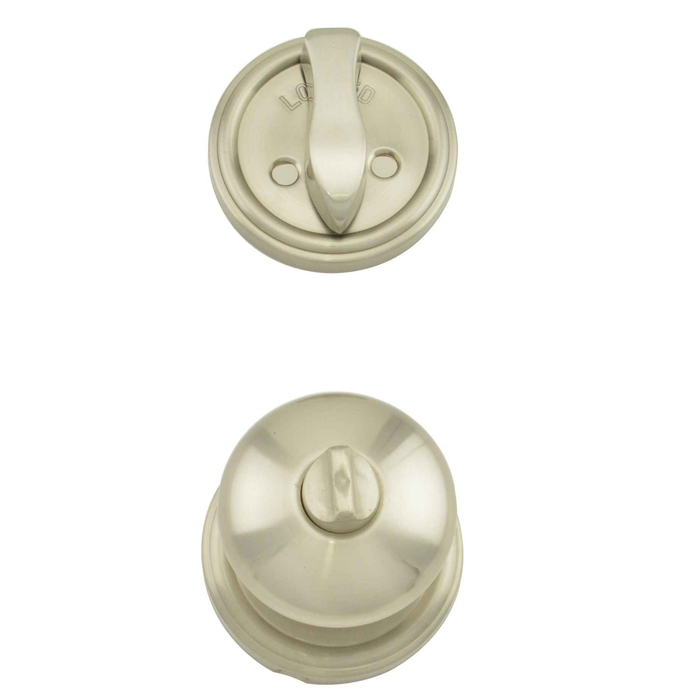

1) Is the Weslock 1300 a complete handleset or just the inside trim?
The Weslock 1300 is interior trim only, the inside half of a single cylinder handleset. It gives you the inside knob and the inside deadbolt trim to pair with a Weslock exterior handleset grip; it is not a standalone lock and it does not include the outside gripset. If you need the whole entry set, order the exterior handleset as well.
2) My door is 1-5/8 inches thick, what interior handleset trim should I use instead of the Weslock 1300?
The Weslock 1300 starts at 1-3/4 inches, so a 1-5/8 inch door is too thin for it. Schlage Residential covers that range: the F59 Accent lever interior pack is listed for 1-5/8 to 1-3/4 inch doors, and the FC59 Alexandria glass knob interior trim pack with deadbolt thumbturn spans 1-5/8 to 2-3/4 inches. Both are Grade 2. Note that trim only mates with its own manufacturer's exterior handleset, so match the brand of the grip already on the door.
3) Does the Weslock 1300 work with a 2-3/8 inch backset, or do I need 2-3/4?
Both. The latches supplied with the 1300 adjust between 2-3/8 and 2-3/4 inch backset, so one part covers the two standard residential backsets and you do not have to measure before ordering. The faceplates are removable and come in radius and square, measuring 1 x 2-1/4 inches, so the latch can be matched to whatever mortise is already cut in the door edge.
4) Can I get several Weslock 1300 entry sets keyed alike for a rental property?
Yes. Keying is a required selection at order time: keyed different is standard, keyed alike is the alternative, and there is an optional key code field if you are matching an existing Weslock key. The cylinder is a 5-pin in the Weslock keyway, so anything you key alike has to be Weslock keyway hardware.
5) I need a lever instead of a knob on the inside of my handleset - what are the options?
Three lever interior trims cover that. The Kwikset 966BRL-LH Brooklane lever is Grade 2 entry function, handed left. The Kwikset 966BRNL-SQT Breton lever on a square rose is Grade 2 entry function with a universal design that fits 687 and 800 Series outside trim. The Schlage Residential JH59 Broadway lever inside trim is Grade 3 entrance function with a Collins deadbolt thumbturn and a 1-3/8 inch to 1-3/4 inch door thickness range. The Weslock 1300 is knob trim only, in the Eleganti and Impressa designs.
6) What is the closest equivalent to the Weslock 1300 interior handleset trim from Kwikset?
The Kwikset 966BRL-LH Brooklane lever interior single cylinder handleset trim is the nearest match. Both are interior trim for a single cylinder handleset, and the Kwikset 966BRL-LH is a Grade 2 entry function. The Weslock 1300 is an entry function trim with a 5-pin Weslock keyway and comes with a knob rather than a lever - the Eleganti or the Impressa. The 966BRL-LH is handed left, so a right hand opening needs the opposite hand, while the Weslock 1300 knob trim is not handed.
7) Will the Weslock 1300 trim work on a Kwikset 800 Series handleset?
No. The Weslock 1300 is interior trim for a Weslock single cylinder handleset, with a 5-pin Weslock keyway and 5-1/2 inch center to center cross bore spacing. Trim built for Kwikset outside handlesets is a separate part: the Kwikset 966BRNL-SQT Breton lever is a universal design for 687 and 800 Series outside trim, and the Kwikset 966AO Aliso and 966BL Balboa interior packs are built for Signature Series 800 and 687 handlesets.
8) Is the Weslock 1300 strong enough for an apartment building or an office entry?
It is a residential entry lock. Weslock states the 1300 exceeds ANSI A156.2 Grade II, and the deadbolt has a 1 inch throw with two hardened steel rollers in the bolt to resist sawing. That suits houses, condo units, and light multi-family. For commercial traffic and code-driven specs you want a commercial bored or mortise lock instead.
9) Do I need to specify handing when ordering the Weslock 1300 interior trim?
No handing selection on the 1300. The knob trim is symmetrical and the latches adjust for backset, so the only required choices at order time are door thickness and keying. That is different from some competing trim: the Kwikset 966BRL-LH Brooklane, for example, is a left hand specific lever pack.
10) Does the Weslock 1300 come with strikes and a latch, or do I order those separately?
Latches and strikes are included. You get adjustable 2-3/8 or 2-3/4 inch latches with removable faceplates in radius and square, and round corner strikes. Nothing extra to buy on the hardware side; what you do still need is the matching Weslock exterior handleset, since the 1300 is the inside trim.
11) Single cylinder or double cylinder, which is the Weslock 1300?
Single cylinder. Key on the outside, thumbturn on the inside, entry function. That is what most jurisdictions want on an egress door, and it is why the inside trim carries a turn rather than a second keyway. If you have glass within reach of the deadbolt and want key-both-sides, this is not the trim for it.
12) Which interior handleset trim includes a deadbolt thumbturn?
The Kwikset 966AO Aliso and 966BL Balboa interior packs both include a deadbolt keyed one side and are Grade 3 entrance function, built for Signature Series 800 and 687 handlesets. The Schlage Residential JH59 Broadway lever includes a Collins deadbolt thumbturn, and the Schlage Residential FC59 Alexandria glass knob pack includes a deadbolt thumbturn as well. The Weslock 1300 is the interior trim for a single cylinder handleset with adjustable latches and round corner strikes.
13) I am standardizing interior handleset trim across a building - which of these carry the higher ANSI grade?
The Kwikset 966BRL-LH Brooklane lever and the Kwikset 966BRNL-SQT Breton lever are Grade 2, as are the Schlage Residential F59 Accent and FC59 Alexandria trims. The Kwikset 966AO Aliso, 966BL Balboa, and Schlage Residential JH59 Broadway are Grade 3. The Weslock 1300 exceeds ANSI A156.2 Grade II lock standards and is built with solid brass.
14) I want a glass knob on the inside of the entry door instead of brass - what should I look at?
The Schlage Residential FC59 Alexandria glass knob interior trim pack is the glass option. It is Grade 2, dummy function with a deadbolt thumbturn, and fits doors 1-5/8 inch to 2-3/4 inch thick. The Weslock 1300 is solid brass knob trim in bright brass, antique brass, and satin nickel, and it is an entry function keyed trim rather than a dummy, so the two are not swaps for one another on the same opening.
15) What knob styles and finishes does the Weslock 1300 interior trim come in?
Two knob designs, Eleganti and Impressa, each available in bright brass, antique brass, and satin nickel, for six combinations total. The trim is Lexington style in the Traditionale collection, and the parts are solid brass.
