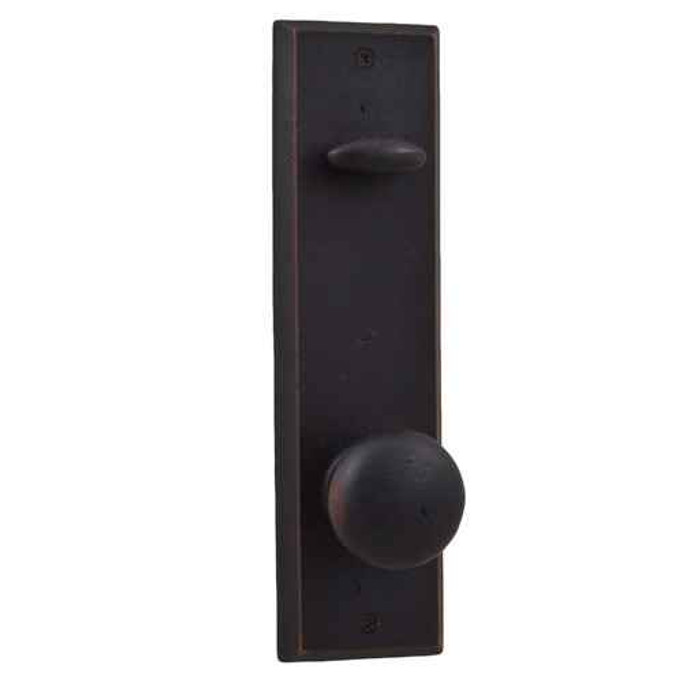

Weslock ROCKFORD Single Cylinder Handleset
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- 5-Pin Cylinder, Weslock keyway
- Exceeds ANSI A 156.2 Grade II Lock standards
- Solid Molten Brass
- 1” Throw bolt with two hardened steel rollers prevent sawing
- Removable knob/lever prevents scratching during installation
- Heavy Duty Security Strikes with 3” screws
- Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
- 5-1/2” minimum center to center cross hole spacing
- Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
- Optional door thickness up to 2-1/4”
- Adjusts to door thickness from 1-3/4” - 2”
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
Downloads and Resources
Weslock Catalog
Weslock General Specifications
Installation Instruction
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze
- Warranty:
- Limited Lifetime Mechanical and Limited 10 Year Finish
- Latch Faceplate:
- 1" x 2-1/4"
- Collection:
- Molten Bronze
- Cross Bore:
- 2-1/8"
- Keyed:
- Yes
- Product Subgroup:
- Bored Locksets
- Product Type:
- Interior Trim Only
- Subcategory:
- Residential Handlesets
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Residential
- Cylinder and Keyways:
- 5 Pin Cylinder, Weslock Keyway
- Lock Function:
- Entry
- IMAP Policy:
- Yes
- Backset (Distance):
- 2-3/8 or 2-3/4
- Product Function:
- Single Cylinder
- Door Thickness Range:
- 1-3/4" to 2"
- Door Strike:
- 2-1/4" full lip and 1" x 2-1/4", Radius & Square
- Product Style:
- Rockford
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Weslock 07900--M2SL20 – Frequently Asked Questions
1) Will the Weslock 7900 interior trim fit a 2-inch thick door?
Standard configuration of the 7900 interior handleset trim adjusts from 1-3/4 inch up to 2 inch doors, so a 2 inch door is covered out of the box. If your door is thicker, order the 2 inch to 2-1/4 inch door thickness option instead. Door thickness is a required selection when you order, so pick the range that matches the slab you are working with rather than assuming standard.
2) Does the Weslock 7900 trim work with 2-3/8 or 2-3/4 inch backset doors?
Both. The latch supplied with the 7900 interior trim is adjustable between 2-3/8 and 2-3/4 inch backset, and the faceplates are removable, so you do not need to know your backset before ordering. Those are the two backsets used in residential door prep, which means the same part covers essentially any standard bore.
3) What door prep does the Weslock 7900 handleset trim need?
It goes into a door bored with 2-1/8 inch top and bottom cross holes (a 1-5/8 inch top hole is an option) and a 1 inch edge bore, with a minimum 5-1/2 inch center-to-center between the two cross holes. If your existing door has less than 5-1/2 inch spacing between the knob bore and the deadbolt bore, this handleset trim will not line up.
4) Is the Weslock 7900 interior pack a complete handleset or just the inside trim?
Inside trim only. The 7900 is the interior half that pairs with a Weslock Greystone or Rockford exterior handleset, supplying the inside knob, the cylinder and the latch. You still need the matching exterior handleset to have a working entry set. If you are replacing a whole entry set rather than just the inside, this is not the part to order.
5) Can I get Weslock 7900 handleset trim keyed alike with my other Weslock locks?
Keyed alike is a free option on the 7900, and there is a key code field on the order so you can match an existing Weslock cylinder. The cylinder is a 5-pin on the Weslock keyway, so it keys alike with other Weslock keyway cylinders, not with Kwikset or Schlage keyways. For a property manager standardizing a building, that means the whole opening set needs to stay Weslock.
6) Will the Weslock 7900 latch fit my existing strike, or do I have to change it?
The 7900 ships with its own heavy duty security strikes fastened with 3 inch screws, in a 2-1/4 inch full lip and a 1 inch x 2-1/4 inch size, in both radius and square corner. The latch faceplate is 1 inch x 2-1/4 inch. If your jamb is already cut for a 1 inch x 2-1/4 inch strike, either the radius or square version drops into the existing mortise; the 3 inch screws reach the stud behind the jamb, which is the point of swapping the strike rather than reusing the old one.
7) What are the alternatives to the Weslock 7900 if I have a Kwikset or Schlage handleset instead?
Interior trim packs are brand-specific, so a Weslock 7900 will not go on another maker's exterior handleset. For Kwikset Signature Series 800 and 687 handlesets, the Kwikset 966 interior packs cover it, including the Aliso and Balboa knob packs in Grade 3 and the Breton lever with square rose in Grade 2. On the Schlage residential side, the JH59 Broadway lever inside trim with Collins deadbolt thumbturn is a Grade 3 handleset interior, and the FC59 Alexandria glass knob trim pack covers a wide 1-5/8 inch to 2-3/4 inch door thickness range. Match the interior pack to the brand of the exterior handleset already on the door.
8) What is the closest equivalent to the Weslock 7900 interior trim if the door already has Kwikset 800 series outside trim?
The Weslock 7900 is interior handleset trim built for Weslock Greystone or Rockford outside trim, with a Weslock keyway 5 pin cylinder, so it does not pair with a Kwikset exterior. The Kwikset match for that opening is the 966BRNL-SQT Breton lever interior trim for single cylinder handlesets, which Kwikset builds for its 687 and 800 series outside trim and rates Grade 2. Match the interior pack to the exterior brand and series rather than to the lever shape.
9) Which handleset interior trims come as a lever instead of a knob?
The Weslock 7900 interior trim is offered with the Wexford knob or the Durhan knob. For a lever inside, the Kwikset 966BRL-LH is a Brooklane lever left hand interior single cylinder handleset trim, Grade 2 and entry function, and the Kwikset 966BRNL-SQT is a Breton lever on a square rose, also Grade 2 entry. The Brooklane is handed and the Breton square rose pack is universal, so a job with both swings needs one part number in the Breton and two in the Brooklane.
10) Can a Kwikset 966 interior pack replace Weslock 7900 trim on the same door without changing keys?
No. The Weslock 7900 uses a 5 pin cylinder on the Weslock keyway, so it keys into a Weslock master or keyed alike group. The Kwikset 966AO Aliso and 966BL Balboa interior packs are built for the Kwikset Signature Series 800 and 687 handlesets. Swapping brands on one door breaks that door out of the existing Weslock key group and requires the outside trim to change with it.
11) What is a single cylinder handleset trim and when should I use a double cylinder instead?
Single cylinder means keyed on the outside and a thumb operation on the inside, which is what the 7900 entry trim is. That is the normal choice for a residential entry door. Buyers move to double cylinder, keyed on both sides, when there is glass within reach of the inside turn, though many local codes restrict it on egress doors. The 7900 is not a double cylinder option.
12) How secure is the Weslock 7900 deadbolt bolt itself?
One inch throw, with two hardened steel rollers set in the bolt to defeat sawing, and the lock is rated above ANSI A156.2 Grade II. A one inch throw is what gets the bolt far enough into the jamb to matter, and combined with the 3 inch strike screws the load goes into framing rather than the jamb trim.
13) Is the Weslock 7900 handleset trim rated for commercial use?
It is a residential product. The 7900 is built for house entry doors and exceeds ANSI A156.2 Grade II, which is a residential-duty benchmark rather than the Grade 1 specification a commercial opening or a high-traffic multifamily entrance typically calls for. For an apartment building common door or an institutional entrance, spec a Grade 1 commercial lockset instead.
14) Does handing matter when ordering Weslock 7900 interior trim?
No handing to specify on the 7900. It is a knob trim, in Wexford or Durhan, and the latch is adjustable for backset rather than handed. Lever trims are where handing bites: the Kwikset 966BRL Brooklane lever interior trim, for instance, is sold as a left hand part. If you are cross-shopping a lever pack, check the hand; with this knob trim you do not have to.
15) What is a simpler interior trim option if the inside does not need to be keyed?
The Weslock 7900 is a keyed single cylinder entry trim. If the inside just needs matching hardware without lock operation, the Schlage Residential F59 Accent lever interior pack is dummy function in the F Series, and the FC59 Alexandria glass knob trim pack is dummy function in the FC Series with a deadbolt thumbturn. Both are Grade 2. Dummy trim is the usual answer on an inactive leaf of a pair of doors.
16) Which interior handleset trims are Grade 2 rather than Grade 3?
The Weslock 7900 exceeds ANSI A156.2 Grade 2 lock standards. Among the comparable interior packs, the Kwikset 966BRL-LH Brooklane lever and 966BRNL-SQT Breton lever are Grade 2, as are the Schlage Residential F59 Accent and FC59 Alexandria packs. The Kwikset 966AO Aliso, 966BL Balboa, and Schlage JH59 Broadway packs are Grade 3. Where a facility standard calls out Grade 2, that split is the first filter.
17) What finish and knob choices are there for the Weslock 7900 interior trim?
Two knob designs, Wexford and Durhan, each in Oil Rubbed Bronze or Matte Black. All four combinations are made. The body is solid brass under the finish, part of the Molten Bronze collection, so pick the knob shape first and then match the finish to the exterior handleset you are pairing it with.
18) Will the knobs get scratched during install on the Weslock 7900?
The knob comes off. Weslock builds the 7900 trim with a removable knob so you mount and adjust the trim without the finished knob in the way, and the installation screws are concealed once it is together. Useful on Matte Black and Oil Rubbed Bronze, where install marks show most.
19) Do the alternative interior handleset trims cover both 2-3/8 and 2-3/4 inch backsets?
The Weslock 7900 ships with an adjustable latch covering 2-3/8 inch or 2-3/4 inch backsets with removable faceplates, so one part number handles either bore. Among the alternatives, the Kwikset 966BRL-LH Brooklane lever and the Schlage Residential JH59 Broadway lever inside trim are interior trim packs for handlesets and are selected by the handleset series they serve. Confirm the backset from the existing bore before ordering trim from a different brand.
