Weslock Weslock 1343 Lexington Exterior Active Dual Cylinder Handleset WES-1343

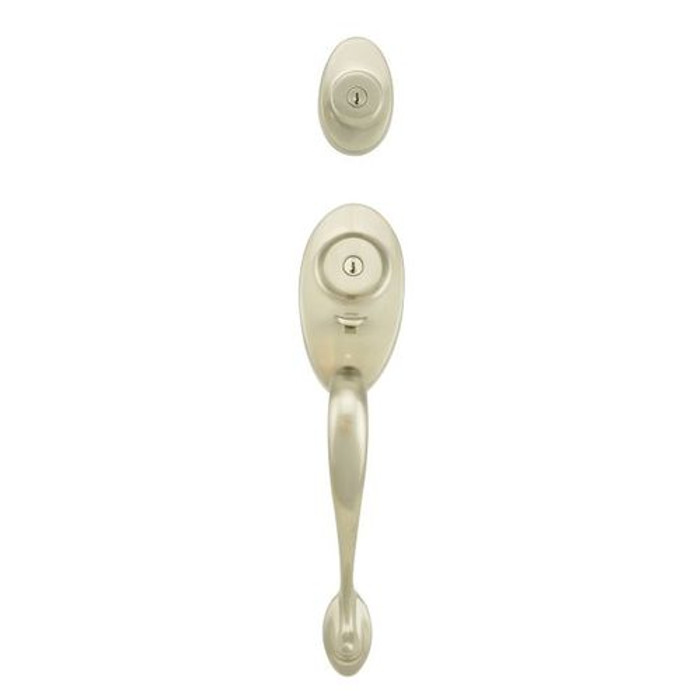

Weslock 1343 Lexington Exterior Active Dual Cylinder Handleset

(No reviews yet) Write a Review

Model: 01343-B--002D
From the Traditionale Collection
$388.80
$199.52
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$388.80
$199.52
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock LEXINGTON Single Cylinder Handleset

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.


Standard features

  • 5-Pin Cylinder, Weslock keyway
  • Exceeds ANSI A 156.2 Grade II Lock standards
  • Constructed with solid brass
  • Internal mechanism features Weslock’s unique cylindrical Lock design.
  • A 1” throw bolt with two hardened steel rollers to prevent sawing.
  • Adustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Optional door thickness up to 2-1/4”
  • Adjusts to door thickness from 1-3/4” – 2”
  • Fits doors prepared with 2-1/8” top ( 1/5/8” optional ) and 2-1/8” bottom cross hole and 1” edge hole
  • 5-1/2” center to center cross hole spacing ( 5-1/4” minimum )
  • Limited Lifetime Mechanical Warranty
  • Limited 10 Year Finish Warranty
  • Limited Lifetime PVD Finish on Exterior Polished Brass


Downloads and Resources

Weslock Catalog

Weslock General Specifications

Installation Instruction

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Traditionale
Warranty:
Limited Lifetime Mechanical and Limited Lifetime Finish
Latch Faceplate:
1" x 2-1/4", Removable Radius & Square
Collection:
Traditionale
Cross Bore:
2-1/8"
Keyed:
Yes
Product Subgroup:
Bored Locksets
Product Type:
Exterior Handle Only
Subcategory:
Residential Handlesets
Keyed Function:
Double Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5-Pin Cylinder, Weslock Keyway
Lock Function:
Double Cylinder
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Double Cylinder
Door Thickness Range:
1-3/4" to 2"
Door Strike:
Round Corner Strike
Product Style:
Lexington
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock 01343-B--002D – Frequently Asked Questions

1) Will the Weslock 1343 Lexington handleset fit a 2-1/4 inch thick door?
Standard, the 1343 Lexington handleset adjusts to doors 1-3/4 to 2 inches thick. There's a thick-door option to order, which takes it from 2 to 2-1/4 inches. You pick the range on the order form, so if you're hanging heavy custom or solid entry doors, choose the 2 to 2-1/4 inch option up front rather than trying to make the standard one stretch.
2) Will the Weslock 1343 Lexington handleset fit my existing door prep, or do I need to redrill?
It fits a standard bored entry prep. Cross bore is 2-1/8 inches, the edge bore is 1 inch, and the latch backset adjusts to either 2-3/8 or 2-3/4 inches, so it lands on either of the two common backsets without a special order. The one number to measure before you buy is the vertical spacing between the two cross bores: the 1343 wants 5-1/2 inches center to center, with 5-1/4 inches the minimum it will cover. If your old handleset was drilled at a different spacing, the plate won't line up.
3) I'm buying several Weslock 1343 handlesets for one building. Can they all run on one key?
Yes. The 1343 Lexington ships keyed different as standard, but keyed alike is a free option selected at order time, so a set of entries can run on a single key. There's also a key code field if you're matching an existing Weslock keying scheme. The cylinder is a 5-pin on the Weslock keyway, so it keys with other Weslock cylinders, not with a Schlage C or Kwikset keyway.
4) What's the difference between the Weslock 1343 Lexington and the Schlage F58 Addison handleset?
Door thickness and keyway are the real split. The Weslock 1343 covers 1-3/4 to 2 inch doors as standard, with an option out to 2-1/4, and runs a 5-pin Weslock keyway. The Schlage F58 Addison covers 1-3/8 to 1-3/4 inch doors, is a Grade 2 entrance function, and uses the Schlage C keyway. If your door is thinner, standard 1-3/8, the Weslock won't adjust down that far and the Schlage is the fit. If you're already keyed to Schlage C across a property, staying in the F Series keeps one key. Note the F58 is an entrance function, single keyed outside, not a double cylinder.
5) I have a thick 2-1/4 inch entry door. What handleset options do I have?
Two paths. The Weslock 1343 Lexington has a thick-door option that takes it from 2 to 2-1/4 inches, ordered as a selection rather than a separate part number. The Schlage FCT58 Custom Addison covers 1-5/8 to 2-1/4 inches in its base range, so it spans thick doors without an option. The FCT58 is a single cylinder entrance function with a half plate on the exterior, so if you specifically need keyed-both-sides for a door with glass, the Weslock double cylinder is the one that does it.
6) What is the closest Schlage handleset to a Weslock 1343 Lexington for a door thicker than 2 inches?
Nothing in the Schlage residential handlesets runs as thick. The Weslock 1343 Lexington covers 1-3/4 inch to 2 inch doors as standard and takes a door thickness option out to 2-1/4 inch. The closest Schlage reach is the FCT58 Custom Addison keyed entry single cylinder handleset, which covers 1-5/8 inch to 2-1/4 inch doors. The Schlage F58 Addison and JH58 Barcelona handlesets both stop at 1-3/4 inch, so a 2 inch door rules them out.
7) Weslock 1343 Lexington versus Schlage JH58 Barcelona - what is the difference for a rental unit entry door?
Grade and keying are where they part. The Schlage JH58 Barcelona is a Grade 3 single cylinder handleset on the C keyway. The Weslock 1343 Lexington exceeds ANSI A156.2 Grade 2 and is double cylinder, keyed inside and out on a 5-pin Weslock cylinder. For rentals, note that a double cylinder needs a key to exit, which many jurisdictions restrict on a dwelling unit entry - the JH58 thumbturn-side arrangement is the one that leaves the inside key-free. Door thickness also differs: JH58 fits 1-3/8 inch to 1-3/4 inch, the Weslock 1343 fits 1-3/4 inch to 2 inch.
8) Is the Weslock 1343 handleset a complete lock, or just the outside plate?
The 1343 is the exterior half, the active keyed handleset that carries the deadbolt cylinder and the gripped handle. It's the outside piece of the assembly, not a passive or dummy trim. Because it's a double cylinder function, plan on the matching interior keyed trim to complete the opening.
9) Is the Weslock 1343 Lexington rated for commercial or apartment entry doors?
It's a residential handleset. Weslock lists the 1343 as exceeding ANSI A156.2 Grade 2 lock standards, which is a residential and light-duty entry level of performance, fine for a house, a townhome, or a single unit front door. For a high-traffic commercial entrance or a multi-family common door, step up to a Grade 1 bored or mortise lock instead.
10) Will the Weslock 1343 latch work with the strike already in my jamb?
It ships with a round corner strike, and the latch has removable faceplates in both radius and square corner, faceplate size 1 x 2-1/4 inches. So the latch face can be matched to a squared or radiused mortise in the door edge without filing. The jamb side is where to look: if your existing strike is a square corner or an extended lip, you'll want to swap it or re-mortise the jamb, since the included strike is round corner.
11) How secure is the deadbolt on the Weslock 1343 Lexington?
The bolt throws 1 inch and carries two hardened steel rollers inside it, which spin against a saw blade rather than letting it bite. A full 1 inch throw is what gets the bolt deep into the jamb strike, the depth that matters when someone tries to spread the frame. Body construction is solid brass. For that throw to do anything, the strike has to be anchored with long screws into the framing behind the jamb, not just the jamb casing.
12) I only need decorative trim on an inactive door, not a working lock. Is the Weslock 1343 the right part?
No. The 1343 Lexington is a keyed, double cylinder active handleset, so it's built to lock and latch. For a fixed or inactive leaf where you just want the pull to match, use a dummy handleset instead, for example the Schlage F92 Custom Addison dummy exterior handleset, which fits 1-3/8 to 1-3/4 inch doors. Buying an active keyed set for a dummy application means paying for a cylinder and cutting a bore you don't need.
13) Can I key a Schlage FCT58 Addison alike with a Weslock 1343 Lexington across the same building?
No - they are different keyways. The Weslock 1343 Lexington runs a 5-pin Weslock keyway, while the Schlage FCT58 Custom Addison is an FCT Series handleset on the Schlage cylinder. A key alike group has to stay within one keyway, so standardize a building on one or the other. Weslock 1343 handlesets can be ordered keyed alike as a group with a key code specified.
14) Which handleset should I spec for a commercial opening - the Weslock 1343 or a Schlage residential model?
Neither is a commercial-duty lockset. The Weslock 1343 Lexington is a residential handleset that exceeds ANSI A156.2 Grade 2, and the Schlage comparables in the Addison and Barcelona trims run Grade 2 on the F58 and FCT58 and Grade 3 on the JH58. For a residential-scale opening - a house, a condo entry, a clubhouse door - the Grade 2 units are the ones to look at; a Grade 1 cylindrical or mortise lock is the different animal for a high-traffic commercial entry.
15) What finishes does the Weslock 1343 Lexington handleset come in?
Two: polished brass and satin nickel. The polished brass carries a PVD finish, which is the plated-and-cured coating that holds up outdoors far better than lacquered brass on a sun or weather exposed door. Satin nickel is the safer match if the rest of your openings are on brushed hardware.
