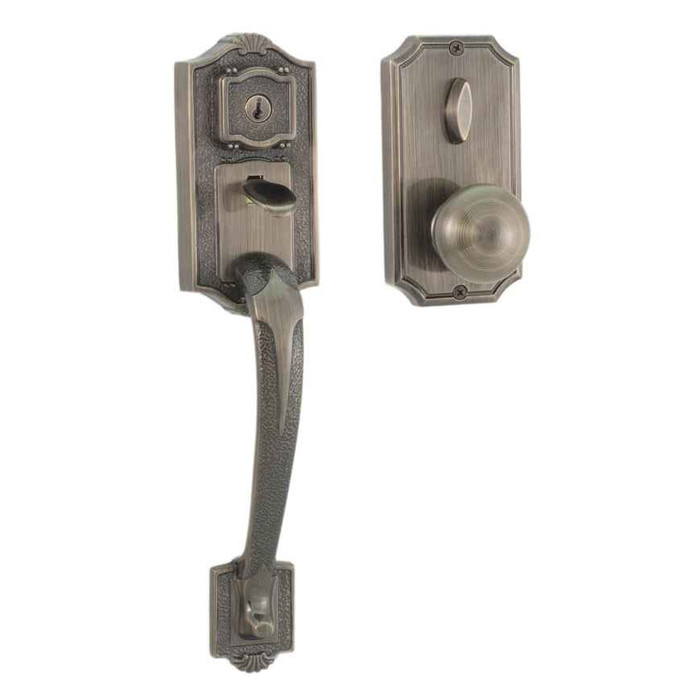

Weslock 1411 Colonial Single Cylinder Handleset with Impresa Knob
The Weslock 1411 Colonial Handleset pairs a solid brass exterior with a panic-proof single-cylinder deadbolt — one turn of the interior Impresa knob unlocks and opens the door. Concealed installation screws and a tubular design keep the exterior clean. Fits standard residential prep with adjustable backset and door thickness, and backs every installation with a Limited Lifetime Mechanical and Finish Warranty.
Standard Features
- 5-Pin cylinder, Weslock keyway
- Tubular design with concealed installation screws
- 1" throw deadbolt with two hardened steel rollers — prevents sawing
- Smooth interior trim plates
- Panic-Proof: one turn of the interior knob/lever unlocks and opens the door
- Single-Point locking and Interconnect compatible
- Solid brass exterior construction
- Non-adjustable latch — 2-3/8" or 2-3/4" backset with removable faceplates
- Fits doors prepared with 2-1/8" top and 2-1/8" bottom cross holes & 1" edge hole
- Adjusts to door thickness from 1-3/4" to 2-1/4"
- 2-7/8" center-to-center cross hole spacing
- Limited Lifetime Mechanical Warranty
- Limited Lifetime Finish Warranty
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Traditionale
- Warranty:
- Limited Lifetime Mechanical and Limited Lifetime Finish
- Latch Faceplate:
- 1" x 2-1/4"
- Collection:
- Traditionale
- Cross Bore:
- 2-1/8"
- Keyed:
- Yes
- Product Subgroup:
- Bored Locksets
- Product Type:
- Handlesets
- Subcategory:
- Residential Handlesets
- Commercial/Residential:
- Residential
- Lock Function:
- Single Cylinder
- IMAP Policy:
- Yes
- Tags:
- weslock door knobs
- Product Function:
- Single Cylinder
- Door Thickness Range:
- 1-3/4" to 2-1/4"
- Door Strike:
- Round Corner Strike
- Product Style:
- Colonial
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Backset (Distance):
- 2-3/8" or 2-3/4"
- Department:
- Door Hardware
Weslock 01411-AIASL2D – Frequently Asked Questions
1) Will the Weslock 1411 Colonial handleset fit a 2 inch thick door?
Yes, 2 inches sits inside the range. The 1411 Colonial handleset adjusts to door thickness from 1-3/4" to 2-1/4", which covers heavy stile-and-rail entry doors that most residential handlesets top out below. What it will not do is go thinner. On a 1-3/8 inch door the 1411 is the wrong part, and the Schlage Residential F60 Addison keyed entry handleset or the Pamex FS7P31 Lexington cover 1-3/8" to 1-3/4" instead. Measure the door at the edge, not at a panel, before you decide which side of that line you are on.
2) What door prep does the Weslock 1411 handleset need? My door is already bored for a handleset.
Standard two-hole handleset prep. The 1411 goes into 2-1/8" cross bores top and bottom with a 1" edge bore, on 2-7/8" center-to-center cross hole spacing. The latch faceplate measures 1" x 2-1/4" and the bolt strike supplied is a round corner strike, so a jamb already mortised for a radius corner plate is a straight swap on the frame side. Check the center-to-center on your existing holes first. Thickness and backset can be worked around; hole spacing cannot, and that is the number that decides whether this drops in or you are plugging and re-boring the door.
3) Does the Weslock 1411 handleset come in a 2-3/4 inch backset, or is it 2-3/8 only?
Both are covered. The 1411 latch is supplied at 2-3/8" or 2-3/4" backset with removable faceplates, and it is not the adjustable collapsing type, so the backset is settled when you order rather than sprung on the door. Those two are the usual residential backsets: measure from the face of the door edge to the center of the 2-1/8" bore. Get it wrong and the latch tailpiece will not reach the chassis, which is the single most common reason a handleset goes back in the box.
4) Can I get several Weslock 1411 handlesets keyed alike so one key runs the property?
Keyed alike is an option at order time, and there is a key code field if the new locks have to match a Weslock code you already carry on site. Keyed different is the default. The limit is the keyway: the 1411 uses a 5-pin cylinder on the Weslock keyway, and cylinders on different keyways cannot be keyed to one key, so a Kwikset SmartKey set on SC1 like the 687AMD SMC Amador will always be a second key on the ring. If you are standardizing a building, standardize the keyway first and the brand second.
5) With the deadbolt thrown on the Weslock 1411, can someone get out without a key?
One turn of the interior Impresa knob unlocks and opens the door, deadbolt included. That is what panic-proof means on this handleset, and it is the behavior you want on a rental or a bedroom-side entry where nobody should be hunting for a key on the way out. The deadbolt is single cylinder, keyed from the outside only, with no inside keyhole to lose a key to. If your situation calls for a key on both sides, that is a different function entirely: the Baldwin Estates 6542 Tremont double cylinder entry mortise trim is the double cylinder route.
6) How far does the Weslock 1411 deadbolt throw, and will it land in the strike I already have?
A full 1" throw, which is what gets the bolt past the stop and into the jamb rather than just kissing it. Two hardened steel rollers are set in the bolt so a hacksaw blade spins instead of cutting. The strike supplied is a round corner, so if your frame is mortised square corner the new plate will not drop flush and you will either file the corners or reuse the existing plate. On a wood jamb, the bolt is only as good as what it lands in, so run screws long enough to catch the framing behind the buck.
7) Emtek's Memphis and Hamilton are described as brass entrance handlesets. Can one go on the door in place of a Weslock 1411?
Not on a door that has to lock. The Weslock 1411 is a keyed single cylinder set with a 5 pin cylinder in the Weslock keyway and a 1 inch throw deadbolt carrying two hardened steel rollers. The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan are dummy function, which means fixed trim rather than an operating latch or cylinder. They are the right call on an inactive leaf of a pair, on a French door slab held by flush bolts, or where a separate lock does the securing and the handleset is there for the pull and the appearance.
8) What is the closest equivalent to the Weslock 1411 Colonial handleset from another brand if I want the same grip-outside, knob-inside layout?
The Weslock 1411 pairs a Colonial style exterior handleset with an interior Impresa knob in a single cylinder function. Baldwin builds the same exterior-grip-with-interior-knob arrangement in the Wesley handleset, offered with the Alcott knob as the 180WYHXATK and with the Carnaby knob as the 180WYHXCYK, both in an entrance function. What changes between them is the interior knob design and the exterior plate styling, not the way the set is laid out on the door. Most handleset alternatives pair the grip with a lever instead, so if the interior has to stay a knob, the Wesley pairings are the direct swap.
9) The Weslock 1411 starts at 1-3/4 inch door thickness. What single cylinder handleset fits a 1-3/8 inch door instead?
The Weslock 1411 adjusts to door thickness from 1-3/4 inch to 2-1/4 inch, so a 1-3/8 inch slab sits below where it starts. The Deltana 810871 Montego handleset covers 1-3/8 inch to 2 inch. The Schlage F60 Addison single cylinder keyed entry handleset with Accent lever and the Pamex FS7P31 Lexington single cylinder handleset both cover 1-3/8 inch to 1-3/4 inch, as does the Schlage JE285 Barcelona handleset with Seville lever. Measure the slab at the edge bore before ordering, because a handleset sized for a thicker door will not draw up tight on a thin one.
10) Which entry handleset works on a 2 inch or 2-1/4 inch thick entry door?
The Weslock 1411 adjusts through that whole span, from 1-3/4 inch to 2-1/4 inch door thickness. Among the alternatives, the Yale Real Living BYRD226NRRX Assure standalone touchscreen deadbolt with Ridgefield handleset and the BYRD226CBARX Wi-Fi and Bluetooth version both cover 1-3/4 inch to 2-1/4 inch as well. Several other handlesets stop short of a thick slab: the Schlage F60 Addison and the Pamex FS7P31 Lexington cover 1-3/8 inch to 1-3/4 inch, and the Kwikset 687AMD Amador and 687BW Belleview are listed at 1-3/4 inch. On heavy custom or double-thickness doors, thickness range is usually the spec that decides the shortlist.
11) I need a key on both sides of the door because there is glass beside it. What handleset takes the place of the Weslock 1411?
The Weslock 1411 is single cylinder and panic-proof, so one turn of the interior Impresa knob unlocks and opens the door with nothing to key from the inside. When the specification calls for a cylinder on both faces, the Baldwin Estates 6542 Tremont double cylinder entry mortise trim is the double keyed version of the same Tremont design that Baldwin also builds single cylinder as the 6542 Tremont entry mortise trim. Both are listed at a 1-3/4 inch door thickness and both are mortise trim, so the door must be prepped for a mortise case. Double cylinder hardware is restricted on egress doors in many jurisdictions, so confirm it against the local code for the occupancy before you commit.
12) Is there a handleset with an ANSI grade behind it for a multi-family or light commercial entry, rather than the Weslock 1411?
The Weslock 1411 is a residential single cylinder handleset. When the submittal has to show a grade, the Master Lock HDLBA0615/4D single cylinder deadbolt handleset from the HDLB series carries Grade 2 in an entrance function, and the Schlage F60 Addison single cylinder keyed entry handleset with Accent lever also carries Grade 2 in an entrance function on a 1-3/8 inch to 1-3/4 inch door. The Kwikset 687AMD Amador and 687BW Belleview single cylinder handlesets are Grade 3. Grade is the number a facility spec or a housing authority submittal usually keys on, so pull the graded options when a paper requirement exists rather than when the traffic alone suggests it.
13) What handleset should I use instead of the Weslock 1411 if I want to hand out a code rather than a key at turnover?
The Weslock 1411 is a mechanical set with a 5 pin cylinder in the Weslock keyway, so every turnover means a rekey or a key hand-off. The Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs a Halifax lever interior with a Contemporary SmartCode keypad electronic deadbolt, SmartKey cylinder, RCAL latch and RCS strike, on a 1-3/4 inch door. On the Yale side, the BYRD226NRRX Assure standalone touchscreen deadbolt with Ridgefield handleset runs without a network, while the BYRD226CBARX adds Wi-Fi and Bluetooth for remote code management, and both cover 1-3/4 inch to 2-1/4 inch door thickness. Electronic sets trade the rekey visit for battery service and code administration, which is the real decision on a portfolio.
14) My door is prepped for a mortise lock. Will the Weslock 1411 handleset work on it?
No. The 1411 is a tubular bored set. It wants 2-1/8" cross bores through the face and a 1" edge bore, not a mortise pocket routed into the door edge. Set it on a mortise-prepped door and you are left with an open pocket and no solid material under the chassis. For a door already mortised, Baldwin Estates 6542 Tremont trim is mortise trim built for 1-3/4" doors, in single or double cylinder. Converting a mortise door back to bored prep is possible but it is a shop job with a filler block, not a swap on a ladder.
15) Does the Weslock 1411 include the inside trim, or is it the exterior handleset only?
Both halves. The exterior Colonial handleset and the interior Impresa knob come together, with smooth interior trim plates and concealed installation screws so no fasteners show from the street side. Worth confirming against anything else you are pricing, because handlesets are commonly sold as the exterior piece alone: the Kwikset 687AMD Amador single cylinder handleset, for one, is listed exterior only, so the inside knob or lever is a separate line on that order.
16) Is the Weslock 1411 handleset heavy enough for an apartment building entry, or do I need a graded lockset?
Residential is what the 1411 is built for: solid brass exterior, tubular chassis, single cylinder deadbolt. Unit entry doors, single-family rentals, and townhome fronts are its territory. Where a spec sheet or an insurer calls out a grade, order to the grade instead. The Schlage Residential F60 Addison keyed entry handleset and the Master Lock HDLB single cylinder deadbolt handleset are both Grade 2; the Kwikset 687AMD Amador is Grade 3. Common-area and main-entry doors that cycle all day generally want the graded set.
17) I have a 2-1/4 inch thick entry door. Besides a keyed handleset, what else fits a door that thick?
Thick doors cut the field down fast. The Weslock 1411 handles 1-3/4" to 2-1/4", which is the top end for a mechanical residential handleset. If you want a keypad on the same opening, the Yale Real Living Assure BYRD226NRRX standalone touchscreen deadbolt with Ridgefield handleset and the BYRD226CBARX Wi-Fi and Bluetooth version both cover 1-3/4" to 2-1/4" as well. The trade is batteries, codes, and a keypad to administer against a 5-pin cylinder that needs nothing but a key.
18) The Kwikset 687 Amador is called a handleset. Does it include the interior trim the way the Weslock 1411 does?
No, and that is the trap on a like-for-like swap. The Weslock 1411 ships as a matched set with the Colonial exterior handleset and the interior Impresa knob, with smooth interior trim plates and concealed installation screws. The Kwikset 687AMD Amador and the 687BW Belleview single cylinder handlesets are exterior only, so the inside knob or lever is either reused from the door or bought separately. Both are Grade 3 on a 1-3/4 inch door, and the 687AMD comes as the SMT version with a SmartKey cylinder or the SMC version with an SC1 keyway SmartKey cylinder.
19) The rest of my doors are keyed to an SC1 system. What handleset can join that key system instead of the Weslock 1411?
The Weslock 1411 uses a 5 pin cylinder cut to the Weslock keyway, so it keys within a Weslock system rather than an SC1 one. For an SC1 keyway, the Kwikset 687AMD SMC Amador single cylinder handleset is built with an SC1 keyway SmartKey cylinder, while the 687AMD SMT version of the same Amador handleset carries Kwikset's SmartKey cylinder. Both are Grade 3 entrance function on a 1-3/4 inch door and both are exterior only, so plan on interior trim separately. For a locksmith consolidating a property onto one key, the keyway is the deciding spec, not the trim style.
20) What replaces the Weslock 1411 on a door that does not need to be keyed?
The Weslock 1411 is a keyed single cylinder handleset, so on a door that never takes a key the cylinder is hardware you do not use. The Schlage JE285 Barcelona style handleset with Seville lever is a non-keyed entry function set, Grade 2, on a 1-3/8 inch to 1-3/4 inch door. If the door still needs to secure but without a key at all, the Yale BYRD256 CBARX Assure key free touchscreen deadbolt with Ridgefield passage handleset and trim runs on code entry over Wi-Fi with a passage handleset below it, on a 1-3/4 inch to 2-1/4 inch door. The first is a mechanical set that simply does not lock at the grip; the second locks by code instead of by cylinder.
21) What other solid brass entry handlesets carry the same traditional styling as the Weslock 1411 Colonial?
The Weslock 1411 is a Colonial style handleset with solid brass exterior construction, built in the Traditionale collection. Deltana offers three solid brass entry handlesets in the same traditional vein, each its own series: the 803871B Hanover, the 815871 St. Ann and the 825871 Kingston. Baldwin's Wesley handleset, offered with the Alcott knob as the 180WYHXATK or the Carnaby knob as the 180WYHXCYK, is another entrance-function option in that styling family. Grip shape and plate profile are what separate them, so match to the existing hardware on the elevation and to the finish already on the other doors.
22) I need single motion egress but the opening calls for lever trim rather than a handleset grip. What is the alternative to the Weslock 1411?
The Weslock 1411 already gives single motion egress through its panic-proof design, where one turn of the interior knob or lever unlocks and opens the door, and it is single point locking and interconnect compatible. Where the opening wants lever trim on a flat plate instead of a gripped handleset, the Schlage JI18/19 interconnected passage lock pairs a keyed deadbolt with a Torino lever in satin stainless steel, Grade 2, on a 1-3/8 inch to 1-3/4 inch door. The two get to the same single motion result by different means, so the choice comes down to whether the door is meant to read as a residential entry with a grip or as a plain lever opening.
23) Is the Weslock 1411 an interconnected lock, where one turn of the inside knob releases everything?
It locks at a single point, the deadbolt, and the interior knob turn releases that bolt and opens the door in one motion. Weslock also lists the 1411 as interconnect compatible within its own line. That is not the same as a true interconnected lockset, where a separate lever lock and a deadbolt are mechanically tied in one housing. If a drawing calls for interconnected, the Schlage Residential JI18/19 is an interconnected passage lock with keyed deadbolt for 1-3/8" to 1-3/4" doors.
24) I am replacing one front door lock in a house with antique brass hardware. Will the Weslock 1411 match?
Antique Brass is the finish, over a solid brass exterior, in the Colonial style from the Traditionale collection. Understand what you are matching to, though: antique brass is a living finish that darkens with handling, so a new set beside a fifteen-year-old one reads lighter until it wears in. If you are doing a run of doors, order them together and they will match each other out of the box. The interior side is a smooth trim plate with the Impresa knob, so it stays quiet against painted interior casing.
