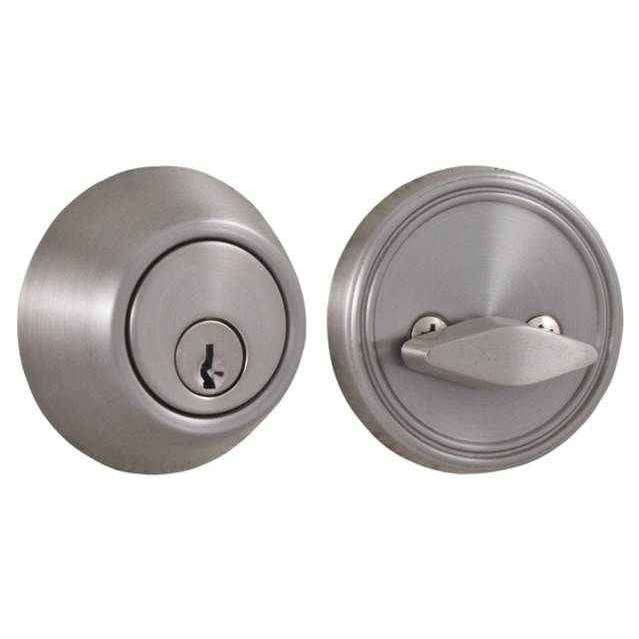

Weslock 0271 Single Cylinder Deadbolt with Adjustable Latch and Deadbolt Strike

Weslock 0271 Single Cylinder Deadbolt with Adjustable Latch and Deadbolt Strike

(1 review) Write a Review

Model: 00271-6-6FR22
From the Premiere Essentials Collection
$29.20
$15.33
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$29.20
$15.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK 0271 SINGLE CYLINDER DEADBOLT OVERVIEW

The Premiere Essentials non handed deadbolt with a adjustable deadbolt latch, with round faceplate & strike plate, 2 keys, and assembly screws. The deadbolt comes round shaped exterior and interior rosette. The exterior and interior rosettes come attached to the housing. The sit in style cylinder and cross cam deadbolt allow for easy install. Easy to follow instructions included.

Standard features

  • Exceeds ANSI Grade 3 Lock Standards
  • Sit in style cylinder for easy install
  • Adjusts to Door Thickness from 1-3/8" to 2"
  • Adjustable Latches 2-3/8" or 2-3/4" with Radius Faceplates and Strikes
  • Cross cam deadbolt cam for easy install



Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Premiere Essentials
Keyed:
Yes
Warranty:
Limited 25 Year Mechanical, Limited 5 Year Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Premiere Essentials
Cross Bore:
2-1/8"
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Subcategory:
Residential Deadbolts
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Deadbolt
Product Attribute:
Deadbolts
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Cylinder x Thumbturn
Product Dimension:
2-1/2" Diameter with 15/16" Projection
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Weslock 00271-6-6FR22 – Frequently Asked Questions

1) Will the Weslock 0271 deadbolt fit a 2-3/8 inch backset or do I need 2-3/4?
Either. The 0271 ships with an adjustable latch that sets to a 2-3/8 or 2-3/4 inch backset, so one part covers both of the standard bore positions you'll find on residential doors. Radius faceplates and strikes come with it. The cross bore is the usual 2-1/8 inch, so it drops into an existing prepped door without redrilling.
2) What door thickness does the Weslock 0271 deadbolt work on?
1-3/8 to 2 inches. That covers standard 1-3/4 inch entry doors, older 1-3/8 inch interior doors, and thicker slabs up to 2 inches without a spacer kit. Projection off the door face is 15/16 inch on a 2-1/2 inch diameter rose.
3) Can I get several Weslock 0271 deadbolts keyed alike so one key runs the whole building?
Yes. The 0271 is ordered either keyed different (the standard) or keyed alike, and there's a key code field if you're matching an existing Weslock system. It's a 5 pin cylinder on the Weslock keyway, so anything you key alike has to be Weslock keyway too. For a landlord or PM standardizing a set of units, order the whole group keyed alike in one go rather than trying to rekey later.
4) Is a single cylinder deadbolt like the Weslock 0271 the right choice, or do I need a double cylinder?
The 0271 is key outside, thumbturn inside. That's the right pick for a solid door where nobody can reach the turn through glass, and it's the safer choice for egress since anyone inside gets out without a key. If the door has glass beside or within reach of the lock, a double cylinder (key on both sides) is what you want instead, such as the Callan Model 210S or the Dexter DB2000 double cylinder. Check your local code first, as double cylinder locks are restricted on some dwelling exits.
5) Is the Weslock 0271 deadbolt rated for a commercial building or an apartment entry door?
It's a residential deadbolt that exceeds ANSI Grade 3 standards, so it suits single family, condo, and light multi-family unit doors. For a commercial entry, a common corridor, or anything taking heavy traffic, step up to a Grade 1 or Grade 2 deadbolt such as the Design Hardware D1 Series (Grade 1, extra heavy duty) or the Dexter DB2000 single cylinder (Grade 2, 1-3/8 to 1-3/4 inch doors).
6) My door is 2 inches thick. Which deadbolts will actually fit?
The Weslock 0271 adjusts from 1-3/8 up to 2 inches, so it covers a full 2 inch slab. Most of the residential deadbolts we carry stop short of that: the Dexter DB1000 tops out at 1-7/8 inches and the Cal-Royal ED500 at 1-3/4. The Deltana 7312KA2 also goes to 2 inches, but it's a double cylinder. If you want key outside and turn inside on a 2 inch door, the 0271 is the fit.
7) What deadbolt should I use instead of the Weslock 0271 on a fire rated door?
The Weslock 0271 is a residential deadbolt built to exceed ANSI Grade 3 lock standards. On an opening that needs a fire rating, the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw and a fire rating, in the same cylinder x thumbturn function and a 1-3/8 inch to 1-3/4 inch door thickness range. The Hager 3118 is the Grade 1 classroom version, also fire rated, with a Schlage C keyway and a 6-pin cylinder. The Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.
8) What is a Grade 1 alternative to the Weslock 0271 single cylinder deadbolt for a heavier-use opening?
The Weslock 0271 is a residential single cylinder deadbolt, cylinder x thumbturn, that adjusts to door thickness from 1-3/8 inch to 2 inch. For a Grade 1 replacement in the same cylinder x thumbturn function, the Dexter DB1000 Series single cylinder deadbolt is Grade 1 and covers 1-3/8 inch to 1-7/8 inch door thickness, and the Accentra D111 is Grade 1 with a 2-3/8 inch backset and a 1-3/8 inch to 1-3/4 inch door thickness range. The Delaney LM Series is also Grade 1 in the same function and ships less core, so it takes an interchangeable core cylinder rather than a factory keyway.
9) Which deadbolt matches the Weslock 0271 for a door thicker than 1-3/4 inch?
The Weslock 0271 adjusts to door thickness from 1-3/8 inch to 2 inch, which is a wider range than most tubular deadbolts carry. If a double cylinder is acceptable on that opening, the Deltana 7312KA2 is a Grade 3 deadbolt with the same 1-3/8 inch to 2 inch range. For thicker commercial doors, the Corbin Russwin DL3011 Grade 1 cylindrical deadlock covers 1-3/4 inch to 2-1/4 inch, though it is a cylinder x blank rather than a thumbturn on the inside.
10) Which deadbolts look like a substitute for the Weslock 0271 but will not work in the same prep?
The Weslock 0271 is a tubular bored deadbolt that goes into a 2-1/8 inch cross bore with a 1 inch by 2-1/4 inch latch faceplate. Several deadbolts share the name but not the prep. The Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch and need a mortise pocket. The Dormakaba D900 is a small case mortise deadbolt. The Codelocks CL200 is a surface mounted deadbolt with key override, and the Arrow 460 is a mortise lock strike, not a lock at all. The Baldwin Reserve 8BR0618001 is a deadbolt spacer, and the BEST 8T is a T Series tube component rather than a complete deadbolt.
11) I need a deadbolt that takes an interchangeable core instead of the Weslock keyway. What are my options?
The Weslock 0271 comes with a 5 pin cylinder in the Weslock keyway, so it keys into Weslock systems rather than an SFIC system. For an SFIC or interchangeable core opening, the Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, the Deltana CL200LAIC is a Grade 2 single deadbolt with interchangeable core and a 2-3/4 inch backset, and the Delaney LM Series is a Grade 1 less core deadbolt in dull chrome US26D. If the facility standardizes on Schlage C instead, the Hager 3215 uses a Schlage C keyway.
12) Do I have to worry about handing when I order the Weslock 0271 deadbolt?
No. The 0271 is non handed, so the same part goes on a left hand or right hand door with no swap and nothing to specify on the order. That's one less thing to get wrong when you're buying a dozen for a turn.
13) What finishes does the Weslock 0271 deadbolt come in for matching the rest of my door hardware?
Four: satin nickel, oil rubbed bronze, bright chrome, and matte black. The rose is round on both sides, 2-1/2 inches across, so it reads as a traditional round trim. If your other doors are square trim, the Bravura 310SC Elite or the Callan 200S square trim deadbolt are the shape match instead.
14) What comes in the box with the Weslock 0271 deadbolt, and do I need anything else to install it?
Adjustable deadbolt latch, round faceplate, strike plate, two keys, assembly screws, and instructions. Exterior and interior rosettes come already attached to the housing, and the sit in style cylinder with cross cam means fewer loose pieces at the door. If the door is already bored 2-1/8 inch with a 2-3/8 or 2-3/4 backset, you need nothing beyond a screwdriver and a chisel for the strike.
15) Will the Weslock 0271 latch faceplate cover the mortise left by the deadbolt I'm pulling out?
The latch faceplate measures 1 x 2-1/4 inches with a radius (round corner) edge. That's the common residential tubular deadbolt faceplate size, so it lands in an existing radius mortise. If the door edge is prepped square corner, you'll need to square off the corners or fit a square-corner latch instead.
16) Can a locksmith rekey the Weslock 0271 to my existing masterkey system?
It's a 5 pin cylinder cut to the Weslock keyway, so it rekeys within Weslock only. If your building is already on a Schlage C keyway, the 0271 won't join that system, and a Hager 3115 or 3215, both Schlage C keyway deadbolts, are the ones that will.
17) Is there a deadbolt like the Weslock 0271 that also fits both 2-3/8 and 2-3/4 inch backsets?
The Weslock 0271 uses an adjustable latch that sets to a 2-3/8 inch or 2-3/4 inch backset. Other deadbolts with adjustable backset include the Cal-Royal ED500, a Grade 3 single cylinder deadbolt with adjustable backset and a 1-3/8 inch to 1-3/4 inch door thickness range, and the Falcon D111, a Grade 1 heavy duty classroom deadbolt with adjustable backset. On the residential side, the Brinks Raleigh E2401 round deadbolt and the Brinks Mendocino E2402 square deadbolt both use a 4 way adjustable backset in the same cylinder x thumbturn function.
18) What is the double cylinder equivalent of the Weslock 0271?
The Weslock 0271 is keyed on one side only, with a thumbturn inside. For an opening that needs a key on both sides, the Callan Model 210S is a Grade 3 double cylinder deadbolt, the Dexter DB2000 Series double cylinder is Grade 2 with a 1-3/8 inch to 1-3/4 inch door thickness range, and the Delaney LU Series double cylinder is Grade 2 in a stainless steel US32D finish. The Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder deadbolt for a 1-3/4 inch door. Local code often restricts double cylinder on an egress door, so confirm before specifying.
19) What deadbolt gives me the same round trim as the Weslock 0271 in a Grade 2?
The Weslock 0271 has round exterior and interior rosettes and measures 2-1/2 inch diameter with a 15/16 inch projection. In Grade 2 with the same cylinder x thumbturn function, the Bravura 310B Elite is a traditional round deadbolt and the 310RC Elite is a contemporary round deadbolt. The Callan Model 200S-G2 is a Grade 2 single cylinder round trim deadbolt. If square trim suits the door better, the Bravura 310SC Elite and the Callan 200S in Grade 3 are the square equivalents.
20) Is there a simpler alternative to the Weslock 0271 when the door does not need to be keyed?
The Weslock 0271 is a keyed single cylinder deadbolt, cylinder outside and thumbturn inside. If the opening only needs to be thrown from the inside, the Arrow E60 is a Grade 2 exit deadlock with a blank plate on the outside and a thumbturn inside, for 1-3/8 inch to 1-3/4 inch doors. The Callan Model 205S is a Grade 3 one sided half-bore deadbolt, which means it does not require a full through bore in the door.
21) What should I use instead of the Weslock 0271 if I want keypad or electronic access on the same door?
The Weslock 0271 is a mechanical deadbolt keyed to a 5 pin Weslock cylinder. For coded or credential access on the same opening, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 is a medium duty electronic surface deadbolt in brushed steel, and the CL2210 is the mortise version. For multifamily credential systems, the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt and the Saffire LX-D adds BLE with electronic lock override.
22) Which deadbolt has an ADA friendly thumbturn as an alternative to the Weslock 0271?
The Weslock 0271 uses a standard round thumbturn on the interior. Where an easier grip is required, the Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn, in the same cylinder x thumbturn function, and it fits doors from 1-3/8 inch to 1-3/4 inch. The Cal-Royal CB160 is a Grade 2 single cylinder deadbolt with a tamper-resistant cylinder guard if the priority is protecting the outside cylinder instead.
23) What is a step up from the Weslock 0271 for a multi-family building standardizing on one deadbolt?
The Weslock 0271 is a residential deadbolt in the Premiere Essentials collection that exceeds ANSI Grade 3 and can be ordered keyed alike across a set of doors. For a commercial-duty standard across a portfolio, the Falcon D211 is a Grade 2 medium duty single cylinder deadbolt in the D200 Series and the Falcon D111 is the Grade 1 heavy duty version in the D100 Series with adjustable backset. The Arrow DBX61 is a Grade 2 single cylinder deadbolt in the DBX Series, and the Deltana CL200LM is a Grade 1 single cylinder deadbolt, both in the same cylinder x thumbturn function.
24) What is the Weslock 0271 deadbolt made of?
Zinc alloy. It's a cast residential-duty body rather than a wrought brass or steel commercial housing, which is consistent with its Grade 3 rating. Fine for a unit entry door; for an exterior door on a commercial property with real traffic, pick a Grade 1 deadbolt like the Deltana CL200LM or the Delaney LM Series.
