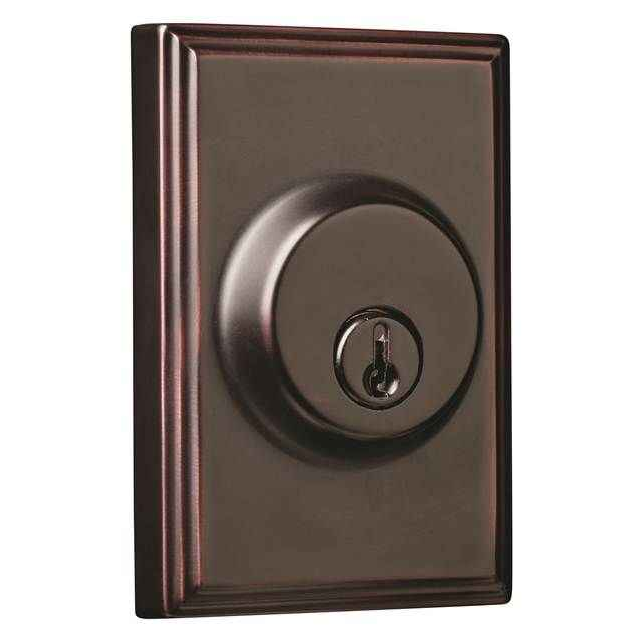

Weslock 3771 Woodward Single Cylinder Deadbolt with Adjustable Latch and Deadbolt Strike

Weslock 3771 Woodward Single Cylinder Deadbolt with Adjustable Latch and Deadbolt Strike

(No reviews yet) Write a Review

Model: 03771-1-1SL23
From the Elegance Collection
$85.20
$62.59
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$85.20
$62.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK WOODWARD SINGLE CYLINDER DEADBOLT OVERVIEW

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.



Standard features

  • Meets ANSI A 156.2 Grade II Lock Standards
  • Removable Knobs/Levers Prevents Scratching During Installation
  • Panic Proof Privacy/Keyed Entry - One Turn of Interior Knob/Lever Unlocks and Opens Door
  • Push Button Locking in Rosette
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty



Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Elegance
Keyed:
Yes
Warranty:
Limited Lifetime Mechanical and Limited Lifetime Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Elegance
Cross Bore:
2-1/8"
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Subcategory:
Residential Deadbolts
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Deadbolt
Product Attribute:
Deadbolts
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Cylinder x Thumbturn
Product Dimension:
2-3/4" x 3-7/8" with Exterior 7/8" and Interior 1-3/4" Projection
Product Style:
Woodward
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock 03771-1-1SL23 – Frequently Asked Questions

1) Will the Weslock 3771 Woodward deadbolt fit my existing door prep?
The 3771 Woodward drops into a standard 2-1/8 inch cross bore, and the latch is adjustable for either a 2-3/8 or 2-3/4 inch backset, so you don't have to know which one your door was bored for before you order. The latch faceplate is 1 x 2-1/4 inches, which is the common residential mortise cut in the door edge. If your existing deadbolt came out of a 2-1/8 inch bore, this goes back in the same hole.
2) Is the Weslock 3771 a single or double cylinder deadbolt, and can I use it on a door with glass?
Single cylinder: key on the outside, thumbturn on the inside. That means anyone who can reach the inside through broken or adjacent glass can turn the bolt open. For a glass-panel or sidelite door where that reach is a concern, a double cylinder (keyed both sides) is the usual answer, such as the Baldwin Reserve Contemporary Round or Square deadbolt, the Callan 210S, or the Dexter DB2000 double cylinder. Keep in mind a double cylinder needs a key on the inside to get out.
3) Can I key the Weslock 3771 deadbolt to match the other locks in my house?
Yes, within the Weslock keyway. The 3771 uses a 5 pin cylinder on the Weslock keyway, and you choose keyed alike or keyed different when you order, with a key code field if you need it cut to an existing code. Keyed alike gets you one key across every unit ordered together. What it will not do is match a Schlage or Kwikset key already in the door, since the keyway is different. If you're standardizing on Schlage C, the Hager 3115 or 3215 deadbolt is on that keyway instead.
4) Is the Weslock Woodward deadbolt rated for a commercial building or an apartment entry door?
It's built to ANSI A156.2 Grade 2 lock standards but catalogued as residential hardware, so it suits single family homes, condos, and light multi-family unit doors. For a commercial opening or a high-traffic entry where a Grade 1 deadbolt is specified, look at the Accentra D111, the Delaney LM Series, or the Deltana CL200LM, all Grade 1 single cylinder deadbolts with a cylinder x thumbturn function.
5) What is the closest Grade 2 alternative to the Weslock 3771 Woodward single cylinder deadbolt from another brand?
The Weslock 3771 Woodward is a cylinder x thumbturn deadbolt built to ANSI A156.2 Grade 2. Several Grade 2 single cylinder deadbolts share that same cylinder x thumbturn function: the Arrow DBX61, the Bravura 310B Elite traditional round, the Cal-Royal CB160 with tamper-resistant cylinder guard, the Callan Model 200S-G2 round trim, and the Dexter DB2000-SCT. All five are keyed outside with a thumbturn inside, the same operation as the Woodward. The Dexter DB2000-SCT and the Hager 3215 both carry a 1-3/8 inch to 1-3/4 inch door thickness range if the door is at the thin or thick end of standard residential stock.
6) The Weslock 3771 Woodward is rated residential - what steps up to Grade 1 for a commercial opening?
The Woodward 3771 is a residential deadbolt meeting ANSI A156.2 Grade 2. For an opening that calls for Grade 1, the Accentra D111 is a Grade 1 single cylinder deadbolt with a 2-3/8 inch backset and a 1-3/8 inch to 1-3/4 inch door thickness range, and the Dexter DB1000-SCT is a Grade 1 single cylinder covering 1-3/8 inch to 1-7/8 inch. The Deltana CL200LM and the Delaney LM Series are also Grade 1 single cylinder units, the Delaney supplied less core. All keep the cylinder x thumbturn operation the Woodward uses, so the door prep logic and the way the occupant works the lock stay familiar.
7) I need a keyed deadbolt on both sides of a glass-panel door instead of a thumbturn - what replaces the Woodward 3771?
The Woodward 3771 is single cylinder, keyed outside with a thumbturn inside, so it is not the part for an opening that has to be keyed from both faces. Double cylinder options include the Dexter DB2000-DCT in Grade 2 and the DB1000-DCT in Grade 1 with a 1-3/8 inch to 1-7/8 inch door thickness range, the Delaney LU Series Grade 2 in stainless steel US32D, the Callan Model 210S in Grade 3, the Hager 3214 Grade 2 with a Schlage C keyway, and the Design Hardware D1 Series Grade 1 for 1-3/4 inch doors. Check your local egress code before specifying a double cylinder on a required exit door.
8) The Woodward 3771 uses a Weslock keyway - what deadbolt should I order to key into an existing Schlage C system?
The Woodward 3771 comes with a 5 pin cylinder in the Weslock keyway, so it keys into a Weslock system rather than a Schlage one. To match doors already on Schlage C, the Hager 3215 single cylinder with a 1 inch throw, the Hager 3115 cylinder x thumbturn, and the Hager 3118 with a 6-pin cylinder are all specified with the Schlage C keyway. If the building instead runs small format interchangeable core, the Arrow E61 26D IC ships with SFIC prep less core and the Deltana CL200LAIC is an interchangeable core Grade 2 single deadbolt on a 2-3/4 inch backset.
9) My door has no 2-1/8 inch cross bore - can I still use the Weslock 3771 Woodward?
No. The Woodward 3771 is a bored deadbolt that needs a 2-1/8 inch cross bore and a 2-3/8 or 2-3/4 inch backset. For a door without that prep, the Codelocks CL200 is a surface mounted deadbolt with key override and the CL2200 is an electronic surface deadbolt in brushed steel, both mounting to the face of the door. The Emtek 2050 square and 2051 round are European mortise deadbolts with an integrated roller latch, which need a mortise pocket instead of a bore. The Callan Model 205S is a one-sided half-bore unit for a door that can only be bored partway through.
10) Which products that come up alongside the Weslock 3771 Woodward are not actually deadbolts I can substitute?
Several parts sit next to the Woodward 3771 in a deadbolt search but will not replace it. The Arrow 460 is a mortise lock strike for latchbolt and deadbolt functions with a straight lip, a strike only. The Baldwin Reserve 8BR0618001 is a deadbolt spacer, and the BEST 8T is the tube component of a T Series tubular deadbolt, both sub-assemblies rather than a complete lock. The Falcon H2101 is an entrance interconnected lock that includes a single cylinder deadbolt but also carries the knob or lever, so it needs a different door prep than a standalone deadbolt like the Woodward.
11) My door is thicker than standard - which deadbolt works where the Weslock 3771 Woodward would not?
The Woodward 3771 is a residential deadbolt built around a 2-1/8 inch cross bore on standard residential stock. For thicker leaves, the Corbin Russwin DL3011 Grade 1 cylindrical deadlock covers 1-3/4 inch through 2-1/4 inch, and the Deltana 7312KA2, a Grade 3 heavy duty double cylinder, covers 1-3/8 inch to 2 inch. The Dexter DB1000-SCT reaches 1-7/8 inch while keeping the cylinder x thumbturn operation the Woodward uses.
12) How far does the Weslock 3771 deadbolt stick out from the door face?
Projection is 7/8 inch on the exterior side and 1-3/4 inches on the interior thumbturn side, with a 2-3/4 x 3-7/8 inch trim footprint. The exterior number matters if you have a storm door or screen door that swings close to the face of the entry door, since a low profile outside is what keeps the two from colliding.
13) What finishes does the Weslock 3771 Woodward deadbolt come in?
Two: Oil Rubbed Bronze and Satin Nickel. Both are on a brass substrate, which is what lets the plating hold up on an exterior door. If you're matching the deadbolt to knobs or levers already on the house, the Woodward trim style is part of Weslock's Elegance collection, so pair it with Elegance trim to keep the rosette shape consistent across the openings.
14) Does the Weslock 3771 come with a strike plate, or do I need to order one?
The strike is included. It ships as a deadbolt with an adjustable latch and a deadbolt strike, so the bolt, the trim both sides, and the frame strike are all in the box. You supply nothing but the door. If you're replacing a mortise lock rather than a bored deadbolt, the strike in this kit won't apply and you'd want a mortise strike like the Arrow 460 instead.
15) Should I put a deadbolt or a keyed entry lockset on my front door?
A deadbolt does one job: it throws a bolt into the frame and has no handle or latch, so it can't hold the door closed on its own. The 3771 is cylinder outside, thumbturn inside, and it goes above a passage or entry knob rather than replacing it. If you want one hole doing both jobs on an apartment or rental entry, an interconnected lock like the Falcon H2101 combines an entrance lever with a single cylinder deadbolt so one turn retracts both.
16) What is a simpler alternative to the Woodward 3771 for a low traffic interior or storage door?
The Woodward 3771 is a brass Grade 2 residential deadbolt with a decorative Woodward trim. Where the door does not need that, the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset and a 1-3/8 inch to 1-3/4 inch door thickness range, and the Callan Model 200S is a Grade 3 single cylinder with square trim. For a door with no keyed side at all, the Arrow E60 is a non-keyed Grade 2 exit deadlock, blank plate outside and thumbturn inside, and the Callan Model 205S is a one-sided half-bore deadbolt that needs no through bore.
17) I want the Woodward 3771 look but in a contemporary square or round trim - what else should I look at?
The Woodward 3771 carries Weslock's Woodward trim in the Elegance collection, in oil rubbed bronze and satin nickel. For a squarer or plainer face on the same cylinder x thumbturn function, the Bravura 310SC Elite is a Grade 2 contemporary square deadbolt and the 310RC Elite is the contemporary round; the Bravura 910 is a Grade 2 rectangle single cylinder. The Brinks Mendocino E2402 is a contemporary square single cylinder and the Raleigh E2401 a transitional round, both with a 4 way adjustable backset. For cast trim, the Emtek #11 Tuscany is a lost wax cast bronze cylinder x thumbturn deadbolt.
18) Can I get the same deadbolt function as the Woodward 3771 without issuing keys to tenants?
The Woodward 3771 is keyed, with a 5 pin Weslock cylinder outside and a thumbturn inside. To hold the deadbolt function while dropping the metal key, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2210 is an electronic mortise deadbolt, the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt, and the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override. The Codelocks CL200 keeps a key override alongside its code entry if you want a mechanical fallback.
19) The Woodward 3771 backset is 2-3/8 or 2-3/4 inch - what deadbolt covers a door I have not measured yet?
The Woodward 3771 ships with an adjustable latch covering both the 2-3/8 and 2-3/4 inch backset, so one part fits either bore location. Other deadbolts with the same flexibility are the Cal-Royal ED500, a Grade 3 single cylinder with adjustable backset, the Falcon D111, a Grade 1 heavy duty classroom deadbolt with adjustable backset, and the Brinks Raleigh E2401 and Mendocino E2402 with 4 way adjustable backsets. If the backset is fixed and known, the Accentra D111 is built to 2-3/8 inch and the Deltana CL200LA to 2-3/4 inch.
20) Is there a deadbolt with an easier thumbturn than the Woodward 3771 for accessibility?
The Woodward 3771 operates cylinder outside, thumbturn inside. Where the turn needs to be easier to grip, the Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn and a 1-3/8 inch to 1-3/4 inch door thickness range. It keeps the same keyed-outside, turn-inside operation, so it drops into the same role on the door.
21) What is a good alternative to the Weslock Woodward deadbolt if I need an adjustable backset in a contemporary square trim?
The Woodward is a traditional round rosette in the Elegance line with a latch adjustable to 2-3/8 or 2-3/4 inch. For a square or contemporary look at a similar residential level, the Brinks Mendocino Series square single cylinder deadbolt has a 4-way adjustable backset, and the Bravura 310SC Elite is a Grade 2 contemporary square deadbolt, also cylinder x thumbturn. All three are single cylinder, so the operation from the inside is the same.
