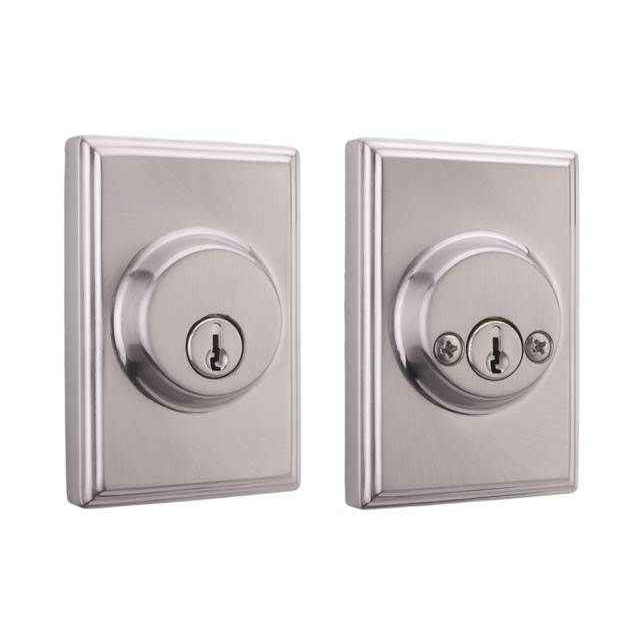

Weslock 3772 Woodward Double Cylinder Deadbolt with Adjustable Latch and Deadbolt Strike

Weslock 3772 Woodward Double Cylinder Deadbolt with Adjustable Latch and Deadbolt Strike

(No reviews yet) Write a Review

Model: 03772-1-1SL23
From the Elegance Collection
$91.00
$50.76
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$91.00
$50.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock WOODWARDDouble Cylinder DEADBOLT

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.


Standard features

  • Meets ANSI A 156.2 Grade II Lock Standards
  • Removable Knobs/Levers Prevents Scratching During Installation
  • Panic Proof Privacy/Keyed Entry - One Turn of Interior Knob/Lever Unlocks and Opens Door
  • Push Button Locking in Rosette
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty


Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Elegance
Keyed:
Yes
Warranty:
Limited Lifetime Mechanical and Limited Lifetime Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Elegance
Cross Bore:
2-1/8"
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Subcategory:
Residential Deadbolts
Keyed Function:
Double Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Deadbolt
Product Attribute:
Deadbolts
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Double Cylinder
Product Dimension:
2-3/4" x 3-7/8" with Exterior 7/8" and Interior 1-3/4" Projection
Product Style:
Woodward
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock 03772-1-1SL23 – Frequently Asked Questions

1) Will the Weslock 3772 Woodward deadbolt fit my existing door prep?
The 3772 Woodward drops into a standard 2-1/8 inch cross bore and works at either a 2-3/8 or 2-3/4 inch backset, which covers both of the common residential bore layouts. The latch faceplate measures 1 x 2-1/4 inch, so if the old deadbolt used the same faceplate size the edge mortise carries over. Trim covers 2-3/4 x 3-7/8 inches on the door face, with 7/8 inch of projection outside and 1-3/4 inches inside.
2) What does a double cylinder deadbolt mean, and should I put one on my door?
Double cylinder means the 3772 Woodward takes a key on both sides, inside and out. There is no thumbturn. That is the reason people specify it on doors with glass next to the lock or a glass panel in the door, since breaking the glass and reaching through gets you nothing without a key. The tradeoff is egress: nobody leaves through that door without a key in hand, so it is the wrong choice for a bedroom or a primary exit where somebody might need to get out fast. If you want key outside and turn inside, look at a cylinder x thumbturn deadbolt instead, such as the Dexter DB2000 Series single cylinder.
3) Can I key the Weslock 3772 deadbolt to match my other Weslock locks?
Yes. The 3772 uses a 5 pin cylinder in the Weslock keyway, so it keys alike with other Weslock cylinders on the same keyway. Keying is chosen at order time: keyed different if each lock gets its own key, or keyed alike if you want one key to run several openings. There is also a key code field, so if you already have a Weslock key code on the property you can supply it and have the new bolt cut to the existing key.
4) Is the Weslock 3772 deadbolt rated for a commercial opening?
No, not really. The 3772 Woodward is a residential deadbolt and meets ANSI A156.2 Grade 2 lock standards. For an apartment, condo or house entry that is fine. For a commercial entrance, a school, or anything on a heavy traffic opening, go to a Grade 1 unit like the Design Hardware D1 Series double cylinder deadbolt or the Dexter DB1000 Series double cylinder, both of which we carry in the same double cylinder function.
5) What is a straight double cylinder deadbolt equivalent to the Weslock 3772 Woodward from another brand?
The closest like-for-like swaps are the Callan Model 210S, a Grade 3 double cylinder deadbolt, and the Delaney LU Series double cylinder deadbolt, which is Grade 2. Both are keyed on both sides, the same double cylinder function as the Weslock 3772 Woodward, so both remove the thumbturn from the interior in the same way. The Weslock 3772 uses a 5 pin cylinder in the Weslock keyway; the Delaney LU Series is offered in a Stainless Steel US32D finish, while the 3772 Woodward comes in Oil Rubbed Bronze.
6) I need a double cylinder deadbolt for a commercial opening, not a house. What should I use instead of the Weslock 3772 Woodward?
The Weslock 3772 Woodward is a residential deadbolt built to ANSI A156.2 Grade 2. For a commercial door, the Design Hardware D1 Series double cylinder deadbolt is Grade 1 and extra heavy duty, rated for a 1-3/4 inch door, and the Dexter DB1000 Series double cylinder is Grade 1 across a 1-3/8 to 1-7/8 inch door thickness range. Both are keyed both sides like the 3772, so the security function on the door is unchanged; the difference is the duty rating behind it.
7) The code official will not allow a key on the inside. What single cylinder deadbolt replaces the Weslock 3772 Woodward?
The Weslock 3772 Woodward is keyed on both sides, so it needs a key to exit. Where a thumbturn is required on the egress side, the cylinder x thumbturn peers are the Dexter DB2000 Series single cylinder, Grade 2 for a 1-3/8 to 1-3/4 inch door, and the Bravura 310B Elite, a Grade 2 traditional round deadbolt. Both put a turn on the interior instead of a second cylinder while keeping the exterior keyed.
8) We key our building on Schlage C. What deadbolt should we use in place of the Weslock 3772 Woodward?
The Weslock 3772 Woodward uses a 5 pin cylinder in the Weslock keyway, so it will not key into a Schlage C system as supplied. The Hager 3214 double cylinder deadbolt is furnished with a Schlage C keyway and is Grade 2 for a 1-3/8 to 1-3/4 inch door. If the interior can take a turn instead, the Hager 3215 single cylinder is the same keyway and door range with a 1 inch throw.
9) Does the Weslock 3772 come with a strike, or do I need to buy one?
The strike comes with it. The 3772 Woodward ships with an adjustable latch and a deadbolt strike, so the bolt and the frame hardware are both in the box. What is not included is a mortise strike for a separate latchbolt, so if the door also carries a knob or lever set you are ordering that trim and its strike separately.
10) What finish does the Weslock Woodward 3772 deadbolt come in?
Oil Rubbed Bronze is the finish offered on the 3772 Woodward. The body is brass, so the finish sits on a solid brass substrate rather than plated steel. If you are matching a building where every other opening is bronze this drops in; if the property is standardized on satin chrome or stainless, you would be looking at a different unit, such as the Delaney LU Series double cylinder in US32D stainless.
11) I have a glass front door and need a keyed deadbolt on both sides. What are my options besides Weslock?
The Weslock 3772 Woodward is the traditional-styled residential answer, brass body in Oil Rubbed Bronze, Grade 2, Weslock keyway. If you want a different look or a heavier build in the same double cylinder function, we carry the Emtek 8323 Modern Disc double cylinder in brass, the Baldwin Reserve double cylinder in contemporary round or square trim, the Callan Model 210S at Grade 3, and the Design Hardware D1 Series at Grade 1 extra heavy duty for 1-3/4 inch doors. All of them are key-both-sides, so the same egress caution applies to every one.
12) Do I have to measure my backset before ordering the Weslock 3772 deadbolt?
Measure it, but either answer works. The 3772 handles both 2-3/8 and 2-3/4 inch backsets through its adjustable latch, so you set it on site rather than ordering a specific one. Measure from the door edge to the center of the 2-1/8 inch bore; if it lands on either of those two numbers you are covered. Anything else and this is not the bolt for that door.
13) Can I order several Weslock 3772 deadbolts on one key for a rental property?
Yes. Pick the keyed alike option and the whole batch is cut to one key, which is how most landlords and property managers spec a run of units. Keyed different is the other choice if each tenant door needs its own key. All of them run the Weslock 5 pin keyway, so anything Weslock you already have on the property can be brought onto the same key if you supply the existing key code.
14) Is the Baldwin Reserve 8BR0618001 an alternative to the Weslock 3772 Woodward deadbolt?
No. The Baldwin Reserve 8BR0618001 is a deadbolt spacer for a double cylinder application, a filler component rather than a lock. The Weslock 3772 Woodward is the complete double cylinder deadbolt, supplied with an adjustable latch and deadbolt strike and a 5 pin cylinder in the Weslock keyway. Ordering the spacer against a bare door leaves you with no bolt.
15) My opening is a thick door. Does the Weslock 3772 Woodward or something else fit?
The Weslock 3772 Woodward is bored for a 2-1/8 inch cross bore with a 2-3/8 or 2-3/4 inch backset. For heavier doors, the Deltana 7312KA2 double cylinder deadbolt covers 1-3/8 to 2 inch door thickness and the Corbin Russwin DL3011 cylindrical deadlock covers 1-3/4 to 2-1/4 inch. Both keep a keyed deadbolt in the door; the DL3011 is a cylinder x blank rather than keyed both sides.
16) What double cylinder deadbolt matches a contemporary trim package instead of the Woodward style?
The Weslock 3772 is the Woodward style in the Elegance collection. For squarer or plainer trim in the same double cylinder function, the Baldwin Reserve Contemporary Square and Contemporary Round deadbolts and the Emtek 8323 Modern Disc in brass are all double cylinder. The function at the door is the same as the 3772; what changes is the rose shape and trim design.
17) Can I use an Arrow E60 where the Weslock 3772 Woodward is specified?
Only if nobody needs to key the door. The Arrow E60 is a Grade 2 exit deadlock, non-keyed, with a blank plate on the outside and a thumbturn inside for a 1-3/8 to 1-3/4 inch door. The Weslock 3772 Woodward is keyed on both sides with a 5 pin Weslock cylinder. The E60 secures from the inside only; it gives no outside key access at all.
18) We want the tenant to change codes without rekeying. What replaces the Weslock 3772 Woodward deadbolt?
The Weslock 3772 Woodward is a mechanical deadbolt on a 5 pin Weslock keyway, so a turnover means rekeying. The Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, and the Codelocks CL2200 is an electronic surface deadbolt rated medium duty. Both change access by code rather than by cylinder, though the CL2200 mounts on the door surface rather than through the 2-1/8 inch cross bore the 3772 uses.
19) Our locksmith wants small format interchangeable core. Does the Weslock 3772 Woodward take one?
The Weslock 3772 Woodward is furnished with a 5 pin cylinder in the Weslock keyway. For an SFIC program, the Arrow E61 26D IC is a Grade 2 single cylinder deadlock prepped for SFIC less core on a 1-3/8 to 1-3/4 inch door, and the Deltana CL200LAIC is a Grade 2 interchangeable core deadbolt with a 2-3/4 inch backset - the same backset option the 3772 offers.
20) How much does the Weslock 3772 deadbolt stick out from the door?
Exterior projection is 7/8 inch and the interior side projects 1-3/4 inches, with the trim covering 2-3/4 by 3-7/8 inches on the face. The interior number is the one to watch: on a door with a storm door, a tight jamb return, or a swing that passes close to a wall, check that 1-3/4 inches of inside cylinder clears everything before you bore.
