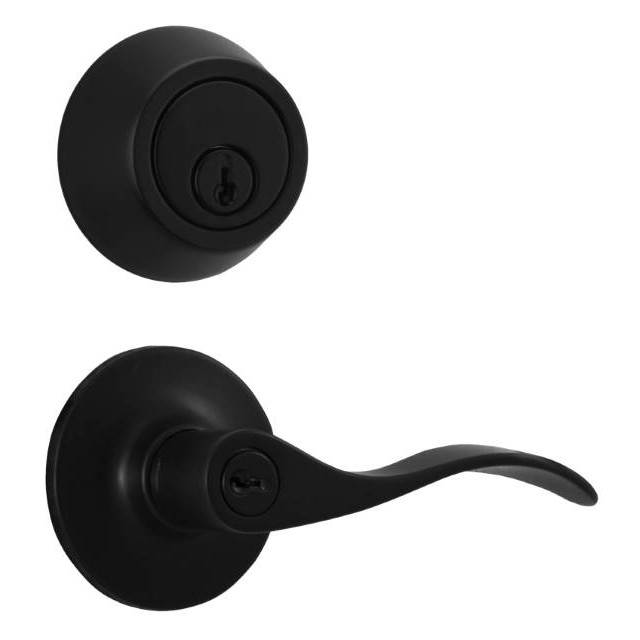

Weslock 2271 New Heaven Lever Keylock (Keyed Entry) and Single Cylinder Deadbolt, Keyed Alike

Weslock 2271 New Heaven Lever Keylock (Keyed Entry) and Single Cylinder Deadbolt, Keyed Alike

(No reviews yet) Write a Review

Model: 02271X1X1FR23
From the Premiere Essentials Collection
$88.50
$47.10
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$88.50
$47.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock 02271 SINGLE CYLINDER DEADBOLT COMBO OVERVIEW

The Premiere Essentials non handed deadbolt with a adjustable deadbolt latch, with round faceplate & strike plate, 2 keys, and assembly screws. The deadbolt comes round shaped exterior and interior rosette. The exterior and interior rosettes come attached to the housing. The sit in style cylinder and cross cam deadbolt allow for easy install. Easy to follow instructions included.

Standard features

  • Exceeds ANSI Grade 3 Lock Standards
  • Sit in style cylinder for easy install
  • Adjusts to Door Thickness from 1-3/8" to 2"
  • Adjustable Latches 2-3/8" or 2-3/4" with Radius Faceplates and Strikes
  • Cross cam deadbolt cam for easy install


Downloads and Resources

Weslock Catalog

Weslock General Specifications

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Premiere Essentials
Keyed:
Yes
Warranty:
Limited 10 Year Mechanical and Limited 5 Year Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Premiere Essentials
Cross Bore:
2-1/8"
Product Subgroup:
Bored Locksets
Product Type:
Interior Trim Only
Subcategory:
Residential Combo Packs
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Entrance
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Single Cylinder
Door Strike:
Deadbolt Strike
Product Substrate:
Zinc Alloy
Product Category:
Mechanical Locks
Department:
Door Hardware

Weslock 02271X1X1FR23 – Frequently Asked Questions

1) Will the Weslock 2271 New Heaven combo fit a 1-3/4 inch exterior door?
Yes. The Premiere Essentials 2271 combo adjusts to door thickness from 1-3/8 inch to 2 inches, so a standard 1-3/4 inch exterior door is right in the middle of its range. That range also covers older 1-3/8 inch doors and thicker slabs up to 2 inches without a separate extension kit.
2) Does the Weslock 2271 lever and deadbolt set drop into my existing door prep?
In most cases yes. Both the lever and the deadbolt use a 2-1/8 inch cross bore, which is the standard bore on residential doors, and the latches adjust to either a 2-3/8 or 2-3/4 inch backset so you do not have to know which one your door was drilled for before ordering. The latch faceplates measure 1 x 2-1/4 inches and are radius (round) corner, so if your existing faceplates are square corner you will have some minor mortise chiselling or you can patch to the round profile.
3) Do the lever and the deadbolt on the Weslock 2271 use the same key?
They can. Keyed alike is the standard configuration, so one key runs both the New Heaven keyed entry lever and the deadbolt. Keyed different is offered at no cost if you want the two operating on separate keys, and there is a key code field if you need the set cut to an existing code so it matches other Weslock cylinders you already have.
4) Is the Weslock 2271 deadbolt single or double cylinder, and what is on the inside?
Single cylinder. There is a key cylinder on the exterior only and a thumbturn on the interior, which is what most residential codes want on an egress door. If you have glass within reach of the bolt and your local code calls for a double cylinder, this is not the right part.
5) Can I key the Weslock 2271 to match the rest of my Weslock locks?
Yes, provided the rest are on the Weslock keyway. The 2271 uses a 5 pin cylinder cut to the Weslock keyway, so it will suite with other Weslock cylinders on the same keyway. It will not key alike to Kwikset, Schlage, or any other manufacturer's keyway.
6) Is the Weslock 2271 New Heaven set rated for commercial or apartment door traffic?
It is a residential product. The 2271 exceeds ANSI Grade 3 lock standards, which is the residential tier, and Weslock lists the Premiere Essentials line as residential. For single family homes, condo unit doors, and light duty rental units it is appropriate. For a commercial entrance or a high traffic multi-family common door, step up to a Grade 2 or Grade 1 lockset instead.
7) What is the closest equivalent to the Weslock 2271 New Heaven lever and deadbolt combo from another brand?
The nearest peer in function is the Schlage Residential JH59 Broadway, a lever with a deadbolt thumbturn that is also rated Grade 3 with an entrance function. The differences are in the cylinder and the door range: the Weslock 2271 uses a 5 pin Weslock keyway and adjusts to door thicknesses from 1-3/8 inch to 2 inch, while the JH59 Broadway covers 1-3/8 inch to 1-3/4 inch. The Weslock 2271 also ships keyed alike between the lever and the deadbolt, with a keyed different option if the two need separate keys.
8) What comes in the box with the Weslock 2271 New Heaven lever and deadbolt combo?
The deadbolt side ships with an adjustable deadbolt latch, round faceplate and deadbolt strike, two keys, assembly screws, and instructions. The exterior and interior rosettes come already attached to the housing, and the cylinder is the sit in style with a cross cam, so there is no cam swapping on site. You will still need to supply wood screws long enough to reach the framing if you are reinforcing the strike.
9) How does the Weslock 2271 compare to a Schlage or Kwikset interior trim pack?
Different animals. The Weslock 2271 is a complete keyed entry lever plus single cylinder deadbolt, so it is everything you need for the opening. The Kwikset 966 packs (Aliso, Balboa, Breton, Brooklane) and the Schlage F59, FC59, and JH59 are interior trim packs meant to pair with an outside handleset that you buy separately. If you already have a handleset exterior in place, one of those trim packs is what you want. If the door is bare, the 2271 is the full set. On grade, the 2271 exceeds Grade 3, as do the Kwikset 966AO and 966BL and the Schlage JH59 Broadway; the Kwikset 966BRL and 966BRNL and the Schlage F59 and FC59 are listed Grade 2.
10) I need a matching interior lever for a handleset I already have on a 1-3/8 inch door. Is the Weslock 2271 the right part?
No. The 2271 is a standalone keyed entry lever and deadbolt pair, not trim for an existing exterior handleset. For that job look at the Schlage Residential JH59 Broadway lever inside trim with Collins deadbolt thumbturn, which covers 1-3/8 to 1-3/4 inch doors, or the Kwikset 966 series interior packs built for the Signature Series 800 and 687 handlesets.
11) Do I need to know the handing of the door before ordering the Weslock 2271?
No. The Weslock 2271 Premiere Essentials deadbolt is non handed, and the latch adjusts between 2-3/8 inch and 2-3/4 inch backset, so one part covers either swing. That is a point of difference against a peer such as the Kwikset 966BRL-LH Brooklane, which is a left hand specific interior trim, and against the Kwikset 966BRNL-SQT Breton, which is described as a universal design for 687 and 800 Series outside trim.
12) What should I use if the interior side does not need to lock or key at all?
For an inside half with no locking function, look at the Schlage Residential F59 Accent lever interior pack or the FC59 Alexandria glass knob interior trim pack, both of which carry a dummy function. The Weslock 2271 New Heaven is the other case: it is a keyed entry lever paired with a single cylinder deadbolt using a 5 pin Weslock keyway, so it is specified when the opening itself has to secure.
13) Which option covers the thickest doors if my slabs are heavier than standard?
Among comparable interior lever and knob sets, the Schlage FC59 Alexandria glass knob trim spans 1-5/8 inch to 2-3/4 inch, the widest range in the group. The Weslock 2271 New Heaven adjusts from 1-3/8 inch to 2 inch, which takes in standard 1-3/8 inch interior slabs that the FC59 range starts above, while the Schlage F59 Accent covers 1-5/8 inch to 1-3/4 inch only. Measure the slab before choosing between them.
14) What is the Weslock 2271 New Heaven set made of?
Zinc alloy construction on the lock components. It is finished in oil rubbed bronze, which is a living finish, so on a door with direct weather exposure expect the high points to wear toward the base metal over time. That is normal behavior for the finish and not a defect.
