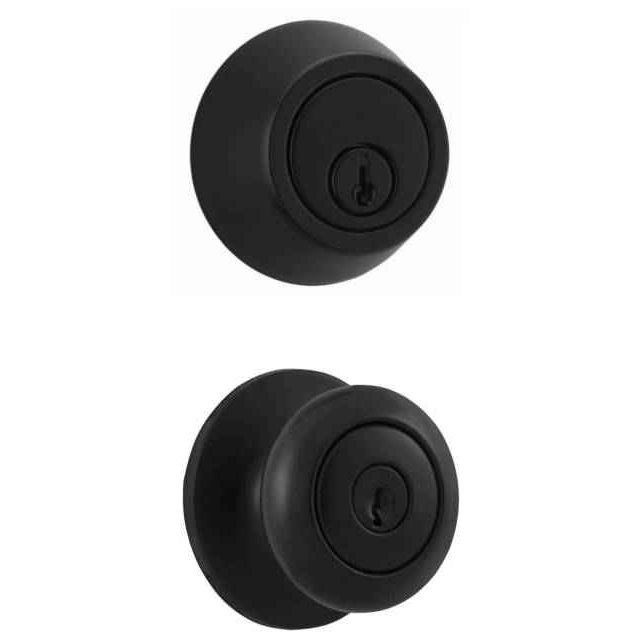

Weslock 02271 SINGLE CYLINDER DEADBOLT COMBO
The Premiere Essentials non handed deadbolt with a adjustable deadbolt latch, with round faceplate & strike plate, 2 keys, and assembly screws. The deadbolt comes round shaped exterior and interior rosette. The exterior and interior rosettes come attached to the housing. The sit in style cylinder and cross cam deadbolt allow for easy install. Easy to follow instructions included.
Standard features
- Exceeds ANSI Grade 3 Lock Standards
- Sit in style cylinder for easy install
- Adjusts to Door Thickness from 1-3/8" to 2"
- Adjustable Latches 2-3/8" or 2-3/4" with Radius Faceplates and Strikes
- Cross cam deadbolt cam for easy install
Downloads and Resources
Weslock Catalog
Weslock General Specifications
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Premiere Essentials
- Keyed:
- Yes
- Warranty:
- Limited 10 Year Mechanical and Limited 5 Year Finish
- Latch Faceplate:
- 1" x 2-1/4"
- Collection:
- Premiere Essentials
- Cross Bore:
- 2-1/8"
- Product Subgroup:
- Bored Locksets
- Product Type:
- Deadbolt Combo
- Subcategory:
- Residential Combo Packs
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Residential
- Cylinder and Keyways:
- 5 Pin Cylinder, Weslock Keyway
- Lock Function:
- Entrance
- IMAP Policy:
- Yes
- Backset (Distance):
- 2-3/8 or 2-3/4
- Product Function:
- Single Cylinder
- Door Strike:
- Deadbolt Strike
- Product Category:
- Mechanical Locks
- Product Substrate:
- Zinc Alloy
- Department:
- Door Hardware
Weslock 02271SNSNFR23 – Frequently Asked Questions
1) Does the Weslock 2271 knob and deadbolt come keyed alike so one key works both locks?
Keyed alike is the standard configuration, so one key operates the knob and the deadbolt. Keyed different is offered at no charge if you want the two on separate keys, and there is a key code field if you need the set cut to an existing code. The cylinder is a 5 pin on the Weslock keyway, so it keys with other Weslock cylinders on the same keyway.
2) Is the Weslock 2271 Salem combo handed, or does it work on a left and right hand door?
Non handed. The same set installs on a left or right hand door with no parts to flip and no reversing step, so a property manager buying several for a building does not have to survey each opening first.
3) Is the Weslock 2271 knob and deadbolt set rated for commercial use?
It is a residential set from the Premiere Essentials collection. It exceeds ANSI Grade 3 lock standards, which is the residential tier. For an apartment entry door, a rental house, or an interior office door in a light traffic building it is the right class of lock. For a commercial entrance taking daily public traffic, you want a Grade 2 or Grade 1 cylindrical lock instead.
4) Can the deadbolt on the Weslock 2271 be unlocked with a key from the inside?
No. It is a single cylinder deadbolt, meaning key on the outside and a thumbturn on the inside. That is the right choice for a door without glass near the lock. If your door has a sidelight or glass panel within arm's reach of the bolt, a double cylinder deadbolt is what you want, though many local codes restrict double cylinder on a required egress door.
5) My door has a square corner latch faceplate. Will the Weslock 2271 latch fit?
The latches supplied are radius (round corner) faceplates measuring 1 x 2-1/4 inches, with matching radius strikes. If your existing mortise in the door edge is square cornered, the round faceplate will leave gaps at the corners and the mortise needs squaring or the face needs a chisel touch up. Doors bored by a modern machine almost always take the radius face as supplied.
6) What finishes does the Weslock 2271 Salem knob and deadbolt come in?
Three finishes: oil rubbed bronze, matte black, and satin nickel, all with the Salem knob trim. Pick the one that matches the other openings in the building, since the knob and deadbolt in the set share the finish and the round rosette shape carries across both pieces.
7) How hard is the Weslock 2271 combo to install for someone who is not a locksmith?
It is built for a fast install. The sit in style cylinder and the cross cam deadbolt cam mean the cylinder seats without fussing the tailpiece alignment, the latch adjusts between the two backsets by hand rather than needing a second part, and the rosettes are already attached to the housings. A maintenance tech with a screwdriver can hang it; instructions are in the box.
