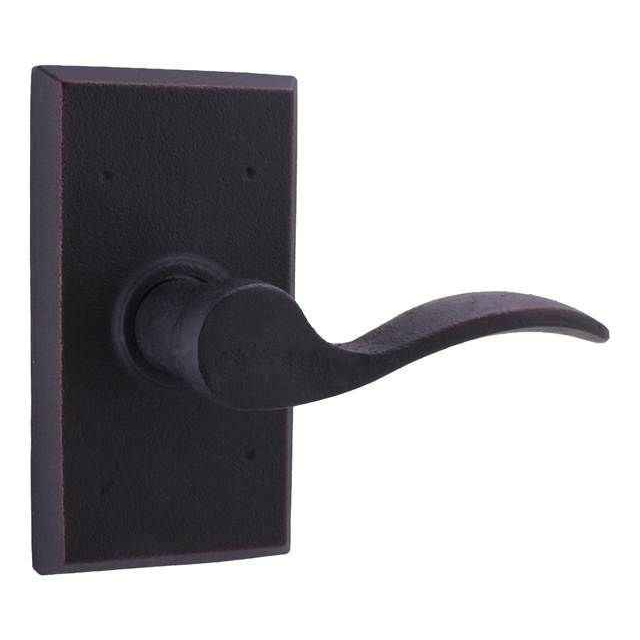

Weslock Molten Bronze Collection, SQUARE HALF DUMMY Lock
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Single Dummy Function:Weslock's single dummy levers/knob are surface mounted without any associated latching functions, and are perfect for inactive doors, closets, or anywhere decorative trim is needed but mechanical latch function is not. This single dummy includes one lever/knob and rosette, and can be mounted on either the interior or exterior of the door (please be aware of any handing requirements).
Standard features
- Cylindrical Door Locks
- Meets ANSI A 156.2 Grade II Lock Standards
- Removable Knobs/Levers Prevents Scratching During Installation
- ADA compliant levers
- Solid Molten Bronze levers, knobs, and rosettes
- Limited 10 Year Mechanical Warranty
- Limited 5 Year Finish Warranty
Weslock Catalog
Weslock General Specifications
Installation Instruction
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze Series
- Warranty:
- Limited 10 Year Mechanical and Limited 5 Year Finish
- Collection:
- Molten Bronze
- Keyed Function:
- Non-Keyed
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Subcategory:
- Residential Door Levers
- Keyed:
- No
- Commercial/Residential:
- Residential
- Lock Function:
- Dummy
- Product Attribute:
- Cylindrical Locks
- IMAP Policy:
- Yes
- Product Function:
- Dummy
- Product Style:
- Square
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Weslock R7305H1--0020 – Frequently Asked Questions
1) Does the Weslock 7305 Carlow half dummy lever have a latch, or is it just the handle?
No latch at all. The Carlow 7305 half dummy is surface mounted trim only, one lever and one rosette, with no bore-through latching mechanism. It's for inactive doors, closet fronts, and french door slabs where you want a lever to pull on but nothing to latch. If you need the door to stay shut, you want a passage function set instead.
2) Do I have to order the Weslock Carlow half dummy left hand or right hand?
Yes, handing is a real choice here. The 7305 Carlow half dummy comes in left hand and right hand, and both are offered in Oil Rubbed Bronze and Matte Black. Stand outside the door: if the hinges are on your left, it's left hand. Dummy trim can be mounted on either face of the door, so pick the handing by which way you want the lever to point once it is on the face you are trimming.
3) Do I need to bore a 2-1/8 inch hole in the door for the Weslock 7305 half dummy?
No cross bore needed. Dummy trim mounts to the face of the door on screws rather than through a bored 2-1/8 inch hole with a latch in the edge bore. That also means door thickness is not the constraint it is on an operating cylindrical lockset. Weslock's removable lever design keeps the finish from getting scratched while you set the rosette.
4) I need a dummy lever for a commercial corridor door instead of a residential one - what should I use?
The Weslock 7305 Carlow is a residential leverset meeting ANSI A156.2 Grade 2. For a commercial opening, the BEST 9K Series 1DT single dummy trim is a Grade 1 heavy duty non-keyed dummy lever, and the Accentra 455LN Augusta is a Grade 1 single dummy cylindrical lever lock in the 5400 Series. If Grade 2 is acceptable commercially, the BEST 7KC Series 1DT single dummy trim is a medium duty Grade 2 dummy lever.
5) What is a comparable half dummy lever if the Weslock 7305 Carlow is not available in the finish I need?
The Baldwin Estate 5103 half dummy lever with the 5048 rose is the closest residential equivalent - it is a dummy function lever sold in handed versions, with BAL-5103-LDM as the left hand half dummy and BAL-5103-RDM as the right hand half dummy. That matches how the Weslock 7305 Carlow is ordered, since it is a dummy function leverset offered in left hand and right hand. Both are surface-mounted decorative trim with no latch.
6) The door actually needs to latch - what replaces the 7305 Carlow dummy?
The 7305 Carlow is a dummy, surface mounted with no latching function, so it will not hold a door closed. For a latching non-keyed opening such as a hall or closet, the Baldwin Estate 5103 passage lever with the 5048 rose keeps the same lever family in passage function. In commercial lines, the Falcon K101 is a Grade 1 passage cylindrical lock with non-handed levers, and the Arrow GL01 is a Grade 2 passage cylindrical lock with the Sierra lever. For a bed or bath door, the Baldwin Estate 5103 privacy lever adds a privacy function.
7) Is the Weslock Carlow lever ADA compliant for a lever on an accessible door?
The Molten Bronze levers, the Carlow included, are ADA compliant lever designs. Keep in mind the 7305 half dummy is a non-operating pull, so it isn't the operable hardware on a door that has to be opened, but the lever shape matches the operating sets in the same collection.
8) What is the Weslock Carlow lever actually made of, and what finishes can I get?
Solid molten bronze construction on the lever, knob and rosette, with a brass substrate. Two finishes: Oil Rubbed Bronze and Matte Black. Oil rubbed bronze is a living finish that will shift with handling, so if you're matching other openings in a building, order all the doors at once from the same finish.
9) Will the Carlow half dummy match the keyed and passage levers on my other doors?
It is part of the Weslock Molten Bronze collection with a square rosette style, so it trims out to match the other Molten Bronze Carlow sets on the same job. The 7305 itself is non-keyed with no cylinder, so nothing to key. If you want the same look with real function on other doors, stay within Molten Bronze Carlow in the same finish.
10) What other half dummy levers can I use if I need a specific handing like the Weslock 7305?
Baldwin's Estate 5103 with the 5048 rose is sold as a handed half dummy too, left hand and right hand as separate items. Callan's Bentley BN5051 is a Grade 2 dummy lever if you want a lighter-cost option. On the commercial side, the BEST 9K Series 1DT single dummy trim is the Grade 1 choice.
11) Is an Emtek dummy pair the same thing as the Weslock 7305 Carlow half dummy?
No. The Emtek Arts and Crafts and Cortina dummy leversets are sold as a pair, meaning two levers and two roses for a door trimmed on both faces. The Weslock 7305 Carlow is a half dummy and includes one lever and rosette, mounted on either the interior or exterior face. If you are trimming both sides of an inactive door, the pair covers it in one order; if only one face is visible, the half dummy is the right count.
12) What is a straightforward Grade 2 dummy lever alternative to the Weslock 7305 Carlow for a residential closet?
The Callan Bentley is a Grade 2 dummy lever in the Bentley series, which puts it at the same ANSI grade as the Weslock 7305 Carlow and in the same dummy function. The Weslock differs in construction, using solid molten bronze levers, knobs and rosettes with a brass substrate, and it is offered in a square rose style.
13) Can I use the Weslock 7305 Carlow on a keyed entry door?
No - the 7305 Carlow is non-keyed with no cylinder and no latch, so it cannot secure an entry. For a keyed residential or light commercial entry with a lever, the Hager 2525 is a Grade 2 cylindrical entry lock with a lever handle for doors 1-3/8 inch to 2 inch thick, and the Cal-Royal AG00 is a Grade 2 entrance lever with a 6-pin Schlage C keyway keyed different and a 2-3/8 inch backset. The Deltana 6201 Manchester is an entry lever for doors 1-3/8 inch to 2 inch.
14) Does the Weslock 7305 Carlow work on a fire rated door?
The 7305 Carlow is a dummy with no latching function, so it is not the hardware that holds a fire door closed. Where a fire rating is required on a non-keyed opening, the Falcon K101 Grade 1 passage lock and the Corbin Russwin CL3110 Grade 1 passage/closet lock are both fire rated, the CL3110 being vandal resistant for doors 1-3/4 inch to 2 inch thick.
15) Are the mounting screws going to show on the face of the door?
No. Weslock builds the Molten Bronze sets with concealed installation screws, so the rosette faces out clean with no exposed fasteners. That matters on a closet front or french door where the dummy lever is decorative in the first place.
16) I have square rose trim elsewhere in the unit - what else comes with square trim besides the Weslock 7305 Carlow?
The Weslock 7305 Carlow is a square style lever in the Molten Bronze collection. Among other lever lines, the Bravura Tampa is a passage leverset with square trim in Grade 2. Note the Tampa is a passage function with a latch rather than a dummy, so it is a trim match rather than a function match.
