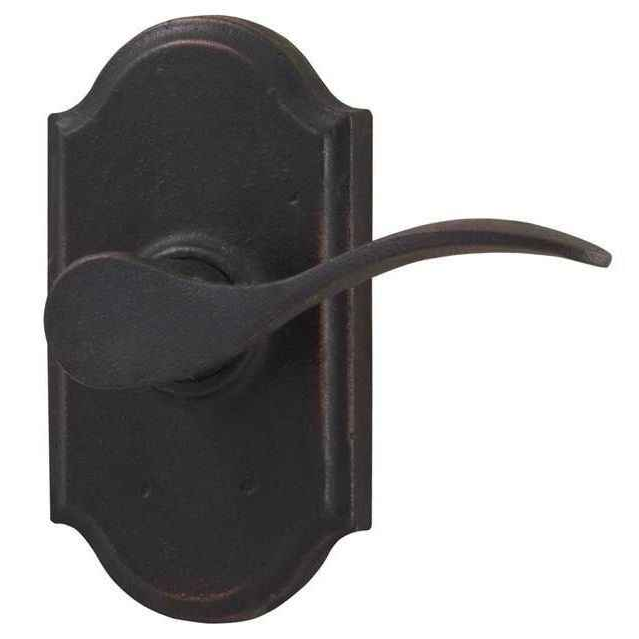

Weslock 7305 Carlow Lever Square Half Dummy Lock
Model: WES-7305H
Weslock Molten Bronze Collection, SQUARE HALF DUMMY LockIf security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door...
Weslock
Starting at
$91.00
$43.10
Weslock Molten Bronze Collection, PREMIERE HALF DUMMY Lock
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Single Dummy Function:Weslock's single dummy levers/knob are surface mounted without any associated latching functions, and are perfect for inactive doors, closets, or anywhere decorative trim is needed but mechanical latch function is not. This single dummy includes one lever/knob and rosette, and can be mounted on either the interior or exterior of the door (please be aware of any handing requirements).
Standard features
- Cylindrical Door Locks
- Meets ANSI A 156.2 Grade II Lock Standards
- Removable Knobs/Levers Prevents Scratching During Installation
- ADA compliant levers
- Solid Molten Bronze levers, knobs, and rosettes
- Limited 10 Year Mechanical Warranty
- Limited 5 Year Finish Warranty
Weslock Catalog
Weslock General Specifications
Installation Instruction
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze Series
- Warranty:
- Limited 10 Year Mechanical and Limited 5 Year Finish
- Collection:
- Molten Bronze
- Keyed Function:
- Non-Keyed
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Subcategory:
- Residential Door Knob
- Keyed:
- No
- Commercial/Residential:
- Residential
- Lock Function:
- Dummy
- Product Attribute:
- Cylindrical Locks
- IMAP Policy:
- Yes
- Product Function:
- Dummy
- Product Style:
- Premiere
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Weslock R7105H1--0020 – Frequently Asked Questions
1) Why do I have to pick left hand or right hand on a dummy lever if it doesn't latch?
Because the Carlow lever is a shaped, curved lever rather than a symmetrical one, it only looks correct pointing one way. Weslock builds the 7105 half dummy in Left Hand and Right Hand versions, so you order to match the side of the opening where the lever will sit. On a pair of doors with one active leaf, order the dummy handing so the lever mirrors the active lever. There's no way to flip it in the field.
2) What is the difference between a half dummy and a full dummy pair?
A half dummy is one lever on one side of the door. The Weslock 7105 Carlow half dummy ships as a single lever with its rosette, which is what you want on a closet door or an inactive leaf where nobody touches the back side. A full dummy pair puts a lever on both faces, which is what you need on a double door where both sides get used, or a pass-through. If you need both faces, order two of the half dummies or buy a dummy pair such as the Emtek Classic Brass Cortina dummy pair.
3) Can I match this dummy lever to the passage and privacy locks already on my other doors?
Only if those doors are Weslock Molten Bronze Premiere trim in the Carlow lever design. The 7105 half dummy is part of that collection, so the lever shape and rosette match the keyed, passage, and privacy functions in the same family in the same finish. If your other doors are a different brand or a different Weslock collection, the lever profile will not line up, and on a pair of doors that mismatch is right at eye level.
4) Is the Weslock 7105 rated for a commercial building or an apartment turn?
Weslock lists the Molten Bronze line as residential, and the collection meets ANSI A156.2 Grade 2. That's fine for single-family, condo interiors, and light multi-family common interior doors. For a school, hospital, or high-traffic commercial corridor where the spec calls for Grade 1, look at a heavy duty dummy trim instead, such as the BEST 9K Series 1DT single dummy trim or the Accentra 455LN Augusta, both Grade 1.
5) The door actually needs to latch closed - what takes the place of the Weslock 7105 Carlow half dummy?
The 7105 Carlow is dummy function, surface mounted with no latching mechanism, so it will not hold a door shut. For a closet or hall door that needs to latch but not lock, the Baldwin Estate 5103 passage lever with the 5048 rose keeps the same lever family in a passage function. In other trim, the Kwikset 200BRNL RDT Breton is a Grade 3 passage leverset, and the Callan Asheville is a Grade 3 passage leverset. For a bed or bath door that needs a push-button lock, the Baldwin Estate 5103 privacy lever covers privacy function.
6) I need a dummy lever for a commercial corridor rather than a home - what should I use instead of the Weslock 7105 Carlow?
The Weslock 7105 Carlow is catalogued for residential use. For a commercial opening, the BEST 9K Series 1DT single dummy trim lever is a Grade 1 heavy duty non-keyed dummy, and the Accentra 455LN Augusta from the 5400 Series is also a Grade 1 single dummy cylindrical lever. If medium duty suits the traffic, the BEST 7KC Series 1DT single dummy trim is Grade 2. All three serve the same no-latch decorative purpose as the Carlow.
7) Is the Weslock Carlow lever ADA compliant?
Weslock states its levers are ADA compliant, and the lever shape is the reason: a lever is operable without grasping, pinching, or twisting the wrist. Keep in mind that a half dummy has no operating function anyway, so the ADA question really applies to the latching hardware you pair it with on the active leaf.
8) What is a good decorative alternative to the Weslock Carlow half dummy if I want a different lever look?
Baldwin's Estate 5103 half dummy with the 5048 rose is the closest peer on the decorative side, and it is also sold as handed, left hand and right hand as separate items, same as the Weslock. If you want a more commercial look in a dummy, the BEST 7KC Series single dummy trim is a Grade 2 medium duty option. On the lighter residential side, the Callan Bentley Grade 2 dummy lever is another route.
9) Do I need to drill a 2-1/8 inch bore in the door to mount this dummy lever?
No boring required. The 7105 Carlow half dummy mounts to the surface of the door, so you are fastening a rosette to the face rather than running a chassis through a cross bore. That makes it the right pick for a door that was never prepped, or for a slab where you don't want to cut a hole. Weslock uses concealed installation screws so no fasteners show on the finished face.
10) Does the Weslock 7105 half dummy take a key or a thumbturn?
Neither. The 7105 Carlow is non-keyed and has no privacy turn. It provides no security and no locking whatsoever, it is trim. If you need the door to lock, order a keyed entrance or a privacy function from the Molten Bronze line and use the dummy only on the leaf that stays shut.
11) Is there a non-handed dummy lever alternative to the Weslock 7105 Carlow so I do not have to track left and right on a multi-unit order?
The Weslock 7105 Carlow is ordered by hand, in left hand and right hand, so each door has to be surveyed before ordering. The BEST 9K Series 1DT single dummy trim and the BEST 7KC Series 1DT single dummy trim are both single dummy trim units, and the Accentra 455LN Augusta is a single dummy cylindrical lever - all specified without the left and right split the Carlow uses. Trim style and grade differ from the Molten Bronze look, so confirm the aesthetic matches the rest of the building before standardizing.
12) We need ADA compliant lever trim on an office door that also needs keyed entry - does the Weslock 7105 Carlow work?
No. The 7105 Carlow is non-keyed dummy trim, so it provides an ADA compliant lever shape but no lock or latch. For a keyed office door, the Falcon B511CP6D is a Grade 2 cylindrical lever with entry/office function, and the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for doors 1-3/8 inch to 1-3/4 inch. The Carlow is appropriate only on the inactive leaf or a closet where no latch is wanted.
13) What finishes does the Weslock Carlow 7105 half dummy come in?
Two: Oil Rubbed Bronze and Matte Black, each available left hand or right hand. Both are on solid molten bronze levers and rosettes rather than plated tubing, which is what keeps the finish from wearing thin at the grip point on a lever people grab every day.
14) What is the lever and rose actually made of?
Solid brass, cast as molten bronze levers, knobs, and rosettes rather than stamped or tubular parts. That's the weight difference you feel when you pick one up next to a builder-grade lever, and it's why the finish holds up on a handle that gets grabbed constantly. The levers are removable during install so you don't scratch the finish while mounting.
