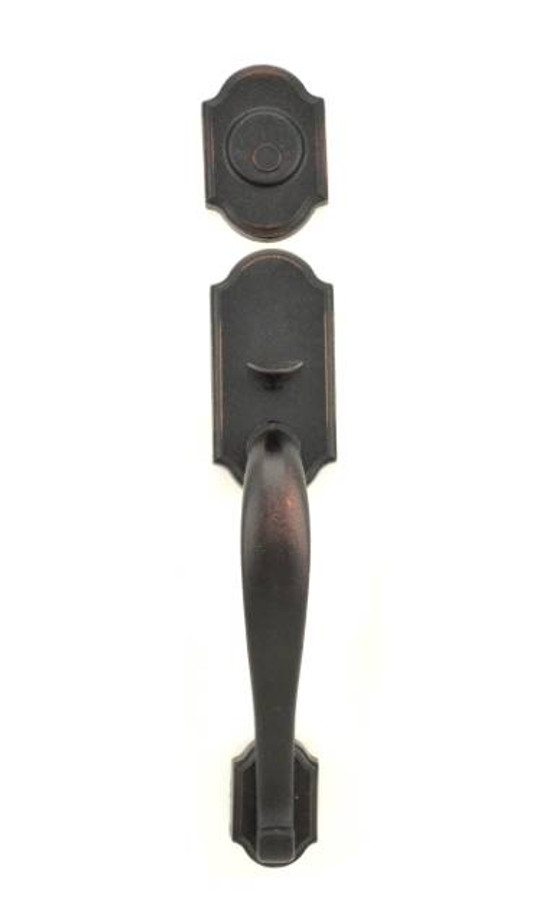

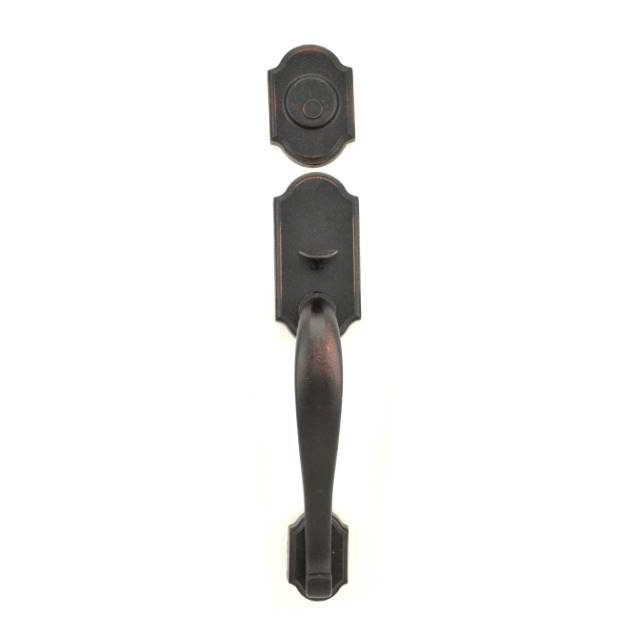

Weslock DUMMY HANDLESET OVERVIEW
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- Exceeds ANSI A 156.2 Grade II lock standards
- Solid Molten Brass
- 1” Throw bolt with two hardened steel rollers prevent sawing
- Removable knob/lever prevents scratching during installation
- Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
- 5-1/2” minimum center to center cross hole spacing
- Optional door thickness up to 2-1/4”
- Adjusts to door thickness from 1-3/4” - 2”
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze Series
- Warranty:
- Limited Lifetime Mechanical and Limited 10 Year Finish
- Collection:
- Molten Bronze
- Cross Bore:
- 2-1/8"
- Keyed Function:
- Non-Keyed
- Product Subgroup:
- Bored Locksets
- Product Type:
- Exterior Handle Only
- Subcategory:
- Residential Handlesets
- Keyed:
- No
- Commercial/Residential:
- Residential
- Lock Function:
- Dummy
- IMAP Policy:
- Yes
- Product Function:
- Dummy
- Door Thickness Range:
- 1-3/8" to 2"
- Product Style:
- Castletown
- Product Substrate:
- Brass
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Weslock 07615-1--0020 – Frequently Asked Questions
1) Will the Weslock 7615 Castletown handleset fit a 2-1/4 inch thick door?
Only if you order the thick-door option. The standard configuration covers 1-3/4 to 2 inch doors, and there is a separate 2 to 2-1/4 inch door thickness selection you have to pick at order time. The catalogued thickness range for the 7615 runs 1-3/8 to 2 inches, so anything over 2 inches requires the optional thickness choice.
2) What door prep does the Weslock Castletown handleset need, and can I mount it on an existing bored door?
It wants 2-1/8 inch top and bottom cross bores with a 1 inch edge bore, and a minimum 5-1/2 inch center-to-center spacing between the two cross holes. A 1-5/8 inch top bore is an accepted option. If your existing door only has a single bore, or the two holes are closer than 5-1/2 inches apart, the plate will not line up without re-prepping the door.
3) Is the Weslock 7615 exterior handleset a complete set, or do I need the interior trim too?
It is the exterior half only, a handle for the outside face of the door. There is no interior knob or lever and no deadbolt in the box. For a dummy application on a fixed leaf that is often all you want, but if you need a matching pull on the inside you have to order interior trim separately.
4) I need a locking handleset on the active door and a matching dummy on the fixed leaf. What pairs with the 7615?
The 7615 covers the fixed leaf only. For the active door you need a keyed entrance handleset. Among other brands we carry, the Schlage F58 Addison active handleset with C keyway is Grade 2 for 1-3/8 to 1-3/4 inch doors, and the FCT58 Custom Addison single cylinder handleset covers thicker doors at 1-5/8 to 2-1/4 inches. Trim styles will not match Weslock Castletown, so if appearance matters across the pair, source both halves from the same Weslock line.
5) What is the closest equivalent to the Weslock 7615 Castletown dummy handleset from another brand?
The nearest match is the Schlage Residential F92 Custom Addison Dummy Exterior Handleset. Both are non-keyed dummy exterior handlesets with no live latch - the Weslock 7615 Castletown carries a Dummy lock function, and the Schlage FC92 Addison is likewise a Dummy function unit in the FC Series. The practical difference is door thickness: the Weslock 7615 covers 1-3/8 inch to 2 inch doors and offers an optional setup for thicknesses up to 2-1/4 inch, while the Schlage FC92 Addison is rated 1-3/8 inch to 1-3/4 inch. On a thick or built-up entry door, the Weslock covers a range the Schlage does not.
6) I need a handleset that actually locks, not a dummy - what should I order instead of the Weslock 7615 Castletown?
The Weslock 7615 Castletown is a non-keyed dummy, so it has no cylinder and no operating latch - it is a pull for an inactive leaf or a fixed door. If the opening needs to lock, look at the Schlage Residential F58 Addison, an active exterior handleset with a C keyway in an Entrance function, or the Schlage Residential JH58 with Barcelona trim, a single cylinder Entrance handleset. Both fit doors 1-3/8 inch to 1-3/4 inch thick. Where the F58 Addison is certified Grade 2, the JH58 Barcelona is Grade 3.
7) Is the Weslock Castletown handleset rated for commercial use?
No, it is catalogued as residential hardware, part of Weslock's Molten Bronze line. Weslock states the line exceeds ANSI A156.2 Grade 2 lock standards, but for a commercial opening under an MRO or institutional spec you should be looking at Grade 1 bored hardware rather than a residential handleset.
8) What is a comparable dummy handleset if the Weslock 7615 does not suit the door?
The Schlage Residential F92 Custom Addison dummy exterior handleset is the closest cross-brand equivalent, also a dummy function exterior handleset, Grade 2, covering 1-3/8 to 1-3/4 inch doors. The Weslock 7615 is the one to keep if your door is thicker than 1-3/4 inches, since it goes to 2 inches standard and 2-1/4 with the option.
9) Do I have to specify anything when ordering the Weslock 7615 Castletown?
Yes, door thickness is a required selection: 1-3/4 to 2 inches as the standard, or 2 to 2-1/4 inches for a thick door. Measure the slab before you order, because the two builds are not interchangeable on the same opening.
10) For a residential entry set, how does the Weslock 7615 Castletown compare to the Schlage JH58 Barcelona on grade?
The Weslock 7615 Castletown is built to exceed ANSI A156.2 Grade 2 lock standards and is a solid molten brass residential handleset. The Schlage JH58 with Barcelona trim is certified Grade 3 and is an Entrance function handleset with a C keyway. The Weslock is a dummy, so the grade comparison speaks to trim and construction rather than latching performance; if a specifier is calling for a Grade 2 keyed entry in Addison trim, the Schlage F58 Addison is the Grade 2 option.
11) What finish does the Weslock Castletown 7615 come in?
Oil-Rubbed Bronze is the finish offered on the 7615 Castletown. The body is solid molten brass, which is what carries a living-finish oil-rubbed bronze well over time on an exterior door.
