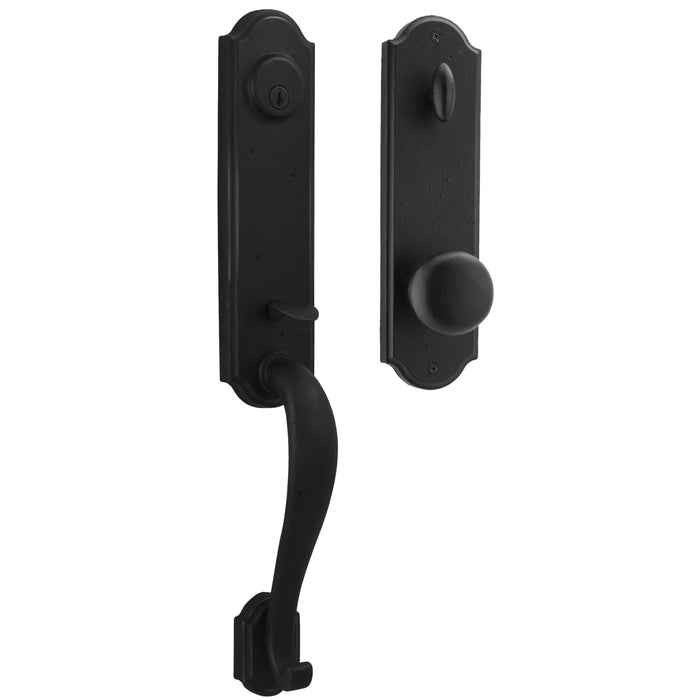

Weslock STONEBRIAR DUMMY Handleset
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- Exceeds ANSI A 156.2 Grade II Lock standards
- Solid Molten Brass
- 1” Throw bolt with two hardened steel rollers prevent sawing
- Removable knob/lever prevents scratching during installation
- Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
- 5-1/2” minimum center to center cross hole spacing
- Optional door thickness up to 2-1/4”
- Adjusts to door thickness from 1-3/4” - 2”
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze Series
- Warranty:
- Limited Lifetime Mechanical and Limited 10 Year Finish
- Collection:
- Molten Bronze
- Keyed:
- No
- Cross Bore:
- 2-1/8"
- Product Subgroup:
- Bored Locksets
- Product Type:
- Handlesets
- Subcategory:
- Residential Handlesets
- Commercial/Residential:
- Residential
- Keyed Function:
- Non-Keyed
- Lock Function:
- Dummy
- IMAP Policy:
- Yes
- Product Function:
- Dummy
- Door Thickness Range:
- 1-3/4" to 2"
- Product Style:
- Stonebriar
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Weslock 07635-2F20020 – Frequently Asked Questions
1) Does the Weslock 7635 Stonebriar handleset lock, or is it just a pull?
It's a dummy handleset, non-keyed, with no working latch or deadbolt. The Wexford knob and handle are fixed trim, so it's for an inactive leaf of a double door or a door that's held shut by other means. If you need the door to latch or lock, you need an entrance function handleset instead.
2) Will the Weslock 7635 fit my existing door prep, or do I need to re-bore?
It goes into a door bored with 2-1/8 inch top and bottom cross holes (a 1-5/8 inch top hole is also an option) and a 1 inch edge bore, with a minimum 5-1/2 inch center-to-center between the two cross holes. If your existing handleset prep matches that spacing, it drops in. Tighter center-to-center spacing won't work.
3) The Weslock 7635 does not lock - what should I order for an opening that needs to latch and key?
The Weslock 7635 Stonebriar is non-keyed dummy function, with no latch or cylinder, so it is for inactive or fixed doors only. For a keyed entry opening, the Schlage Residential F60 Addison with Accent lever is a Grade 2 entrance handleset for doors 1-3/8 inch to 1-3/4 inch, the Kwikset 687BW Belleview and 687AMD Amador are Grade 3 single cylinder keyed handlesets for 1-3/4 inch doors, and the Master Lock HDLBA0615/4D is a Grade 2 single cylinder deadbolt handleset.
4) What is another dummy handleset if the Weslock 7635 Stonebriar styling is not the look wanted?
The Weslock 7635 Stonebriar with Wexford knob is a dummy function handleset, so the direct alternates are other dummy handlesets. Emtek offers four brass mortise entrance handlesets in dummy function: the 3002 Memphis, 3004 Hamilton, 3005 Melrose, and 3006 Manhattan. All four are dummy function like the 7635, so they serve the same non-operating, pull-only opening while giving four different escutcheon and grip styles.
5) My door is 2-1/4 inches thick - will the Weslock 7635 work or do I need something else?
The Weslock 7635 Stonebriar adjusts to 1-3/4 inch through 2 inch doors as standard, with a door thickness option covering 2 inch to 2-1/4 inch. If you prefer a keyed electronic handleset at that thickness, the Yale Real Living BYRD226NRRX and BYRD226CBARX Assure touchscreen deadbolts with Ridgefield handleset are rated 1-3/4 inch to 2-1/4 inch. By contrast, the Deltana 810871 Montego covers 1-3/8 inch to 2 inch and the Pamex FS7P31 Lexington covers 1-3/8 inch to 1-3/4 inch, so neither reaches 2-1/4.
6) Is this handleset rated for commercial use?
No. The Stonebriar 7635 is a residential handleset, meant for homes and multi-family entries. For a commercial opening you want a Grade 1 or Grade 2 commercial lockset, not a residential dummy trim.
7) Are there other dummy handlesets besides the Weslock Stonebriar?
Yes. Emtek's brass mortise entrance handlesets are offered in dummy function across several styles, including the 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan. Those are mortise-style trim, while the Weslock 7635 mounts to a bored door prep, so check which prep your door already has before switching.
8) What is the difference between the Weslock 7635 Stonebriar and a Baldwin Wesley handleset?
The Weslock 7635 Stonebriar with Wexford knob is a dummy handleset - fixed trim with no latching or keying. The Baldwin 180WYHXATK Wesley with Alcott knob and 180WYHXCYK Wesley with Carnaby knob are entrance function, so they latch and key. They look similar as knob-style handlesets, but only the Baldwin pair will secure an active door.
9) I need a solid brass entry handleset to pair aesthetically with a Weslock 7635 dummy on the second door - what are the options?
The Weslock 7635 Stonebriar is a brass dummy handleset from the Molten Bronze series. For the active leaf, Deltana offers solid brass entry handlesets in several styles: the 803871B Hanover, 815871 St. Ann, and 825871 Kingston are all entry function solid brass handlesets. Pairing a dummy on the inactive leaf with an entry set on the active leaf is the standard approach for a double-door entry.
10) Is a non-keyed Schlage JE285 handleset the same thing as the Weslock 7635 dummy?
No. The Weslock 7635 Stonebriar is dummy function - a fixed pull with no operating latch. The Schlage Residential JE285 Barcelona with Seville lever is listed as non-keyed but is Grade 2 entrance function for 1-3/8 inch to 1-3/4 inch doors, meaning it operates a latch without a key cylinder. If the door needs to latch closed, the JE285 is the one to specify; if the door is fixed or inactive, the 7635 is correct.
11) My existing door prep has a nonstandard backset - is there a handleset that adapts?
The Weslock 7635 Stonebriar fits doors with a 2-1/8 inch cross bore and 5-1/2 inch minimum center to center spacing. If the existing prep needs backset flexibility, Sure-Loc offers handlesets with adjustable backset: the AN507 Aspen single cylinder keyed entry, the AT507 Alta tubular, the CR507 Coral, and the MA507 Madison keyed entry.
12) What should I use instead of the Weslock 7635 if the door is mortise prepped rather than bored?
The Weslock 7635 Stonebriar is a bored lockset handleset fitting 2-1/8 inch cross holes and a 1 inch edge hole. For a mortise prepped door, the Baldwin Estates 6542 Tremont entry mortise trim is available in single cylinder and double cylinder versions, both for 1-3/4 inch doors. Those are trim for a mortise lock body rather than a bored installation.
13) Is the Weslock Stonebriar handleset solid brass or plated pot metal?
Solid brass. It's part of Weslock's Molten Bronze line, cast rather than stamped, which is what gives the Stonebriar its weight on an exterior door.
14) Can I get the same handleset look but with keypad or smart entry instead of the Weslock 7635?
The Weslock 7635 Stonebriar is non-keyed dummy trim with no electronics. For an electronic option in a handleset format, the Kwikset 815SCEHFL-CP913CNT San Clemente pairs a Halifax lever interior trim with a contemporary SmartCode keypad deadbolt for 1-3/4 inch doors, and Yale Real Living offers the BYRD226CBARX Wi-Fi and Bluetooth touchscreen deadbolt with Ridgefield handleset and the BYRD256 CBARX key-free Wi-Fi version with Ridgefield passage handleset, both for 1-3/4 inch to 2-1/4 inch doors.
15) Will the knob scratch the door during install?
The Wexford knob comes off the handleset for installation and goes back on afterward, so you're not dragging finished trim across the door face while you set the screws. Installation screws are concealed once it's mounted.
