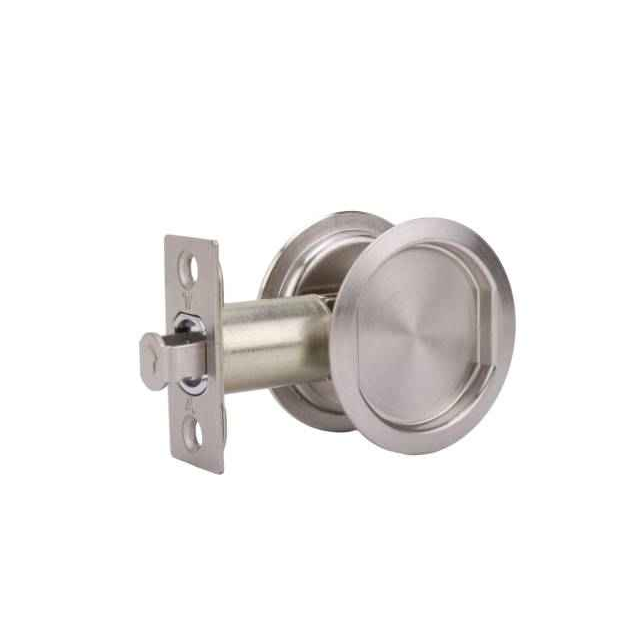

Weslock 0627 Round Passage Pocket Door Lock with Adjustable Backset and Full Lip Strike

Weslock 0627 Round Passage Pocket Door Lock with Adjustable Backset and Full Lip Strike

(No reviews yet) Write a Review

Model: 00627X2X2
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.00
$21.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK 0627 ROUND PASSAGE POCKET DOOR LOCK OVERVIEW

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.

Standard features

  • For Use On Interior Sliding Doors Where a Privacy Locking Function is Required, Such as a Bedroom or Bathroom
  • Universal Handing; Fits Both Right Handed and Left Handed Doors
  • Fits Door Thickness of 1-3/8" to 1-3/4"
  • Round Design Eliminates Need to Cut Notch in New Door
  • Passage No Locking



Manufacturer Resources

Product Specs

Product Group:
Sliding Door and Barn Door Hardware
Warranty:
Limited
Latch Faceplate:
1" x 2-1/4"
Cross Bore:
2-1/8"
Keyed:
No
Product Subgroup:
Pocket Door Locks
Product Type:
Pocket Door Hardware
Subcategory:
Pocket Door Locks
Commercial/Residential:
Residential
Keyed Function:
Non-Keyed
Lock Function:
Passage
IMAP Policy:
Yes
Product Function:
Passage/Hall/Closet
Product Dimension:
2-1/2" Diameter
Door Strike:
Full Lip Strike
Product Style:
Round
Product Category:
Sliding Door and Barn Door Hardware
Product Substrate:
Steel
Backset (Distance):
2-3/8"
Department:
Door Hardware

Weslock 00627X2X2 – Frequently Asked Questions

1) Do I have to cut a notch in the door edge to install a Weslock 0627 pocket door pull?
No notch needed. The 0627 uses a round 2-1/2 inch diameter trim that drops into a bored hole, so on a new door you skip the rectangular mortise cutout that square and rectangular pocket door sets require. It bores like a standard knob prep: 2-1/8 inch cross bore on a 2-3/8 inch backset.
2) Can I use the Weslock 0627 on a pocket door that already has a 2-1/8 inch bore from an old knob-style set?
Yes, that is exactly the prep it wants: 2-1/8 inch cross bore at a 2-3/8 inch backset, with a 1 x 2-1/4 inch latch faceplate on the door edge. If the existing hole matches those numbers you are swapping trim, not re-boring. A rectangular set like the Emtek 2101 or the Omnia 7012/N takes a mortise pocket instead and will not cover a round bore.
3) The bedroom pocket door needs to lock. What replaces the Weslock 0627 there?
The Weslock 0627 is a passage unit with no locking, so it will not serve a bedroom or bathroom pocket door that has to secure. For a round face closest to the 0627's own 2-1/2 inch round trim, the Orca Hardware PDLRD is a privacy function round pocket door lock. Other privacy options are the Deltana SDL25 at 2-1/2 inch by 2-3/4 inch, the Emtek 2102 at 2-3/8 inch by 3-1/8 inch, and the Rockwood 891 pocket door privacy latch. The Omnia 7012/L is a privacy function with an emergency release for the outside side of the door.
4) What is the passage-function equivalent to the Weslock 0627 pocket door lock from another brand?
The Weslock 0627 is a passage pocket door lock, meaning it latches the door closed with no locking. Two peers carry the same passage function: the Deltana SDP25 pocket door lock at 2-1/2 inch by 2-3/4 inch, and the Emtek 2101 passage pocket door lock at 2-3/8 inch by 3-1/8 inch. The Omnia 7012/N modern rectangular pocket door lock is also a passage function and comes with a mortise edge pull. The Weslock 0627 is round with a 2-1/2 inch diameter face, so the Deltana and Emtek peers are rectangular trims where the Weslock is a round cup.
5) Which pocket door locks avoid cutting a notch in the door edge the way the round Weslock 0627 does?
The Weslock 0627 uses a round 2-1/2 inch diameter face so the door prep is a bore rather than a routed rectangle. Among the peers, the Orca Hardware PDLRD is the other round pocket door lock, in privacy function, and the Pamex PF2 is a round sliding door lock with a 2-3/8 inch backset. The rectangular trims take a routed pocket instead: the Orca PDLSQ square privacy lock, the Pamex PF1 square style sliding door lock, and the Omnia 7012 series modern rectangular units. For a retrofit into a door that already has a round cup, the round peers match the existing hole pattern and the square ones do not.
6) Will the Pamex PF2 fit the same doors as the Weslock 0627?
Both are round sliding door locks on a 2-3/8 inch backset, so the bore location matches. The difference is door thickness: the Weslock 0627 fits 1-3/8 inch to 1-3/4 inch doors, while the Pamex PF2 lists a 1-5/16 inch to 1-9/16 inch door thickness range, as does the square Pamex PF1. On a standard 1-3/4 inch interior slab the Weslock covers it and the Pamex range stops short, so confirm slab thickness before swapping one for the other across a building.
7) What looks like a substitute for the Weslock 0627 but is not?
Two items sit in the same aisle and do a different job. The NGP SLAL250PD72 is a 72 inch pocket door aluminum track rated up to 250 pounds, and the Orca Hardware PK1200 is a pocket door frame kit for 1 inch or 1-3/4 inch doors. Those carry and house the door; they do not latch it. The Omnia 7012/PD is a pocket door lock set with mortise edge pull in dummy function, which pulls the door but has no latch at all, where the Weslock 0627 is a passage latch. If the door has to catch closed, the 0627 or another passage unit is the part, and the track, frame kit, and dummy pull are separate line items.
8) Is the Weslock 0627 pocket door lock rated for commercial traffic?
It is a residential-grade set with steel construction, aimed at homes and apartment interiors rather than commercial openings. For heavier duty pocket door work, the Deltana SDLA325 heavy-duty adjustable pocket door lock is the alternative, though that one is a privacy function.
9) I need a pocket door lock that takes a key. Is the Weslock 0627 keyed?
The 0627 has no cylinder and cannot be keyed. For a keyed pocket door, the Omnia 7035/A is a keyed entry pocket door lock, and the Emtek 2153 narrow modern rectangular pocket door mortise lock is offered keyed.
10) What kind of strike comes with the Weslock 0627 pocket door lock?
A full lip strike is included, which is the wrapped jamb strike that catches the latch on a pocket door opening. Nothing separate to order for the jamb side.
11) Does the Weslock 0627 include the pocket door track and frame?
No. The 0627 is the latch, trim, and full lip strike only. The track and stud frame are a separate purchase: the Orca Hardware PK1200 pocket door frame kit, or the NGP SLAL250PD72 72 inch aluminum track rated to 250 pounds if you only need the track.
12) Which pocket door lock has the largest trim if I want a decorative face rather than the compact Weslock 0627?
The Weslock 0627 is a compact round face at 2-1/2 inch diameter. For a larger presentation, the Deltana SDL60 is a decorative pocket door lock with a 6 inch privacy trim, the Emtek #8 classic arched pocket door mortise lock is 2-7/8 inch by 7-5/8 inch in brass, and the Emtek 2153 narrow modern rectangular is 2 inch by 7-1/4 inch. The larger plates are mortise bodies in privacy or keyed functions, so choosing one changes both the door prep and the function away from the 0627's passage round bore.
13) Is there a heavier-duty pocket door lock than the Weslock 0627 for a high-traffic opening?
The Weslock 0627 is a residential-rated steel passage unit with an adjustable backset. The Deltana SDLA325 is described as a heavy-duty pocket door lock, adjustable, at 3-1/4 inch by 2-1/4 inch, but it is a privacy function rather than passage. For a corridor or closet door that only needs to latch, the 0627 stays the passage answer; where the same high-traffic opening also has to secure, the SDLA325 covers both the duty level and the lock.
14) Can I standardize a building on one pocket door trim and still mix passage and privacy?
Yes, if you pair units by shape. The Weslock 0627 is a round passage lock at 2-1/2 inch diameter and the Orca Hardware PDLRD is a round privacy pocket door lock, so bedrooms and baths get the privacy round and closets and halls get the 0627 with the same round door prep. If the standard is square instead, the Orca PDLSQ square privacy lock and the Pamex PF1 square style sliding door lock hold that shape. Within the Omnia modern rectangular trim, the 7012/N passage, 7012/L privacy, 7012/PD dummy, and 7035/A keyed entry cover four functions on one look. The Weslock 0627 comes in Oil Rubbed Bronze, Matte Black, and Satin Nickel for matching the rest of the door hardware.
15) What finishes does the Weslock 0627 round pocket door pull come in?
Three: oil rubbed bronze, matte black, and satin nickel. If you are matching a run of doors in a rental or a whole floor of a building, those are the choices, and the round trim is the same 2-1/2 inch diameter in each.
