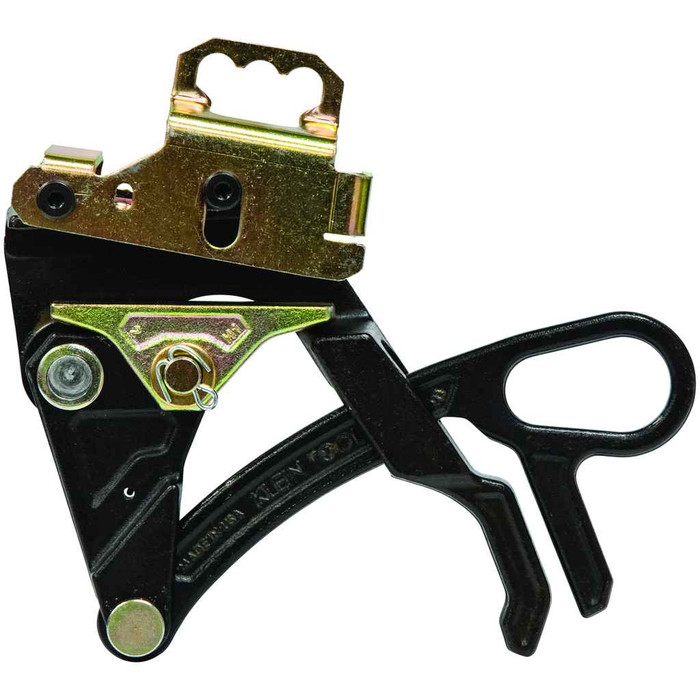

Klein Tools 16477-20 Wide Range Distribution Grip with Hot Latch

Klein Tools 16477-20 Wide Range Distribution Grip with Hot Latch

(No reviews yet) Write a Review

Model: 16477-20
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$531.11
$481.11
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Wide Range Distribution Grip with Hot Latch

  • Warnings

    • Always match proper size and type of grip to application.
    • Grips are to be used for temporary installation, not for permanent anchorage.
    • Do not exceed rated capacity.
    • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
    • When used on/or near energized lines, ground, insulate, or isolate grip before pulling.

  • Features

    • Patent pending design
    • Spring closes grip on cable to hold the initial position
    • Includes a latch to help maintain cable position in the grip jaw
    • Max Safe Load of 5000-Pound (2268 kg)
    • Hot Latch
    • 20-Percent lighter than the Cat. No. KT4500 grip
    • One-handed design makes for easier actuation
    • Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
    • Made in the USA
    • Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks


16477-20 - spec sheet

Manufacturer Resources

Product Specs

Cable Diameter:
0.162 to 0.883" (4.11 to 22.42 mm)
Cable Type:
Bare Copper, Aluminum, ACSR
Depth:
8.6800 in
Height:
2.3000 in
Hot Latch:
Yes
Jaw Length:
3.31" (8.4 cm)
Jaw Type:
Round
Locking Handle:
Yes
Material:
Steel
Maximum Safe Load:
5000 lb (2268 kg)
Overall Height:
8" (20.3 cm)
Overall Length:
10.25" (26 cm)
Overall Width:
1.75" (4.4 cm)
Spring:
Yes
Swing Latch:
No
Type:
Parallel Jaw Grip
Weight:
2.9000 lbs
Width:
7.3100 in
!
