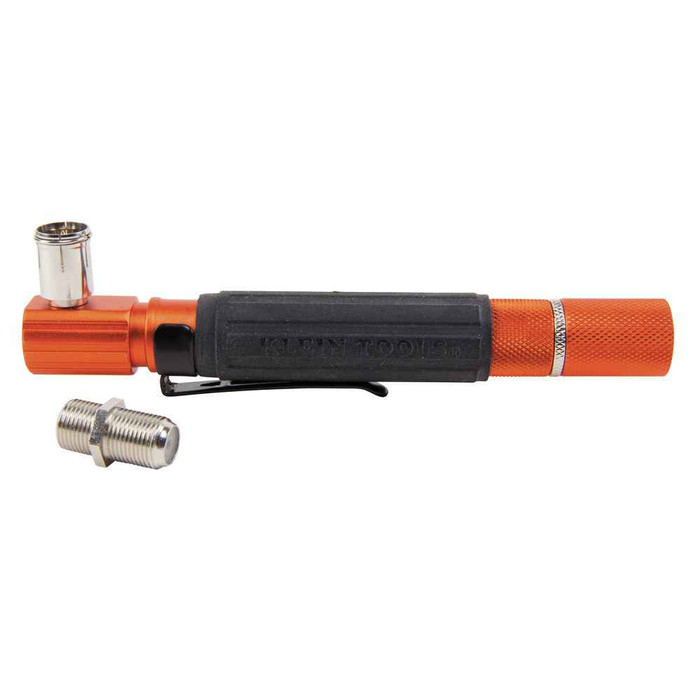

Wire Tracer, Coax Cable Pocket Continuity Tester with Remote
VDV512-007 - spec sheet
Warnings
- Not for use on powered circuits or outlets.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
Features
- Cushion-Grip handle for comfort and secure grip
- LED lights green on a correctly made cable drop, red for short fault
- Docked remote switches tester off to conserve battery life
- Remote contains loud audible beep for easy location identification
- Female to female F-adapter (included) enables testing of loose cables and installed cable runs
- AAA alkaline battery included
- Pocket Continuity Tester provides simple compact wire tracing of coaxial cables up to 1000 feet
- Identifies and tests cable drops for pass, short faults and location via audible beep and LED indicators
- Pocket clip secures tester to shirt pocket
VDV512-007 - spec sheet
Manufacturer Resources
Product Specs
- Batteries:
- 1 x AAA
- Battery Life:
- 6 Hours Active
- Cable Type:
- RG59, RG6/6Q
- Connection Adapter Types:
- F-Connector
- Display:
- LED
- Drop Protection:
- 6.6' (2 m)
- Faults Detected:
- Short Fault, Open Fault
- Item Depth In :
- 5
- Item Height In :
- 1.25
- Item Weight Lbs :
- 0.22
- Item Width In :
- 0.75
- Location Id:
- 1
- Material:
- Aluminum and Rubber
- Multiple Style Tone Generator:
- No
- Overall Height:
- 0.75" (1.9 cm)
- Overall Length:
- 5.0" (12.7 cm)
- Overall Width:
- 1.25" (3.2 cm)
- Package Quantity:
- 4
- Replacement Parts:
- VDV814609,
- Style Name:
- Pocket Coax Continuity Tester
- Supported Remotes:
- 1
- Test Measure Types:
- Continuity
- Weight:
- 4.8 oz (136 g)
- Department:
- Electrical
- Product Group:
- Test & Measurement
- Product Subgroup:
- Electrical Testers
- Product Type:
- Pocket Coax Cable Continuity Tester
- Product Details:
- Pocket Coax Cable Continuity Tester
