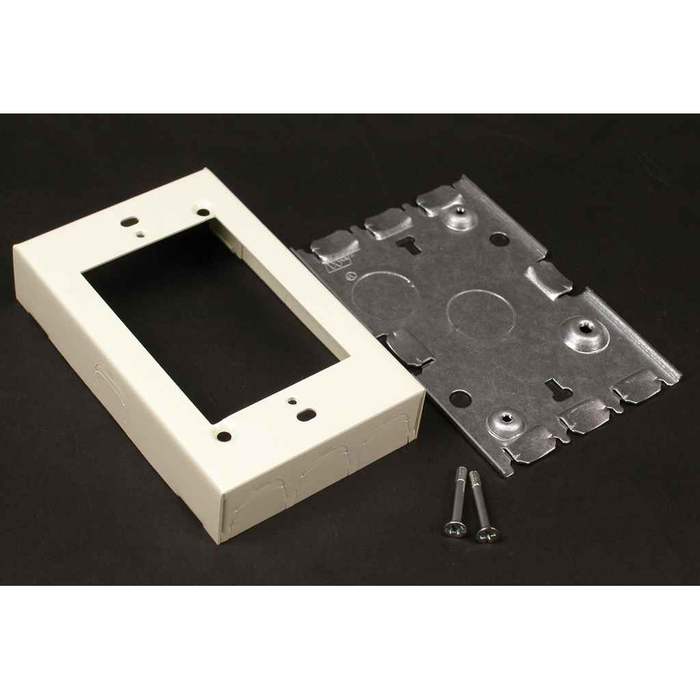

Wiremold Steel Shallow Electrical Box 4.625" x 3.0" 13.5 cu in Switch & Receptacle Housing

Wiremold Steel Shallow Electrical Box 4.625" x 3.0" 13.5 cu in Switch & Receptacle Housing

(No reviews yet) Write a Review

Model: V5748S
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$13.33
$12.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Wiremold Steel Shallow Switch & Receptacle Box

Professional shallow mounting solution for electrical installations

The Wiremold Steel Shallow Switch & Receptacle Box delivers reliable electrical housing with professional-grade steel construction. This compact 4.625" x 3.0" box provides 13.5 cubic inches of volume for versatile switch and receptacle installations while maintaining a shallow profile for space-constrained applications.

Professional Features & Benefits

  • Steel Construction: Durable metal housing ensures long-lasting performance and protection in demanding electrical environments
  • Shallow Profile Design: 3.0-inch height accommodates installations where standard depth boxes cannot fit
  • 13.5 Cubic Inch Volume: Provides adequate space for wiring connections while maintaining compact dimensions
  • 4.625-Inch Length: Standard width accommodates most switch and receptacle devices
  • Lightweight Design: At 0.45 lb, offers easy handling and installation without compromising structural integrity
  • Versatile Application: Suitable for both switch and receptacle mounting in various electrical configurations

Technical Specifications

  • Product Height: 3.0 in
  • Product Length: 4.625 in
  • Product Material: Steel
  • Product Volume: 13.5
  • Product Weight: 0.45 lb
  • Department: Electrical

Professional Applications

  • Residential electrical installations
  • Commercial building wiring
  • Renovation and retrofit projects
  • Space-constrained electrical boxes
  • Professional electrical contracting
  • Maintenance and repair applications

Why Choose Wiremold Quality?

Wiremold delivers professional-grade electrical solutions with steel construction that ensures durability and reliable performance. The shallow design and compact volume make this box ideal for installations requiring space efficiency without compromising electrical safety or functionality.

Manufacturer Resources

Spec Sheet

Product Specs

Product Height:
3.0 in
Product Length:
4.625 in
Product Material:
Steel
Product Volume:
13.5
Product Weight:
0.45 lb
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Type:
Raceway Box
Product Subgroup:
Electrical Boxes

Wiremold V5748S – Frequently Asked Questions

1) How many wires can I legally put in a 13.5 cubic inch Wiremold shallow switch box?
The box gives you 13.5 cubic inches of fill volume. Under standard NEC box fill math, a 14 AWG conductor counts 2.00 cu in and a 12 AWG counts 2.25 cu in, and the device (switch or receptacle) itself counts as two conductors of the largest wire size in the box. So at 14 AWG, 13.5 cu in supports roughly six conductor allowances total, which in practice is one device plus a couple of cable runs with grounds. At 12 AWG you lose a run. Do the fill count on your actual circuit before you commit.
2) Will a Wiremold 5748 surface box fit where I don't have depth behind the wall?
That is exactly what it is for. The 5748 is a surface-mount steel box, so nothing goes behind the wall surface at all, and its shallow build keeps the projection down where a standard depth box will not fit. It measures 4.625 inches long by 3.0 inches high. Good choice on concrete, block, brick, or plaster walls where cutting in a recessed box is not on the table.
3) Does the Wiremold 5748 box take a standard single-gang switch or receptacle?
Yes. The 5748 is built to house a single switch or receptacle device, and the 4.625 inch length covers the strap span of standard devices. Bring your own device and cover plate, since the box is the housing only.
4) What finishes does the Wiremold 5748 shallow box come in?
Two: white and ivory. The ivory version is ordered as V5748S; the white as 5748SWH or 5748-2WH-2. Match the finish to the raceway and device plates already on the wall, since a metal surface box is visible in the finished room.
5) Should I use a steel surface box or a plastic one for a commercial corridor?
Steel, for anything in a commercial or institutional space where the box can get hit. The 5748 is steel construction, which stands up to carts, ladders, and general abuse far better than a molded plastic surface box, and it bonds as part of the grounding path with a metal raceway system. Plastic makes more sense on residential work where impact is unlikely and a nonmetallic system is already in place.
6) Why are there two different lengths listed on the Wiremold 5748 box?
Two length values run through the line, 4.65 inches and 4.75 inches. The 4.65 inch build is the white 5748-2WH-2; the 4.75 inch builds are the white 5748SWH and the ivory V5748S. If you are tying into an existing run of raceway where the box has to line up with fittings already on the wall, order by the part number that matches what is up there rather than by finish alone.
7) Is the Wiremold 5748 box light enough to mount on drywall or plaster?
It weighs 0.45 lb empty, so the box itself puts almost no load on the surface. Fastened with appropriate anchors it sits fine on drywall or plaster. Keep in mind the finished weight includes the device, conductors, and plate, and that a surface box on hollow drywall wants toggle or self-drilling anchors rather than plain screws.
8) I'm standardizing surface boxes across a building. Is one Wiremold 5748 box enough for both switches and outlets?
Yes, it covers both. The 5748 is a single housing used for switch or receptacle work, so a property manager or MRO buyer can stock one box for either device rather than carrying two part numbers. Pick one finish, white or ivory, and hold it as the standard across the site.
