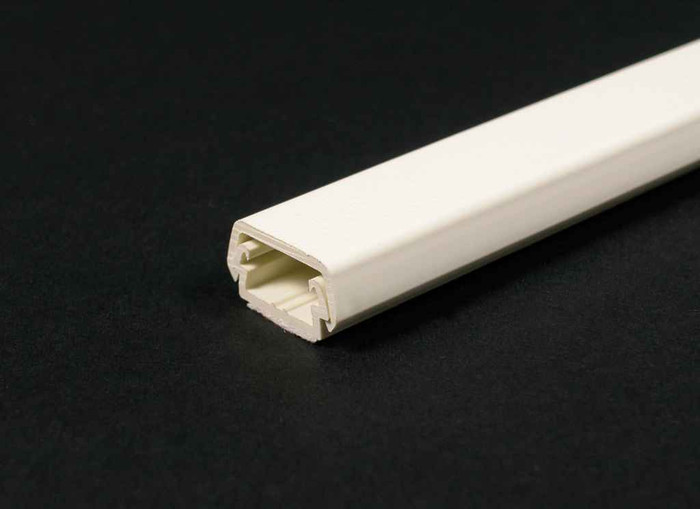

Wiremold 400 Series Nonmetallic Raceway System

Professional Cable Management & Wire Protection Solution

The Wiremold 400 Series Nonmetallic Raceway System delivers reliable cable management and wire protection for professional installations. This 60.13-inch plastic raceway system provides organized routing for electrical wiring while maintaining clean, professional appearances in commercial and residential applications.

Professional Features & Benefits

  • 60.13-inch Length: Provides extended coverage for long runs and reduces the need for multiple joints and connections.
  • Plastic Construction: Offers lightweight installation with excellent durability and resistance to environmental factors.
  • 0.88-inch Height Profile: Maintains low-profile appearance while providing adequate wire capacity for most applications.
  • 0.39-inch Depth: Compact design minimizes wall projection while accommodating standard wiring requirements.
  • 20.64 Volume Capacity: Provides sufficient space for multiple conductors while maintaining proper wire fill ratios.
  • 0.08 lb Weight: Ultra-lightweight design simplifies handling and installation procedures.

Technical Specifications

  • Product Depth: 0.39 in
  • Product Height: 0.88 in
  • Product Material: Plastic
  • Product Volume: 20.64
  • Product Weight: 0.08 lb
  • Product Width: 60.13 in
  • Department: Electrical

Installation & Operation

  1. Mount the raceway in the desired location with appropriate clearance and access for wire installation and future maintenance.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Route cables through the raceway system according to the provided volume specifications and compatible capacity.
  4. Configure any connections or joints as supported by the 400 Series system components.
  5. Test cable routing and verify proper fit and protection before completing the installation.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to nonmetallic raceway systems.

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Educational Facilities
  • Healthcare Environments
  • Residential Installations
  • Light Industrial Applications
  • Professional Service Centers

Why Choose Wiremold Quality?

Wiremold delivers proven reliability in cable management solutions with durable plastic construction designed for long-term performance. The 400 Series system provides professional-grade wire protection with lightweight installation advantages and consistent quality standards for demanding electrical applications.

Manufacturer Resources

Product Specs

Product Depth:
0.39 in
Product Height:
0.88 in
Product Material:
Plastic
Product Volume:
20.64
Product Weight:
0.08 lb
Product Width:
60.13 in
Department:
Electrical
Product Group:
Cable Management
Product Type:
Raceway Systems

Wiremold 400BAC-WH – Frequently Asked Questions

1) How far off the wall does Wiremold 400 raceway stick out?
Projection off the wall is 0.39 inch, with a 0.88 inch profile height. That is a low enough stand-off to run along a baseboard, above a desk line, or across a corridor wall in a healthcare or retail space without catching carts or furniture, and it is the number to check before you commit to a surface run in a tight hallway.
2) Is Wiremold 400 raceway metal or plastic, and does that matter for my install?
The 400 Series is nonmetallic, plastic construction. Nonmetallic raceway carries no bonding path of its own, so your equipment grounding conductor has to be run inside the raceway with the circuit conductors, unlike a steel raceway that can serve as the ground. Plastic also means you cut it with a hand saw and it will not corrode in a damp office or kitchen wall, and at 0.08 lb a piece one person handles a full run.
3) Do I need fittings and couplings to install Wiremold 400 Series raceway?
Yes. What you get here is the raceway base and cover in 60.13 inch lengths, nothing else. Corners, tees, couplings, entrance end fittings, and device boxes are separate 400 Series components and have to be ordered alongside the raceway. Count your inside corners, outside corners, and terminations off the drawing before you order, since a run that lands 100 sticks with no fittings stalls on day one.
4) What colors does Wiremold 400BAC raceway come in?
Two finishes: ivory as model 400BAC, and white as 400BAC-WH. Property managers standardizing across a building usually pick to match existing device plates, ivory against older cream trim and white against newer commercial white devices. Order the whole run in one finish, since sticks butted together in mismatched shades are obvious on a long wall.
5) How many wires will fit in Wiremold 400 raceway?
Rated volume is 20.64 for the 400 Series section. Fill is what decides your conductor count, not the raceway length, so work back from your conductor sizes and the fill limit your inspector holds you to rather than packing it to the lid. The 0.88 inch profile is what constrains it, so it suits low voltage runs, a few branch circuit conductors, or data drops rather than a heavy feeder bundle.
6) Should I use surface raceway or fish the wire inside the wall?
Surface raceway is the answer when you cannot open the wall, which is most tenant improvement, historic, block, or occupied space work. Running 400 Series along the surface means no drywall patching, no painting, and the run stays accessible for adds and moves later, which is why it shows up in offices, classrooms, and retail fit-outs. In-wall is cleaner looking and worth it in new construction or when the wall is already open. Plastic raceway also gets picked over steel where the wall is damp or the run is long and one person is handling it.
7) Can I run data cable and power in the same Wiremold 400 raceway?
Not in the same compartment. The 400 Series is a single-channel raceway with 20.64 volume, so power and communications cable sharing it would be in the same enclosure, which the codes generally do not allow without a barrier. For a run carrying both, you want a divided or dual-channel raceway. If it is data only, or power only, the 400 handles it fine.
8) Will Wiremold 400 raceway work outdoors or in a wet area?
Keep it indoors. The 400 Series is an interior surface raceway for commercial and residential spaces, offices, retail, schools, healthcare, and light industrial. For exterior walls, wash-down areas, or anywhere exposed to weather you need a raceway or conduit system rated for wet locations instead.
