Wiremold 700 Series Steel Race...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$240.00

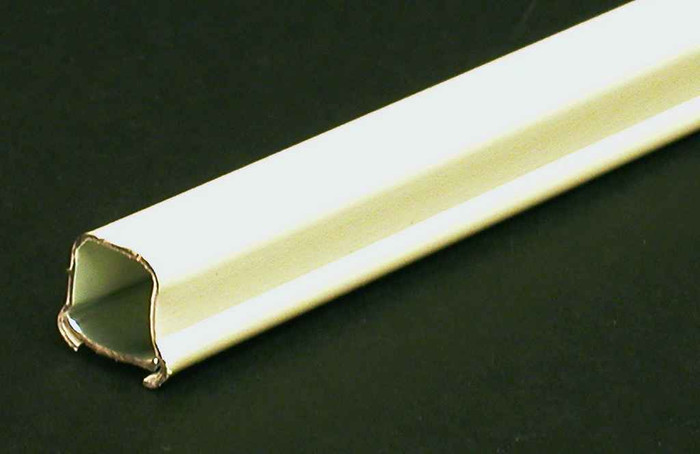

Wiremold 700 Series Steel Raceway 0.75" x 0.63" x 120.13" Ivory Surface Mount Cable Management System

Wiremold 700 Series Steel Raceway 0.75" x 0.63" x 120.13" Ivory Surface Mount Cable Management System

(No reviews yet) Write a Review

Model: V700
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$240.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Wiremold 700 Series Steel Raceway

Professional Surface Mount Cable Management Solution

The Wiremold 700 Series Steel Raceway delivers reliable cable management with durable steel construction in an ivory finish. This professional-grade raceway measures 0.75" height x 0.63" depth x 120.13" width, providing ample capacity for wire routing and organization in commercial and residential applications.

Professional Features & Benefits

  • Steel Construction: Provides superior durability and protection for electrical wiring in demanding environments
  • 0.75" x 0.63" Profile: Compact dimensions allow discreet installation while maintaining adequate wire capacity
  • 120.13" Length: Extended length reduces the need for multiple joints and connections in long runs
  • Ivory Finish: Professional appearance blends seamlessly with standard wall and ceiling colors
  • 0.333 lb Weight: Lightweight design simplifies handling and installation while maintaining structural integrity
  • 56.76 Volume Rating: Generous internal capacity accommodates multiple cables and wiring configurations

Technical Specifications

  • Product Color: Ivory
  • Product Depth: 0.63 in
  • Product Height: 0.75 in
  • Product Material: Steel
  • Product Volume: 56.76
  • Product Weight: 0.333 lb
  • Product Width: 120.13 in
  • Department: Electrical

Installation & Operation

  1. Mount the raceway in the desired location with appropriate clearance and access for cable routing.
  2. Secure the base channel to the mounting surface using suitable fasteners for the substrate type.
  3. Route cables through the raceway channel according to applicable electrical codes and capacity guidelines.
  4. Install the cover section to enclose and protect the wiring installation.
  5. Connect to additional raceway sections or fittings as needed for complete system integration.
  6. Complete final inspection and verify proper cable protection and accessibility for future maintenance.

Professional Applications

  • Commercial Office Buildings
  • Retail and Hospitality Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Industrial and Manufacturing Plants
  • Residential Renovations and Upgrades
  • Data Center and IT Infrastructure

Why Choose Wiremold Quality?

Wiremold steel raceway systems provide proven reliability and professional performance for cable management applications. The durable steel construction and precision manufacturing ensure long-term protection and easy maintenance access for electrical installations.

Manufacturer Resources

Product Specs

Product Color:
Ivory
Product Depth:
0.63 in
Product Height:
0.75 in
Product Material:
Steel
Product Volume:
56.76
Product Weight:
0.333 lb
Product Width:
120.13 in
Department:
Electrical
Product Group:
Cable Management
Product Type:
Raceways

Wiremold V700 – Frequently Asked Questions

1) What are the actual channel dimensions of the Wiremold V700 raceway, and how much cable will it hold?
The 700 Series steel raceway runs 0.75 in high by 0.63 in deep, in a 120.13 in length. That is a small, low-profile channel, so it is intended for a few low-voltage or branch-circuit conductors rather than a bundled data trunk. Fill it to the conductor count your local code allows for the cross section, not to the point the cover will not seat.
2) Is Wiremold 700 raceway steel or plastic, and does that matter for a commercial job?
It is steel, not PVC. That matters in two ways on a commercial job: steel takes impact in a corridor, shop, or back-of-house area where a plastic channel gets crushed, and steel is what most specs call for in exposed institutional work. In a finished office or a residential remodel where nothing will hit it, a nonmetallic channel is the easier install. Where the wall gets traffic, use the steel.
3) What part number do I order for ivory Wiremold 700 raceway?
The manufacturer part number is V700. The V prefix is the ivory version of the 700 Series channel, so if a drawing or an existing run calls out 700 Series and the installed finish is ivory, V700 is the matching stick. There is one finish choice on it, ivory.
4) Will Wiremold V700 raceway match a 700 Series run already installed in my building?
If the existing run is 700 Series ivory, V700 is the same channel and finish, so it extends the run and keeps the openings looking uniform. Check the profile on the wall first: 700 Series is the small 0.75 in by 0.63 in channel, and a larger Wiremold series will not couple to it. Property managers standardizing a floor should confirm the installed profile with a tape before ordering a pallet.
5) Does the Wiremold V700 come with mounting hardware, couplings, and fittings?
What you are buying is the raceway itself, base and cover, in a 120.13 in length. Fasteners are chosen for the substrate you are anchoring to, so drywall anchors, concrete anchors, or sheet metal screws are on you. Elbows, couplings, entrance end fittings, and device boxes are separate 700 Series items and need to be counted per run. Take off the fitting list before you order the channel, because a job that arrives with sticks and no fittings does not get energized.
6) Can I surface mount cable in an occupied building without opening the walls?
That is what surface raceway is for. The 700 Series steel channel fastens to the finished wall, the cable routes inside it, and the cover snaps over the top, so no drywall gets cut and no unit gets taken out of service. It is the usual answer in occupied offices, tenant fit-outs, healthcare corridors, and older buildings where fishing a wall is not practical. The tradeoff is that the run is visible, which is why the small 0.75 in by 0.63 in profile in ivory is the one people pick for finished spaces.
7) What color is the Wiremold V700 raceway, and can it be painted to match a wall?
Ivory is the finish. Ivory reads close to off-white trim and most older painted drywall, which is why it is the standard pick for retrofits in occupied offices, schools, and multi-family units. If your walls are a different color, painting factory-finished steel raceway is common practice on the job, but budget the prep time.
8) How heavy is a stick of Wiremold 700 raceway for overhead or ceiling mounting?
Weight is listed at 0.333 lb, so the channel puts almost no load on the surface it is fastened to. On a ceiling or a soffit run the limiting factor is the anchor and the substrate, not the raceway. Space supports so the cover stays flat and the joints do not open.
