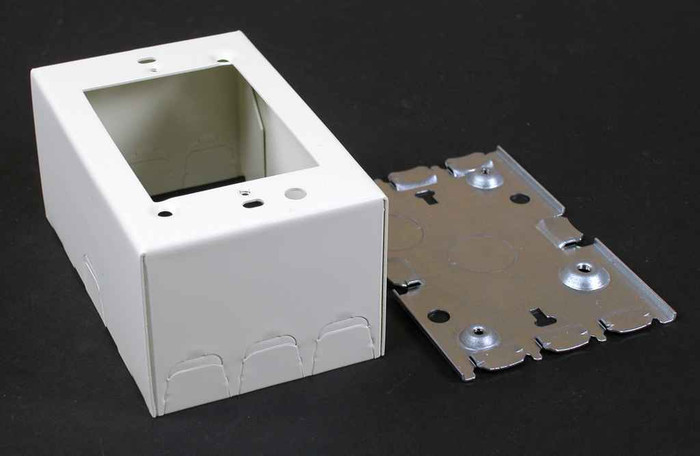

Wiremold Deep Switch & Receptacle Box - 500/700 Series - Steel Construction - 1.375 in Depth

Wiremold Deep Switch & Receptacle Box - 500/700 Series - Steel Construction - 1.375 in Depth

(No reviews yet) Write a Review

Model: 5747WH
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$12.07
$11.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Wiremold Deep Switch & Receptacle Box - 500/700 Series

Professional electrical box solution for versatile wiring applications

The Wiremold Deep Switch & Receptacle Box from the 500/700 Series delivers reliable performance for professional electrical installations. Featuring durable steel construction with 1.375 inch depth, this white electrical box provides secure mounting and connection capabilities for switches and receptacles in commercial and residential applications.

Professional Features & Benefits

  • Steel Construction: Provides exceptional durability and long-lasting performance in demanding electrical environments
  • 1.375 Inch Depth: Offers ample space for wire connections and device mounting while maintaining compact profile
  • 500/700 Series Compatibility: Integrates seamlessly with Wiremold raceway systems for professional installations
  • White Finish: Delivers clean, professional appearance that blends with standard electrical components
  • Deep Box Design: Accommodates multiple wire connections and larger electrical devices with proper clearance
  • Switch & Receptacle Ready: Engineered specifically for reliable mounting of electrical switches and receptacles

Technical Specifications

  • Product Color: White
  • Product Depth: 1.375 in
  • Product Material: Steel
  • Department: Electrical

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Residential Electrical Systems
  • Industrial Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Government Buildings

Why Choose Wiremold Quality?

Wiremold delivers trusted electrical solutions with steel construction ensuring long-term reliability and professional performance. The white finish and precise 1.375 inch depth specification demonstrate attention to quality and compatibility standards for professional electrical installations.

Manufacturer Resources

Spec Sheet

Product Specs

Product Color:
White
Product Depth:
1.375 in
Product Material:
Steel
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Type:
Raceway Box
Product Subgroup:
Electrical Boxes
Country Of Origin:
United States

Wiremold 5747WH – Frequently Asked Questions

1) How deep is the Wiremold 5747 surface box, and is there room for my wire connections?
Depth is 1.375 inches. That is the deep version of the surface box, and the extra depth is there so a device plus its splices and grounding pigtail fold back without fighting the yoke. If you are landing a receptacle with a couple of feeds plus a ground, that is the depth you want; a shallower surface box gets tight fast once more than one cable enters.
2) Does the Wiremold 5747 box come in a two gang version?
Both. Order 5747WH for one gang and 5747-2WH for two gang. Pick the two gang where you are stacking a switch beside a receptacle or running a duplex pair off the same raceway drop, and the single gang for a lone device. Same white finish either way.
3) Is the Wiremold 5747 box metal or plastic?
Steel. That matters for two reasons on a commercial job: it stands up to a corridor or shop floor where a plastic surface box gets cracked by a cart, and a steel raceway system gives you a metallic wiring path rather than needing a separate route for bonding. It ships white, so it reads as finished on a painted wall without a cover kit.
4) Should I use a surface mount raceway box or cut in an old work box?
Use the surface box when opening the wall is off the table. Property managers retrofitting occupied units, anyone working over concrete block or plaster on masonry, and tenant fit-outs where the landlord will not allow wall penetrations all end up here, because the 500/700 raceway carries the conductors on the surface and the 5747 box gives the device a home along that run. If you have open stud bays or accessible drywall, a standard in-wall box is the cheaper and cleaner answer. The surface route wins on retrofit, not on new construction.
5) Will the Wiremold 5747 take a standard switch or receptacle, or do I need a special device?
Standard devices. The box is prepped for ordinary switches and receptacles, so you are using the same trade grade device you would put in a wall box, and the white body is matched to standard white device colors. Buy the device and the wallplate separately; what you are ordering here is the box itself.
6) Is the Wiremold 5747 box suitable for a healthcare or school corridor, or is it a residential part?
It is used across both. Steel body and 1.375 inch depth put it in commercial office, retail, industrial, education, healthcare and government work as readily as residential. For an MRO buyer standardizing a facility, the useful part is that the same box in one and two gang covers most device drops on a raceway run, so you stock two part numbers rather than a shelf full.
