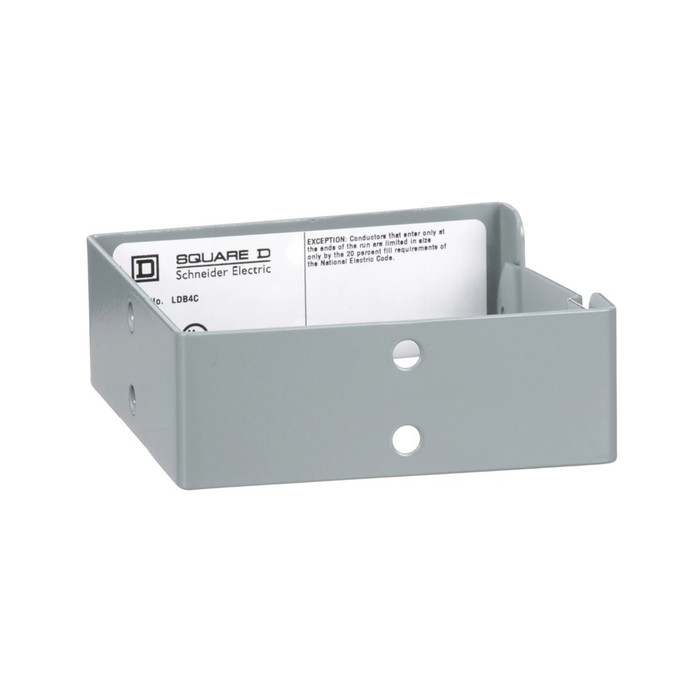

Square D Square-Duct Wireway 180° Connector, NEMA 1

Square D Square-Duct Wireway 180° Connector, NEMA 1

(No reviews yet) Write a Review

Model: LDB4C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D Square-Duct Wireway 180° Connector, NEMA 1

The Square D Square-Duct Wireway 180° Connector joins Square-Duct wireway sections at a full 180° direction change, finished in N1 paint and rated NEMA 1 for indoor enclosure applications. Built for panel builders, system integrators, and contractors who need a reliable transition fitting within a Square-Duct wireway run, this connector is UL Listed and CSA certified for code-compliant industrial and commercial installations. It is engineered to maintain consistent fit, finish, and electrical continuity across the Square-Duct wireway product line.

Key Features

  • 180° Direction Change: Enables a full reversal of wireway routing within the Square-Duct system, simplifying complex conduit and wireway layouts without additional splice fittings.
  • N1 Paint Finish: Factory-applied N1 paint supports the NEMA 1 enclosure rating for standard indoor electrical environments.
  • NEMA 1 Rated: Suitable for general-purpose indoor use where protection against dust and incidental indirect contact is required.
  • Connector Configuration: Designed as a compatible connector component for use with Square-Duct wireway sections, streamlining assembly for panel and control panel builders.
  • Square-Duct Range: Part of the Square D Square-Duct wireway family, engineered for consistent fit and finish across matching wireway sections and fittings.
  • Panel-Builder Ready: Supports system integrators, OEM control panel builders, and contractors assembling or extending Square-Duct wireway runs in the field or in the shop.

Certifications & Compliance

  • UL Listed
  • CSA

Technical Specifications

  • Direction Change Type: 180°
  • Nema Degree Of Protection: NEMA 1
  • Product Or Component Type: Connector
  • Range Of Product: SQUARE-Duct
  • Warranty: 18 months
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes
  • Returnability: Yes

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Square-Duct Wireway Routing and Direction Changes
  • Panel Building and Control Panel Wiring Systems
  • Indoor NEMA 1 Enclosure Environments
  • New Construction and Wireway System Retrofits
  • OEM Control Panel and System Integration Projects

Why Square D?

Square D backs this Square-Duct wireway connector with UL Listing, CSA certification, and an 18-month warranty, giving panel builders, system integrators, and contractors confidence in a component built for dependable, code-compliant wireway routing. The N1 paint finish and NEMA 1 rating ensure the connector performs reliably in the indoor electrical environments where Square-Duct systems are installed, while consistent fit and finish across the Square-Duct range simplify sourcing matching sections and fittings.

Manufacturer Resources

Product Specs

Product Type:
Wireway Fitting
Angle:
180°
Configuration:
NEMA 1 Enclosure
Listing:
UL Listed
Standards:
CSA
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Wireway
Country of Origin:
Mexico

Square D LDB4C – Frequently Asked Questions

1) What does the Square D LDB4C wireway fitting actually do in a Square-Duct run?
The LDB4C is a 180 degree connector for Square D Square-Duct wireway. It reverses the direction of the wireway run a full 180 degrees, so you can double a run back on itself without building the turn out of separate splice fittings. It is a fitting, not a wireway section, so you still order straight duct lengths for the run itself.
2) Can I use this 180 degree Square-Duct connector outdoors or in a washdown area?
No. The LDB4C is a NEMA 1 enclosure fitting with N1 paint, which covers general purpose indoor use, protection against dust and incidental contact. Outdoor, wet location, or washdown runs need a wireway with an enclosure rating for those conditions, not this one.
3) Is the Square D Square-Duct 180 degree connector approved for code-compliant commercial work in the US and Canada?
It is UL Listed and CSA certified, which is what an inspector looks for on industrial and commercial wireway installs on either side of the border.
4) Will the Square D LDB4C connector bolt up to Square-Duct wireway from other manufacturers?
Treat it as a Square-Duct component only. The LDB4C is built to match the fit and finish of the Square D Square-Duct wireway family, and that is the system it is stated to connect. Mixing brands of wireway fittings is not something the product data supports.
5) Which part number do I order for the 180 degree Square-Duct connector?
One model covers it: LDB4C, the Square D Square-Duct 180 degree connector in NEMA 1. There are no finish or size options to specify on it, the N1 paint is factory applied.
6) Is this Square-Duct connector suitable for shop-built OEM control panels?
Yes. It is aimed at panel builders, system integrators, and contractors assembling or extending Square-Duct wireway, either in the shop or in the field, in indoor NEMA 1 environments such as control panel wiring systems.
7) Does the Square D LDB4C contain mercury or toxic heavy metals for our environmental spec?
No. The Square-Duct 180 degree connector is stated mercury free and free of toxic heavy metals, which is what most institutional and green-build submittals are asking for.
