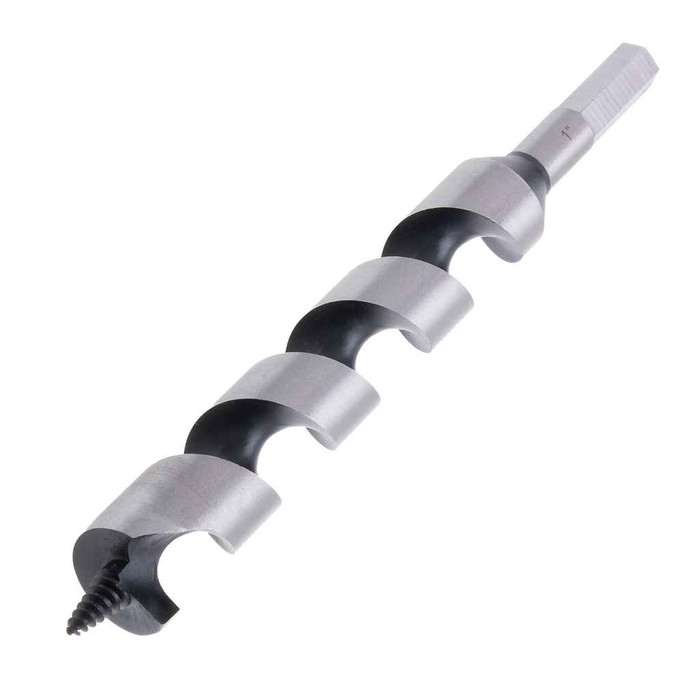

Wood Bit Ship Auger Dia 1-3/8" 8" Hex Shank (1 pc)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Pouch
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
Metallics AS138 – Frequently Asked Questions
1) What size hole does the Metallics AS138 ship auger bore?
The AS138 ship auger cuts a 1-3/8 inch diameter hole. That is a common size for pulling bundled NM cable or flexible conduit through wood framing members.
2) Will the AS138 auger bit fit a standard cordless impact driver?
It has a hex shank, so it drops into a 1/4 inch hex quick-change chuck on an impact driver or drill/driver as well as into a keyed or keyless three-jaw chuck. No adapter needed for hex-drive tools.
3) How deep can I drill with the Metallics 1-3/8 inch ship auger?
The bit is 8 inches overall, so usable boring depth is less than that once the shank is seated in the chuck. It will pass through a doubled 2x stud wall or a single joist easily, but for drilling through deep built-up beams or several stacked members you want a longer auger or a bit extension.
4) Is a ship auger the right bit for running cable through studs and joists, or should I use a spade bit?

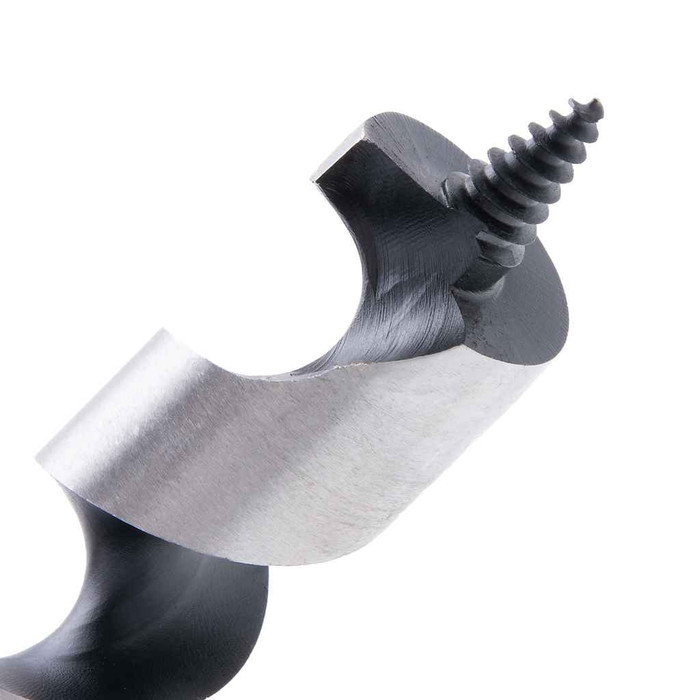

A ship auger like the AS138 is the one to use when you are boring through framing repeatedly or through nail-bearing lumber. The single-flute spiral pulls chips back out of the hole so it clears itself in deep cuts, which a flat spade bit will not do. Spade bits are cheaper and fine for shallow, occasional holes in clean softwood; for a full rough-in of 1-3/8 inch bores, the auger is faster and tracks straighter.
5) What part number do I order for the Metallics 1-3/8 inch, 8 inch ship auger?
Order Metallics AS138. That single part number covers the 1-3/8 inch diameter, 8 inch hex shank ship auger; there is no separate finish or shank option to specify.
6) How many bits come in a Metallics AS138 order?
One bit per pouch. The AS138 is sold as a single piece in a pouch, not as a multi-size auger set, so order one per crew member or per truck if you want spares on the job.
How fast can I get the Metallics AS138 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics AS138 come with a warranty?
Absolutely. The Metallics AS138 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics AS138?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
