Blackburn FBE4H150A1-24 XFLEX BRAID 4 9/16H 11/32X3 X 24 IN

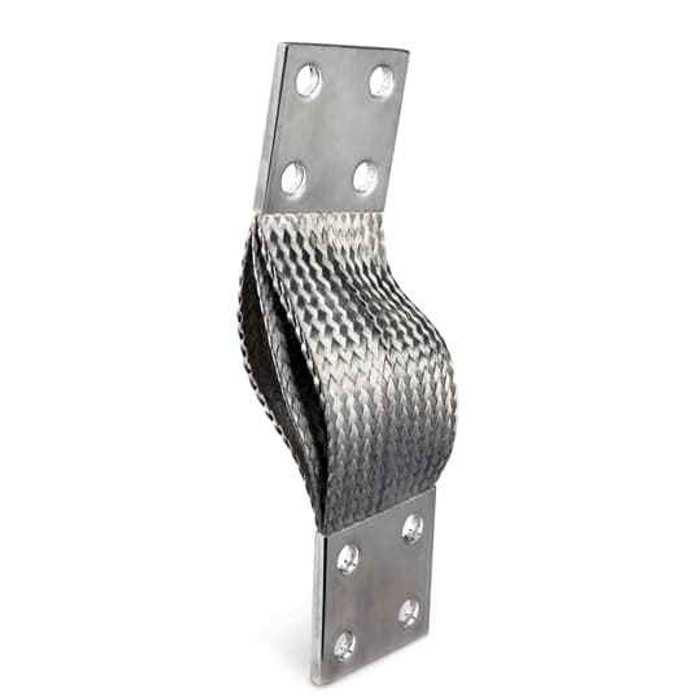

It's a flat, extra-flexible tin-plated copper braid connector with a 4-hole pad, used to make a current-carrying connection between two points that move relative to each other or need vibration isolation, typical of switchgear, disconnects, bus work and transformer terminations. Braid length is 24 inches and it's sold as each. It's built to CEI60694 and IEEE/ANSI C37.34-1994.

The braid is built to CEI60694 and IEEE/ANSI C37.34-1994, the high-voltage switchgear and air disconnect switch test standards commonly called out on utility and substation submittals. It's also made in the United States, which covers domestic-content questions on public work.

Tin plating on the copper braid is the point. It gives a compatible mating surface against tinned or aluminum bus and slows oxidation at the bolted joint compared with bare copper. Clean the pad, use the correct hardware for the 11/32 inch holes, and torque to the equipment manufacturer's figure.

Braid is what you use when the connection has to move. Rigid bar transmits thermal expansion, shock and vibration straight into the terminals; round cable resists bending in the plane you often need. A flat extra-flexible braid flexes easily across its width while keeping a large surface area for current, which is why it's specified on breaker and disconnect connections. This one is 24 inches long with 4-hole pads at the ends.

Order Blackburn part number FBE4H150A1-24, sold individually. The braid with its 4-hole terminal pads is the item; mounting hardware, Belleville washers and any joint compound are separate, so add the 5/16 inch bolt hardware your pads need to the same order.

The 24 inch figure is the braid length, and a flexible braid is meant to be installed with some slack, not stretched taut. Over-length is usually workable since the extra forms a loop, but a span much shorter than 24 inches leaves a large loop that has to clear live parts and enclosure walls. If your centers are well under 24 inches, step down to a shorter length in the same FBE 4-hole family rather than coiling this one.
