XFLEX BRAID 4 9/16H 1/2X3.75X 24 IN
Manufacturer Resources
Product Specs
- Cable Length:
- 24 in
- Conductor Category:
- Flexible
- Conductor Shape:
- Flat
- Country Of Origin:
- United States (US)
- Material Of Conductor:
- Tin-Plated Copper
- Product Group:
- Wire & Cable Management
- Product Type:
- Extra Flexible Braid Connector - 4-Hole
- Selling Unit Of Measure:
- each
- Standards:
- CEI60694, IEEE/ANSI C37.34-1994.
- Type2:
- Flexible braid
- Department:
- Electrical
- Product Subgroup:
- Connectors
Blackburn FBE4H245A1-24 – Frequently Asked Questions
1) What is the Blackburn FBE4H245A1-24 flexible braid connector used for?

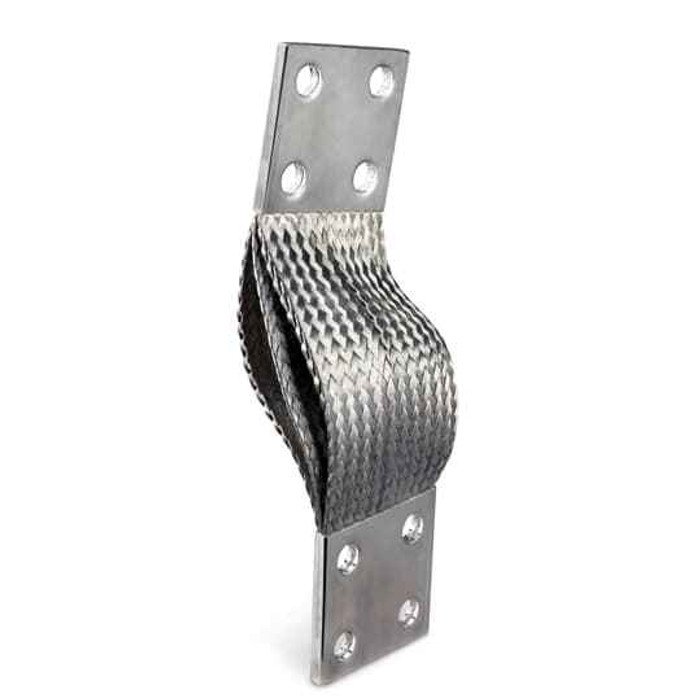

It's a flat, extra-flexible braid connector used to make a current-carrying connection between two pieces of equipment that need to move or expand relative to each other, typical of switchgear, bus, and transformer terminations. The conductor is tin-plated copper in a flexible flat braid, 24 inches long, with a 4-hole pad at each end.
2) Why choose a flexible braid connector instead of a rigid bus link or a cable jumper?
Use the braid where the two connection points move: thermal expansion of bus, equipment vibration, or a disconnect switch blade. A rigid link transfers that movement into the bolted joint and the equipment terminal. This connector is a flat flexible braid, which also gives a lower profile in tight cubicles than a round cable jumper of similar capacity.
3) Is the FBE4H245A1-24 braid tinned, and does that matter for aluminum bus?
The conductor is tin-plated copper. The tin plating is what lets a copper braid land on aluminum bus or aluminum equipment pads with less galvanic concern than bare copper, and it slows oxidation on the bolted faces. Use the joint compound and torque your equipment manufacturer specifies.
4) Is the Blackburn FBE4H245A1-24 made in the USA for Buy American projects?
Country of origin is the United States, which is what federal, transit, and utility jobs with domestic sourcing requirements ask for on submittals. The part number to cite is FBE4H245A1-24.
5) Is the FBE4H245A1-24 sold individually or in a pack?
Sold each, one braid per unit. Three-phase work means ordering three, and a spare is worth adding since the pad drilling is model-specific.
