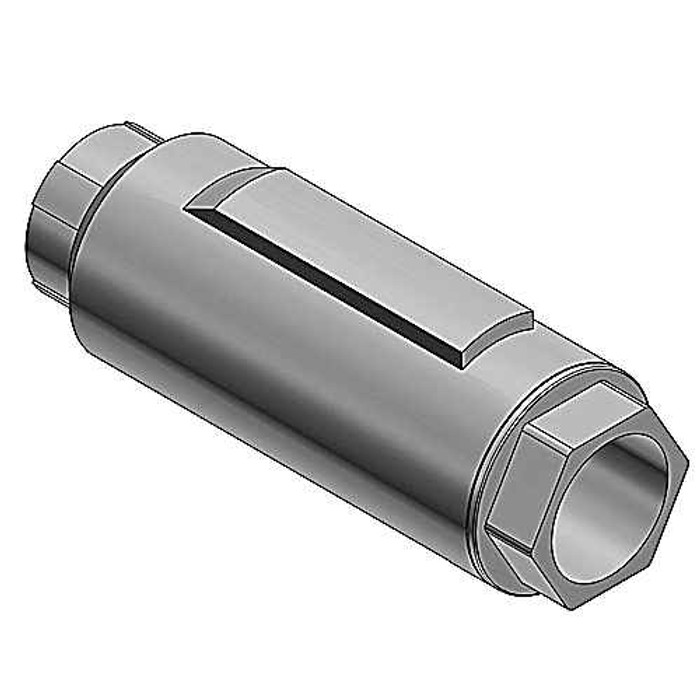

Thomas & Betts XJG24-TB XJG Expansion Couplings

Thomas & Betts XJG24-TB XJG Expansion Couplings

(No reviews yet) Write a Review

Model: XJG24-TB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$663.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
XJG Expansion Couplings

  • Features

    • True Internal Bonding Jumper-no external grounding strap required, tamper-proof internal jumper protected from the environment.
    • Exceeds code requirements for long conduit runs to permit linear movement.


XJG24-TB - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Etim:
EC000939 Coupler for installation tubes
Material Quality:
Other
Outer Dimensions Inches:
30.62x6x6.5
Outer Quantity:
1
Outside Diameter:
2.43 Inch
Product Group:
Conduit & Raceway
Standards:
UL E23018, CSA
Surface Protection:
Other
Two Piece:
N
Unspsc:
39131707 Electrical conduit coupling
Weight Uom:
4.79 lbs. Each
With Inspection Opening And Cover:
N
Department:
Electrical
Product Subgroup:
Conduit Fittings
Product Type:
Expansion Coupling
Product Model:
Thread
Product Length:
10 in
Product Details:
XJG Expansion Couplings
Product Material:
Metal
Product Size:
3/4 Inch

Thomas & Betts XJG24-TB – Frequently Asked Questions

1) What conduit size does the Thomas & Betts XJG24-TB expansion coupling fit?
The XJG24-TB is a 3/4 inch trade size expansion coupling with threaded ends, so it goes inline in a 3/4 inch rigid or IMC run. Outside diameter of the body is 2.43 inches, which matters if you are running it through a tight sleeve or close to a wall face.
2) Do I need a separate external bonding jumper with the XJG24-TB expansion coupling?
No. The XJG expansion coupling carries a true internal bonding jumper, so no external grounding strap is bolted across the fitting. The jumper sits inside the body where it is protected from weather and cannot be tampered with, which is why these get specified on exterior and exposed runs.
3) Is the Thomas & Betts XJG24-TB UL listed?
Yes, the XJG24-TB carries UL listing under file E23018 and is CSA certified, which is what an inspector or a spec writer on an institutional job will want to see for an expansion fitting in a grounded raceway.
4) How much movement does the XJG24-TB expansion coupling allow, and how long is the fitting?
The XJG24-TB body is 10 inches long and is built to exceed code requirements for long conduit runs so the raceway can move linearly with thermal expansion or a building expansion joint. Allow for that 10 inch length plus your threaded conduit engagement when you lay out the run.
5) What part number do I order for a 3/4 inch Thomas & Betts XJG expansion coupling?
Order Thomas & Betts XJG24-TB. That is the catalog number for the 3/4 inch threaded XJG expansion coupling with the internal bonding jumper, and it is sold one per package.
6) Is the XJG24-TB expansion coupling metal, and how heavy is it?
It is a metal-bodied fitting weighing 4.79 lbs each. That weight is worth planning for on overhead or strut-supported runs, since an expansion fitting concentrates load at one point in the raceway.
7) Does the XJG24-TB come with an inspection opening or cover?
No inspection opening or cover on the XJG24-TB, and it is not a two-piece assembly. It ships as a single unit per carton, so what you get is the complete coupling ready to thread into the run.
