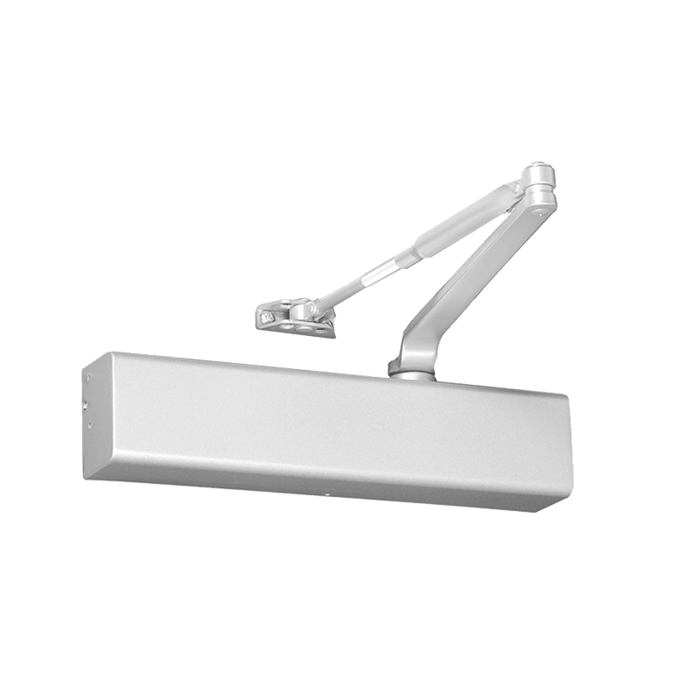

Yale 3501 Series Architectural Door Closers with Full Cover

Accentra 3511 Series Tri-Packed Architectural Door Closer with Hold Open Arm - Size 1-6 Adjustable Spring

(No reviews yet) Write a Review

Model: 3511M-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,404.00
$1,087.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 3511 Series Tri-Packed Architectural Door Closer with Hold Open Arm - Size 1-6 Adjustable Spring

Professional Architectural Door Closer with Versatile Mounting Options

The Accentra 3511 Series architectural door closer delivers professional-grade performance with tri-packed mounting versatility including regular, parallel, and top jamb configurations. This ANSI/BHMA Grade 1 certified closer features adjustable spring sizes 1 through 6, cast aluminum body construction, and exceeds 25 million cycles for exceptional durability in commercial applications. The rack and pinion design with staked valves provides precise control and reliable operation.

Professional Features & Benefits

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra architectural door closers deliver professional-grade reliability with cast aluminum construction rated to exceed 25 million cycles. ANSI/BHMA Grade 1 certification ensures long life and dependable performance in demanding commercial applications. Engineered with precision rack and pinion design and staked valves for consistent operation where reliable door control is essential.

Manufacturer Resources

Accentra Condensed Catalog

Product Specs

Series:
3000 Series
Subcategory:
Architectural Door Closers
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Commercial/Residential:
Commercial
Product Model:
YAL-3501
Product Function:
Tri-Packed Hold Open Arm
Product Size:
Adjustable 1-6
Product Category:
Door Controls
Department:
Door Hardware

Accentra 3511M-626 – Frequently Asked Questions

1) Can the Accentra 3511 door closer be mounted on the push side of the door, or only the pull side?
The Accentra 3511 ships tri-packed, so one box covers regular arm (pull side), parallel arm (push side), and top jamb mounting. You pick the configuration at install rather than at order time, which is why a property manager can stock one closer and cover openings that swing either way.
2) Do I need to specify left hand or right hand for the Accentra 3511 closer?
No handing to specify. The 3511 is non-handed, so the same closer works on a left or right hand door. Only the mounting style you choose (regular, parallel, or top jamb) changes the install.
3) Will the Accentra 3511 hold the door open, or does it always close?
This version comes with a hold open arm, so the door can be parked open at the set point and released by pulling it. If you need a closer that always returns the door with no hold open, that is a different arm configuration, not an adjustment on this one.
4) Is one size of the Accentra 3511 enough for both a narrow office door and a wide exterior door?
The 3511 has an adjustable spring covering sizes 1 through 6, so a single unit spans light interior doors up through heavy, wide exterior openings. Set the spring power at install to match the door width and weight, then fine tune with the separate latch, sweep, and backcheck valves.
5) Does the Accentra 3511 meet ADA opening force requirements for a barrier free entrance?
The 3511 is stated as ADA compliant, and because the spring is adjustable across sizes 1 through 6 you can dial the power down to meet the opening force limit on an interior accessible door. Verify the actual force at the door with a gauge after adjustment, since undercut, weatherstrip, and latch drag all affect the reading.
6) Is the Accentra 3511 rated Grade 1, and how many cycles will it take?
Grade 1 under ANSI/BHMA, with a cycle life stated to exceed 25 million. That is the tier institutional and MRO specs normally call for on high traffic openings like school corridors and hospital entries.
7) What is a comparable tri-mount Grade 1 closer with an adjustable size 1-6 spring if I cannot get the Accentra 3511?
Closest matches in the same tri-mount, adjustable 1 through 6 territory: the Norton Rixson 8501A, a Grade 1 medium duty tri-mount closer with a size 1-6 spring, and the BEST EHD9000 Series, a Grade 1 extra heavy duty surface closer with adjustable spring sizes 1-6. The Arrow DCN325 is also a Grade 1 tri-pack with a 1-6 adjustable spring, but it ships less cover.
8) I need a hold open arm closer but not the Accentra 3511 - what else is a hold open unit?
The Accentra 3511 is supplied with a tri-packed hold open arm. Among other brands, the Orca Hardware BHDC1958HO/PA is also a tri-packed hold open arm closer, rated for 1-3/4 inch doors, with a parallel bracket included. The Stanley Security A45-501HL is a long hold open arm closer in top jamb mounting. Most other tri-pack closers in this class, such as the Design Hardware 116 and the Orca BHDC1958RA/PA, ship as non-hold open arms and would not hold the leaf open.
9) What is the closest cross-brand equivalent to the Accentra 3511 tri-packed door closer with adjustable size 1-6 spring?
The Norton Rixson 8501A is the nearest match: it is a Grade 1 tri-mount surface closer with an adjustable size 1-6 spring, the same adjustable 1-6 range and tri-packed regular, parallel and top jamb mounting the Accentra 3511 provides. The Dexter DCH1000 is another Grade 1 tri-mount surface closer covering regular, parallel or top jamb mounting with a full cover. Both carry Grade 1 like the 3511.
10) The opening is a heavy exterior door - is there a heavier duty closer than the Accentra 3511?
The Accentra 3511 has a cast aluminum body and an adjustable 1-6 spring. If you want a heavy duty rating stated on the product, the BEST EHD9000 is an extra heavy duty Grade 1 surface closer with adjustable spring sizes 1-6, and the BEST HD8000 is a heavy duty Grade 1 surface closer. The Sargent 281 Powerglide uses a cast iron body in heavy duty Grade 1, and the LCN 1460T is a heavy duty Grade 1 closer in a powder coat finish. Cast iron bodies are typically specified where abuse resistance matters more than weight.
11) Which closers look like substitutes for the Accentra 3511 but will not do the same job?
Two things to watch. First, tri-pack closers that are non-hold open: the Design Hardware 316 and 416 and the Dormakaba 8616 AF86P are tri-pack arms but supplied non-hold open, so they mount the same three ways as the Accentra 3511 yet will not hold the door open. Second, single-mount closers: the Corbin Russwin DC3200 is a regular arm surface closer and the Corbin Russwin DC5230 is a slide track arm for pull side mounting only, neither of which gives you the parallel and top jamb options the 3511 covers. The Arrow DCN500DP is only a parallel drop plate, not a closer.
12) What is the difference between backcheck, sweep, and latch on the Accentra 3511?
Three separate, independent valves control three parts of the swing. Backcheck cushions the door near the end of the opening arc so wind or a hard push does not slam it into a wall. Sweep controls the main closing speed. Latch controls the last few degrees so the door has enough energy to engage the strike. Because the valves are independent on the 3511, adjusting closing speed does not throw off latching.
13) Is the Accentra 3511 body cast aluminum or cast iron, and does that matter for an exterior door?
Cast aluminum body with a rack and pinion mechanism and staked valves. Staked valves resist tampering and backing out in service. If your spec insists on cast iron, the Sargent 281 Powerglide is a heavy duty cast iron surface closer we carry.
14) Is the Accentra 3511 overkill for a light interior office door?
It can be dialed down, but a Grade 1 closer built past 25 million cycles is aimed at traffic. For lighter interior work, the Falcon SC91A is a light duty Grade 3 cast aluminum surface closer, and the LCN 1250 is a light duty ADA compliant closer in sizes 1-5. Use the 3511 where the opening sees real volume, like a corridor, entry, or stairwell.
15) Do I need a drop plate or bracket to install the Accentra 3511?
Not as a rule. The tri-packed carton includes the arm and brackets for regular, parallel, and top jamb mounting. A drop plate only comes into play when the frame face or stop is too narrow for the shoe, or an existing top rail is too shallow, and those are ordered separately as a mounting accessory.
16) Can I standardize on the Accentra 3511 across a whole facility?
That is what it is built for. One non-handed unit with an adjustable 1 through 6 spring covers most openings in a building, so stocking becomes one part number plus a finish rather than a size matrix per door. Add the tri-mount flexibility and the same closer handles pull side, push side, and top jamb conditions.
17) Is there a lighter duty alternative to the Accentra 3511 for interior office doors?
For lighter interior openings, the BEST SL6000 is a Grade 1 light duty surface closer with adjustable spring sizes, and the Norton Rixson 160 Series is a light commercial Grade 1 surface closer with an adjustable spring. The Arrow DCN325 is a light duty tri-pack closer with an adjustable spring size 1-6 range matching the Accentra 3511, while the Arrow DCN314 covers only size 1-4. The Falcon SC91A is Grade 3 light duty, a step below the Grade 1 certification the 3511 carries.
18) What is a Grade 1 alternative to the Accentra 3511 if I want a barrier free ADA closer?
The Accentra 3511 is ADA compliant with an adjustable 1-6 spring. If you are specifying against a barrier free line item, the Cal-Royal 500S is a Grade 1 barrier free closer with adjustable back-check, and the Cal-Royal N900PBF is a Grade 1 hydraulic barrier free surface closer. The Calibre CA9901 is a Grade 1 tri-pack arm ADA closer sized 2-5, a narrower spring range than the 3511's 1-6. The Imperial USA TC4300 is a heavy duty size 1-6 ADA closer.
19) How does the Accentra 3511 compare to the Sargent 1431 and Falcon SC71A for a high traffic entry?
All three are Grade 1. The Accentra 3511 is a cast aluminum body closer with adjustable 1-6 spring, tri-packed for regular, parallel and top jamb mounting, and rated to exceed 25 million cycles. The Sargent 1431 Powerglide is a heavy duty Grade 1 surface closer with adjustable spring power, and the Falcon SC71A is a heavy duty Grade 1 surface mount closer. The Sargent 1331 and Falcon SC81A sit at medium duty if the traffic is lighter than a main entry.
20) I need a closer with delayed action instead of hold open - what takes the place of the Accentra 3511?
The Accentra 3511 arm function is hold open. For a delayed action arm, the Orca Hardware BHDC1958DA/PA and BHDC2011DA/PA are delayed action closers with a regular arm and parallel bracket, both tri-packed non-hold open and rated for 1-3/4 inch doors. Delayed action slows the initial closing sweep rather than latching the door open, so confirm which behavior the opening actually calls for before swapping.
21) Is a Grade 2 closer like the Cal-Royal 400 an acceptable swap for the Accentra 3511?
Only where the specification allows it. The Accentra 3511 is ANSI/BHMA Grade 1 certified and rated to exceed 25 million cycles. The Cal-Royal 400 Series is a Grade 2 commercial hydraulic closer, a different certification tier. If your drawing or facility standard calls out Grade 1, stay within the Grade 1 set - the Cal-Royal 700S is a Grade 1 dual valve sized closer with an adjustable tube arm, and the Norton Rixson 1601P is a Grade 1 tri-mount closer with 180 degree swing.
22) What finishes does the Accentra 3511 door closer come in?
Five: 605 bright brass, 606 satin brass, 612 satin bronze, 625 bright chrome, and 626 satin chrome. For matching existing hardware across a building, 626 satin chrome is the usual commercial default and 612 satin bronze pairs with older bronze lock trim.
