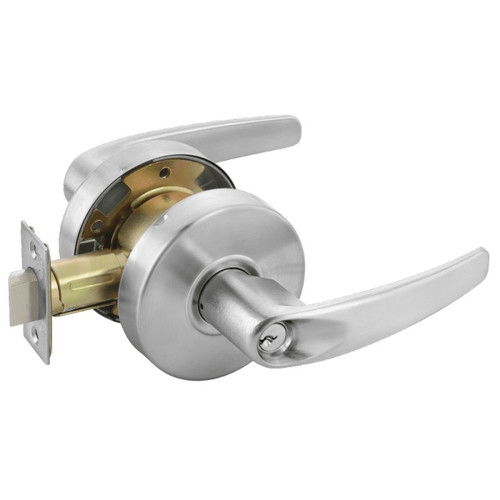

Accentra 4708LN Grade 1 Classroom Cylindrical Lever Lock with Monroe Trim Design

Accentra 4708LN Grade 1 Classroom Cylindrical Lever Lock with Monroe Trim Design

Professional Grade 1 Classroom Security Solution

The Accentra 4708LN cylindrical lever lock delivers Grade 1 performance for classroom applications with Monroe trim design. This heavy-duty lock features adjustable door thickness from 1-3/8" to 1-3/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified and UL fire-rated up to 3 hours for reliable commercial security.

Professional Features & Benefits

• ANSI/BHMA: A156.2, Series 4000 Grade 1
• UL-cUL: UL-cUL fire-rated up to 3 hours
• Windstorm: 4700LN Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated

• Backset: 2-3/4" standard

• Latchbolt: 1/2" stainless steel throw standard

• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

• Door Thickness: 4700LN adjustable from 1-3/8" to 1-3/4". 4700 adjustable from 1-3/4" to 2"

• Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order

• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.

• Reversibility: Non-handed

• Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.

• Finishes: 4700LN available in 7 finishes, 4700 available in satin stainless steel (630) only.

• Warranty: 5-year mechanical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4", 2-3/4" backset, and proper handing for classroom function.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for cylindrical lock installation.
3. Prepare door by drilling required holes per ANSI standards for cylindrical locks including cross bore and edge bore.
4. Install lock mechanism, levers, and cylinder components securing all hardware per manufacturer torque specifications.
5. Adjust latchbolt operation and verify proper guardbolt engagement when door is closed for security compliance.
6. Test classroom function operation including key override capabilities and verify proper alignment and smooth operation. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Classrooms
• Commercial Office Buildings
• Healthcare Institutions
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Retail Establishments
• Industrial and Warehouse Facilities

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. UL fire-rated up to 3 hours with comprehensive 5-year mechanical warranty coverage. Engineered for educational and commercial environments where dependable classroom security and code compliance are essential.
