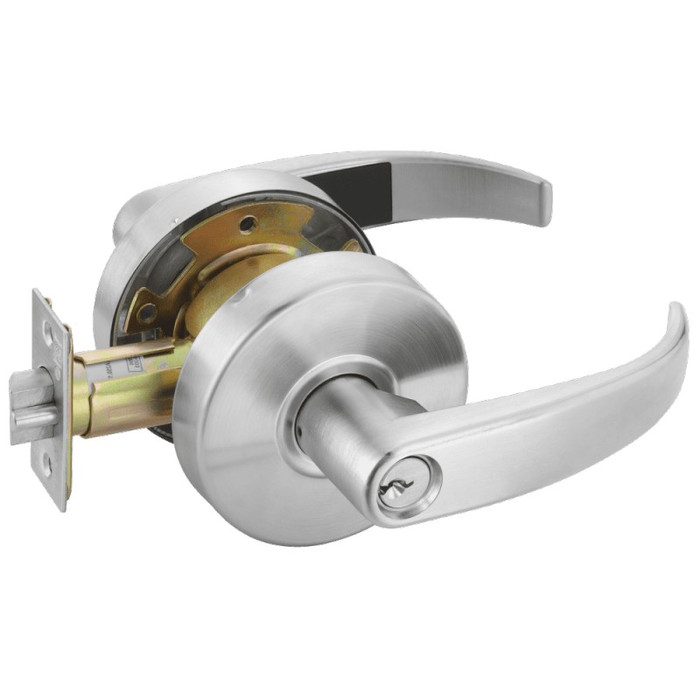

Yale Commercial Yale 4708LN Grade 1 Classroom Cylindrical Lever Lock Pacific Beach Trim Design YAL-PB4708LN

Accentra 4708LN Grade 1 Classroom Cylindrical Lever Lock with Pacific Beach Trim Design

(No reviews yet) Write a Review

Model: YAL-PB4708LN-626
From the 4700 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$604.00
$468.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 4708LN Grade 1 Classroom Cylindrical Lever Lock with Pacific Beach Trim Design

Professional Grade 1 Classroom Security Solution

The Accentra 4708LN cylindrical lever lock delivers Grade 1 performance for classroom applications with Pacific Beach trim design. This heavy-duty lock features adjustable door thickness from 1-3/8" to 1-3/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified and UL fire-rated up to 3 hours for reliable commercial security.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL-cUL: UL-cUL fire-rated up to 3 hours
  • Windstorm: 4700LN Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
  • Backset: 2-3/4" standard
  • Latchbolt: 1/2" stainless steel throw standard
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: 4700LN adjustable from 1-3/8" to 1-3/4". 4700 adjustable from 1-3/4" to 2"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
  • Finishes: 4700LN available in 7 finishes, 4700 available in satin stainless steel (630) only.
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4", 2-3/4" backset, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 2-1/4" x 1-1/8" front.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for cylindrical lock installation.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment of the heavy-gauge steel mechanism.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying guardbolt engagement.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facility Classrooms
  • Commercial Office Buildings
  • Healthcare Institution Patient Areas
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Retail Establishment Security Zones
  • Industrial Facility Administrative Areas

Why Choose Accentra Quality?

Accentra 4700LN Series lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. UL fire-rated up to 3 hours with 5-year mechanical warranty for added confidence and protection. Engineered for educational and commercial environments where dependable classroom security and life safety compliance are essential.

Product Specs

Series:
4700 Series
Subcategory:
Cylindrical
Grade:
Grade 1
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Classroom
Product Attribute:
Cylindrical Locks
Product Model:
YAL-4708LN
Collection:
4700 Series
Product Function:
Classroom
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB4708LN-626 – Frequently Asked Questions

1) Will the Accentra 4708LN classroom lever fit a 1-3/4 inch door?
Yes. The 4708LN is built on the 4700LN chassis, which adjusts from 1-3/8 inch to 1-3/4 inch door thickness, so a standard 1-3/4 inch commercial door is in range and so is an older 1-3/8 inch interior door. If your doors run thicker, 1-3/4 inch up to 2 inch, that is the plain 4700 chassis instead, not the LN.
2) How does the classroom function on the 4708LN actually work day to day?
Classroom function means the outside lever is locked and unlocked by key from the outside only, and the inside lever always retracts the latch for free egress. There is no inside button or thumbturn, so a teacher has to key the door from the corridor side to lock it. If you want staff to be able to lock the door from inside the room during a lockdown, you want a classroom security function instead, such as the Dexter C1000 Classroom Security.
3) Will the 4708LN latch into the strike already in my frame?
It ships with an ANSI strike, 4-7/8 x 1-1/4 inches with a 1-1/4 inch lip to center, and the latchbolt has a 1/2 inch stainless steel throw. If your frames are already prepped for a standard ANSI 4-7/8 inch strike, the supplied strike drops in. For frames prepped for a smaller T-strike, an optional T-strike is available to order for the 4700LN.
4) What backset and door prep does the Accentra 4708LN need?
Standard 2-3/4 inch backset, with a 2-1/4 x 1-1/8 inch beveled front on the latch. Flat fronts are available to order if your doors are square edge. Use the factory template for the cross bore and edge bore before you drill.
5) Is the 4708LN lever lock fire rated for a labeled classroom door?
Yes. The 4700LN series carries UL-cUL fire ratings up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 1. The 4700LN is also Windstorm certified, though you should check that against your local code for storm shelter openings.
6) What cylinder and keying comes with the Accentra 4708LN?
It comes with a brass 6-pin keyed-random cylinder and two keys as standard, single cylinder keyed function. A 7-pin cylinder is not offered on this series, so if your facility is standardized on a 7-pin master system this lock will not join it as shipped.
7) My classroom doors need lockdown from inside the room - what should I use instead of the Accentra 4708LN?
Look at the Dexter C1000 Series classroom security lever lock. It is a Grade 1 classroom security function for doors 1-3/8 inch to 1-3/4 inch, which adds inside-key control over the outside lever. The Accentra 4708LN is standard classroom function, where the outside lever is locked and unlocked by key from the corridor side only.
8) My doors are 1-3/4 inch to 2 inch thick - will the Accentra 4708LN fit, or do I need something else?
The 4700LN trim covers 1-3/8 inch to 1-3/4 inch; the 4700 configuration covers 1-3/4 inch to 2 inch but is offered in satin stainless steel (630) only. If you want a wider range in one lock, the Dexter C1000 Series asylum lock lists 1-3/8 inch to 2 inch and the Corbin Russwin CL3110 Grade 1 vandal resistant passage lever covers 1-3/4 inch to 2 inch, though those are asylum and passage functions rather than classroom.
9) Do I need to specify handing for the 4708LN lever lock?
No. The 4700LN chassis is non-handed and reversible, so one lock covers left and right hand openings. That is useful on a school or office retrofit where you are ordering a quantity and do not want to count swings door by door.
10) What keeps the latch from being carded or shimmed on the 4708LN?
A guardbolt sits alongside the latchbolt and deadlocks it whenever the door is closed. It is standard on all locking functions in the 4700 Series, so every keyed lock in the line gets it, not just the classroom.
11) Is the 4708LN heavy enough for a high traffic school or healthcare corridor?
It is a commercial Grade 1 cylindrical lockset with a heavy-gauge steel, die-cast, zinc-plated and chromated mechanism, which is the top ANSI/BHMA durability tier for bored locks. That is the class of lock specified for classroom, patient area, and municipal corridor doors that cycle all day.
12) Is a Grade 1 storeroom lever a substitute for the Accentra 4708LN classroom lock?
They are different functions and should not be swapped without checking the opening. A storeroom lever such as the Hager 2580 with Withnell lever, a Grade 2 storeroom lock for 1-3/8 inch to 2 inch doors, or the Cal-Royal AG05 Grade 2 storeroom lockset with deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors keeps the outside lever locked at all times and is released only by key. The Accentra 4708LN classroom function lets the outside lever be left unlocked for normal class traffic and relocked by key.
13) Is there a lighter-duty classroom lever lock instead of the Accentra 4708LN?
The Cal-Royal AG03 classroom lever is a Grade 2 option with a 6-pin Schlage C keyway, keyed different, on a 2-3/4 inch backset - the same backset the Accentra 4708LN uses, so the door prep matches. The 4708LN is ANSI/BHMA A156.2 Series 4000 Grade 1 and UL-cUL fire rated up to 3 hours, which is the difference to weigh for high-traffic school corridors.
14) Can I use a Grade 1 passage lever in place of the Accentra 4708LN on some openings?
Only on doors that never need to be secured. The Falcon K101 is a Grade 1 passage cylindrical lock with non-handed levers, fire rated, covering 1-3/8 inch to 2-1/4 inch doors, and the Dexter C1000 passage is a Grade 1 non-keyed clutching lever for 1-3/8 inch to 1-3/4 inch doors. Neither is keyed. The Accentra 4708LN is a keyed single-cylinder classroom lock, so it is the one to specify wherever the opening must lock.
15) What looks like an alternative to the Accentra 4708LN but will not work on a keyed classroom door?
Dummy and privacy trims are the common mix-up. The BEST 9K Series 1DT single dummy is Grade 1 heavy duty but non-keyed with no latch at all, and privacy sets such as the Kwikset 300BRNL Breton or the Hager 2540 with Withnell lever are push-button bath/bedroom devices. The Accentra 4708LN is a keyed single-cylinder classroom lock with a 1/2 inch stainless steel latchbolt and a guardbolt that deadlocks the latch when the door closes.
16) We want keyless entry on classroom doors instead of the Accentra 4708LN - what are the options?
Mechanical and electronic keypad leversets are the alternative. The Lockey 2835 mechanical pushbutton keyless lever lock is a passage function with ADA compliance for doors 1-3/16 inch to 2 inch, the Lockey 1150 heavy duty keypad lever set covers 1-1/8 inch to 2 inch with double combination, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. The Accentra 4708LN is key-operated with a brass 6-pin keyed-random cylinder and two keys furnished.
17) We need access control on some of these classroom doors - what replaces the Accentra 4708LN?
The Corbin Russwin CL33903 electrified cylindrical lever lock is the Grade 1 fail safe option, available in 12VAC/DC for doors 1-3/4 inch to 2 inch. The Accentra 4708LN is a purely mechanical classroom lock with no electrification, so plan the door thickness and power transfer around the CL33903 if the opening is tied into an access control system.
18) What finishes does the Pacific Beach 4708LN come in?
Eight finish choices: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 625 bright chrome, 626 satin chrome, plus BSP black suede powder coat and WSP white suede powder coat. The powder coat options are the ones to look at if you are matching dark or white painted door hardware across a building.
19) Can I match the Pacific Beach lever on non-keyed doors in the same corridor?
The Pacific Beach trim is the 4700LN lever design, and the series runs across functions, so keyed and non-keyed openings in the same building can carry the same lever look. If you need dummy trim to round out a pair of doors and do not need matching trim, the BEST 9K Series 1DT is a Grade 1 non-keyed single dummy cylindrical lever trim.
20) What are the Grade 2 lever alternatives if my facility does not require Grade 1 like the Accentra 4708LN?
For lighter-traffic openings, the Hager 2525 Grade 2 commercial cylindrical entry lock and the Falcon B511CP6D Grade 2 medium duty entry/office lever both cover keyed entry-style use, with the Hager fitting 1-3/8 inch to 2 inch doors. Keep in mind these are entry/office function rather than classroom, so the outside lever can be locked from inside - the Accentra 4708LN is keyed from the corridor only and is ANSI/BHMA A156.2 Grade 1 with UL-cUL fire rating up to 3 hours.
