Yale Commercial Yale 5408LN Grade 1 Classroom Cylindrical Lever Lock Pacific Beach Trim Design YAL-PB-5408LN

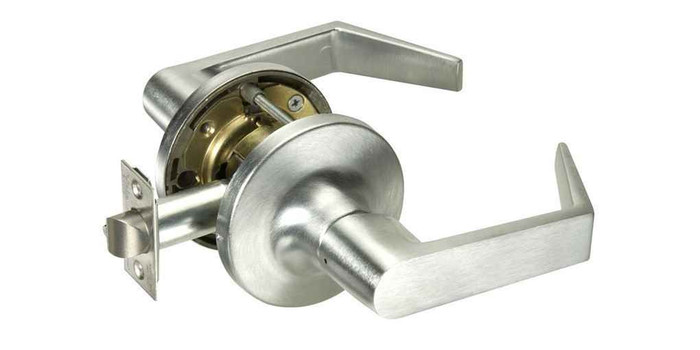

Accentra 5408LN Grade 1 Classroom Cylindrical Lever Lock with Pacific Beach Trim Design

(No reviews yet) Write a Review

Model: PB-5408LN-626
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$930.93
$531.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5408LN Grade 1 Classroom Cylindrical Lever Lock with Pacific Beach Trim Design

Heavy-Duty Commercial Grade Cylindrical Lockset

The Accentra 5408LN Grade 1 Classroom Cylindrical Lever Lock delivers professional-grade security and reliability for commercial applications. This heavy-duty lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified with UL/cUL fire rating up to 3 hours, this lockset meets the demanding requirements of educational and commercial facilities.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 2-1/4" x 1-1/8" beveled front.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for cylindrical lockset installation.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment of the guardbolt mechanism.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying free wheeling lever mechanism function.
  6. Test device operation to verify proper classroom function, latchbolt throw, and guardbolt deadlocking when door is closed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classrooms
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. The 7-year mechanical warranty and UL/cUL fire rating up to 3 hours demonstrate the manufacturer's commitment to quality and code compliance. Engineered for educational and commercial facilities where dependable access control and durability are essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Classroom
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5408LN
Collection:
5400 Series
Product Function:
Classroom
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5408LN-626 – Frequently Asked Questions

1) What does the classroom function on the 5408LN actually do at the door?
Classroom function means the outside lever is locked and unlocked by key from the outside; the inside lever always retracts the latch for free egress. There is no inside button or thumbturn, so the door cannot be locked from within the room. If you need staff to lock down from inside the classroom, that is a classroom security function instead, like the Dexter C1000 classroom security lever.
2) Do I have to order the 5408LN handed for a left or right swing door?
No handing to specify. The 5408LN is non-handed and the strike is reversible, so one part number covers both swings. That is the reason it is a good fleet standard across a building of mixed openings.
3) Will the 5408LN latch into the strike prep already in my frame?
Standard build is a 1/2 inch stainless steel latchbolt throw with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door, on a 2-1/4 x 1-1/8 inch beveled front. If your existing frame has a deeper prep or a different jamb-to-stop dimension, other lip lengths are available to order, and a 3/4 inch throw and flat front can be specified as well.
4) My doors are bored on a 3-3/4 inch backset instead of 2-3/4. Can I still use the 5408LN?
Yes, with an extension link. The 5408LN ships 2-3/4 inch backset as standard, and 3-3/4 inch or 5 inch extension links are available to order, so wide-stile or glass-front openings can be covered. Specify the backset at order time; it is not a field swap out of the box.
5) Is the 5408LN approved for a fire-rated classroom or corridor door?
It is UL/cUL fire rated up to 3 hours and certified to ANSI/BHMA A156.2 Series 4000 Grade 1. The guardbolt deadlocks the latchbolt when the door closes, which is standard on all locking functions in the series. It is also windstorm certified, subject to your local code.
6) How does the 5408LN come keyed, and can I put it on my existing master key system?
Standard is a brass 6-pin keyed-random cylinder with two keys. A 7-pin cylinder is available to order, and other cylinder and keying options are listed in the manufacturer catalog. If you are matching an existing system, specify the keyway and keying at order time rather than taking the keyed-random stock build.
7) What is the closest Grade 1 classroom lever lock to the Accentra 5408LN from another manufacturer?
The Dexter C1000 Series classroom cylindrical lever lock is the nearest match - it is also a Grade 1 keyed classroom function cylindrical leverset, with clutching levers and a door thickness range of 1-3/8 inch to 1-3/4 inch. The Accentra 5408LN is Grade 1 classroom function as well, but adjusts from 1-3/4 inch to 2-1/4 inch, so on doors thicker than 1-3/4 inch the 5408LN is the one that fits.
8) What do I order instead of the Accentra 5408LN if the room should stay locked and always be enterable by key - a storeroom function?
For storeroom function, the Cal-Royal AG05 is a Grade 2 storeroom leverset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors. The Accentra 5408LN is classroom function, where the outside lever is locked and unlocked by key rather than remaining permanently locked.
9) What finishes does the Accentra 5408LN Pacific Beach lever come in?
Nine finish choices are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606, which is what holds up outdoors and in high-touch corridors.
10) I need a Grade 1 classroom lever but my hospital doors are lead lined. Any option for that?
Lead shielding is available to order on the 5400LN series, so the 5408LN can be specified for X-ray room and imaging suite doors instead of sourcing a separate shielded lock. Call it out on the order, as it is not part of the standard build.
11) Is the 5408LN built for high traffic, or is a Grade 2 lever enough?
Grade 1 is the top ANSI/BHMA commercial tier, and the 5408LN uses a heavy-gauge steel mechanism, zinc plated and dichromated. On a school or healthcare door taking hundreds of cycles a day, that is the right call. Grade 2 levers, like the Hager 2580 storeroom or Falcon B511CP6D entry/office, are medium-duty and better suited to lower-traffic interior openings.
12) Is there a Grade 2 classroom lever lock I can use instead of the Accentra 5408LN on a lighter-traffic door?
The Cal-Royal AG03 is a classroom lever in the AG Series with a 6-pin Schlage C keyway keyed different and a 2-3/4 inch backset. The Accentra 5408LN also uses a 2-3/4 inch standard backset, so the door prep is the same; the 5408LN carries ANSI/BHMA A156.2 Series 4000 Grade 1 certification and a UL/cUL fire rating up to 3 hours, which the AG03 catalog entry does not claim.
13) I need a non-keyed lever on the corridor side of the same classroom suite - what pairs with the Accentra 5408LN?
For a non-keyed opening at the same duty level, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, adjusting from 1-3/8 inch to 2-1/4 inch. Corbin Russwin's CL3110 is another Grade 1 fire-rated passage/closet lever, vandal resistant, for 1-3/4 inch to 2 inch doors. The Accentra 5408LN itself is a keyed classroom lock and is also non-handed.
14) Can I use a Baldwin Estate 5103 lever in place of the Accentra 5408LN?
No. The Baldwin Estate 5103 with 5048 rose is offered in passage, privacy, and handed half-dummy versions - none of them is a keyed classroom function. The Accentra 5408LN is a keyed classroom cylindrical lock with a 6-pin brass cylinder, a guardbolt that deadlocks the latchbolt, and Grade 1 certification, so the Baldwin is a decorative residential-style alternative rather than a substitute for the classroom opening.
15) I need the classroom door tied into an access control system - is there an electrified alternative to the Accentra 5408LN?
Yes. The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock running on 12VAC/DC, available with the NZ lever and D rose, for doors 1-3/4 inch to 2 inch thick. The Accentra 5408LN is a mechanical classroom lock keyed with a 6-pin brass cylinder, so it has no electrical connection and needs no power at the opening.
16) Is a keypad leverset an alternative to the Accentra 5408LN for a classroom?
A keyless option exists but it is a different animal. The Delaney LP250 is a Grade 2 electronic keypad leverlock, and the Lockey 2835 is a mechanical pushbutton keyless lever with passage function and ADA compliance for doors 1-3/16 inch to 2 inch thick. The Accentra 5408LN is a Grade 1 keyed classroom lock with a 1/2 inch stainless steel latchbolt throw and UL/cUL fire rating up to 3 hours, so on a fire-rated classroom opening the 5408LN is the one carrying that listing.
17) Is there an asylum or utility function lever I should use rather than the Accentra 5408LN on a door that needs key control from both sides?
The Dexter C1000 Series asylum (F87) cylindrical lock is Grade 1 and covers 1-3/8 inch to 2 inch doors; the Arrow MK33-BD-CS is a heavy duty asylum/institution/utility cylindrical lock with a conventional Schlage C keyway cylinder, supplied with a ball knob rather than a lever. The Accentra 5408LN is classroom function with a Pacific Beach lever, keyed from the outside only.
18) Can I match the Pacific Beach lever on non-keyed openings in the same corridor?
The 5408LN is the classroom function in the 5400 Series, and the Pacific Beach trim is a series design, so other functions in the same series carry the same lever look for passage, privacy or storeroom doors. Order those by their own 5400LN function number with the same Pacific Beach trim and finish code. If you are only after dummy trim to match a Grade 1 pair, the BEST 9K 1DT single dummy is another Grade 1 option we stock.
19) What is the difference between the Accentra 5408LN and a Grade 1 dummy trim lever like the BEST 9K 1DT?
The BEST 9K Series 1DT is single dummy trim - a Grade 1 heavy duty non-keyed lever with no latch and no cylinder, used on inactive leaves or pull-only doors. The Accentra 5408LN is a full keyed classroom cylindrical lockset with a 2-3/4 inch backset, 1/2 inch stainless steel latchbolt, and a guardbolt that deadlocks the latch when the door closes, so the two are not interchangeable even though both are Grade 1 levers.
