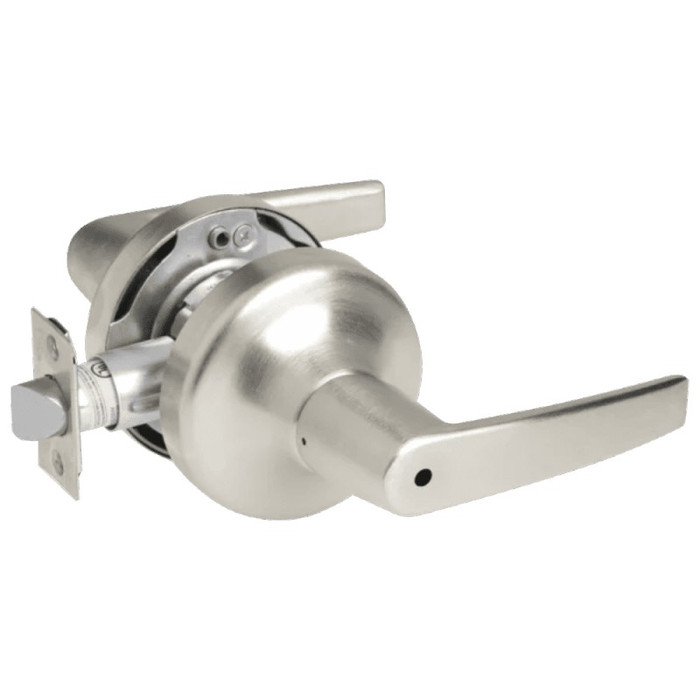

Yale Commercial Yale 5303LN Monroe Grade 2 Patio or Privacy Non-Keyed Cylindrical Lever Lock YAL-MO-5303LN

Accentra 5303LN Monroe Grade 2 Cylindrical Lever Lock - Patio/Privacy Function

(No reviews yet) Write a Review

Model: YAL-MO-5303LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$349.00
$270.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5303LN Monroe Grade 2 Cylindrical Lever Lock - Patio/Privacy Function

Commercial-Grade Cylindrical Lever Lock for Privacy Applications

The Accentra 5303LN Monroe lever lock delivers Grade 2 commercial performance with non-keyed patio/privacy functionality. This cylindrical lever lock features adjustable door thickness from 1-3/4" to 2", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA A156.2 Series 4000 Grade 2 certified with UL/cUL fire rating up to 3 hours for demanding commercial and institutional applications.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2", backset requirements, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 5303LN lever locks deliver professional-grade reliability with heavy-gauge steel construction and zinc-plated, dichromated mechanism rated for demanding commercial applications. ANSI/BHMA Grade 2 certification with UL/cUL fire rating up to 3 hours ensures code compliance and dependable performance. 5-year mechanical warranty provides added confidence for institutional and commercial installations where consistent operation is essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Patio/Privacy
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5303LN
Collection:
5300 Series
Product Function:
Patio/Privacy
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-MO-5303LN-626 – Frequently Asked Questions

1) What does the patio/privacy function on the 5303LN actually do?
It is a non-keyed lock. The inside lever locks the outside lever, and there is no cylinder and no key on the outside, which is the difference between patio/privacy and an entry or office function. Use it on restrooms, exam rooms, dorm rooms, and patio doors where nobody needs to key in from the corridor side. If you need outside key override, this is the wrong function.
2) Can I use this Accentra lever on a fire rated door?
Yes. The 5303LN carries UL/cUL fire ratings up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 2 certified. It is also listed as windstorm certified, though you should verify against your local code for that. For a healthcare or education corridor door on a labeled frame, it meets the listing requirement.
3) Will the 5303LN latch into the strike already in my frame?
The latchbolt is a 1/2 inch stainless steel throw and ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your existing strike is an ANSI square or a different lip length, other lip lengths are available to order. A guardbolt deadlocks the latchbolt once the door closes, so the strike lip has to be long enough to reach past the stop and hold the guardbolt depressed.
4) What is a comparable Grade 2 privacy lever lock to the Accentra 5303LN Monroe from another brand?
The Hager 2540 is a Grade 2 cylindrical privacy lock with the Withnell lever and a 1-3/8 inch to 2 inch door thickness range, which overlaps the 5303LN Monroe's adjustable 1-3/4 inch to 2 inch range. Both are cylindrical, lever-operated, and Grade 2, so either will take a standard 161 bored door prep on a bedroom, bath, or patio-side opening.
5) I need a privacy lock but the door is only 1-3/8 inch thick - what should I use instead of the Accentra 5303LN?
The 5303LN Monroe adjusts from 1-3/4 inch to 2 inch, so a thinner door falls outside it. The Kwikset 300BRNL Breton privacy lever covers 1-3/8 inch to 1-3/4 inch doors, and the Hager 2540 privacy lock with Withnell lever covers 1-3/8 inch to 2 inch. Both keep the privacy function on a lever.
6) What is the difference between the Accentra 5303LN and a Grade 1 privacy or passage cylindrical lock?
The 5303LN Monroe is certified to ANSI/BHMA A156.2 Series 4000 Grade 2 with a UL/cUL fire rating up to 3 hours. Grade 1 alternatives in the same cylindrical lever format include the Corbin Russwin CL3110 passage/closet lock, which is Grade 1, fire rated, and fits 1-3/4 inch to 2 inch doors, and the Falcon K101 Grade 1 heavy duty passage lock for 1-3/8 inch to 2-1/4 inch doors. Note those two are passage function with no locking, while the 5303LN provides patio/privacy locking.
7) The patient room door needs to be secured from outside - can I use the Accentra 5303LN?
No. The 5303LN Monroe locks from the inside only as a patio/privacy function. For behavioral health and utility rooms that must lock and unlock by key from both sides, use an asylum function such as the Dexter C1000 Series F87 asylum lock, Grade 1 for 1-3/8 inch to 2 inch doors, or the Arrow MK33-BD-CS Grade 2 asylum lock with a conventional cylinder in Schlage C keyway.
8) What finishes does the Accentra 5303LN Monroe lever come in?
Ten finishes are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat, and WSP white suede powder coat. PVD is standard on 605 and 606, which is what keeps bright brass from tarnishing in an exterior or high-traffic corridor. 626 satin chrome is the usual match for existing commercial openings.
9) Is Grade 2 enough for a school or hospital restroom door?
Grade 2 under ANSI/BHMA A156.2 Series 4000 is the standard commercial duty level and is common on institutional restroom and patient room doors. The 5303LN mechanism is heavy gauge steel, zinc plated and dichromated. If the opening sees very high cycle traffic and your spec calls for Grade 1, look at a Grade 1 cylindrical such as the Corbin Russwin CL3100 Series, which is also rated for 1-3/4 to 2 inch doors.
10) I need the same Monroe lever on doors that do not lock. What do I order?
The 5303LN is the patio/privacy function specifically. For openings that need to stay free-swinging, order the passage function in the same 5300LN series so the Monroe lever and rose match across the building. If you are matching a different brand instead, the Arrow GL01 passage lever is also Grade 2 and covers the same 1-3/4 to 2 inch door range.
11) Do I need to specify handing when substituting another lever for the Accentra 5303LN?
The 5303LN Monroe is non-handed and reversible, so one part number covers both swings. Some alternatives are also non-handed, including the Falcon B101 Grade 2 passage lever and the Falcon K101 Grade 1 passage lock. Others are handed and must be ordered per opening, such as the Baldwin Estate 5103 half dummy, which is sold as separate left hand and right hand parts.
12) If the door does not need to lock, what non-keyed lever should I order instead of the Accentra 5303LN?
Use a passage lockset. The Arrow GL01 is a Grade 2 non-keyed passage cylindrical lock with the Sierra lever and a 1-3/4 inch to 2 inch door thickness range that matches the 5303LN's adjustment range. The Falcon B101 is another Grade 2 medium duty cylindrical passage lever with a non-handed design, as is the 5303LN Monroe.
13) What should I use instead of the Accentra 5303LN if the door needs keyless code entry?
The 5303LN Monroe is a mechanical non-keyed privacy lever with no code entry. For pushbutton access on a lever, the Lockey 2835 is a mechanical keyless pushbutton lever lock with ADA compliance for doors 1-3/16 inch to 2 inch, the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination for 1-1/8 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock.
14) Is a dummy lever an acceptable substitute for the Accentra 5303LN Monroe?
No. A dummy trim has no latch and no locking mechanism; it is a pull mounted to the door face. The BEST 7KC Series 1DT single dummy trim is Grade 2 non-keyed, and the BEST 9K Series 1DT is Grade 1 heavy duty. Use those only on inactive leaves or closet doors. The 5303LN Monroe carries a 1/2 inch stainless steel latchbolt with a guardbolt and an inside privacy lock, so it is the one to specify on a door that has to latch and lock.
15) Is there a knob version of the same privacy function as the Accentra 5303LN Monroe lever?
Yes, if the opening does not require a lever for ADA reach. The Arrow MK02-TA is a privacy/bed/bath cylindrical lock with a Tudor knob, fire rated, with a 1-3/4 inch to 2 inch door thickness range identical to the 5303LN's adjustment range. The 5303LN Monroe keeps the same privacy function on a lever handle.
16) What is a lighter-duty alternative to the Accentra 5303LN for apartment interior doors?
The 5303LN Monroe is a commercial Grade 2 lever. For lower-traffic residential interiors, the Kwikset 300BRNL Breton privacy lever is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Callan Asheville is a Grade 3 passage leverset if the door does not need to lock. Grade 3 hardware is built to a lower ANSI cycle and strength threshold than the Grade 2 Monroe.
17) How does the Accentra 5303LN Monroe compare to decorative residential privacy levers?
The Baldwin Estate 5103 privacy lever with 5048 rose is a privacy function lever aimed at decorative residential openings. The 5303LN Monroe is a commercial Grade 2 cylindrical lockset certified to ANSI/BHMA A156.2 Series 4000 with UL/cUL fire rating up to 3 hours and a 2-3/4 inch standard backset, which is what a fire-rated corridor or institutional door usually calls for.
18) Can I standardize a building on Accentra 5303LN or do I need different functions on some doors?
The 5303LN Monroe covers patio/privacy openings only. Round out the same building with matching cylindrical levers in other functions: Cal-Royal AG03 classroom lever with a 2-3/4 inch backset matching the 5303LN standard backset, Cal-Royal AG05 Grade 2 storeroom, Hager 2580 Grade 2 storeroom with Withnell lever, and Arrow GL01 Grade 2 passage. Lever design and finish will differ between brands, so confirm the aesthetic match before mixing.
19) Can I get the 5303LN with a 7-pin cylinder or lead shielding for an X-ray room?
Neither is available on the 5303LN. Lead shielding is not offered on this model, so it should not be specified for a radiology opening. The 7-pin cylinder question is moot here anyway, since patio/privacy is a non-keyed function with no cylinder. Keyed locks in the 5300LN family use a brass 6-pin keyed-random cylinder with two keys.
20) What is the difference between a cylindrical lever lock like the 5303LN and a knob lock?
Both bore into the door the same way, but a lever is the accessible choice and is what most commercial and institutional specs now call for, where a knob still shows up on residential and utility openings. The 5303LN uses the Monroe lever design. If a knob is what you are matching, the Arrow MK02-TA is a Grade 2 privacy cylindrical with a Tudor knob covering the same 1-3/4 to 2 inch door range.
