Accentra 5303LN Augusta Grade ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$349.00
$225.13

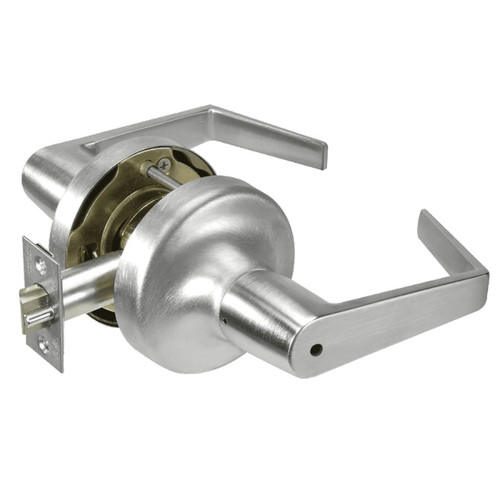

Yale Commercial Yale 5303LN Augusta Grade 2 Patio or Privacy Non-Keyed Cylindrical Lever Lock YAL-AU-5303LN

Accentra 5303LN Augusta Grade 2 Cylindrical Lever Lock with Patio/Privacy Function

(No reviews yet) Write a Review

Model: YAL-AU-5303LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$349.00
$225.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5303LN Augusta Grade 2 Cylindrical Lever Lock with Patio/Privacy Function

Professional Commercial-Grade Cylindrical Lever Lock Solution

The Accentra 5303LN Augusta lever lock delivers Grade 2 certified performance for commercial, institutional, and industrial applications. This non-keyed cylindrical lever lock features a 2-3/4" standard backset with adjustable door thickness from 1-3/4" to 2", heavy-gauge steel mechanism with zinc-plated dichromate finish, and 1/2" stainless steel latchbolt throw. ANSI/BHMA A156.2 Series 4000 Grade 2 certified and UL/cUL fire-rated up to 3 hours for code compliance applications.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and zinc-plated dichromate finish rated for commercial applications. 5-year mechanical warranty provides added confidence for demanding institutional and industrial environments. Engineered for dependable performance where security and accessibility compliance are essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Patio/Privacy
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5303LN
Collection:
5300 Series
Product Function:
Patio/Privacy
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-AU-5303LN-626 – Frequently Asked Questions

1) Will the Accentra 5303LN lever lock fit a 1-3/8 inch door?
No. The 5303LN Augusta lever is built to adjust from 1-3/4 inches to 2 inches as standard, so a 1-3/8 inch leaf is outside its range. Accentra does offer the 5300LN for thinner or thicker doors to order, but on a stock unit you need a 1-3/4 to 2 inch door. For a 1-3/8 inch opening from stock, the Hager 2510 passage lever covers 1-3/8 to 2 inches, and the Falcon K101 passage lever covers 1-3/8 to 2-1/4 inches.
2) What does the patio/privacy function on the 5303LN actually do?
It is a non-keyed lock. You push or turn the inside button to lock the outside lever, and there is no key cylinder on the outside at all, which is why it suits restrooms, bedrooms, and patio doors rather than any opening that needs key access. Rotating the inside lever releases the lock. Because it is non-keyed, do not spec it where staff need to key in from the corridor side.
3) Will the 5303LN latch into the strike already in my frame?
The latchbolt is a 1/2 inch stainless steel throw, which is the standard cylindrical lockset projection, so an existing cylindrical strike prep will normally accept it. A 1-1/4 inch curved lip strike for a 1-3/4 inch door ships standard, and it is reversible. Other lip lengths are available to order if your frame sits back further than a standard jamb.
4) Do I need to specify handing when ordering the Augusta 5303LN?
No. The 5303LN is non-handed and fully reversible, and the front is universal for both flat and beveled door edges. That means one part number covers left and right hand openings, which is the reason property managers can stock a single item across a mixed building.
5) My doors are prepped for a 2-3/8 inch backset. Can I still use the 5303LN?
Yes, with the right part. The 5303LN ships with a 2-3/4 inch standard backset, and extension links are available to order for 2-3/8 inch, 3-3/4 inch, and 5 inch backsets. Call out the backset on the order rather than assuming the stock unit will reach, since the standard chassis is set for 2-3/4.
6) Can the 5303LN go on a fire rated restroom door?
It is UL/cUL fire rated up to 3 hours and certified to ANSI/BHMA A156.2 Series 4000 Grade 2, so it can be used on rated openings within those limits. The guardbolt deadlocks the latchbolt when the door closes, which is standard on all locking functions in the series. Windstorm certification is also claimed, subject to your local code.
7) I need a Grade 1 privacy-type lock instead of the Accentra 5303LN for a high-traffic restroom. What should I look at?
The Arrow MK02-TA is a Grade 1 cylindrical privacy lock with a fire rating and a 1-3/4 inch to 2 inch door thickness range, though it uses a Tudor knob rather than a lever, so it will not meet lever-required ADA openings. If a lever is required and the traffic is heavy, Corbin Russwin's CL3110 is a Grade 1 vandal-resistant cylindrical lever in a passage function on the same 1-3/4 inch to 2 inch door range - it will not lock, so it suits corridor doors rather than restrooms. The 5303LN Augusta itself is Grade 2 with a patio/privacy function.
8) What is the closest Grade 2 privacy lever lock to the Accentra 5303LN Augusta from another brand?
The Hager 2540 with the Withnell lever is the nearest match: it is a Grade 2 cylindrical privacy lock with a 1-3/8 inch to 2 inch door thickness range, where the 5303LN Augusta is a Grade 2 cylindrical patio/privacy lever adjustable from 1-3/4 inch to 2 inch. Both are lever-operated bored locks for commercial openings. The Augusta carries ANSI/BHMA A156.2 Series 4000 Grade 2 certification and a UL/cUL fire rating up to 3 hours.
9) What finishes does the Augusta 5303LN come in, and which are lifetime finishes?
Ten finishes are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat, and WSP white suede powder coat. PVD is standard on 605 and 606, and a PVD lifetime option is available for 613. For matching existing openings, 626 satin chrome is the usual commercial default.
10) I need passage and privacy levers that match across a floor. Does the 5300LN series cover both?
Yes. The 5303LN is the patio/privacy function in Accentra's 5300LN cylindrical series with the Augusta lever, and the series carries other functions in the same lever design and rose, so closets and corridors can take the matching passage version while restrooms take the 5303LN. Keeping it in one series also keeps the 2-3/4 inch backset and 1/2 inch latch consistent across every door prep.
11) Does the 5303LN come with a cylinder and keys?
No cylinder comes with the 5303LN, because it is a non-keyed privacy function. Keyed functions in the 5300LN series use a brass 6-pin keyed-random cylinder with two keys furnished, and 7-pin is not offered. If you need key access on the door, order a keyed function from the series rather than trying to add a cylinder to this one.
12) If the door does not need to lock at all, what replaces the Accentra 5303LN Augusta?
Use a passage function lever instead. The Falcon B101 is a Grade 2 non-handed cylindrical passage lever, and the Hager 2510 is a Grade 2 passage cylindrical lever with a 1-3/8 inch to 2 inch door thickness range. Both latch without locking, where the 5303LN Augusta is a non-keyed patio/privacy lever that locks from inside.
13) Is the Cal-Royal AG05 a substitute for the Accentra 5303LN Augusta?
No. The Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt, which is a keyed function - the lever is always locked outside and a key is required. The 5303LN Augusta is non-keyed with a patio/privacy function. They serve different openings; matching the grade does not make them interchangeable.
14) Can I use a residential-grade privacy lever instead of the Accentra 5303LN on apartment bathrooms?
The Kwikset 300BRNL RDT Breton is a Grade 3 privacy lever set for 1-3/8 inch to 1-3/4 inch doors, a lighter duty classification intended for residential use. The 5303LN Augusta is Grade 2 and certified to ANSI/BHMA A156.2 Series 4000 with a UL/cUL fire rating up to 3 hours, which matters where the bathroom or bedroom door sits in a rated assembly or in a commercially specified building.
15) What do I order for the inactive leaf if I am using the Accentra 5303LN on the active door?
A dummy trim, not a second lockset. The BEST 7KC Series 1DT is a Grade 2 non-keyed single dummy trim cylindrical lever, and the BEST 9K Series 1DT is the Grade 1 heavy duty equivalent. Neither latches or locks - they are pull trim only, where the 5303LN Augusta is a working patio/privacy cylindrical lever.
16) Is there a lower cost privacy lever if the opening is residential rather than commercial?
The 5303LN is a commercial Grade 2 cylindrical lock. For apartment interiors or light residential use, the Kwikset 300BRNL Breton privacy lever is a Grade 3 privacy set for 1-3/8 to 1-3/4 inch doors. Step down only where traffic is light, since Grade 3 is not intended for the institutional service the 5303LN is rated for.
17) Can the 5303LN be used on a door needing lead shielding for an X-ray room?
No. Lead shielding is not offered on the 5300LN cylindrical series, so it should not be specified for radiology or other shielded openings. Those doors need a lockset the manufacturer builds with a lead-lined chassis.
18) Is there a keyless pushbutton alternative to the Accentra 5303LN Augusta lever?
Yes. The Lockey 2835 is a mechanical pushbutton keyless lever lock with a passage function and ADA compliance, fitting doors from 1-3/16 inch to 2 inch, and the Lockey 1150 is a heavy duty mechanical keypad lever set with adjustable backset for 1-1/8 inch to 2 inch doors. Both control access by code rather than by the inside turn used on the 5303LN Augusta patio/privacy function.
